Large automatic packing machine powder packing machine bag packing machine/Milk Powder
Product Description

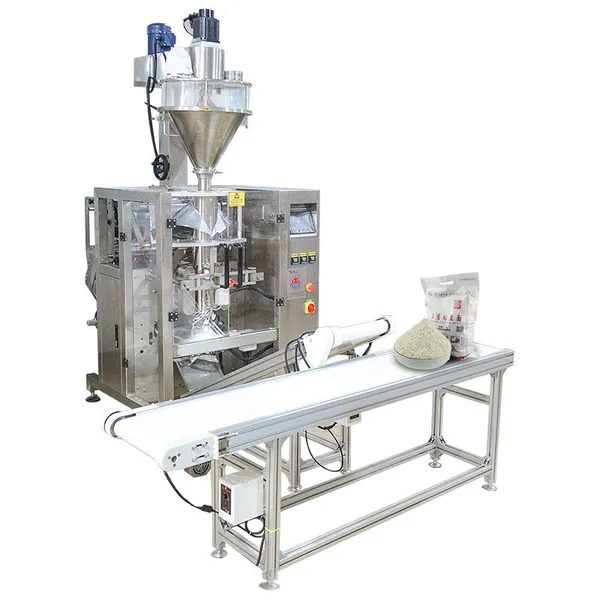

NY-BZJ Large Vertical Automatic Bag Packing Machine
Applications:
This machine is widely used for packing the loose granules, like the coffee, monosodium glutamate, sugar, salt, desiccants, etc. via change the feeder, also suitable for packing powder, jam and liquid.
Main Technical Specifications:
| Type | NY-820 | NY-720 | NY-520 | NY-420 |
| Bag length | 100-500mm(L) | 100-400mm(L) | 100-400mm(L) | 100-300mm(L) |
| Bag width | 250-400mm(W) | 180-350mm(W) | 150-250mm(W) | 100-200mm(W) |
| Max width of roll film | 820mm | 720mm | 520mm | 420mm |
| Packing speed | 5-50bag/min | 5-50bag/min | 5-50bag/min | 5-50bag/min |
| Measuring range | 15L | 10L | 6L | 2.5L |
| Air consumption | 0.65mpa | 0.65mpa | 0.65mpa | 0.65mpa |
| Gas consumption | 0.8m³/min | 0.8m³/min | 0.7m³/min | 0.6m³/min |
| Power voltage | 220V/380V | 220V/380V | 220V/380V | 220V/380V |
| Power | 5KW | 5KW | 4KW | 3KW |
| Overall dimensions(L*W*H,mm) | 1600*1530*2110 | 1480*1380*1850 | 1395*1150*1650 | 1388*1116*1536 |
| Weight(Kg) | 850kg | 700kg | 600kg | 500kg |
Instruction and features:
Chinese or English screen display,(the countries words can according to the requirements of the customers).
Siemens PLC clearly show the working state, handle direction and so on, simple operation directly.
Siemens PLC system provides a stable work procedure.
It can stock ten dispose, fit to the change of the product packing fastly.
Using intellect thermostat, can control the temperature within 2ºC
Adjust the seal position in the touch screen, do not need to stop the machine, deviation and so on
Cooperate with horizontal grain tooth type sealing, packing more firms, also can choose straight grain, twill, cobwebbing and etc.
