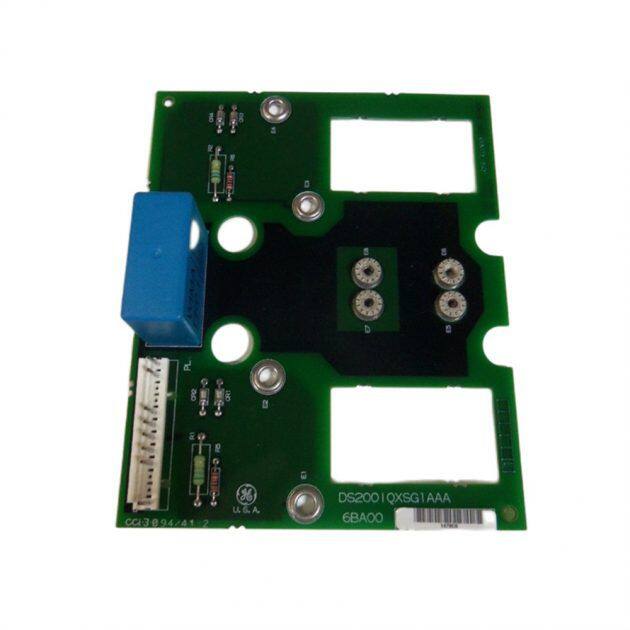

GE DS200IQXSG1AAA is an inverter snubber board (IQXS) dedicated to the Speedtronic Mark V turbine control system. It serves as a core component for voltage spike suppression and surge protection for high-power inverter modules. It integrates a precision snubber circuit, film capacitor energy storage, and a fast discharge loop, and connects to the Mark V inverter drive unit via E1–E8 terminals and an 8-pin connector. It is suitable for high-frequency switching conditions of the 1.2 kV DC bus in turbine control, used to absorb voltage surges during IGBT turn-off, suppress dv/dt spikes, reduce electromagnetic interference (EMI), and prevent breakdown damage to inverter modules. Featuring an industrial-grade ruggedized design, wide temperature tolerance, vibration and shock resistance, and EMC protection, it is a critical protection component for gas/steam turbine speed governing systems in demanding applications such as thermal power plants, combined-cycle plants, and petrochemical captive power stations, and can be directly deployed in control cabinets in Class I Div 2 hazardous areas.
I. Product Positioning and Multi‑Scenario Adaptability
Core Inverter Protection for the Mark V Turbine Control System
Designed specifically for inverter drive units in the Speedtronic Mark V steam turbine control platform, it is a standard plug-in board of the Mark V DS200 series. Adopting a reinforced PCB plug-in structure, it can be embedded into the main board of the inverter cabinet without an additional chassis, and supports seamless cooperation with the Mark V main controller, power modules, and cooling systems. Its primary purpose is to resolve issues including IGBT turn-off spikes, bus surges, and excessive EMI in turbine speed-governing inverter circuits. The snubber response time is less than 1 μs, which does not affect the dynamic response of speed regulation and load distribution, ensuring reliable interlocking for overspeed protection and emergency trip systems (ETS).
Industrial Automation System Integration Compatibility
Seamlessly compatible with the full range of Mark V inverter modules, DS200 series control boards, and DC bus power supplies. Hardwired connection to the power unit is achieved through E1–E8 terminals and an 8-pin PL connector, integrating directly into the power conversion chain of turbine speed control without additional drivers or gateways. It supports direct replacement of aged snubber boards of the same model without modifying cabinet wiring, bus connections, or control logic, significantly reducing system upgrade and maintenance costs. It fits standard 19-inch industrial cabinet DS200 rack mounting and is compatible with some inverter units of the Mark VI system (subject to firmware and wiring verification per GE manuals).
Adaptability to Harsh Conditions and Explosion‑Proof Scenarios
Constructed with an industrial-grade coated PCB, metal mounting brackets, and surge suppression circuitry, it complies with IEC 61000-6-2/4 EMI/EMC standards. It withstands high temperatures, heavy dust, salt spray, and strong electromagnetic interference from field environments such as high-voltage motor groups and excitation systems, and supports industrial wide-temperature operation. Certified to ATEX and IECEx explosion-proof standards, it is suitable for installation in control cabinets in Class I Div 2 hazardous areas (requiring an IP54 or higher sealed cabinet). Onboard high-voltage isolation design provides electrical isolation between the DC bus side and the control side, effectively suppressing common-mode interference and ground loops to avoid malfunctions caused by spike coupling into control circuits.
II. Functions and Technical Advantages
(I) Core Functions
Voltage Surge and dv/dt Suppression
The precision snubber circuit provides a rated surge protection of 1500 V, absorbing transient spikes on the 1.2 kV DC bus during IGBT turn-off and controlling the voltage slew rate (dv/dt) within a safe range to prevent reverse breakdown of modules. Film capacitors (WIMA FKP-1 0.22 μF/1250 V) provide energy storage and fast discharge, forming an RC snubber circuit with resistors, with a response speed of less than 1 μs.
EMI Noise Reduction and Harmonic Suppression
The snubber circuit simultaneously reduces high-frequency noise during switching, minimizing electromagnetic interference to communication links of the Mark V control system such as optical fibers and Ethernet, and complies with the EN 55011 industrial EMI emission standard. It meets electromagnetic compatibility requirements for turbine control rooms without additional filters.
Comprehensive Condition Monitoring and Fault Alarm
Onboard circuits monitor snubber capacitor health, loop resistance, and temperature. In the event of an abnormality, fault signals are uploaded to the DS200 main control board via the PL connector, with event timestamps recorded using the Mark V Toolbox software. Onboard LED indicators (power, snubber loop normal, fault) enable quick on-site status judgment.
Safe Discharge and Maintenance Protection
After power loss, capacitors discharge automatically through built-in discharge resistors, reducing voltage to a safe level within 30 seconds to protect maintenance personnel from electric shock. Hot-plugging of connectors and terminal wiring is strictly prohibited.
(II) Technical Advantages
High Reliability and Long Service Life
Built with industrial-grade components and subjected to environmental stress screening (ESS) including temperature cycling, vibration, and shock testing. With no vulnerable batteries, long-life film capacitors deliver industry-leading MTBF values and support 24/7 uninterrupted operation. The snubber loop uses a purely hardware design with no single points of software failure.
Strong Compatibility and Rapid Integration
Standard DS200 plug-in dimensions (6.25 × 5 inches, approx. 158.8 × 127 mm) with corner mounting holes precisely matching the rack. It connects directly to the system via connectors without additional drivers or configuration, enabling short integration times. It is compatible with different versions of Mark V inverter modules, allowing upgrades without replacing the entire power unit.
Low Loss and Efficient Heat Dissipation
The snubber loop uses low-power resistors and high-efficiency capacitors, generating minimal self-heating and adding no extra cooling load to the cabinet. Optimized PCB layout improves heat dissipation paths, enabling stable operation in cabinet environments up to 60℃ with forced air cooling.
Easy Maintenance and Convenient Fault Localization
Onboard LEDs provide intuitive operating status indication. The Toolbox software reads snubber board health data and fault logs. Maintenance only requires checking for loose connectors and swollen or leaking capacitors, with no complex calibration equipment needed, reducing operation and maintenance workload.
III. Application Scenarios
Thermal Power and Combined‑Cycle Power Plants
Used in inverter units of digital electro-hydraulic (DEH) control systems for gas/steam turbines to absorb IGBT turn-off spikes and protect power modules driving governing valves. It withstands strong electromagnetic interference in electrical distribution rooms and cabinet temperature fluctuations, ensuring stable speed regulation and millisecond-level response of overspeed protection in the DEH system.
Petrochemical and Offshore Platform Captive Power Plants
Serves as the core surge protection for inverter units in gas turbine speed governing systems at refineries, chemical plants, and offshore FPSOs. It operates stably under salt spray, high humidity, and high vibration conditions, is approved for Class I Div 2 hazardous areas, and can be deployed in control cabinets near oil and gas zones.
Legacy Mark V System Upgrades and Retrofits
Directly replaces aged snubber boards of the same model with degraded capacitors without modifying cabinet wiring, busbars, or control logic. After completing wiring verification and discharge testing, the system’s surge suppression capability is restored, avoiding unplanned shutdowns caused by module breakdown.
Turbine Control for Nuclear Power Auxiliary Systems
Protects inverter power units from bus surge impacts in auxiliary speed governing systems for secondary-circuit steam turbines in nuclear power plants. It complies with nuclear-grade EMC and environmental test standards, features strong radiation interference resistance, and ensures stable speed regulation of auxiliary systems.
IV. Technical Parameters
| Item | Specification |
|---|---|
| Model | DS200IQXSG1AAA (GE) |
| Product Type | Inverter Snubber Board (IQXS) for Mark V DS200 Series |
| Interface Configuration | E1–E8 terminals (high-voltage bus/power connection); 1 × 8-pin PL connector (control signal/fault feedback) |
| Rated Surge Protection | 1500 V |
| Compatible Bus Voltage | 1.2 kV DC (corresponding to 690 V AC power side) |
| Film Capacitor Specification | WIMA FKP-1 0.22 μF/1250 V |
| Dimensions | 6.25 × 5 inches (158.8 mm × 127 mm) |
| Operating Temperature | -20℃ ~ 60℃ (industrial wide temperature, cabinet installation) |
| Relative Humidity | 5% ~ 95% (non-condensing) |
| Ingress Protection | IP20 (board only); must be installed in IP54 or higher cabinet |
| Mounting | Mark V DS200 standard rack mounting with metal bracket |
| Supporting Software | Mark V Toolbox (diagnostics, condition monitoring, event log query) |
| Compatible Systems | Speedtronic Mark V Turbine Control System |
