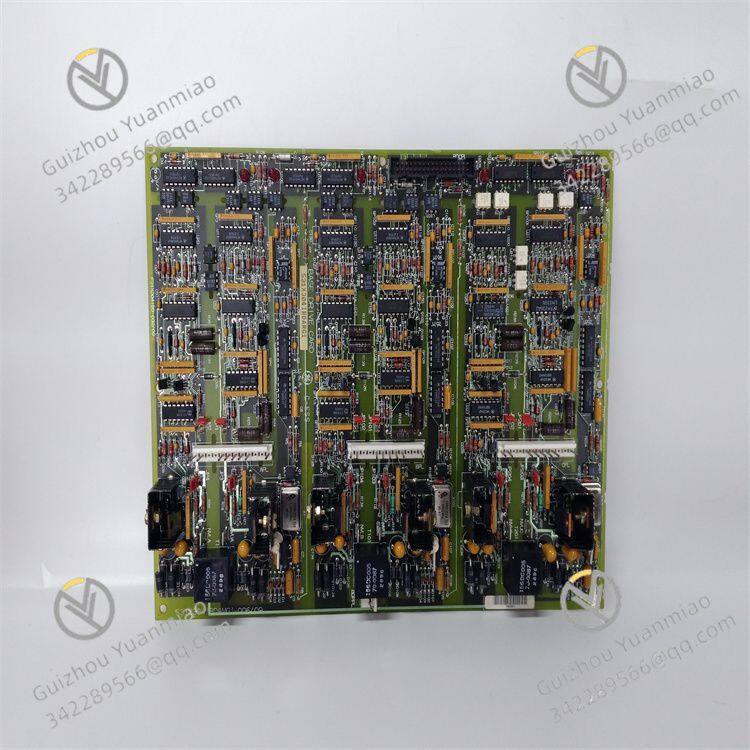

GE 531X304IBDAMG1 is an industrial-grade isolated contact input terminal board, designed specifically as a signal isolation and interface terminal for Speedtronic Mark VI/VIe/VIeS turbine control systems. It integrates 24 dry contact inputs, group isolation protection, 4-millisecond hardware filtering, and surge suppression. It supports simplex and TMR (Triple Modular Redundancy) applications, enabling safe field dry contact signal connection and isolated transmission via barrier-type terminal blocks. Working with VTCC/VCRC processor boards, it provides reliable signal switching and isolation protection for turbine control and safety interlocking in harsh industrial environments such as thermal power, petrochemical, and offshore platforms. Featuring industrial-grade anti-interference performance, easy maintenance, and modular design, it is suitable for installation in control cabinets in Class I Division 2 hazardous areas.
I. Product Positioning and Multi‑Scenario Adaptability
Core Terminal Board for Mark VI Series Turbine Control Systems
Specially designed for Speedtronic Mark VI, Mark VIe, and Mark VIeS turbine control systems, it is a standard component for Terminal Board Contact Input (TBCI) applications. Its core function is to isolate, filter, and interface 24 dry contact input signals, providing clean, interference‑free input signals to the system processor board. Using group isolation, it effectively suppresses cross‑channel interference and supports both simplex and TMR redundant operation. It connects directly to VTCC/VCRC processor boards via molded plug cables, accommodating various dry contact signals in turbine control (e.g., equipment status feedback, fault alarm contacts). This eliminates control misoperation caused by signal interference and ensures reliable performance of safety interlocks such as Emergency Trip System (ETS) and unit speed control.
Industrial Automation System Integration Compatibility
Fully compatible with the full range of Mark VI/VIe/VIeS processor boards and VME racks. It connects to contact excitation voltage sources via JE1 and JE2 plugs, and interfaces flexibly with I/O processors through JR1, JS1, and JT1 connectors (JR1 for simplex systems; JR1+JS1+JT1 for TMR systems). It integrates directly into the turbine control signal acquisition chain without additional drivers or gateways, supporting simultaneous connection of 24 dry contact inputs. Terminals accept #12 AWG wire for convenient and secure wiring. It can directly replace equivalent contact input terminal boards without modifying cabinet wiring or system logic, greatly reducing upgrade and maintenance costs. It fits standard 19‑inch industrial cabinets and aligns with the layout of other system modules.
Harsh Environment and Explosion‑Proof Application Adaptability
Constructed with an industrial‑grade reinforced circuit board and metal mounting bracket, it incorporates noise reduction and surge suppression circuitry, complying with IEC 61000‑6‑2/4 EMI/EMC standards. It effectively resists on‑site high‑frequency noise and transient surge disturbances. It withstands high temperatures, heavy dust, salt spray, and strong electromagnetic interference (e.g., from high‑voltage motors and excitation systems), supporting industrial wide‑temperature operation. Certified to ATEX and IECEx standards, it is suitable for installation in control cabinets in Class I Division 2 hazardous areas, requiring an IP54 or higher sealed cabinet to prevent dust and moisture intrusion. A shielded grounding terminal on each wiring box provides chassis grounding connection for enhanced noise immunity.
II. Functions and Technical Advantages
(I) Core Functions
24 Dry Contact Inputs with Group Isolation
Supports 24 dry contact input channels, arranged in two groups via barrier terminal blocks. Group isolation effectively suppresses common‑mode interference and crosstalk between channels, ensuring accurate signal transmission. Dry contact inputs are compatible with floating 125V DC (100–145V DC) contact excitation power supplies used in turbine control. H2 and H3 variants support lower voltage ranges to meet diverse application requirements.
Hardware Filtering and Surge Protection
Each input channel is equipped with a 4‑millisecond hardware filter to reduce high‑frequency noise interference and maintain stable input signals. Built‑in surge suppression circuitry protects the terminal board and downstream processor boards from transient voltage spikes, preventing equipment damage and signal distortion and improving overall system reliability.
Comprehensive Diagnostics and Fail‑Safe Protection
Monitors excitation voltage; if voltage drops below 40% of nominal, the I/O assembly sets and latches a diagnostic alarm. All inputs default to a de‑energized (fail‑safe) state. Inputs failing diagnostic tests are forced into fail‑safe mode and trigger system alarms. In TMR configuration, mismatched voting between this board and the other two modules immediately generates a fault signal to ensure reliable signal acquisition. Each connector includes an ID device automatically detected by the I/O board, simplifying module management and fault location.
Convenient Wiring and Maintenance
Features plug‑in barrier terminal blocks secured by two screws, allowing removal from the board for easy wiring and service. Multiple onboard LEDs illuminate when current is present, providing clear visual indication of operating status and signal activity. Internal diodes, resistors, and capacitors support current steering, power dissipation, and energy storage, ensuring stable operation.
(II) Technical Advantages
High Reliability and Fault Tolerance
Built with industrial‑grade components and subjected to Environmental Stress Screening (ESS), including temperature cycling, vibration, and shock testing, resulting in industry‑leading Mean Time Between Failures (MTBF). Group isolation and surge protection enhance hardware‑level noise immunity, reducing signal distortion and component failures. Supports TMR redundancy with two additional identical boards to eliminate single points of failure, meeting SIL 3 safety requirements.
Strong Compatibility and Rapid Integration
Requires no external drivers and directly interfaces with Mark VI/VIe/VIeS VTCC/VCRC processor boards and VME racks using standard connectors and cables for streamlined integration. Its form factor matches other system modules, enabling neat 19‑inch cabinet installation, organized wiring, and straightforward expansion. It operates seamlessly with existing I/O modules without modifying control logic, allowing quick integration into existing systems.
Low Power Consumption and Stable Operation
Low standalone power consumption of only 20.6 W imposes minimal load on the system power supply. No internal batteries eliminate risks of leakage and board corrosion, supporting 24/7 uninterrupted operation and reducing unplanned downtime. Hardware filtering and shielded grounding ensure stable, distortion‑free signal transmission even in high electromagnetic interference environments, meeting the high‑precision acquisition demands of turbine control.
Easy Maintenance and Commissioning
Plug‑in terminal blocks simplify wiring, inspection, and replacement without full board removal. Onboard LEDs provide immediate status indication, and system diagnostics enable fast fault identification (e.g., low excitation voltage, signal mismatch). Routine maintenance only requires checking terminal connections and cleaning connectors, with no complex calibration equipment needed, lowering maintenance labor and cost.
III. Application Scenarios
Thermal Power and Combined‑Cycle Power Plants
Used for dry contact signal acquisition in gas/steam turbine control systems, interfacing status and alarm contacts from vibration, thrust, temperature, and other monitoring devices. Isolated and filtered signals are sent to processor boards to support ETS, speed regulation, and sequence control. It withstands strong electromagnetic interference in power plant electrical rooms and cabinet temperature fluctuations, ensuring accurate and stable signal acquisition.
Petrochemical and Offshore Platforms
Applied in turbine control and Fire & Gas Systems (F&GS) at refineries, chemical plants, and offshore FPSOs, acquiring dry contact signals from gas detectors, shutdown valves, and audible/visual alarms for isolation and interfacing. It operates reliably in salt spray, high humidity, and high vibration. Approved for Class I Div 2 hazardous areas (in IP54 cabinets) near hydrocarbon processes, ensuring safe system performance.
Legacy Turbine Control System Retrofits
Directly replaces older Mark VI contact input terminal boards or third‑party equivalents without rewiring, power reconfiguration, or logic changes. After terminal wiring and ID verification, group isolation, hardware filtering, and advanced diagnostics become available, improving signal integrity, noise immunity, and maintainability while reducing lifecycle costs.
Nuclear Power Auxiliary Turbine Control
Used in secondary‑circuit steam turbine auxiliary systems for nuclear power plants, acquiring dry contact status signals from cooling and residual heat removal systems. It meets nuclear‑grade EMC and environmental qualifications with high radiation immunity. Group isolation and fail‑safe operation ensure reliable signal acquisition and prevent auxiliary system malfunctions caused by abnormal signals.
IV. Technical Parameters
| Item | Specification |
|---|---|
| Model | 531X304IBDAMG1 (GE) |
| Type | Isolated contact input terminal board (TBCI) for Mark VI/VIe |
| Input Channels | 24 dry contact inputs, group isolation supported |
| Hardware Filter | 4 ms filter for high‑frequency noise suppression |
| Excitation Voltage | H1: 125V DC (100–145V DC); H2, H3: lower voltage ranges |
| Power Consumption | 20.6 W (board only) |
| Terminal Type | Barrier‑type, pluggable, accepts #12 AWG wire |
| Interfaces | JE1, JE2 (power); JR1, JS1, JT1 (I/O processor) |
| Operating Temperature | -20°C to 60°C (industrial wide temperature) |
| Relative Humidity | 5% – 95% non‑condensing |
| Ingress Protection | IP20 (board only); requires IP54+ cabinet |
| Mounting | Standard 19‑inch industrial cabinet, metal bracket |
| Software | ToolboxST (diagnostics and condition monitoring) |
| Compatible Systems | Speedtronic Mark VI, Mark VIe, Mark VIeS Turbine Control Systems |
