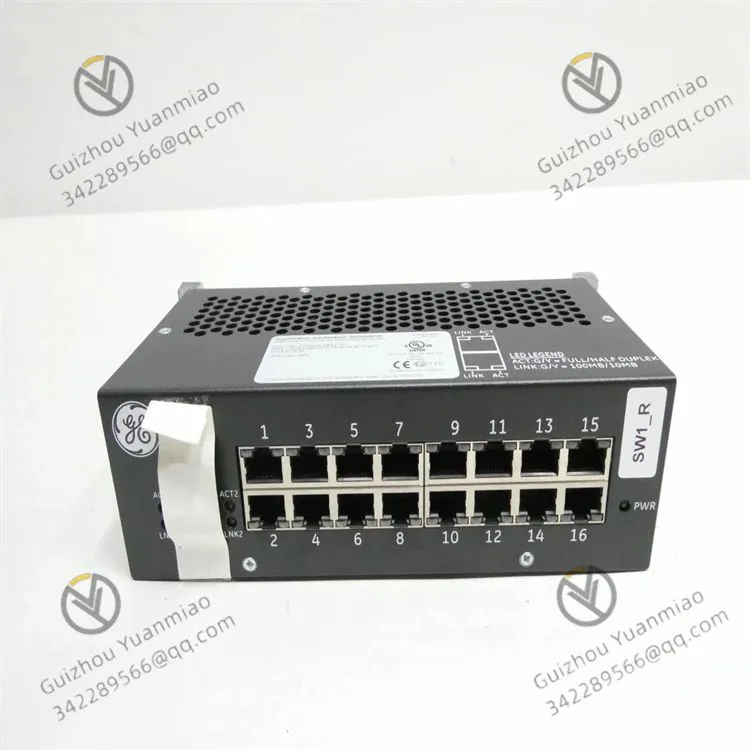

GE IS420ESWAH2A is an industrial-grade unmanaged Ethernet/IONet switch belonging to the GE Mark VIe/Mark VIeS turbine control system. It is specifically designed for real-time industrial control applications. Its core function is to build a stable, low-latency industrial control network for high-speed interconnection and data transmission among controllers, I/O modules, sensors, and other equipment. Featuring industrial anti-interference capability, redundant power supply, and dual copper-fiber media interfaces, it serves as a critical communication component in heavy industrial control systems such as power plants and petrochemical facilities.
I. Product Positioning
Dedicated Switch for Mark VIe Turbine Control Systems: Acting as the network backbone for gas turbine and steam turbine control systems, it provides 8 RJ45 copper ports for connecting local I/O and controllers, and 2 LC multi-mode fiber ports for long-distance networking or anti-electromagnetic interference links. It supports IONet real-time protocol communication to ensure synchronized command and data transmission for unit startup/shutdown and load regulation.
General-Purpose Industrial Ethernet Switch: Plug-and-play with no complex configuration required, making it suitable for hierarchical network deployment in various industrial automation scenarios. The hybrid copper-fiber topology flexibly meets short-distance cabling within plants and long-distance cross-regional transmission needs, especially in harsh industrial environments with strong electromagnetic interference, dust, and vibration.
II. Technical Parameters
Port Configuration: 8 × 10/100Base-TX RJ45 copper ports; 2 × 100Base-FX multi-mode fiber ports (LC connectors). Supports 802.3/802.3u/802.3x, half/full-duplex auto-negotiation, and HP-MDIX automatic polarity detection.
Electrical & Power: Standard 24V DC industrial power input with dual redundant power supplies; data rate auto-adaptive at 10/100 Mbps.
Environmental Specifications: Industrial-grade wide-temperature design, resistant to vibration, shock, and electromagnetic interference (EMI), meeting the operating requirements of heavy industrial sites.
Mounting & Dimensions: Supports DIN-rail mounting with dedicated mounting clips (e.g., 259B2451BVP1); compact structure for dense cabinet layout.
Manuals & Warranty: Corresponding official manuals: GEI-100869A, GEH-66855. Standard 1-year warranty; extended warranty may apply for selected refurbished/tested stock units. LED indicators continuously display port link status, speed, duplex mode, and power status.
III. Product Features
Plug-and-Play, Configuration-Free: Unmanaged design eliminates the need for specialized network engineers, shortening system deployment cycles and reducing operation and maintenance costs.
Dual Copper-Fiber Media for Flexible Networking: Fiber ports avoid signal attenuation and electromagnetic interference in long-distance transmission, while copper ports support high-density connection of local equipment.
Redundant Power Supply + High Reliability: Dual 24V DC inputs, industrial-grade components, and thermal design enable stable operation within a temperature range of -40°C to +70°C.
IONet Protocol Optimization: Deeply optimized for real-time control protocols in the Mark VIe system, delivering low latency and deterministic transmission to ensure response speed in critical applications such as turbine control.
Visual Status Monitoring: Port and power LEDs enable quick fault localization and reduce troubleshooting time.
IV. Application Areas
Power Industry: Mark VIe control system networks in gas turbine and steam turbine power plants, connecting main controllers, valve positioners, sensors, etc.
Petrochemical Industry: Networking for distributed control systems (DCS) in refineries and drilling platforms, providing stable communication in corrosive and electromagnetic-prone environments.
Metallurgy & Heavy Manufacturing: Automated production line networks in steel mills and aluminum smelters, connecting PLCs, inverters, instruments, and other devices.
Water Treatment & Environmental Protection: Remote monitoring and control networks for large-scale wastewater treatment plants and pumping stations, supporting both local and long-distance data transmission.
V. Operating Precautions
Before installation, verify compatibility between the DIN rail and dedicated mounting clips; clip models vary by installation direction. Secure firmly to prevent loosening caused by vibration.
Use only 24V DC power; overvoltage input is strictly prohibited. For improved reliability, connect redundant power supplies to separate circuits.
When connecting fiber optic cables, ensure LC connectors are clean to avoid signal degradation caused by dust. The fiber bending radius must not be less than the manufacturer’s specified value.
RJ45 ports have a rated plug/unplug life of approximately 200 cycles; avoid frequent insertion and removal. Shielded copper cables with proper grounding are recommended to reduce electromagnetic interference.
Hot-plugging of fiber optic cables or power terminals is prohibited. Disconnect power before maintenance to prevent electric shock or equipment damage.
Regularly check LED status indicators, clean dust inside the cabinet, and maintain proper ventilation to avoid performance degradation due to high temperatures.
