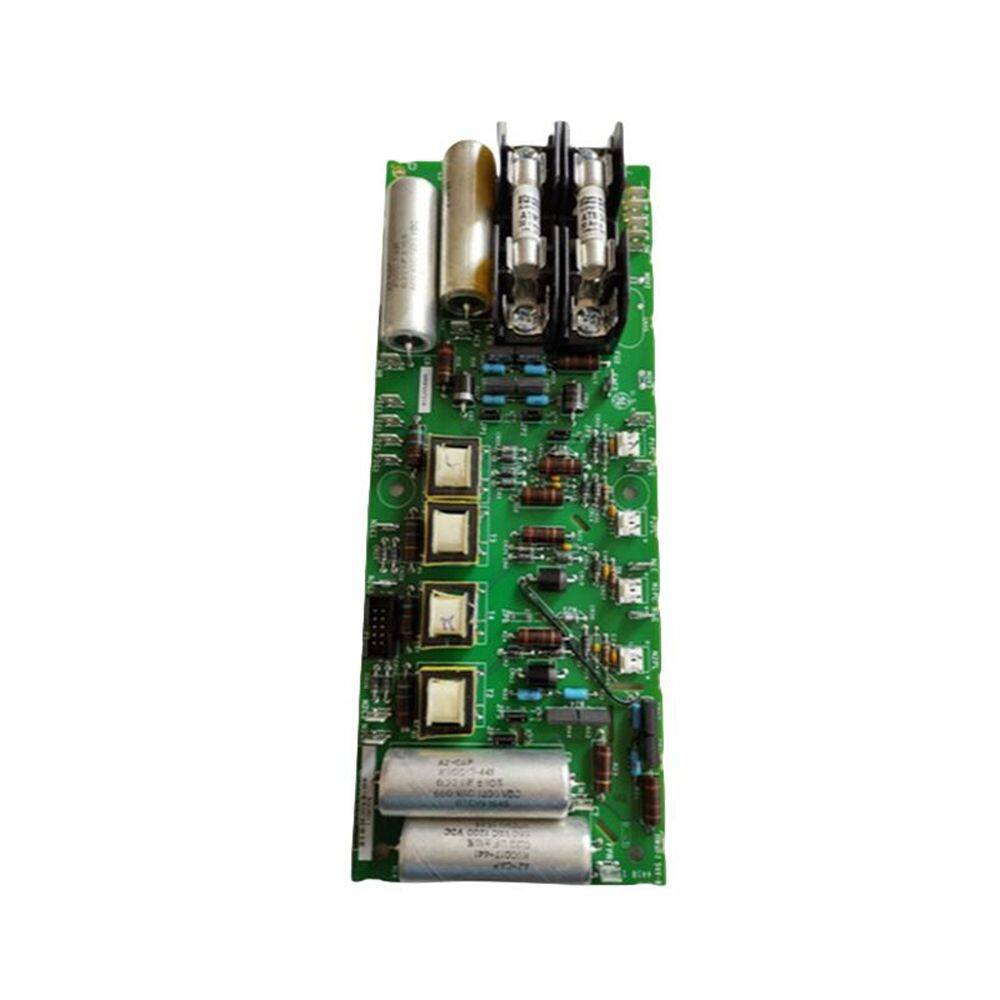

Help CenterGE DS200FSAAG1ABA Field Supply Gate Amplifier Board
Related Products
-
GE DS200ACNAG1ADD Circuit Board CardNegotiableMOQ: 1 Piece -
GE 531X309SPCAJG1 Signal Processor CardNegotiableMOQ: 1 Piece
-
GE IS200TCSAS1ACB Redundancy (TMR) Power Supply ModuleNegotiableMOQ: 1 Piece
-
GE IC698CRE030 Redundant CPU ModuleNegotiableMOQ: 1 Piece
-
GE IC698CMX016-ED Controls the Memory Swap ModuleNegotiableMOQ: 1 Piece
GE DS200FSAAG1ABA is an industrial control module, primarily designated as a dedicated RST Analog I/O board for the Mark V series gas turbine control system. It also functions as a field power amplifier, serving as a critical component for signal processing and power supply within gas turbine control systems. Engineered for harsh industrial environments using high-quality industrial-grade components and a modular structure, the module is mainly responsible for scaling, conditioning, amplifying, and transmitting field analog signals. It also provides stable field supply voltage for generator excitation systems, enabling bidirectional signal interaction between the control system and field equipment to ensure safe, stable, and precise operation of key assets such as gas turbines and generators. Widely used in core industrial sectors including power generation and petrochemicals, it is manufactured in the United States and fully complies with GE’s stringent quality standards and technical specifications for industrial control products.
1 Product Positioning and System Compatibility
1.1 Positioning
GE DS200FSAAG1ABA is primarily designed for the GE Speedtronic Mark V gas turbine control system, integrating dual core functions as an analog I/O board and a field power amplifier. It acts as a key hub connecting field devices with the upper control unit. As an RST Analog I/O board, its main duty is to scale and condition various analog signals acquired from terminal boards installed on I/O cores R1, R2, and R3 (TCQA). As a field power amplifier board, it delivers stable field voltage to power the generator excitation system while amplifying signals to improve system signal stability and accuracy, forming a closed-loop control chain for gas turbines and serving as one of the core supporting components for reliable system operation.
The module features multiple hardware configurations including 5 jumpers, one 10‑pin connector, two fuses, and multiple test points to facilitate on‑site installation, commissioning, and troubleshooting. Dedicated connectors enable seamless signal transmission with other modules in the system. Hardware jumpers allow flexible configuration of signal parameters to adapt to diverse field application requirements, enhancing the module’s versatility and flexibility.
1.2 System Compatibility
GE DS200FSAAG1ABA is fully compatible with the GE Mark V gas turbine control system. It can be seamlessly integrated into standard system racks and operate cooperatively with other modules such as TCQC boards, STCA boards, and terminal boards (TBQA, TBQC, TBQB) without additional adaptation for signal interaction and functional linkage. Specific compatibility features include: transmitting conditioned partial signals to the STCA board via the 3PL connector for routing onto the COREBUS; exchanging signals with the TCQC board via the JE connector, including sending and receiving pulse signals, generator and line signals, relay driver outputs, servo valve driver outputs, and carrying input signals for power supply monitors; and coordinating with the TCPS board in the system to receive power via the 2PL connector and distribute it to core units.
The module adopts a standardized modular design and supports hot‑swap maintenance, allowing installation, replacement, and commissioning without system shutdown, significantly reducing maintenance downtime and improving operational efficiency. It is also compatible with related GE industrial automation control systems and enables data exchange with upper‑level control units such as PLCs to meet integrated monitoring and control demands in industrial sites, supporting expanded applications across various industrial control scenarios.
1.3 Environmental Adaptability
The module features an industrial‑grade ruggedized design. Its circuit board uses high‑quality materials and multi‑layer routing technology, delivering excellent resistance to electromagnetic interference, vibration, and shock. It effectively withstands harsh on‑site conditions including dust, oil contamination, and humidity to ensure long‑term stable operation. Key environmental specifications are as follows:
Operating temperature range: -40°C ~ 70°C, suitable for extreme temperature industrial environments
Relative humidity: 5% ~ 95% (non‑condensing), adaptable to high‑humidity industrial environments
Ingress protection: IP20, intended for cabinet mounting to prevent foreign object damage to internal components
Overcurrent and overvoltage protection to safeguard the module itself, connected excitation systems, and field devices from damage caused by electrical anomalies
The module has a compact physical structure, measuring approximately 16.1 cm × 14.2 cm × 4.8 cm and weighing around 0.65 kg. It uses a PC+ABS outer frame with a 6 mm thick front panel, providing robust construction for easy installation in various industrial control cabinets, saving space while facilitating on‑site handling and removal.
2 Functions and Technical Advantages
2.1 Core Functions
Analog Signal Processing
The module comprehensively processes all types of analog signals required for gas turbine control systems, including LVDT inputs, servo valve outputs, thermocouple inputs, 4–20 mA inputs/outputs, vibration inputs, relay driver outputs, pulse inputs, voltage inputs, and generator and line signals, covering full‑scenario signal demands for gas turbine control. Specifically, it precisely scales and conditions analog signals from terminal boards, filters interference, amplifies weak signals, and converts non‑standard field signals into standard signals recognizable and processable by the upper control system. It conditions critical 4–20 mA input signals such as compressor stall detection and fuel flow pressure signals to provide reliable data support for accurate gas turbine control. Hardware jumpers J1 and J2 select milliamp output circuits; J5 and J6 configure milliamp output ranges (20 mA or 200 mA); J7 enables card testing via an RS232 port; and J8 activates an oscillator, flexibly adapting to diverse signal processing requirements.
Field Power Amplification and Supply
As a field power amplifier board, the module provides stable field supply voltage for continuous, reliable powering of the generator excitation system to ensure normal operation. It also amplifies field input signals to improve stability and accuracy, avoiding control deviations caused by signal attenuation or distortion. Two built‑in 30 A, 60 V fast‑acting fuses deliver effective overcurrent and overvoltage protection, preventing damage to the excitation system and the module itself from electrical faults and enhancing overall system safety and reliability.
Signal Transmission and Interaction
Dedicated connectors enable efficient signal transmission with other system modules:
3PL connector transmits conditioned signals to the STCA board for aggregation onto the system bus
JE connector exchanges signals with the TCQC board, handling transmit/receive functions for generator and line signals, as well as outputs for servo valve drives and relay drives
Interfaces with terminal boards: JB for 4–20 mA I/O signals, JF for LVDT/LVDR position inputs, and JG for ±10 VDC and vibration inputs, forming a complete signal transmission chain
Fault Diagnosis and Maintenance Support
The module includes multiple test points to assist on‑site maintenance personnel in functional verification and troubleshooting. Standardized modular design and clear hardware labeling simplify installation, commissioning, and maintenance. Hot‑swap capability allows module replacement without system shutdown, minimizing production disruption. Built‑in protection mechanisms continuously monitor circuit conditions and trigger protection during overcurrent or overvoltage events, while supporting rapid fault localization to improve troubleshooting efficiency.
2.2 Technical Advantages
High Reliability and Stability
Manufactured to GE’s strict industrial‑grade production and quality control standards using premium electronic components, the module offers exceptional immunity to interference and environmental resilience, enabling long‑term continuous stable operation in harsh industrial environments such as power and petrochemical facilities with a long mean time between failures. Integrated overcurrent, overvoltage protection, and redundant design prevent system shutdown due to single points of failure, ensuring continuous and reliable control processes. The multi‑layer circuit board enhances routing flexibility and functional integration, further strengthening operational stability.
Flexible Configuration and High Versatility
The module supports processing and conversion of multiple analog signal types to match gas turbine control requirements. Hardware jumpers allow flexible configuration of output current ranges, signal circuits, and other parameters for diverse field scenarios. It is compatible with the GE Mark V control system and related industrial automation systems, enabling seamless integration into existing architectures without major modifications and reducing implementation costs. Modular construction supports system expansion and upgrades, improving versatility and reusability.
Easy Installation and Maintenance
Its compact form factor and standard rack mounting simplify installation in various industrial control cabinets while saving space. Hot‑swap capability enables uninterrupted maintenance, greatly reducing downtime. Clear labeling, multiple test points, and straightforward jumper layout allow maintenance staff to quickly complete installation, commissioning, troubleshooting, and replacement, lowering labor and maintenance costs. Modularity also streamlines spare parts inventory and management, boosting maintenance efficiency.
Precise Control for Core Applications
High‑precision signal scaling and conditioning effectively filter interference and ensure accurate signal transmission, providing dependable data for precise gas turbine control. Dedicated stable power supply for generator excitation systems supports reliable operation, improving the stability and efficiency of gas turbines and generators. The module covers full‑scenario signal needs for gas turbine control and accurately processes critical parameter signals to safeguard equipment safety.
3 Typical Applications
3.1 Power Industry
As a core component of the GE Mark V gas turbine control system, the module is widely deployed in power facilities including thermal power plants and gas‑fired power plants, primarily in gas turbine and generator control systems. Applications include processing LVDT position signals, servo valve control signals, thermocouple temperature signals, and vibration signals for precise control over gas turbine startup, operation, regulation, and shutdown. It supplies stable field voltage to the generator excitation system for proper excitation and improved power generation efficiency. By conditioning critical signals such as compressor stall detection and fuel flow pressure, it promptly identifies abnormal operating conditions and initiates protection mechanisms to prevent equipment damage and unplanned outages, ensuring safe, stable, and efficient operation of power generation units.
3.2 Petrochemical Industry
In petrochemical plants, natural gas processing facilities, and similar installations, the module is used in control systems for gas turbines and associated auxiliary equipment, operating reliably in harsh environments including high temperatures, high humidity, oil contamination, and flammable/explosive atmospheres. It processes field analog signals for accurate control of gas turbines, compressors, and other equipment to maintain continuous petrochemical production. Stable power amplification and supply ensure proper operation of excitation systems and field devices, avoiding production interruptions caused by signal distortion or unstable power supplies and supporting safe and efficient petrochemical operations.
3.3 Other Industrial Automation Scenarios
Beyond power and petrochemicals, the module can be applied in other industrial automation scenarios requiring precise analog signal processing and stable power delivery, including control systems for large rotating and power equipment in metallurgy, papermaking, textiles, wastewater treatment, and other industries. It functions as an analog I/O board or field power amplifier to process various analog signals, support precise equipment control, maintain system stability, and meet industry‑specific industrial control requirements.
4 Technical Specifications
| Item | Details |
|---|---|
| Model & Part Number | Model: GE DS200FSAAG1ABA; Type: RST Analog I/O Board, Field Power Amplifier Board |
| Product Series | GE Speedtronic Mark V Gas Turbine Control System |
| Core Functions | Analog signal scaling, conditioning, amplification; field power supply (generator excitation); overcurrent/overvoltage protection; signal transmission and interaction |
| Supported Signal Types | LVDT input, servo valve output, thermocouple input, 4–20 mA I/O, vibration input, relay driver output, pulse input, voltage input, generator and line signals |
| Connector Configuration | 1 × 10‑pin connector, 3PL connector (for STCA board), JE connector (for TCQC board) |
| Hardware Configuration | 5 × hardware jumpers, 2 × fuses (30 A, 60 V fast‑acting), multiple test points |
| Input Voltage Range | 20.4 VDC ~ 30 VDC |
| Operating Temperature | -40°C ~ 70°C |
| Relative Humidity | 5% ~ 95% (non‑condensing) |
| Physical Specifications | Dimensions: approx. 16.1 cm × 14.2 cm × 4.8 cm; Weight: approx. 0.65 kg; Frame material: PC+ABS |
| Ingress Protection | IP20 (cabinet mounting) |
| Mounting | Mark V series standard rack mounting, hot‑swap supported |
| Country of Origin | United States |
| Special Features | Modular design, overcurrent/overvoltage protection, configurable hardware jumpers, multiple test points, high anti‑interference capability |
