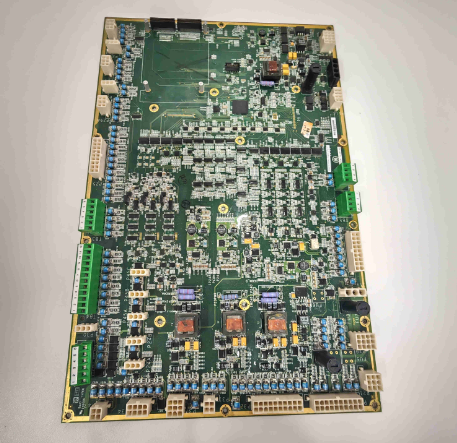

Help CenterGE IS200WETAH1AEC Wind Energy Terminal Assembly
Related Products
-
GE IS200TSVCH1AJE Servo Input/Output Terminal BoardNegotiableMOQ: 1 Piece -
GE DS200FSAAG1ABA Field Supply Gate Amplifier BoardNegotiableMOQ: 1 Piece
-
GE DS200ACNAG1ADD Circuit Board CardNegotiableMOQ: 1 Piece
-
GE 531X309SPCAJG1 Signal Processor CardNegotiableMOQ: 1 Piece
-
GE IS200TCSAS1ACB Redundancy (TMR) Power Supply ModuleNegotiableMOQ: 1 Piece
GE IS200WETAH1AEC is a turbine control interface board designed for the Mark VIe series distributed control system. As the core signal hub between the control system and gas/steam turbine hardware, it is responsible for high-precision process data acquisition, control command output, and real-time status monitoring. It serves as a core interface component ensuring safe, efficient, and stable operation of turbines in critical process industries such as power generation and oil & gas.
I. Product Positioning and System Compatibility
Core Positioning: Core Signal Interface Unit for Turbine Control
The IS200WETAH1AEC is a dedicated I/O interface board for the Mark VIe control system, specializing in high-speed, isolated, and reliable processing of multiple signal types for industrial turbines (gas turbines, steam turbines). It accurately connects field sensors (temperature, pressure, speed, vibration) and actuators (fuel valves, governors, protective solenoid valves), enabling millisecond-level output of control commands and real-time closed-loop feedback of process parameters. This meets the stringent requirements of turbine control for high real-time performance, high reliability, and strong anti-interference capability.
System Compatibility
Main Control System: Fully compatible with GE Speedtronic Mark VI / Mark VIe control systems. It can work with daughter boards such as IS210BPPBH2C and supports the standard VME rack architecture.
Bus Communication: Supports the dedicated high-speed backplane bus for Mark VIe with low data transmission latency, ensuring real-time performance of the control loop.
Mounting Specification: Standard 6U Eurocard design, compatible with Mark VIe series standard chassis. Supports multi-board cascading expansion and hot-swappable maintenance.
Electrical Compatibility: Supports 24V DC industrial field signals with opto-isolation between channels, effectively suppressing strong on-site electromagnetic interference.
Environmental Adaptability
Operating Temperature: -40°C ~ +70°C
Protection Design: Industrial-grade conformal coating, resistant to harsh conditions including dust, oil, high humidity, and salt spray.
EMC Compliance: Meets IEC 61000-6-2/4 EMC standards. Vibration and shock resistance comply with requirements of complex environments such as power plants and petrochemical facilities.
Reliability: Mean Time Between Failures (MTBF) > 500,000 hours, suitable for long-term continuous operation of critical equipment.
II. Functions and Technical Advantages
Core Functions
Multi-channel Signal Acquisition
Analog Inputs (AI): Integrates multiple analog input channels supporting standard 4–20 mA and 0–10 V signals for process parameter acquisition including temperature, pressure, flow, and level.
Digital Inputs (DI): 24V DC, sourcing/sinking universal, used for limit switches, status feedback, and safety interlock signal acquisition.
High-precision Sampling: 16-bit ADC with sampling rate ≥ 1 kHz, ensuring accurate capture of dynamic process data.
Control Signal Output
Digital Outputs (DO): 24V DC transistor/relay outputs with single-channel drive capacity ≥ 1A, directly driving actuators such as solenoid valves, relays, and indicator lights.
Analog Outputs (AO): 4–20 mA signal output for controlling continuously regulated devices such as fuel control valves and speed governing actuators.
Response Speed: Digital output response ≤ 1 ms; analog output update cycle ≤ 5 ms, meeting the rapid control requirements of turbines.
High-speed Communication and Diagnostics
Onboard 4 transformers, 6 terminal blocks, 25+ test points, and multiple jumper switches for signal commissioning and loop testing.
45+ connectors (including male/female connectors, RJ45, terminal strips) for reliable connection to sensors, actuators, and the system backplane.
Real-time Diagnostics: Supports self-diagnosis for open circuits, overcurrent, overvoltage, and module faults. Fault information is uploaded to the main control system in real time with LED status indication.
Protection Features: Input overvoltage/reverse polarity protection, output short-circuit/overcurrent protection, and 2.5 kV AC opto-isolation between channels.
Technical Advantages
High Real-time Performance: Microsecond-level signal processing and command output, matching the strict low-latency demands of dynamic turbine control.
High Reliability: Industrial-grade components, redundant design, and strong electrical isolation adapt to extreme environments and ensure uninterrupted operation of critical control loops.
Flexible Configuration: Supports software configuration of channel types, signal ranges, and fault thresholds without hardware jumpers, adapting to different turbine models and control logics.
Easy Maintenance: Standardized design, hot-swappable capability, and comprehensive diagnostics and test points reduce difficulty in installation, commissioning, and troubleshooting.
Full-scenario Coverage: Supports both analog/digital and input/output signals. A single board satisfies most I/O requirements of turbines, simplifying system architecture.
III. Typical Applications
1. Power Generation Industry (Primary Application)
Gas Turbine Control: Fuel flow regulation, closed-loop speed control, exhaust temperature monitoring, flameout protection, and start/stop sequence control.
Steam Turbine Control: Main steam valve/control valve operation, extraction pressure regulation, vibration and displacement monitoring, overspeed protection, and emergency trip control.
Power Plant Auxiliary Systems: Control of feedwater pumps, fans, and compressors, as well as status monitoring and interlock protection for auxiliary systems.
2. Petrochemical and Industrial Energy
Control of heating furnaces and compressors in refineries
Control of long-distance pipeline pump stations and liquefied natural gas (LNG) facilities
Control of blast furnace fans and oxygen generation units in metallurgical industry
3. Other Industrial Turbine Applications
Control of aero-engine test benches
Control of industrial drive turbine units
Control of combined heat and power (CHP) distributed energy systems
IV. Technical Specifications
| Item | Specifications |
|---|---|
| Model | GE IS200WETAH1AEC (WETA) |
| Product Type | Mark VIe Turbine Control Interface Board |
| Signal Configuration | Multi-channel analog input/output + multi-channel digital input/output (integrated I/O board) |
| Analog Input | 16-bit ADC, 4–20 mA / 0–10 V, sampling rate ≥ 1 kHz |
| Digital Input | 24V DC, sourcing/sinking universal, response time ≤ 10 μs |
| Analog Output | 4–20 mA, 16-bit DAC, update cycle ≤ 5 ms |
| Digital Output | 24V DC, ≥ 1A per channel, short-circuit / overcurrent protection |
| Isolation Voltage | 2.5 kV AC between channels (opto-isolation) |
| Communication Interface | Mark VIe high-speed backplane bus |
| Power Supply | 24V DC (backplane-powered) |
| Power Consumption | Typical 25W |
| Physical Dimensions | Standard 6U Eurocard (approx. 160mm × 100mm) |
| Weight | Approx. 0.7 kg |
| Operating Temperature | -40°C ~ +70°C |
| Protection | Industrial-grade PCB conformal coating |
