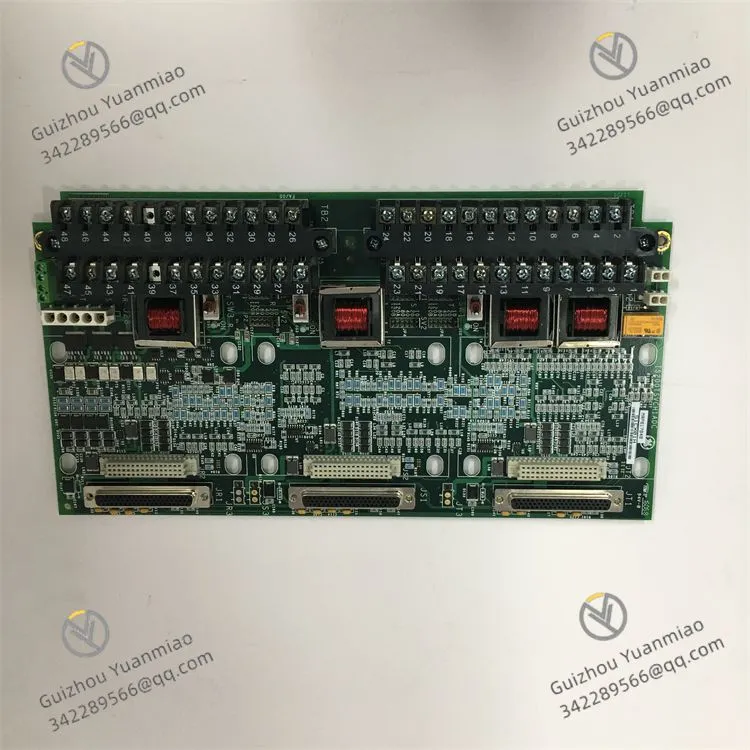

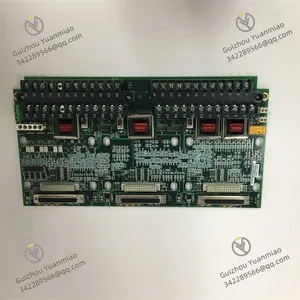

Help CenterGE IS200TSVCH1AJE Servo Input/Output Terminal Board
Related Products
-
GE DS200FSAAG1ABA Field Supply Gate Amplifier BoardNegotiableMOQ: 1 Piece -
GE DS200ACNAG1ADD Circuit Board CardNegotiableMOQ: 1 Piece
-
GE 531X309SPCAJG1 Signal Processor CardNegotiableMOQ: 1 Piece
-
GE IS200TCSAS1ACB Redundancy (TMR) Power Supply ModuleNegotiableMOQ: 1 Piece
-
GE IS215VCMIH2CA VME Bus Communication Interface CardNegotiableMOQ: 1 Piece
GE IS200TSVCH1AJE is a high-performance analog I/O board (RST Analog I/O Board) designed and manufactured by General Electric (GE), which is mainly affiliated to the GE Speedtronic Mark V series control system and is a core component of the gas turbine control system. As a key signal processing unit in the industrial automation control system, it is responsible for scaling, conditioning and transmitting various analog signals collected from the on-site terminal board, realizing the bidirectional interaction of signals between the control system and on-site equipment. It adopts high-quality industrial-grade components and advanced electronic design, with excellent stability, anti-interference ability and compact structure, and is widely used in power generation, petrochemical and other industrial fields, providing reliable signal processing support for the safe and stable operation of gas turbines and other key equipment.
I. Product Positioning and System Compatibility
Core Positioning: Mark V Series Analog I/O Board for Gas Turbine Control
GE IS200TSVCH1AJE is a dedicated analog I/O board for the GE Mark V series gas turbine control system, which undertakes the core task of analog signal processing in the control system. Its main function is to scale and condition a variety of analog signals read by the terminal boards installed on the I/O cores R1, R2 and R3 (TCQA), convert the on-site analog signals into standard signals that can be recognized and processed by the control system, and at the same time transmit the control signals of the system to the on-site execution equipment, forming a closed-loop control of the gas turbine control system.
The module supports a variety of analog signal types, including LVDT input, servo valve output, thermocouple input, 4-20mA input and output, vibration input, relay driver output, pulse input, voltage input, as well as generator and line signals, which can fully meet the signal processing needs of the gas turbine control system. It is equipped with a 3PL connector and a JE connector: the 3PL connector is used to write part of the processed signal to the STCA board, and the JE connector is used to send and receive generator and line signals with the TCQC board, ensuring the smooth transmission of signals between different modules of the system. In addition, the board can also scale and condition 4-20mA input signals such as compressor stall detection signals and fuel flow pressure signals, providing accurate data support for the stable operation of the gas turbine.
System Compatibility and Configuration
GE IS200TSVCH1AJE is fully compatible with the GE Speedtronic Mark V series gas turbine control system, and can be seamlessly integrated with other modules of the Mark V system (such as TCQC board, STCA board, terminal board, etc.), forming a complete gas turbine control solution. It is installed in the standard rack of the Mark V system, adopts a standardized interface design, and supports fast installation and hot-swappable maintenance, which reduces the impact on the system during maintenance and improves the efficiency of operation and maintenance.
The module is designed with a compact structure, which is easy to install in various industrial control cabinets and saves installation space. It supports a wide input voltage range, can adapt to different power supply environments on site, and ensures stable operation in various application scenarios. The module has strong data processing capability, can quickly respond to and process complex control tasks, and ensure the real-time performance of signal processing, which is crucial for the precise control of gas turbines. It is also compatible with related industrial automation systems, and can realize data interaction with PLC and other control systems, meeting the needs of integrated monitoring and control of industrial sites.
Environmental Adaptability
Adopting an industrial-grade reinforced design, the module uses high-quality materials and advanced manufacturing processes, and the circuit board adopts a multi-layer design, which supports greater wiring flexibility and function integration, ensuring the stability and reliability of the circuit board. It has excellent anti-electromagnetic interference, anti-vibration and anti-shock performance, can effectively resist dust, oil pollution and humidity, and can stably operate in harsh industrial environments such as power plants and petrochemical facilities.
Referring to the parameter standards of the same series of GE modules, the operating temperature range of the module is -40°C to +85°C, the relative humidity is 5% to 95% (non-condensing), the rated voltage is 24VDC, and the typical power consumption is 10W; the physical size is approximately 13.39 inches × 8.5 inches × 2.17 inches, and the weight is about 2.2 pounds, which is light and compact, facilitating on-site installation and disassembly. It has passed strict production and quality control processes to ensure that each module can meet the highest industrial standards and adapt to long-term continuous operation in industrial environments.
II. Core Functions and Technical Advantages
Core Functions
Multi-type Analog Signal Processing: It can scale and condition a variety of analog signals, including LVDT input, servo valve output, thermocouple input, 4-20mA input/output, vibration input, relay driver output, pulse input, voltage input, generator and line signals, covering most analog signal types required by gas turbine control systems. It can accurately process key signals such as compressor stall detection signals and fuel flow pressure signals, ensuring the accurate control of the gas turbine.
Signal Transmission and Interaction: Through the 3PL connector and JE connector, it realizes the signal transmission and interaction between the module and other boards (STCA board, TCQC board) of the Mark V system, ensuring the smooth operation of the entire control system. It can convert the processed analog signals into standard signals and transmit them to the upper control unit, and at the same time transmit the control instructions of the upper system to the on-site execution equipment, realizing closed-loop control.
High-precision Signal Conditioning: Equipped with high-precision signal conditioning circuits, it can filter, amplify and convert the input analog signals, eliminate signal interference, improve signal accuracy, and ensure that the control system can obtain real and reliable on-site data, providing a basis for the precise control of gas turbines.
Stable Operation Guarantee: The module has a built-in over-current, short-circuit and reverse connection protection mechanism, which can effectively protect the module itself and the connected equipment from damage caused by circuit abnormalities. It has strong anti-interference ability, can work stably in complex industrial electromagnetic environments, and avoid signal distortion and system failure caused by interference.
Technical Advantages
High Compatibility: Fully compatible with GE Mark V series gas turbine control system, can be seamlessly integrated with other modules of the system, no additional adaptation is required, and the system configuration is simple and convenient. It is also compatible with related industrial automation systems, and has strong versatility and expansibility.
High Reliability: Adopt high-quality industrial-grade components and advanced manufacturing processes, go through strict quality control procedures, and have excellent stability and service life. The multi-layer circuit board design and complete protection functions ensure that the module can operate stably for a long time in harsh industrial environments, reducing the frequency of faults and maintenance workload.
Compact and Easy to Maintain: The compact design makes it easy to install in various industrial control cabinets, saving installation space. It supports hot-swappable maintenance, and the standardized interface design facilitates quick installation and disassembly, reducing maintenance downtime and improving operation and maintenance efficiency.
Strong Signal Processing Capability: It has powerful data processing capability, can quickly respond to and process complex analog signals, and ensure the real-time and accuracy of signal processing, which meets the high-precision control requirements of gas turbines and other key equipment. It supports a variety of signal types, and can meet the diverse signal processing needs of the control system.
III. Typical Application Scenarios
Power Generation Industry (Core Scenario)
Widely used in gas turbine control systems of thermal power plants, gas-fired power plants and other power generation facilities, it is responsible for processing various analog signals of gas turbines, such as fuel flow pressure signals, compressor stall detection signals, vibration signals, and thermocouple temperature signals. It provides accurate and reliable signal processing support for the start-up, operation, adjustment and shutdown of gas turbines, ensuring the safe, efficient and stable operation of gas turbine units and power generation systems.
Petrochemical Industry
In petrochemical plants, it is used in the control system of gas turbines and related auxiliary equipment, processing analog signals of on-site equipment, realizing the precise control of equipment, and ensuring the smooth progress of petrochemical production processes. It can adapt to the harsh working environment of petrochemical plants (high temperature, high humidity, oil pollution, etc.), and maintain stable operation, providing a reliable guarantee for production safety.
Other Industrial Automation Scenarios
As a high-performance analog I/O board, it can also be applied to other industrial automation systems that require analog signal processing, such as industrial robot control systems, large-scale servo system control, and other fields, providing stable and reliable signal processing and transmission functions, and promoting the stable operation of industrial automation equipment.
IV. Technical Specifications
Parameter Name |
Parameter Details |
Model & Part Number |
Model: GE IS200TSVCH1AJE; Product Type: Analog I/O Board (RST Analog I/O Board) |
Product Series |
GE Speedtronic Mark V Series Control System |
Core Function |
Analog signal scaling, conditioning and transmission; compatible with multiple analog signal types |
Supported Signal Types |
LVDT input, servo valve output, thermocouple input, 4-20mA I/O, vibration input, relay driver output, pulse input, voltage input, generator and line signals |
Connectors |
3PL connector (for connecting STCA board), JE connector (for connecting TCQC board) |
Rated Voltage |
24VDC (refer to the same series module parameters) |
Power Consumption |
Typical 10W (refer to the same series module parameters) |
Operating Temperature |
-40°C ~ +85°C (refer to the same series module parameters) |
Relative Humidity |
5% - 95% (non-condensing) (refer to the same series module parameters) |
Physical Specifications |
Dimensions: approx. 13.39×8.5×2.17 inches; Weight: approx. 2.2 pounds (refer to the same series module parameters) |
Mounting Mode |
Mark V series standard rack mounting, supports hot-swappable |
Manufacturing Origin |
USA |
Special Features |
Compact design, multi-signal compatibility, high anti-interference, easy maintenance, complete protection functions |
