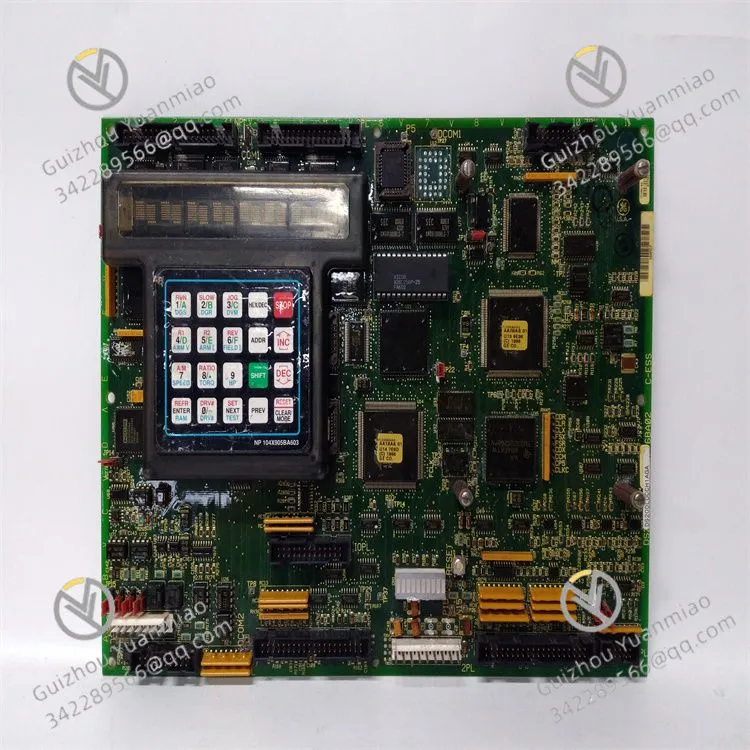

GE DS200LDCCH1AKA (LDCC, Line Drop Compensator & LAN Communication Board) is a core drive control and LAN communication board under GE's Mark V (Speedtronic) and DIRECTO-MATIC 2000 series drive/excitation systems, also a key enhanced interface unit for the EX2000/EX2100 digital excitation platform. It integrates multi-channel signal conditioning, high-speed drive control, redundant LAN communication and precision harmonic suppression functions, serving as the central processing and communication hub between the main control system, generator PT/CT signals and thyristor rectifier bridges. With conformal coating PCB, quadruple microprocessor architecture and industrial-grade EMC protection, it is widely used in gas turbines, steam turbines, generators and large motor drive systems in power generation, petrochemical and metallurgical industries, ensuring stable and safe operation of critical power and drive equipment.
I. Product Positioning and Multi-Scenario Adaptability
Core Positioning: Integrated Drive Control & Communication Gateway
As a key component of Mark V and EX2000/EX2100 systems, DS200LDCCH1AKA undertakes dual core tasks: on the one hand, it processes drive control logic, line drop compensation, current harmonic filtering and thyristor trigger pulse generation, realizing precise regulation of generator excitation current and motor speed/torque; on the other hand, it acts as a redundant LAN communication gateway, responsible for real-time data exchange between the field drive/excitation unit, upper-level Speedtronic Mark V/VI DCS and HMI, supporting multi-bus protocol conversion and fault data uploading.
The board adopts a quad-microprocessor architecture (LCP, DCP, MCP, CMP) and conformal coating protection, eliminating single-point failures in key processing and communication links. It is not only the control core of the drive/excitation system, but also the reliable communication bridge connecting the field layer and the monitoring layer.
Full-Scenario System Compatibility
It is fully compatible with GE Mark V control framework, DIRECTO-MATIC 2000 series drives, EX2000/EX2100 digital excitation systems, and can be seamlessly integrated with main control modules such as DS200UCIAH1 and various I/O expansion modules. It supports cascade configuration of dual redundant boards, adapts to the redundancy requirements of large power plants and petrochemical sites, and can realize protocol conversion and data interaction with mainstream DCS/SCADA systems.
It supports multiple industrial communication protocols including Genius Bus, C-bus, RS-485, DLAN Ethernet, and Modbus RTU/TCP. It can be configured, diagnosed and maintained through GE’s dedicated Speedtronic software tools. It is suitable for both new system construction and legacy system upgrades, and can directly replace the old LDCC boards of the same series without major modifications to the cabinet wiring and control logic.
Extreme Environment Adaptability
It adopts a 7-layer PCB with military-grade conformal coating, fully shielded anti-interference structure and reinforced connector design, passing IEC 61000 EMC certification. It has excellent anti-vibration (10Hz-2000Hz, 10g) and anti-shock (50g, 11ms) performance, which can effectively suppress common-mode noise, surge and high-frequency interference on industrial sites, ensuring stable operation in complex electromagnetic environments.
The wide operating temperature range covers -40°C to 70°C, and the storage temperature range is -55°C to 85°C, with relative humidity of 5% to 95% (non-condensing). It can adapt to harsh working conditions such as high temperature, high humidity, strong vibration, salt spray and dust in power plants, petrochemical plants and metallurgical workshops. The board meets IP20 protection level, suitable for installation in sealed industrial control cabinets to prevent dust and small foreign objects from entering.
The power interface is equipped with overcurrent, overvoltage and reverse polarity protection functions, supporting ±15% DC voltage fluctuation adaptation, avoiding module damage caused by power supply abnormalities, and further improving the stability in harsh environments.
II. Core Functions and Technical Advantages
Core Functions
High-Precision Drive & Excitation Control: It provides line drop compensation, current harmonic suppression, closed-loop speed/torque regulation and precise thyristor trigger pulse output. It can process weak analog signals from PT/CT in real time, realize fast dynamic response of excitation current, and ensure stable voltage output of the generator; at the same time, it supports multi-stage overload protection and locked-rotor protection for motors/drives.
Redundant LAN Communication & Multi-Protocol Conversion: Equipped with dual redundant DLAN Ethernet ports and multi-channel RS-485/Genius Bus interfaces, supporting automatic link switching with reconfiguration time ≤50ms. It can convert between multiple industrial protocols, realize real-time transmission of control data, status information and fault records, and support remote monitoring and software online upgrades.
Quad-Processor Parallel Processing & Diagnostics: The built-in four dedicated microprocessors (LCP: LAN Control Processor; DCP: Drive Control Processor; MCP: Motor Control Processor; CMP: Co-processor) work in parallel, which can handle complex control algorithms and high-concurrency communication data at the same time. It has built-in comprehensive self-diagnosis functions, which can monitor the status of each functional module, record fault codes and historical data, and support predictive maintenance and rapid fault location.
Hot Swap & Redundant Backup: The board supports hot swapping in redundant configurations, allowing replacement and maintenance without interrupting the system operation, minimizing production downtime. Key parameters and program codes are stored in dual redundant flash memory and EEPROM, preventing data loss caused by single memory failure.
Technical Advantages
High Reliability & Long Service Life: Using high-quality industrial-grade components and undergoing strict environmental stress screening tests, the mean time between failures (MTBF) is extremely high. The conformal coating can effectively prevent moisture, dust and chemical corrosion, extending the service life in harsh environments.
Easy Integration & Maintenance: It adopts a compact modular design, supporting standard rack slot mounting. The front panel is equipped with LED indicator lights for power, communication status and faults, which can intuitively display the operating status and facilitate quick troubleshooting by operation and maintenance personnel.
Powerful Data Processing & Fast Response: The parallel processing architecture of four microprocessors ensures that the control logic execution cycle is ≤1ms, and the communication data transmission delay is low, which can quickly respond to field events and control instructions, ensuring the real-time performance of the drive/excitation system.
Strong Compatibility & Scalability: It is fully compatible with Mark V, EX2000/EX2100 and DIRECTO-MATIC 2000 platforms, and can be flexibly matched with different I/O modules and main control units. It supports function expansion through software configuration, adapting to the changing needs of industrial control systems.
III. Typical Application Scenarios
Power Generation Industry
In gas turbine and steam turbine generator sets, it acts as the core of the excitation and drive control system: on the one hand, it processes the voltage and current signals from the generator PT and CT, performs line drop compensation and harmonic filtering, and outputs precise trigger pulses to drive the thyristor rectifier bridge to stabilize the generator terminal voltage; on the other hand, it transmits real-time operating data and fault information to the Mark V main control system and the upper-level monitoring platform. The dual redundant configuration ensures that the excitation system will not fail due to a single board fault, ensuring the safe and stable operation of the generator set.
In large motor drive systems (such as water pumps, fans, compressors in power plants), it is responsible for closed-loop speed and torque regulation, overload protection and communication with the central control system, ensuring the efficient operation of auxiliary equipment.
Petrochemical & Metallurgical Industries
In the large air separation units, compressors and industrial turbines in petrochemical plants and steel mills, it is used as the drive control and communication board of the DIRECTO-MATIC 2000 series drives. It can realize precise speed control, process interlock protection and data transmission with the DCS system, ensuring the safety and continuity of the production process.
Legacy System Upgrades and Retrofits
It can directly replace the old LDCC boards (such as DS200LDCCH1APA, DS200LDCCH1ANA) in Mark V, EX2000 and other systems, without modifying the cabinet structure and wiring. Only software configuration and function testing need to be completed to realize the upgrade of functions such as redundant communication, harmonic suppression and predictive diagnosis, which can quickly improve the automation level and reliability of the system and reduce the cost of transformation.
IV. Technical Specifications
Parameter Name |
Parameter Details |
Model |
GE DS200LDCCH1AKA (LDCC Board) |
Product Type |
Drive Control & LAN Communication Board, Excitation Signal Interface Board (Mark V, EX2000/EX2100, DIRECTO-MATIC 2000) |
Processor Architecture |
Quad Microprocessors (LCP, DCP, MCP, CMP), Flash+EEPROM dual redundant storage |
Communication Interfaces |
Dual DLAN Ethernet ports, RS-485, Genius Bus, C-bus; supports Modbus RTU/TCP, DLAN protocol |
Redundancy Features |
Dual board redundant configuration, ring network redundancy, reconfiguration time ≤50ms |
Control & Signal Functions |
Line drop compensation, current harmonic filtering, thyristor trigger pulse output, motor speed/torque regulation, PT/CT signal conditioning |
Power Requirements |
24V DC (±15%), backplane bus power supply, power consumption ≤15W, overcurrent, overvoltage and reverse polarity protection |
Operating Temperature |
-40°C to 70°C (industrial wide temperature) |
Storage Temperature |
-55°C to 85°C |
Relative Humidity |
5% to 95% (non-condensing) |
Physical Specifications |
7-layer PCB with conformal coating; size approx. 220mm×165mm×25mm; weight approx. 500g; standard Mark V rack slot mounting |
Protection Level |
IP20 (board-level), fully shielded housing optional |
Supporting Software |
GE Speedtronic Mark V configuration tools, EX2000 Excitation Software |
Compatible Systems |
GE Mark V (Speedtronic), EX2000/EX2100, DIRECTO-MATIC 2000; DS200UCIAH1 main control module |
Special Features |
Conformal coating, quad-processor parallel processing, hot swap (redundant configuration), EMC certification, line drop compensation, harmonic suppression |
