Oil-free vortex machines (represented by oil-free vortex air compressors) are highly efficient and clean compression equipment that achieve gas compression through the non-contact meshing of moving and stationary vortex discs, with the entire process being oil-free lubrication. Their core advantages include 100% oil-free, low noise, high reliability, and ease of maintenance. They are widely used in scenarios such as medicine, food, electronics, and laboratories that require extremely high purity of air sources.
1. Core Definition and Essence
Oil-free vortex machines are a type of volumetric compressor. Through the relative motion of a pair of precisely meshed vortex discs, a continuous changing crescent-shaped closed cavity is formed, achieving gas intake, compression, and discharge. Throughout the entire compression process, no lubricating oil participates in the compression chamber, ensuring that the output gas is absolutely oil-free.

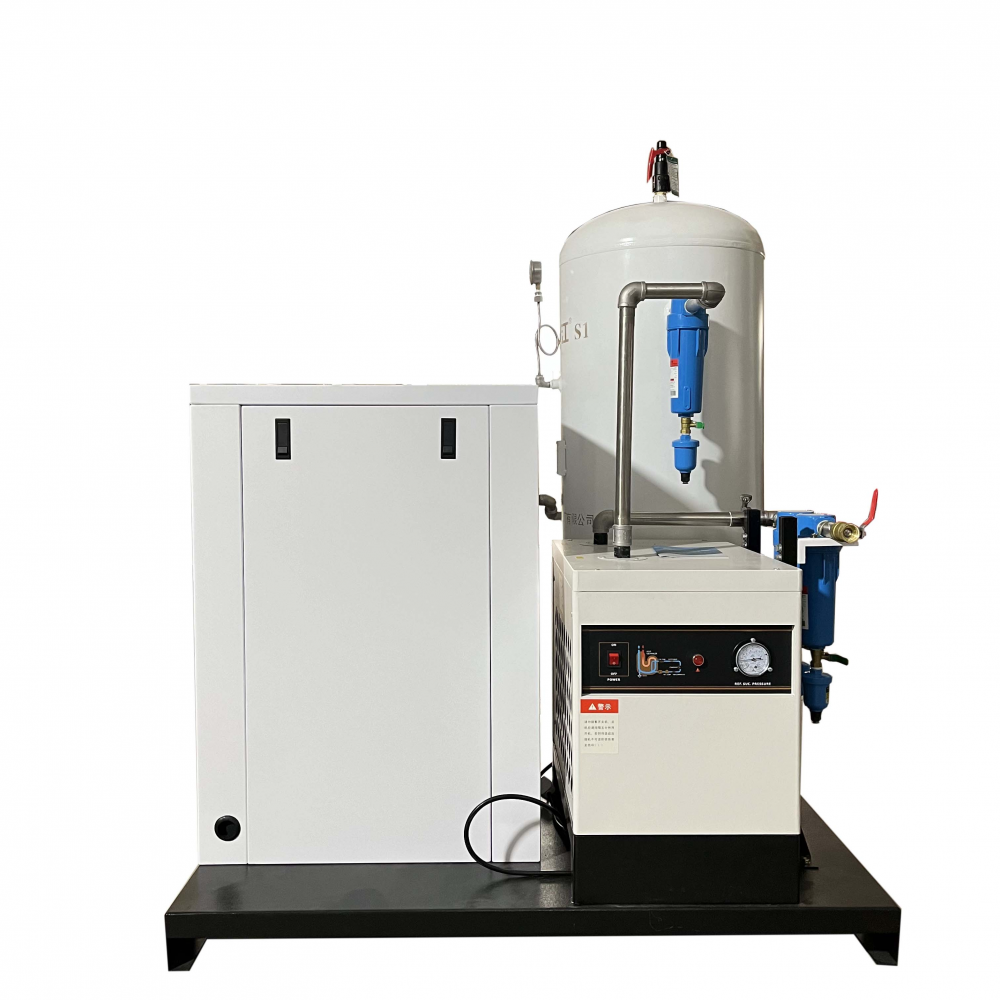

2. Core Structure (Taking an air compressor as an example)

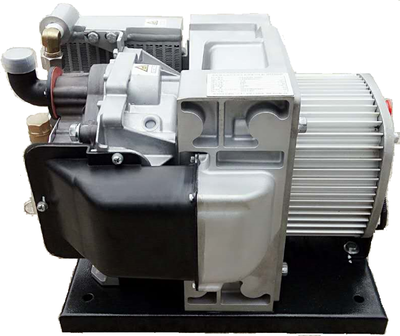

1. Core Compression Main Unit (Most Critical)

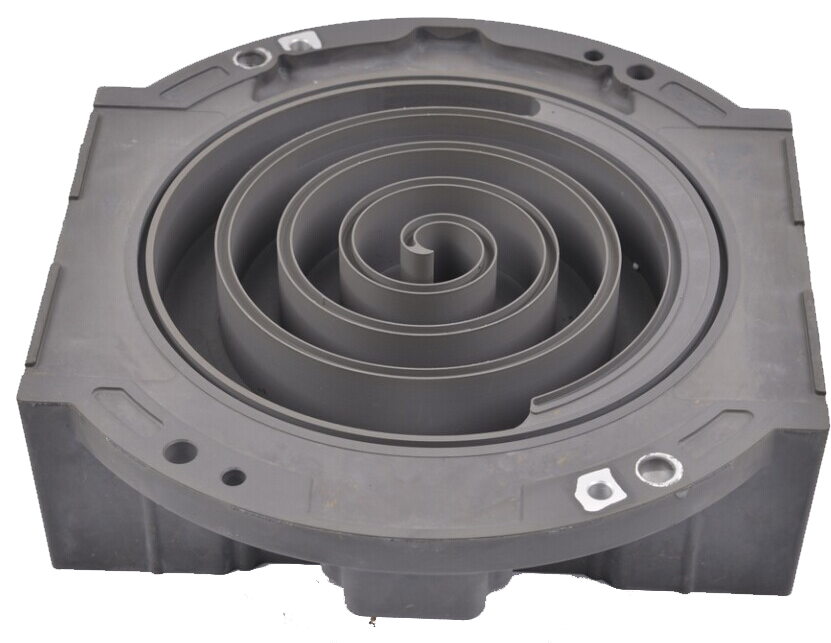

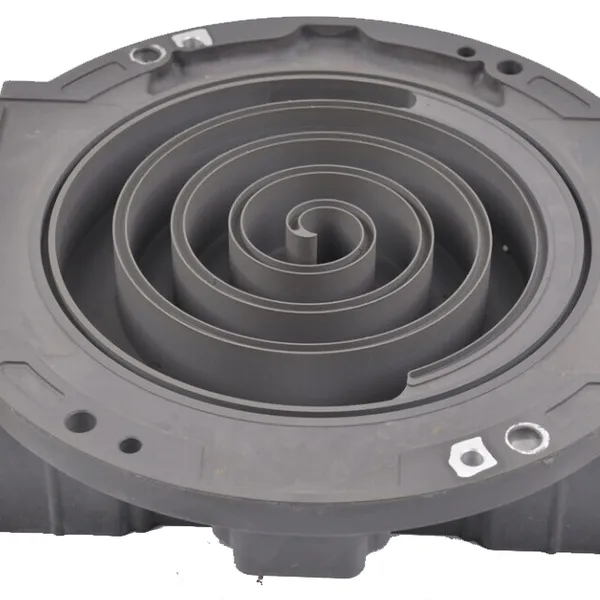

Static Vortex Disc (Fixed Disc): Fixed in position, with an intake port on the outer side and an exhaust port at the center. The vortex profile is a precise involute curve.
Dynamic Vortex Disc (Moving Disc): Driven by an eccentric shaft, performing small-radius planar rotation (non-rotation); maintaining a precise gap with the static disc (micron-level), without direct metal contact.
Anti-rotation Mechanism: Cross sliding ring / anti-rotation bearing, ensuring that the moving disc only rotates and does not self-rotate, maintaining the meshing accuracy.
Sealing System: End face sealing strips (special wear-resistant material) + precise clearance sealing, replacing oil sealing.
2. Power and Transmission
Drive Motor: Mostly IE3/IE4 high-efficiency permanent magnet variable-frequency motors, directly connected to the eccentric shaft (no belt / gear, transmission loss ≈ 0).
Eccentric Shaft Assembly: Converts the rotation of the motor into the eccentric rotation motion of the moving disc.

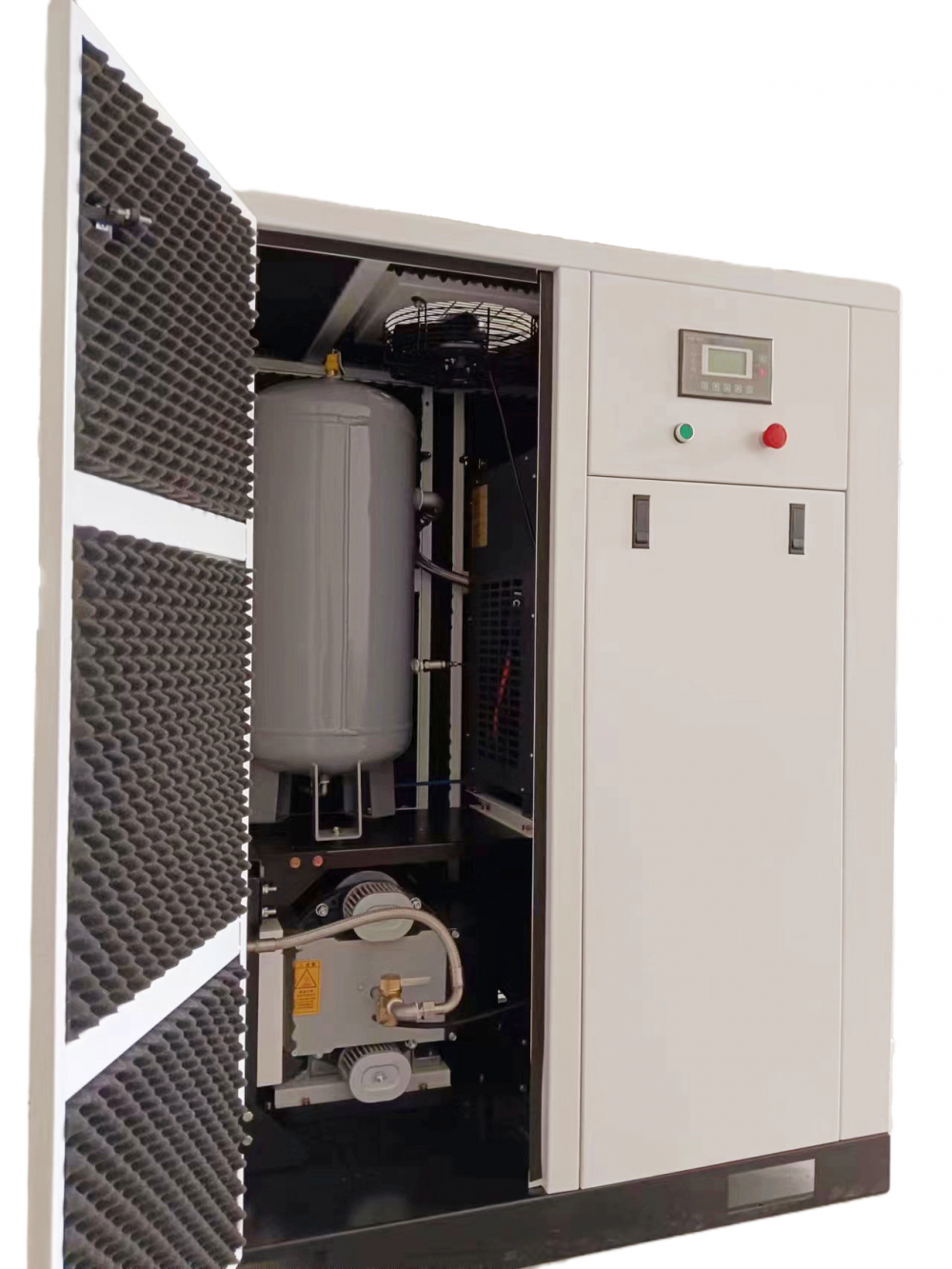

3. Auxiliary Systems
Inlet Filter: High-precision air filter to remove dust and impurities, protecting the vortex discs.
Cooling System: Mainly air cooling (some with water cooling), controlling the temperature of the main unit to ensure stability.
Exhaust and Control: Center exhaust, internal / external storage tanks, intelligent controller (start-stop, loading/unloading, multi-module interlocking).

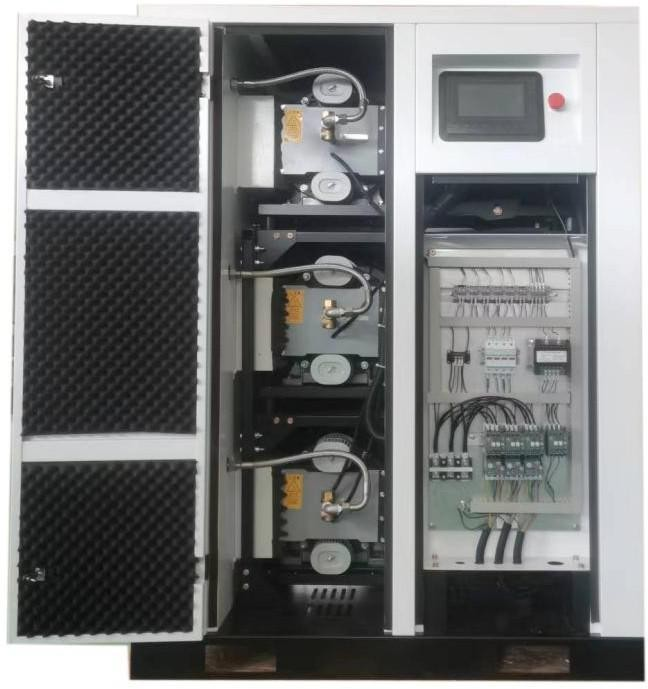

Modular Design: Large-power models are composed of multiple 2.2/3.7kW independent modules connected in parallel, starting and stopping as needed, with significant energy savings.
3. Detailed Working Principle (Four-step Cycle)
1. Inlet Stage
The moving disc rotates, the intake port on the outer side of the static disc opens, and external air is sucked into the outermost crescent-shaped cavity; the moving disc continues to move, the intake port closes, and the gas is sealed.
2. Compression Stage (Core)
The moving disc continuously eccentric rotates, multiple crescent cavities move synchronously towards the center, the volume gradually decreases, the gas is continuously and without pulsation compressed; due to no contact and no intake and exhaust valves, leakage is minimal and the efficiency is high.
3. Exhaust Stage
The compression cavity moves to the center, the volume is the smallest and the pressure is the highest, the gas pushes the center exhaust valve and is continuously discharged.
4. Cycle
Inlet → Compression → Exhaust in a repetitive cycle, forming a stable, low-pulsation compressed gas flow.
4. Key Technical Characteristics (Oil-free + Vortex Dual Advantages)
1. Absolutely Oil-Free (Core Value)
The compression chamber is oil-free and has no metal contact, achieved through precise clearance + sealing components.
Output air ISO 8573-1 Class 0 oil-free certification, oil content = 0, eliminating oil pollution.
The oil-free chamber and transmission chamber are completely isolated, eliminating the risk of oil leakage.
2. High Efficiency and Energy Saving
High volumetric efficiency: simultaneous compression of multiple cavities, low leakage, no valve loss, higher than the same power reciprocating machine by 10%–20%.
High mechanical efficiency: direct drive, no friction, few moving parts, extremely low loss.
Modular interlocking: start individual modules as needed, energy consumption drops significantly at low loads (e.g., a 22kW machine can use only 3.7kW).
3. Low Noise and Low Vibration
No reciprocating impact, no intake and exhaust valve pulsation, extremely small vibration.
Noise typically 53–65 dB(A) (15kW model approximately 61 dB), can be directly placed in indoor / laboratory. 4. High reliability, long lifespan
The core components are non-contact and have almost no wear. The lifespan of the main unit can reach 30,000–50,000 hours.
The structure is simple, with very few wear parts (only air filters and seals), and there are few fault points.
5. Minimal maintenance (cost reduced by 50%+)
Oil-free system: No need to change oil, no oil filters / oil-gas separators, eliminating a large amount of oil maintenance.
Daily maintenance: Replace air filters regularly and check cooling only, with a long maintenance cycle and low cost.
6. Compact structure, small footprint
The vortex main unit is small in size, and the overall machine occupies only 1/2–2/3 of the space of a screw machine, allowing for flexible installation.
VII. Performance parameters (typical range)
Power: 2.2kW–55kW (5HP–75HP), multiple modules can be combined to achieve larger power.
Exhaust volume: 0.25–6 m³/min (0.4–106 cfm).
Exhaust pressure: 0.7–1.0 MPa (7–10 bar), some models can reach 1.3 MPa.
Noise: 53–65 dB(A), much lower than reciprocating machines (75–85 dB).
Oil-free grade: ISO 8573-1 Class 0 (the highest oil-free standard).
VIII. Main application fields (sensitive to cleanliness scenarios)
Pharmaceutical / Medical: Pharmaceutical production, dentistry, ventilators, operating rooms, laboratory analysis instruments.
Food and beverage: Food packaging, filling, conveying, spraying, fermentation (oil-free anti-pollution).
Electronic semiconductor: Chip manufacturing, PCB, precision electronics, photovoltaics, lithium batteries (zero oil, dust-free).
Precision manufacturing: Spraying, instruments and meters, pneumatic control, optics, printing.
Research / Laboratory: Mass spectrometry, chromatography, glove boxes, clean rooms, material testing.
Others: Chemicals, textiles, tobacco, golf courses, high-end pneumatic tools.
IX. Oil-free vortex vs Oil-lubricated vortex / Screw / Reciprocating machines (core comparison)
Comparison items:
- Oil-free vortex machine: 0 (Class 0)
- Oil-lubricated vortex / screw: Trace amount (containing oil)
- Reciprocating air compressor:
- Oil content: 0 (Class 0) / Trace amount (containing oil) / More oil
- Noise: 53–65 dB(A) / 65–75 dB / 75–85 dB
- Vibration: Extremely low / Low / High
- Efficiency: High (direct connection, valveless) / Medium-high / Medium-low
- Maintenance: Minimal (oil-free) / Complex (oil replacement, oil filter) / Complex (valve plates, pistons)
- Lifespan: Long (3–50,000 hours) / Medium / Short (1–20,000 hours)
- Application scenarios: Medicine, food, electronics, laboratories
- Eight. Selection and usage tips:
- Select based on air volume / pressure: Match actual air consumption, reserve 10%–20% margin; Pressure should be selected at 0.7–0.8 MPa.
- Prefer modularization: For 11kW and above, choose multi-module models, which are energy-saving, have good redundancy, and are convenient for maintenance.
- Environmental requirements: Good ventilation, temperature ≤ 40℃, less dust, equipped with high-precision air filters.
- Maintenance cycle: Air filter: 1000–2000 hours; Sealing parts: 20,000 hours inspection; Main unit: No disassembly maintenance.
- Control method: Recommended: Frequency conversion + intelligent linkage control, further energy saving and stable pressure.
- Nine. Summary:
- The oil-free vortex machine is centered on no oil, low noise, high efficiency, reliability, and easy maintenance. It is the preferred solution for clean compressed air. It perfectly solves the problem of oil pollution in traditional oil-lubricated air compressors, significantly reduces operating and maintenance costs, and is an ideal air source equipment for high-end fields such as medicine, food, electronics, and laboratories.
