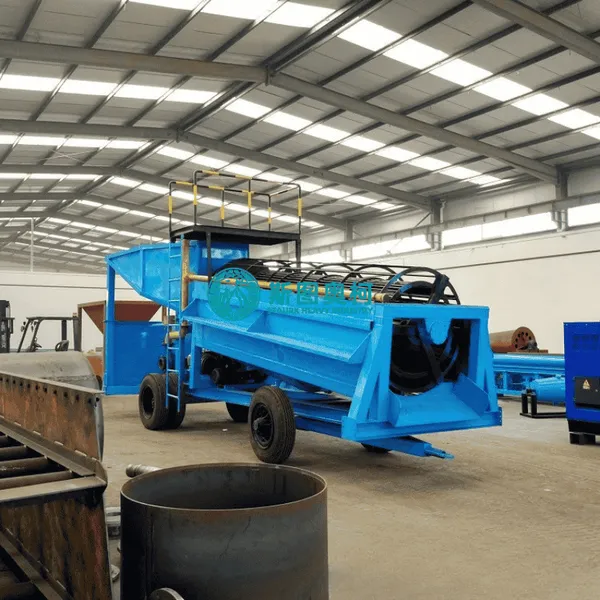

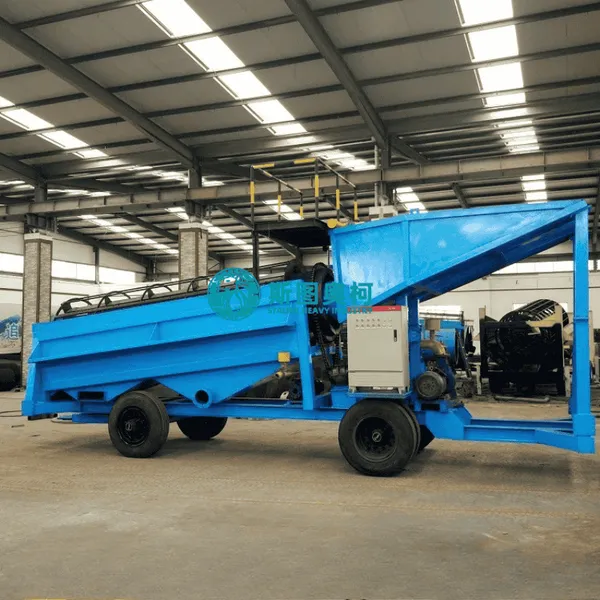

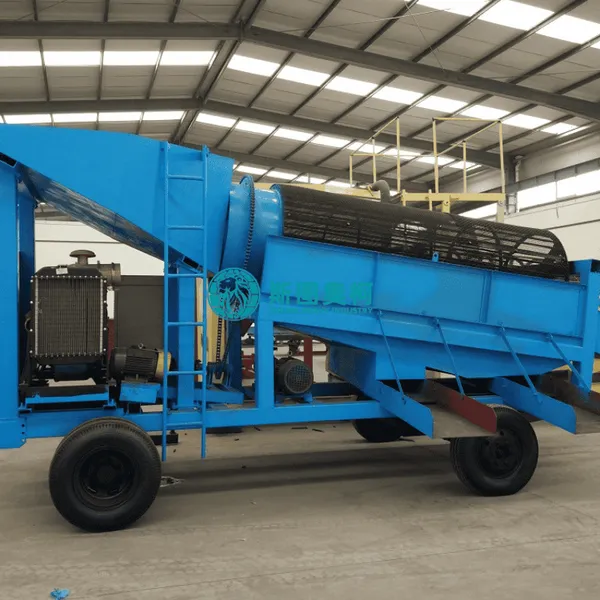

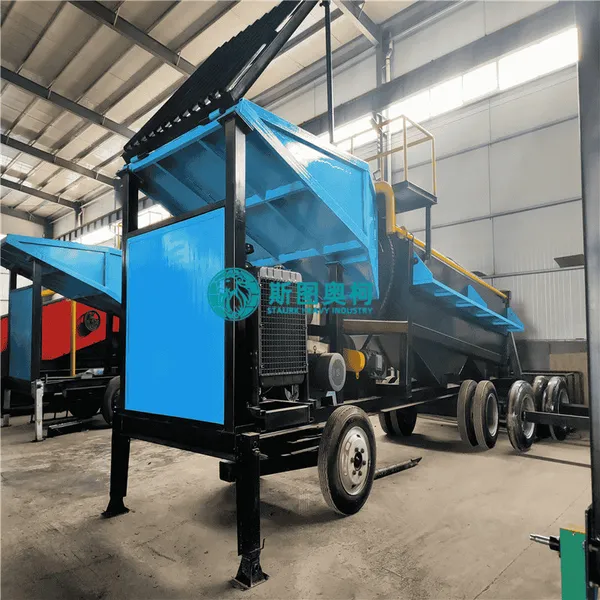

Alluvial Gold Separation Machine Industrial Mining Wash Plant Trommel From Henan Staurk Machinery Co.,Ltd
The Alluvial Gold Separation Machine / Industrial Mining Wash Plant Trommel from Henan Staurk Machinery Co., Ltd. is a high-efficiency, large-capacity solution designed for industrial-scale alluvial gold processing. Its core advantage lies in its integrated washing and screening system, which combines a powerful drum scrubber with high-pressure water jets to effectively break down clay-rich materials and thoroughly liberate gold particles from gravel and aggregates. The robust, heavy-duty construction ensures continuous, reliable operation under the toughest field conditions. With a high-capacity design, it significantly increases throughput while maintaining excellent gold recovery rates. The modular and mobile configuration allows for quick on-site setup and easy relocation as mining operations progress, making it an ideal choice for maximizing productivity and profitability in large-scale alluvial mining projects.
1.Product Introduction
The Alluvial Gold Separation Machine is specialized equipment designed to extract gold from sediment-rich environments such as rivers and floodplains. Its core functions involve washing and breaking down clay-bound materials, thereby separating gold particles from surrounding gravel and soil.
2.Application

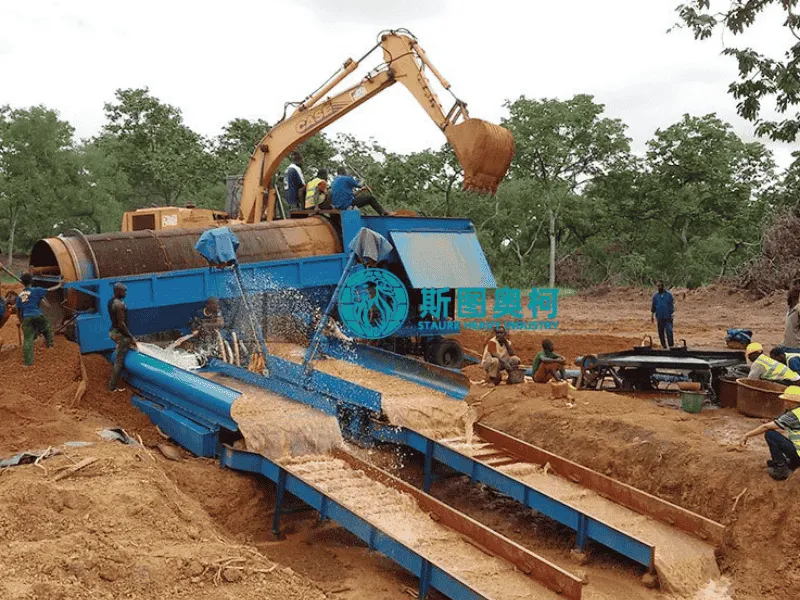

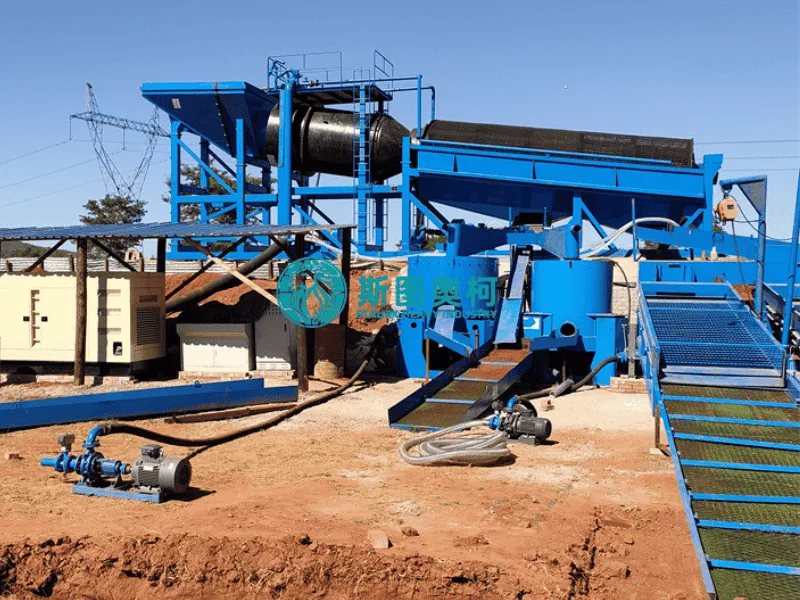

Large-scale industrial mining: For deposits with high clay content, stable material supply, and large daily throughput, heavy-duty drum washers are the preferred choice due to their robust processing capacity and durability.
Medium to large mobile operations: For deposits requiring relocation between sites or demanding higher throughput, integrated drum washing plants combining washing and preliminary enrichment functions are more suitable, particularly their portable models.
Fine-Grained Gold Recovery and Special Material Processing: For deposits rich in fine-grained gold, clay lumps, or severely oxidized materials, hydraulic washers are the ideal choice due to their efficient disintegration and cleaning capabilities, often combined with fine-grade separation equipment.
Optimized Recovery Strategies: In practice, to address diverse deposit conditions, a combination of washing equipment may be employed. For instance, a trommel plant can perform primary washing followed by a hydraulic washer for fine particle liberation, maximizing overall recovery efficiency.
3.Working Principle
Feeding and Pre-treatment: Sand and gravel mixtures containing gold particles (ore) are fed into the equipment.
Crushing and Washing: Equipment such as rotary drums or vibrating screens uses water flow and mechanical agitation to break up and wash away bound soil, clay, and other impurities, exposing the gold particles.
Classification and Screening: The washed material passes through screens or classification devices, separating particles by size. Large rocks are discharged, while fine sand and slurry containing gold grains proceed to the next stage.
Gravity Separation: This is the core process. Fine material flows through inclined water channels (e.g., sluices, water tables) or centrifugal fields (e.g., centrifuges). Due to gold's significantly higher density than gangue minerals like quartz, gold particles settle onto collection structures (e.g., riffles, mining blankets) at the bottom of the equipment, while lighter silt and sand are carried away by the water flow.
Gold Particle Recovery: Regular cleaning of collection structures (e.g., rinsing mining blankets or clearing sluices) yields enriched gold concentrate.
4.Advantages
High-Efficiency Recovery of Fine-Grained Gold: While traditional fixed sluice boxes are effective for recovering coarse gold (above 0.2mm), they suffer from low recovery rates for "hair gold," "thin-skinned" (flaky) gold, and other fine particles. Modern equipment, such as peristaltic sluices and pulsating sluices, utilizes mechanical pulsation or peristaltic designs to effectively prevent bed compaction and extend the retention time of the ore sand. This significantly improves the recovery rate of fine gold (down to the 0.1mm level), with some equipment achieving recovery rates of over 96%.
Energy Conservation, Environmental Protection & Low Operating Costs: Placer gold equipment mostly adopts gravity concentration principles (e.g., sluices, centrifuges), eliminating the need for complex chemical reagents. Water consumption is 20%-30% lower than traditional fixed sluices, and energy consumption is minimal (e.g., a peristaltic sluice consumes only about 0.3 kWh). This reduces pollution to water resources and soil, aligning with green mining concepts. Additionally, the equipment features a simple structure, low maintenance costs, and a short return on investment (ROI) period.
Compact Process Flow & High Degree of Automation: Modern placer gold beneficiation equipment (such as centrifuges and pulsating sluices) enables mechanized discharge, reducing manual intervention. The process configuration is compact and utilizes natural elevation differences to achieve gravity flow (self-flow) of the slurry, simplifying process steps and enhancing continuous operation capabilities. Some equipment supports automatic discharge and can operate continuously for over 26 hours with high stability.
Strong Adaptability & Wide Processing Range: The equipment is adaptable to placer gold of various particle sizes (0.1–5mm) and morphologies (granular gold, flake gold, and thin-skinned gold). By adjusting parameters such as amplitude and slope, operators can flexibly cope with different ore characteristics, effectively avoiding the "gold loss" problem associated with traditional methods.
Comprehensive Service Support: Professional manufacturers provide one-stop services, ranging from mineral analysis and beneficiation testing to installation, commissioning, and technical training. This ensures the efficient operation of the equipment and minimizes operational risks.
