1 Product Use and Scope of Application
1.1 Features:
Programmable frequency low-frequency rectangular wave excitation improves the stability of flow measurement and has low power consumption:
Adopts a 32-bit embedded microprocessor with fast operation speed and high accuracy;
Full digital processing, strong anti-interference ability, reliable measurement, high accuracy, and the flow measurement range can reach
1;
Ultra-low EMI switching power supply, suitable for a wide range of power supply voltage changes. Good anti-EMC performance; Full Chinese menu operation, convenient to use, simple to operate, easy to learn and understand;
High-definition backlit LCD display;
It has the functions of bidirectional flow measurement, bidirectional total accumulation, current and frequency output. There are three integrators inside that can respectively display the forward cumulative amount, reverse cumulative amount and difference cumulative amount. It has an RS485 digital communication signal interface;
It has the function of conductivity measurement, which can determine whether the sensor is empty;
The constant current excitation current has a wide range and can be used in conjunction with electromagnetic flow sensors of different companies and types. It has self-check and self-diagnosis functions;
Adopts SMD devices and surface mount (SMT) technology, with high circuit reliability;
The instrument has multi-language display, and Chinese and English can be changed to each other;
1.2 Main Uses

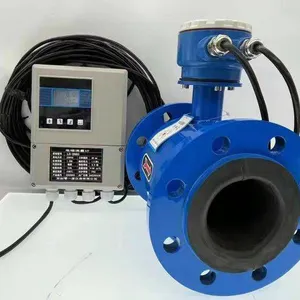

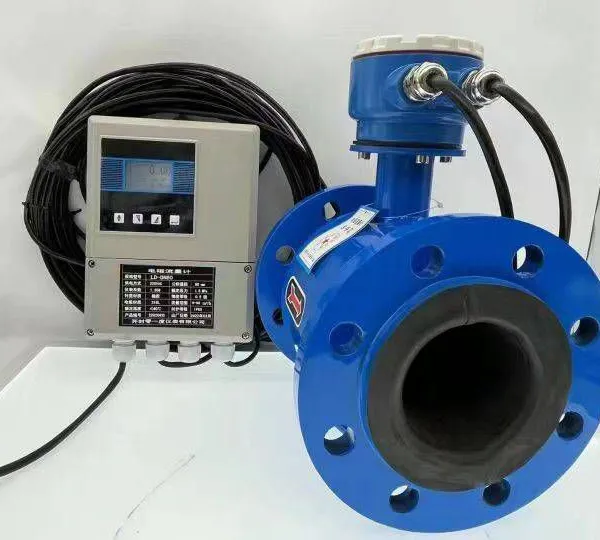

The electromagnetic flow converter is used in conjunction with electromagnetic flow sensors of different models to form an electromagnetic flowmeter system. It measures the volume flow of conductive fluids in closed pipes. It is widely applicable to the process flow measurement and control in industrial and agricultural sectors such as petrochemical, iron and steel metallurgy, water supply and irrigation, water treatment, environmental protection sewage total control, papermaking, medicine, food, etc.; It is suitable for the total measurement of conductive liquids.
1.3 Normal Operating Conditions
Ambient temperature: -10~+ 60℃;
Relative humidity: 5%~90%;
Power supply: Single-phase AC 85~265V, 45~63Hz;
Power: When used with the sensor, it is less than 20W.
1.4 Test Reference Conditions
Ambient temperature: 20℃±2℃
Relative humidity: 45%~85%
Power supply voltage: 220±2%
Power supply frequency: 50Hz±5%
The harmonic content is less than 5%.
