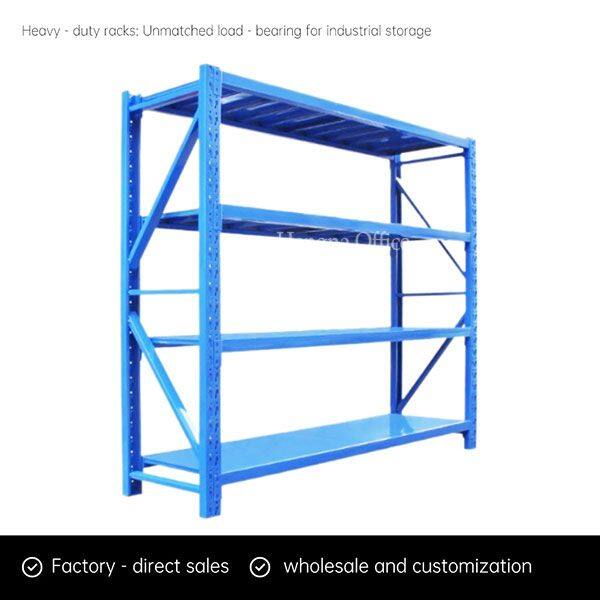

What Is This Industrial Rack?
This is a high capacity industrial rack designed for heavy duty tool and equipment storage. It is made from Refined Cold Rolled Steel, which is one of the strongest materials used for shelving. The rack has 4 shelves and comes in blue or white colors. Each shelf can hold between 100kg and 500kg, depending on the model you choose.
The words "high capacity" mean this rack is built to handle very heavy items. This is not a light-duty shelf for paper files or small boxes. This is for industrial use—factories, workshops, warehouses, and job sites where tools and equipment are heavy and need strong support.
Why Industrial Users Need High Capacity Racks
In industrial settings, items are heavy. Tool boxes full of wrenches. Cases of spare parts. Motors and machinery. Welding equipment. Heavy-duty supplies. Regular shelves would bend or break under this weight.
| Industrial Need | How This Rack Meets It |
|---|---|
| Very heavy tools | Up to 500kg capacity per shelf |
| Frequent use | Durable steel stands up to daily wear |
| Large equipment | Adjustable shelves fit bulky items |
| Safety requirements | Strong construction prevents collapse |
| Long service life | Built to last for decades |
This rack is trusted by industrial users because it does not fail. It holds the weight. It stays stable. It keeps working year after year.
Product Specifications
Based on the product images, here are the detailed specifications:
| Feature | Detail |
|---|---|
| Product Name | High Capacity Industrial Rack |
| Number of Floors | 4 floors |
| Material | Refined Cold Rolled Steel |
| Color | Blue / White |
| Load Capacity | 100kg to 500kg per shelf |
| Assembly | Boltless (no tools required) |
| Shelf Adjustment | 50mm intervals |
| Beam Design | Wave-shaped with pressure lines |
| Panel Reinforcement | Multiple ribs on back side |
| Surface Finish | Powder coated (electrostatic) |
| Frame Options | Main Frame (2 columns) and Add-on Frame (1 column) |
| Status | Best Selling |

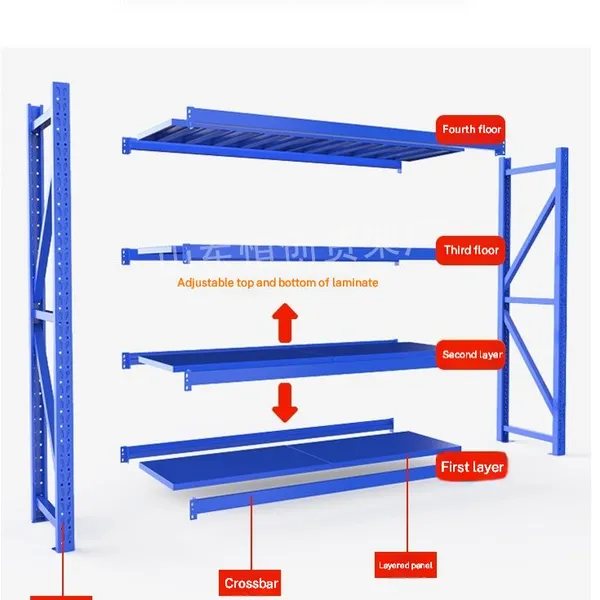

Main Parts of the Rack
Let us look at the parts that make up this industrial rack:
Upright Column: The vertical posts that stand on the floor. They have butterfly holes for adjustment.
Cross Beam: The horizontal bars that connect the columns. They are wave-shaped for extra strength.
Layered Panel: The flat surface where you put tools and equipment.
First Layer / Second Layer / Third Layer / Fourth Layer: The different shelf levels from bottom to top.
Butterfly Clip: The part on the beam that locks into the column hole.
All these parts are made from refined cold rolled steel. They are designed to work together as a heavy-duty storage system.
Key Features Explained Simply
1. Refined Cold Rolled Steel
Cold rolled steel is already strong. But this is "refined" cold rolled steel. That means it goes through additional processing to make it even better.
| Property | Refined Cold Rolled Steel | Regular Steel |
|---|---|---|
| Strength | Highest | Lower |
| Purity | Fewer impurities | More impurities |
| Surface | Very smooth | Rough |
| Consistency | Uniform throughout | Varies |
| Durability | Maximum | Standard |
For industrial use, refined cold rolled steel is the best choice. It handles the heaviest loads without bending. It resists wear from daily use. It lasts longer than any other type of steel shelving.
2. Wave-Shaped Beam Design
This is one of the most important features for high capacity. Look at the beams. They have three wavy lines pressed into them. These are pressure lines.
Why wave shape is stronger:
A flat beam bends in the middle under heavy weight. The weight pushes down, and the beam flexes. Over time, it can bend permanently.
A wave beam spreads the weight across the whole surface. The three lines act like ribs. They stop the beam from twisting or bending. They distribute the force evenly.
| Beam Type | How It Handles Weight |
|---|---|
| Flat beam | Weight concentrates in the middle, causes bending |
| Wave beam | Weight spreads across the whole beam, no bending |
For heavy duty tool storage, this means:
Heavy tool boxes are completely safe
The shelf will not sag even under maximum load
Equipment stays level and stable
The rack lasts for many years without deformation
3. Multiple Through Bar Design
The product images show that the beam has "three pressure wavy line through the bar" and "multiple through the bar design." This means the wave lines go all the way through the beam, not just on the surface.
This design does two things:
It increases the beam's load-bearing capacity
It improves the beam's stability
The beam becomes stronger without becoming heavier. This is smart engineering.

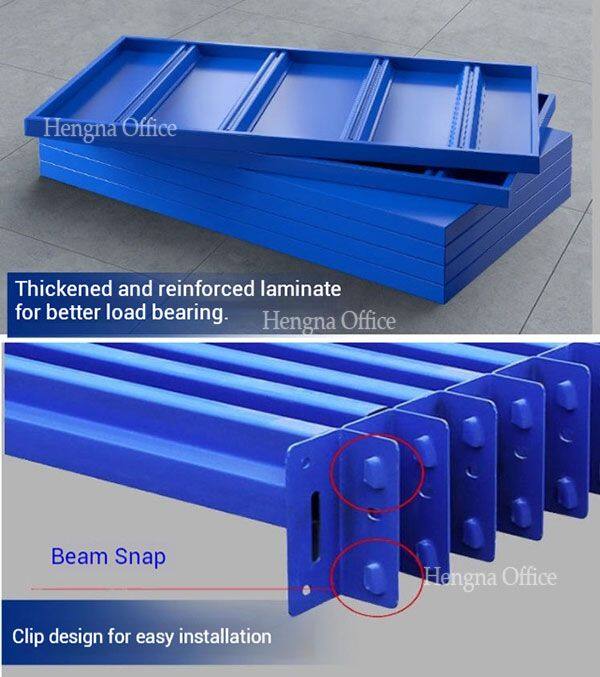

4. Reinforced Shelf Panels
Turn a shelf panel over. Look at the back. You will see multiple reinforcement ribs. These are extra lines of steel pressed into the panel.
Without ribs, a steel panel would bend under heavy loads. With ribs, the panel stays flat. The force spreads evenly across the whole surface.
For industrial use, flat shelves are essential. Heavy tools do not slide around. Equipment sits level. You can stack items safely.
5. Thickened Plate Design
The steel plates used in this rack are thicker than standard shelves. Thicker steel means:
Higher load capacity
More stability
Less wobbling
Longer life
Better resistance to impacts
In an industrial environment, racks get bumped. Carts hit them. Tools drop on them. Thickened plates handle this abuse without damage.
6. Butterfly Hole Design
The upright columns have holes shaped like butterflies. These holes let you adjust the shelves without tools.
Need more space between shelves? Move the beams up.
Fitting tall equipment? Move shelves apart.
Storing smaller tools? Move shelves closer.
The holes are spaced every 50mm. This gives you many options. You can set up the rack exactly for your tools and equipment.
7. Boltless Assembly with Butterfly Clip
No tools needed. No bolts. No nuts. No lost parts.
The beam ends have clips (butterfly clips). You insert the clip into the top of the butterfly hole. You push down until it locks. That is it.
Why this matters for industrial users:
You can set up new racks fast
You can reconfigure when needs change
You do not need maintenance staff for adjustments
The connection gets tighter under heavy loads
The butterfly clip is self-locking. The heavier the load, the tighter the connection becomes. This is a safety feature.

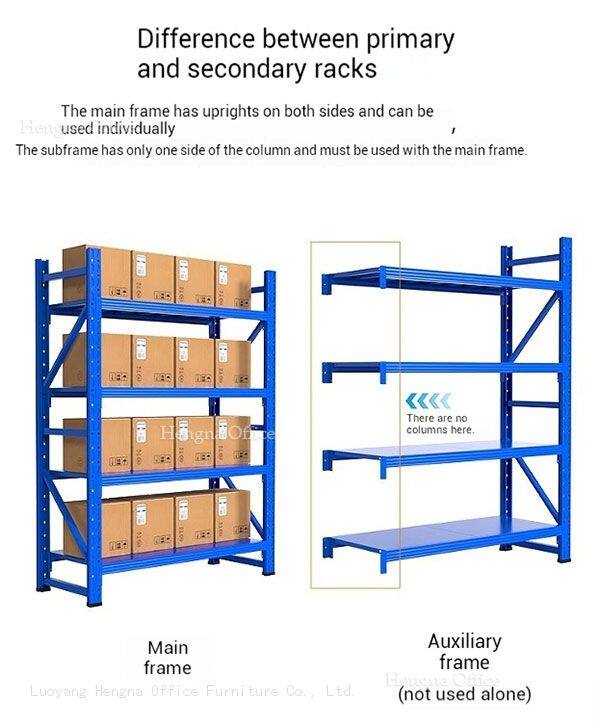

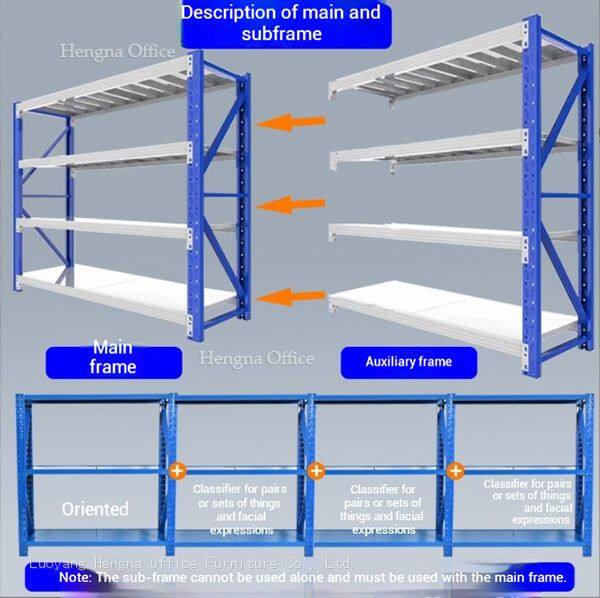

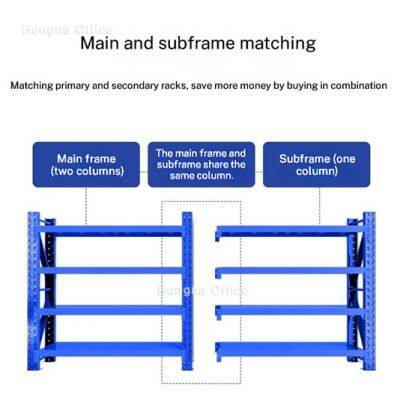

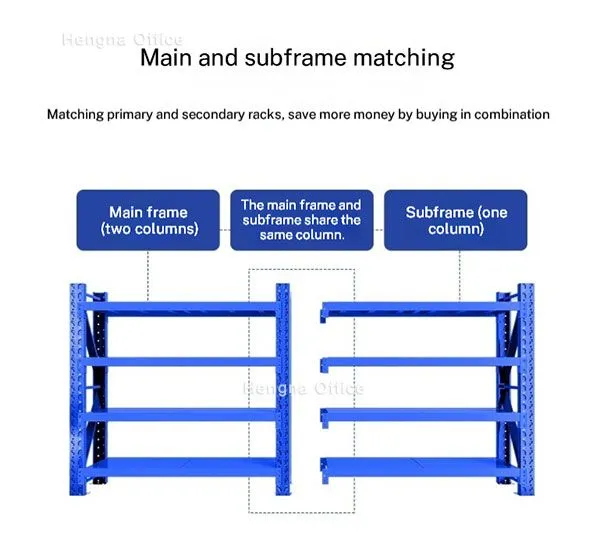

8. Main Frame and Add-on Frame System
This rack system uses a smart design. You can buy one rack, or you can connect multiple racks together.
| Frame Type | What It Includes | When to Use |
|---|---|---|
| Main Frame | 2 columns + beams + shelves | Start with one rack |
| Add-on Frame | 1 column + beams + shelves | Add another rack next to it |
Why this matters for industrial storage:
Add-on frames cost less
Racks connect to form long rows
Creates continuous storage lines
Saves floor space
Looks organized and professional
If you need more storage later, you just buy an Add-on Frame. It attaches to your existing rack.
Surface Finish
The surface finish is electrostatic powder coating. Here is how it works:
The steel parts are cleaned thoroughly.
Dry powder (color pigment) is sprayed on.
Static electricity makes the powder stick.
The parts go into an oven. The powder melts and fuses into a hard coating.
Why this matters for industrial use:
| Benefit | What It Means |
|---|---|
| Durable | Coating does not scratch or peel easily |
| Corrosion resistant | No rust in industrial environments |
| Chemical resistant | Handles oils, solvents, cleaners |
| Impact resistant | Bumps do not chip the coating |
| Uniform coverage | No thin spots or drips |
| Easy to clean | Wipe off grease and dirt |
The powder coating is even and full. It covers every part of the steel. This protects the rack from the harsh industrial environment.
Quality You Can See in Every Detail
The product images show real details:
Fine Butterfly Clip: Made with precision. Easy to operate. Easy to install.
Reinforced Back: Multiple reinforcements. Force is uniform. Heavy objects are safe.
Smooth Welds: No welding slag. No rough spots. No corrosion points.
Thickened Plate: Steel is visibly thicker. More stable. Higher load capacity.
Even Coating: Paint is uniform. No thin spots. Full coverage.
Wave-shaped Beam: Three pressure lines visible. Stronger than flat beams.
What Can You Store?
This high capacity industrial rack is perfect for many heavy items:
| Category | Examples |
|---|---|
| Tool Boxes | Heavy-duty chests, roller cabinets, portable boxes |
| Power Tools | Large drills, saws, grinders, welders |
| Hand Tools | Full sets of wrenches, sockets, hammers |
| Shop Equipment | Vises, clamps, jacks, stands |
| Parts | Cases of heavy parts, bearings, gears |
| Materials | Steel bars, plates, offcuts |
| Supplies | Bulk containers, drums, pails |
| Machinery | Small motors, pumps, components |
| Welding Gear | Cylinders, torches, rods, helmets |
| Auto Parts | Engines, transmissions, axles |
The 100kg to 500kg capacity handles all of these easily.
Why This Is Best Selling
This rack is one of our best-selling products. Here is why customers keep buying it:
| Reason | Explanation |
|---|---|
| Proven strength | Handles real industrial weights |
| Reliable design | Wave beams and reinforced panels work |
| Easy to use | Boltless assembly saves time |
| Flexible | Adjustable shelves fit different items |
| Durable | Lasts for years in tough conditions |
| Good value | Fair price for industrial quality |
| Trusted brand | HENGNA quality and service |
Industrial customers do not buy cheap products. They buy products that work. This rack works. That is why it is best selling.
Applications in Different Industries
| Industry | Storage Needs |
|---|---|
| Manufacturing | Tools, parts, supplies, work-in-progress |
| Automotive | Tools, parts, tires, equipment |
| Construction | Tools, materials, safety gear |
| Metalworking | Stock, tools, finished parts |
| Maintenance | Repair parts, tools, supplies |
| Warehousing | Heavy inventory, bulk items |
| Aerospace | Precision tools, components |
| Energy | Equipment, parts, tools |
| Mining | Heavy tools, supplies, gear |
| Military | Equipment, tools, supplies |

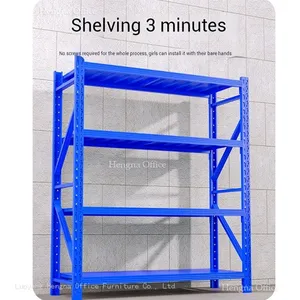

Assembly Instructions
Putting this industrial rack together is easy:
Lay out all parts. Make sure you have everything.
Attach beams to columns. Start with the bottom shelf. Insert beam clips into butterfly holes. Push down until they lock.
Add more shelves. Move up to the next level. Repeat the process.
Check that all clips are locked. Push down on each beam to make sure.
Place shelf panels. Lay the panels on top of the beams.
Adjust shelf heights if needed. You can move shelves up or down before loading.
Start loading. Put heaviest items on bottom.
One person can do this in about 15 minutes. Two people make it even faster.
Safety Tips for Industrial Use
Put heaviest items on bottom shelves. This keeps the rack stable.
Do not exceed load capacity. Check the rating for your model.
Distribute weight evenly. Do not put all weight on one side.
Use on level floor. Make sure the rack stands straight.
Secure to wall if needed. For very tall racks or seismic areas.
Inspect regularly. Check for damage or loose connections.
Train workers. Make sure everyone knows safe loading practices.
Comparison with Other Industrial Racks
| Feature | HENGNA High Capacity | Light Duty Industrial | Wire Industrial | Bolt-together |
|---|---|---|---|---|
| Material | Refined cold rolled | Thin steel | Coated wire | Standard steel |
| Max capacity | 500kg per shelf | 200kg per shelf | 300kg per shelf | 400kg per shelf |
| Beam design | Wave-shaped | Flat | N/A | Flat or C-channel |
| Assembly | Boltless, tool-free | Boltless | Tools needed | Bolts needed |
| Adjustability | 50mm increments | Limited | Fixed | Limited |
| Durability | Excellent | Fair | Good | Good |
| Best for | Heavy tools | Light parts | Clean rooms | General use |
HENGNA high capacity racks are clearly the best choice for heavy duty industrial storage.
This High Capacity Industrial Rack is built for heavy duty tool and equipment storage. It uses refined cold rolled steel for maximum strength. The wave-shaped beams with three pressure lines distribute weight evenly and prevent sagging. The reinforced shelf panels stay flat under heavy loads. The thickened plate design adds stability and durability.
The boltless assembly with butterfly clips makes setup fast and easy. The adjustable shelves let you configure the rack for different items. The main/add-on frame system saves money when you need multiple racks. The powder coated finish resists rust, chemicals, and impacts.
This is our best-selling industrial rack for good reason. It works. It lasts. It holds heavy tools safely. Industrial customers trust it.
Choose blue or white. Set it up fast. Load it heavy. Use it for decades.
Frequently Asked Questions (FAQ)
1. What makes the wave-shaped beam stronger than a regular beam?
The wave-shaped beam has three pressure lines pressed into it. These lines act like ribs. When weight is placed on the beam, a flat beam would bend in the middle because all the force concentrates there. The wave shape spreads that force across the entire length of the beam. It also prevents the beam from twisting, which can happen with flat beams under uneven loads. This engineering design allows the beam to hold much more weight without bending or deforming. For heavy industrial tools and equipment, this extra strength is essential.
2. What does "refined" cold rolled steel mean and why does it matter?
Refined cold rolled steel means the steel has gone through additional processing to remove impurities and improve its properties. It is stronger, more consistent, and has a smoother surface than regular steel. For industrial racks, this matters because the steel must handle heavy loads day after day without failing. Refined steel has fewer weak points. It is more uniform in thickness and strength. It resists fatigue better over time. When you are storing expensive tools and heavy equipment, you want the strongest material possible. That is refined cold rolled steel.
3. Can this rack really hold 500kg per shelf safely?
Yes, when properly assembled and loaded according to specifications. The 500kg capacity is achieved through several design features: the wave-shaped beams that distribute weight, the reinforced shelf panels that prevent sagging, the thickened steel plates that add strength, and the butterfly clip connection that gets tighter under load. However, you must follow safety guidelines. Put the heaviest items on bottom shelves. Distribute weight evenly across each shelf. Do not exceed the rated capacity. Use on level floors. With proper use, this rack will safely hold heavy industrial tools and equipment for many years. It is tested and proven in real industrial environments.
The contact information of the sales manager is shown in the picture below. You can make inquiries directly without waiting.
Send Inquiry to This Supplier
You May Also Like
-
Industrial Strength Shelving System 400kg Capacity Per Level - Heavy Duty Supermarket Storage Rack for Retail Space OptimizationUS$ 1 - 330MOQ: 5 Sets
-
400kg Load Capacity Industrial Racking System - Warehouse Heavy Duty Storage Unit With Butterfly Hole Plug-In DesignUS$ 1 - 330MOQ: 5 Sets
-
Multi-Layer Industrial Storage Unit 400kg Per Shelf - Space-Saving Library Shelving Solution With Freely Adjustable LayerUS$ 1 - 330MOQ: 5 Sets
-
Robust Industrial Storage Solution- Heavy Duty Medical Shelving Rack for Hospital Clinics and Healthcare FacilitiesUS$ 1 - 330MOQ: 5 Sets
-
Heavy Duty Steel Shelving Bay 200kg Capacity - Industrial Workshop Storage Rack With Butterfly Snap DesignUS$ 1 - 330MOQ: 5 Sets
-
Heavy Duty Parts Storage Rack 300kg Capacity - Workshop Organizer With Main-Subframe DesignUS$ 1 - 330MOQ: 5 Sets
-
Industrial Parts Shelving System 300kg Load Capacity - Garage Storage Solution With Four Reinforcement BarsUS$ 1 - 330MOQ: 5 Sets
-
Customizable Parts Organizer 300kg Per Shelf - Multi-Size Workshop & Factory Storage Rack With High-Quality Cold Rolled SteelUS$ 1 - 330MOQ: 5 Sets
-
Space-Saving Parts Storage Unit 300kg Capacity - Warehouse & Courier Shelving System With Free Combination Main-Subframe DesignUS$ 1 - 330MOQ: 5 Sets
-
Industrial Modular Warehouse Shelving - Heavy Duty Storage Rack With Chipboard Deck for Factory & Workshop OperationsUS$ 1 - 330MOQ: 5 Sets
