What Is This Modular Warehouse Shelving System?
This is a modular warehouse shelving system designed specifically for pharmaceutical and cold chain logistic storage. It is made from Cold Rolled Steel, which is a strong and durable material. The rack has 4 shelves and comes in blue or white colors. Each shelf can hold between 100kg and 500kg, depending on the model you choose.
The word "modular" means this system is built in sections that you can arrange in many different ways. You can start small and add more later. You can change the layout when your needs change. This flexibility is very important for pharmaceutical and cold chain storage, where requirements can be strict and specific.
Why Pharmaceutical and Cold Chain Storage Have Special Needs
Pharmaceutical products and cold chain items are not like regular boxes. They often have special requirements. They might need to stay clean. They might need to be organized in a certain way. They might be valuable or sensitive.
| Special Need | How This System Meets It |
|---|---|
| Cleanliness | Seamless welding means no places for dirt to hide |
| Temperature monitoring | Open design allows air circulation |
| Organization | Adjustable shelves fit different box sizes |
| Traceability | Clear visibility of labels and barcodes |
| Safety | Strong steel holds heavy medical supplies |
| Compliance | Meets standards for pharmaceutical storage |
This rack is built to meet these special needs. It is not a general-purpose shelf. It is designed for environments where quality and cleanliness matter most.
What Is Cold Chain Logistic Storage?
Cold chain logistics means products that must stay at certain temperatures. This includes:
Vaccines and medicines
Biological samples
Temperature-sensitive chemicals
Some foods and beverages
These products are often stored in temperature-controlled warehouses. The racks in these warehouses must:
Allow air to flow around products
Be easy to clean
Not trap dirt or moisture
Be strong enough for heavy boxes
Last a long time in controlled environments
This modular shelving system meets all these requirements.
Product Specifications
Based on the product images, here are the detailed specifications:
| Feature | Detail |
|---|---|
| Product Name | Modular Warehouse Shelving System |
| Number of Floors | 4 floors |
| Material | Refined Cold Rolled Steel |

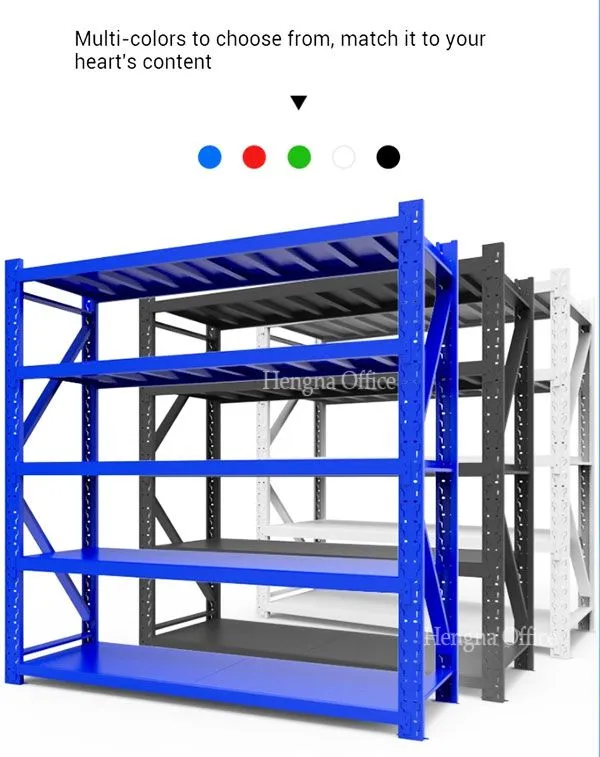

| Color | Blue / White |
| Load Capacity | 100kg to 500kg per shelf |
| Assembly | Boltless (no tools required) |
| Shelf Adjustment | 50mm intervals |
| Beam Design | Wave-shaped with pressure lines |
| Panel Reinforcement | Multiple ribs on back side |
| Surface Finish | Powder coated (electrostatic) |
| Frame Options | Main Frame and Add-on Frame |
| Welding | Seamless, smooth, no slag |
| Connection | Butterfly hole with bayonet |
Main Parts of the Rack
Let us look at the parts that make up this modular system:
Upright Column: The vertical posts that stand on the floor. They have butterfly holes for adjustment.
Cross Beam: The horizontal bars that connect the columns. They are wave-shaped for strength.
Layered Panel: The flat surface where you put pharmaceutical boxes and supplies.
First Layer / Second Layer / Third Layer / Fourth Layer: The different shelf levels from bottom to top.
Butterfly Clip: The part on the beam that locks into the column hole.
All these parts are made from cold rolled steel. They are designed to work together as a complete storage system.
Key Features Explained Simply
1. Modular Design
Modular means the system is made of separate parts that you can put together in different ways.
| Benefit | What It Means for You |
|---|---|
| Flexibility | Arrange racks to fit your space |
| Scalability | Add more racks as you grow |
| Reconfigurability | Change layout when needs change |
| Efficiency | Use every inch of warehouse space |
| Cost savings | Buy only what you need now |
For pharmaceutical storage, this is important because regulations and products change. You need storage that can change with you.

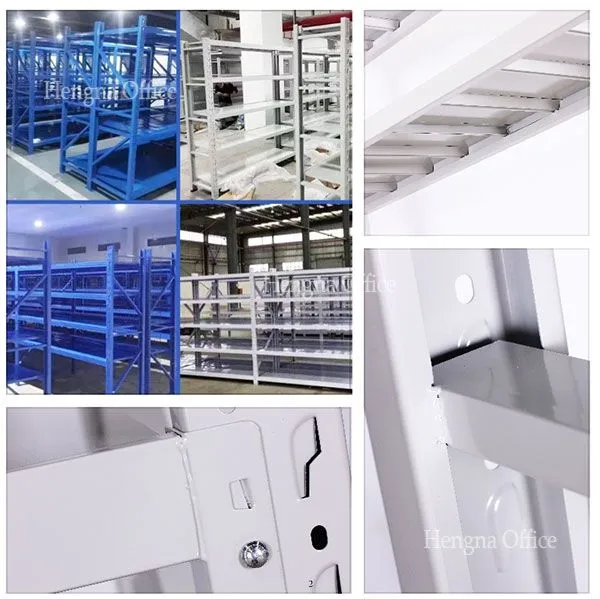

2. Seamless Welding Technology
This is a very important feature for pharmaceutical and cold chain storage. Look at the welds on the columns. They are smooth and complete. There is no welding slag.
What is welding slag?
When metal is welded, sometimes rough bumps and leftovers form on the weld. These are called slag. Slag is bad because:
It creates rough spots where dirt can hide
It can be hard to clean
It can start rust over time
It looks unprofessional
Our seamless welding:
Smooth and intact welds
No burrs or rough spots
No places for bacteria to grow
Easy to clean and sanitize
Looks clean and professional
For pharmaceutical storage, cleanliness is critical. Smooth welds mean no hiding places for dirt, dust, or bacteria.

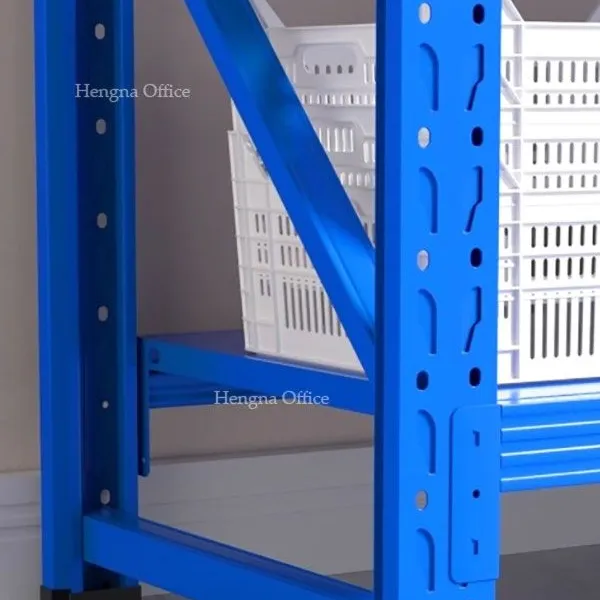

3. Butterfly Hole and Bayonet Connection
Look at the column. You will see holes shaped like butterflies. These are not just for looks. They are designed to work with the bayonet on the beam.
| Part | What It Does |
|---|---|
| Butterfly Hole | The shaped opening on the column |
| Bayonet | The hook on the end of the beam |
| Connection | Bayonet locks into butterfly hole |
Installation is simple:
Insert the bayonet into the top of the butterfly hole
Push down until it locks into the bottom
The connection gets tighter under load
This is called a self-locking mechanism. The heavier the load, the tighter the connection becomes. This is safe and reliable.

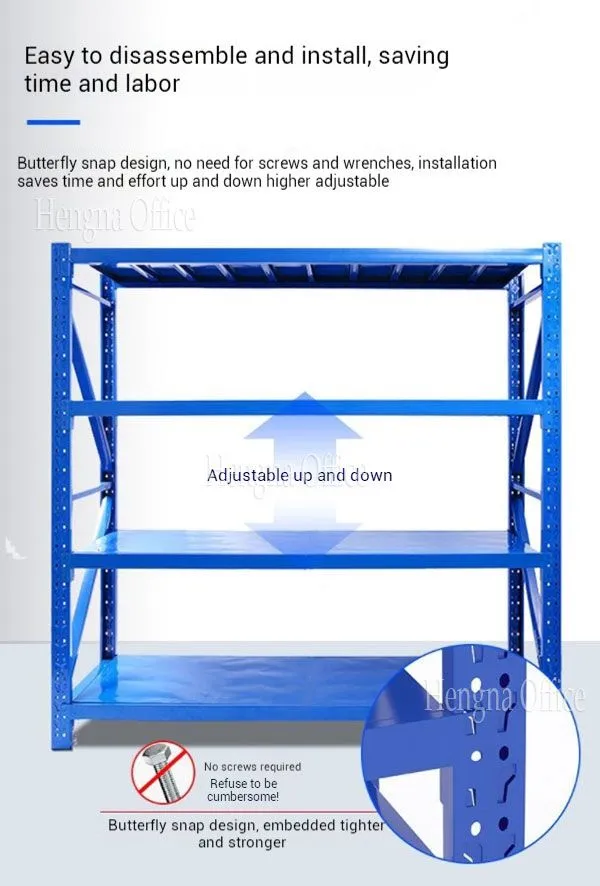

4. Easy to Disassemble and Adjust
Because the system uses butterfly holes and bayonets, you can easily take it apart and change it.
Need to move shelves to a different height? Just lift and move.
Need to rearrange the whole warehouse? Disassemble and reassemble.
Need to clean thoroughly? Take apart and clean every piece.
Need to add more racks? Buy add-on frames and connect them.
No tools needed for any of this.

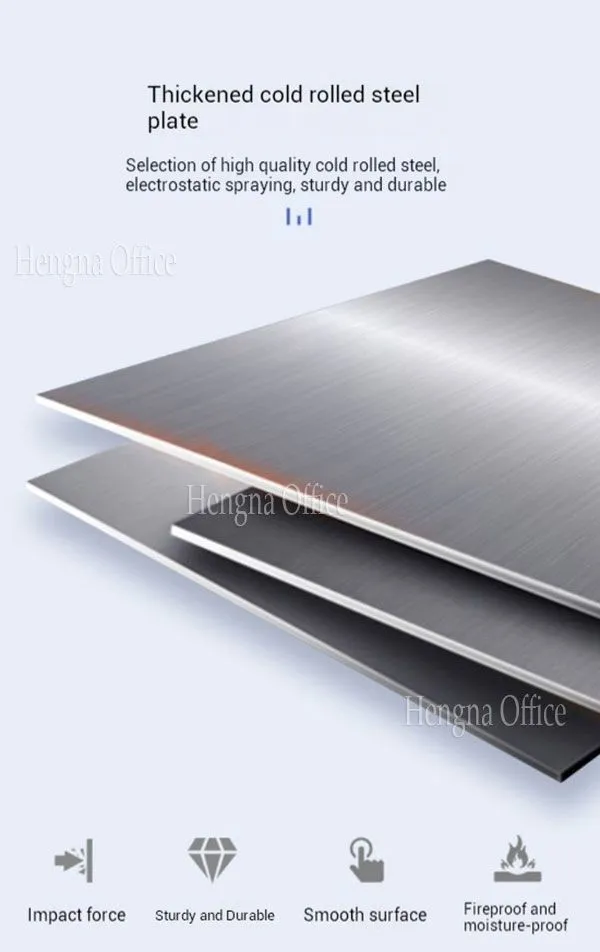

5. Cold Rolled Steel Construction
Cold rolled steel is stronger than regular steel. The cold rolling process makes the steel denser and harder. This means:
The columns will not bend under heavy loads
The beams will stay straight
The shelves will last for many years
The rack will remain stable and safe
For pharmaceutical storage, where products are valuable and must be protected, this strength matters.

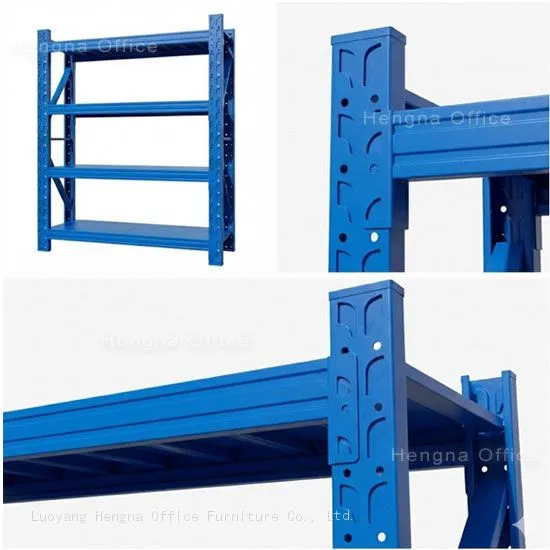

6. Wave-Shaped Beams
Look at the beams. They have three wavy lines pressed into them. These are pressure lines. They make the beam stronger.
A flat beam bends in the middle under heavy weight. A wave beam spreads the weight across the whole surface. The three lines act like ribs. They stop the beam from twisting or bending.
For pharmaceutical storage, this means:
Heavy boxes of medicine are safe
The shelf will not sag
Boxes stay flat and do not tilt
Labels stay visible and scannable
7. Reinforced Shelf Panels
Turn a shelf panel over. Look at the back. You will see multiple reinforcement ribs. These are extra lines of steel pressed into the panel.
Without ribs, a thin steel panel would bend. With ribs, the panel stays flat even under heavy loads. The force spreads evenly across the whole surface.
For pharmaceutical storage, flat shelves are important. Boxes stack neatly. Barcodes face forward. Air can circulate around products.
8. Adjustable Shelves
The shelves are not fixed. You can move them up or down. The butterfly holes are spaced every 50mm.
This means:
Tall boxes go on one shelf
Short boxes go on another
You change the layout when products change
You do not buy new racks for new products
In pharmaceutical storage, box sizes vary. Vaccines come in small boxes. Supplies come in larger boxes. Adjustable shelves fit them all.

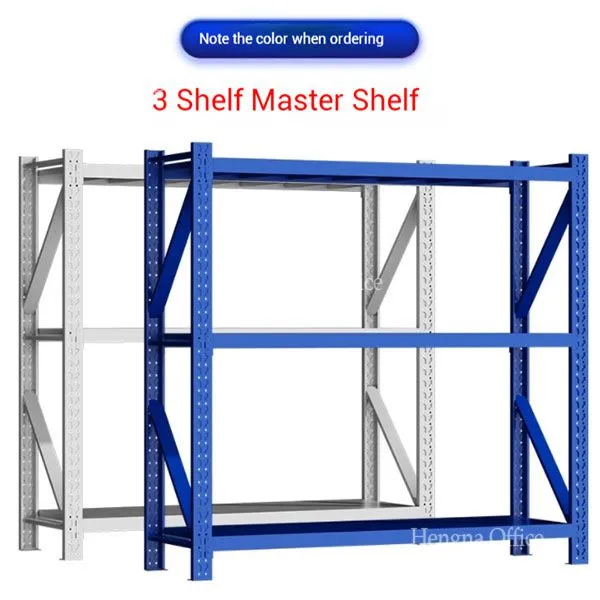

9. Main Frame and Add-on Frame System
This rack system uses a smart design. You can buy one rack, or you can connect multiple racks together.
| Frame Type | What It Includes | When to Use |
|---|---|---|
| Main Frame | 2 columns + beams + shelves | Start a new row of racks |
| Add-on Frame | 1 column + beams + shelves | Extend an existing row |
Why this matters for pharmaceutical warehouses:
Add-on frames cost less
Racks connect to form long rows
Creates continuous storage lines
Saves floor space
Looks organized and professional
Easier to keep clean
Powder Coated Surface
The surface finish is electrostatic powder coating. Here is how it works:
The steel parts are cleaned thoroughly.
Dry powder (color pigment) is sprayed on.
Static electricity makes the powder stick.
The parts go into an oven. The powder melts and fuses into a hard coating.
Why this matters for pharmaceutical and cold chain storage:
| Benefit | What It Means |
|---|---|
| Durable | Coating does not scratch or peel easily |
| Corrosion resistant | No rust in cold, humid environments |
| Chemical resistant | Handles cleaning and sanitizing products |
| Easy to clean | Smooth surface wipes clean |
| Non-porous | No places for bacteria to grow |
| Uniform coverage | No thin spots or drips |
| Odorless | Safe for sensitive products |
The powder coating is even and full. It covers every part of the steel. This protects the rack from the cold, humid environment of cold chain storage.
Quality You Can See in Every Detail
The product images show real details:
Fine Butterfly Clip: Made with precision. Easy to operate. Easy to install.
Reinforced Back: Multiple reinforcements. Force is uniform. Heavy objects are safe.
Smooth Welds: No welding slag. No rough spots. No corrosion points. Seamless and clean.

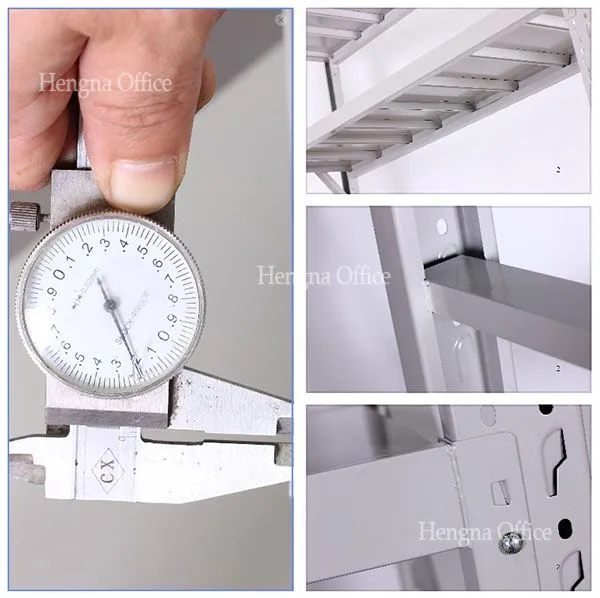

Thickened Plate: Steel is visibly thicker. More stable. Higher load capacity.
Even Coating: Paint is uniform. No thin spots. Full coverage.
Wave-shaped Beam: Three pressure lines visible. Stronger than flat beams.
Butterfly Hole Bayonet: Precision fit. Easy insertion. Secure lock.
What Can You Store?
This modular shelving system is perfect for many pharmaceutical and cold chain items:
| Category | Examples |
|---|---|
| Vaccines | Small boxes, vials, temperature-controlled packs |
| Medicines | Prescription drugs, over-the-counter products |
| Medical Supplies | Syringes, gloves, masks, gowns |
| Lab Samples | Biological samples, test kits |
| Cold Chain Foods | Temperature-sensitive food products |
| Chemicals | Pharmaceutical ingredients, reagents |
| Clinical Trial Materials | Study drugs, supplies |
| Hospital Supplies | Bulk medical products |
| Pharmacy Inventory | Retail pharmacy stock |
| Distribution Center | Products waiting to ship |
The 100kg to 500kg capacity handles all of these easily.
Why Modular Matters for Pharmaceutical Storage
Pharmaceutical warehouses have special requirements that change over time.
Regulatory changes:
New regulations might require different storage layouts. Modular racks can be reconfigured to meet new rules.
Product changes:
New products come in different box sizes. Adjustable shelves fit them without buying new racks.
Temperature zone changes:
Cold chain areas might need to be rearranged. Modular racks can be moved and reorganized.
Cleaning requirements:
Regular sanitizing is easier when racks can be disassembled and cleaned thoroughly.
Expansion:
As your business grows, you add more racks. The modular system ensures everything matches.
Enhanced Welding Technology
The product images mention "enhanced welding technology." This means:
Stronger welds that last longer
More consistent weld quality
Better appearance
No weak points
Smooth surface for cleaning
For pharmaceutical storage, enhanced welding technology means the racks are:
More durable
Easier to keep clean
Less likely to corrode
More professional in appearance
Strong, Stable, and Aesthetically Pleasing
The product images describe the welding as "strong, stable and aesthetically pleasing." This combination is important for pharmaceutical facilities.
Strong: Holds heavy loads safely
Stable: Does not wobble or shake
Aesthetically pleasing: Looks professional and clean
In pharmaceutical and cold chain facilities, appearance matters. Inspectors visit. Clients tour. The facility should look professional. These racks help with that.
Applications in Pharmaceutical and Cold Chain Logistics
| Area | Use |
|---|---|
| Pharmaceutical Warehouse | Store finished drugs waiting for distribution |
| Cold Storage Facility | Temperature-controlled product storage |
| Hospital Pharmacy | Bulk medication storage |
| Distribution Center | Products waiting to ship to pharmacies |
| Lab Supply Storage | Reagents, samples, supplies |
| Clinical Trial Site | Study drugs and materials |
| Vaccine Distribution Hub | Vaccines waiting for delivery |
| Medical Supply Warehouse | PPE, equipment, supplies |
| Pharmaceutical Manufacturing | Raw materials, work-in-progress, finished goods |
This Modular Warehouse Shelving System is specifically designed for pharmaceutical and cold chain logistic storage. It uses high-quality cold rolled steel for strength. The seamless welding technology creates smooth, clean joints with no places for dirt to hide. The butterfly hole and bayonet connection allows tool-free assembly and adjustment.
The modular design gives you flexibility to arrange and rearrange your storage. The adjustable shelves fit different box sizes. The wave beams and reinforced panels hold heavy loads without sagging. The powder coated surface resists corrosion and is easy to clean.
You can start with Main Frames and add Add-on Frames as you grow. The system is easy to disassemble for cleaning or reconfiguration. Every detail is designed for the special requirements of pharmaceutical and cold chain storage.
Choose blue or white. Set up fast. Keep clean. Store safely. Trust HENGNA quality.
Frequently Asked Questions (FAQ)
1. Why is seamless welding important for pharmaceutical storage?
Seamless welding means the welds are smooth and complete, with no rough spots or welding slag. In pharmaceutical storage, cleanliness is critical. Rough spots can trap dirt, dust, and bacteria. They are hard to clean and can become sources of contamination. Smooth welds have no hiding places. They wipe clean easily. They meet the high standards required for pharmaceutical and medical storage facilities. Inspectors look for details like this. Seamless welding shows attention to quality and cleanliness.
2. How does the modular design help with cold chain logistics?
Cold chain logistics often involves changing needs. Products come and go. Temperature zones might need to be rearranged. New products arrive in different box sizes. With modular design, you can reconfigure your storage without buying new racks. You can move shelves to different heights. You can add more racks as you grow. You can even disassemble and move entire rows to different areas. This flexibility is valuable in dynamic cold chain environments where requirements change frequently.
3. Can this rack be cleaned and sanitized easily?
Yes. The smooth powder coated surface wipes clean with standard cleaning solutions. The seamless welds mean no rough spots where dirt can hide. The open design allows access to all parts of the rack. If you need to do a deep clean, you can disassemble the rack completely. The boltless design means no tools are needed. You can take it apart, clean every piece, and put it back together. The non-porous powder coating does not absorb liquids or chemicals. This makes the rack suitable for environments that require regular sanitizing, such as pharmaceutical and medical storage facilities.
The contact information of the sales manager is shown in the picture below. You can make inquiries directly without waiting.
Send Inquiry to This Supplier
You May Also Like
-
Modular KD Flat Pack Pallet Racking System Expandable Storage 2000kg Per Beam — Start Small Scale Up AnytimeUS$ 20 - 200MOQ: 5 Combos
-
Double Deep Selective Pallet Rack High Density Storage 1500kg Adjustable Beam — Same Footprint 40% More PalletsUS$ 20 - 200MOQ: 5 Combos
-
Custom Size Steel Pallet Racking 1000kg to 4000kg Multi Level Beam Rack — Tailored to Your Warehouse Not the CatalogUS$ 20 - 200MOQ: 5 Combos
-
Narrow Aisle Pallet Racking Space Saving Warehouse Storage 2000kg Heavy Duty — Fits Tight Urban Warehouses Without Wasting Aisle SpaceUS$ 20 - 200MOQ: 5 Combos
-
Drive In Pallet Racking System Bulk Storage 4000kg Per Bay Cold Rolled Steel — Built for FMCG and Food Distribution CentersUS$ 20 - 200MOQ: 5 Combos
-
Main Frame Auxiliary Frame Steel Rack — Expand Rows, Save Column Cost, KD Pack for Bulk OrderUS$ 20 - 200MOQ: 5 Combos
-
Single-Sided Industrial Tool Organizer Trolley — Mobile Shadow Board Cart for 5S LayoutUS$ 20 - 200MOQ: 5 Combos
-
Rolling Tool Rack With Color-Coded Bins — Mobile Pegboard Storage for Garage Repair ShopUS$ 20 - 200MOQ: 5 Combos
-
Modular Tool Board on Wheels — Heavy-Duty Mobile Cart With Hooks for Maintenance BaysUS$ 20 - 200MOQ: 5 Combos
-
Welded Steel Garage Shelving HN-F276 — Built for Tool Boxes, Auto Parts, and Daily Workshop AbuseUS$ 20 - 200MOQ: 5 Combos
