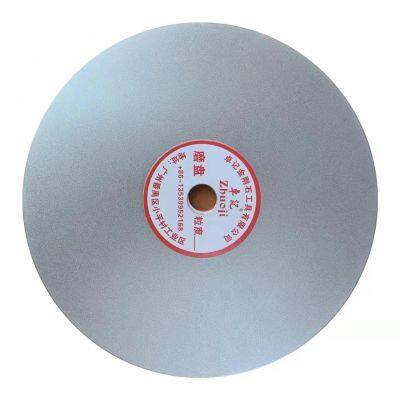

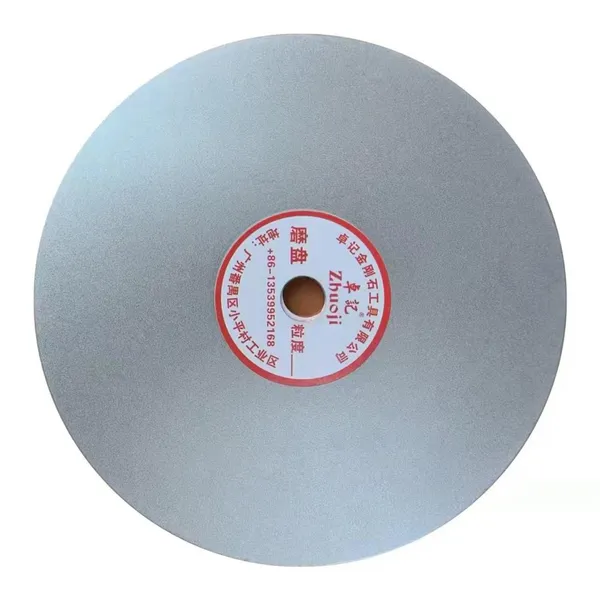

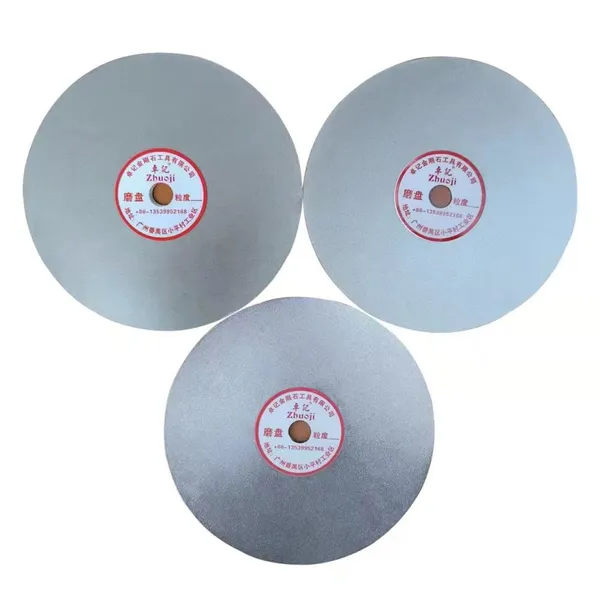

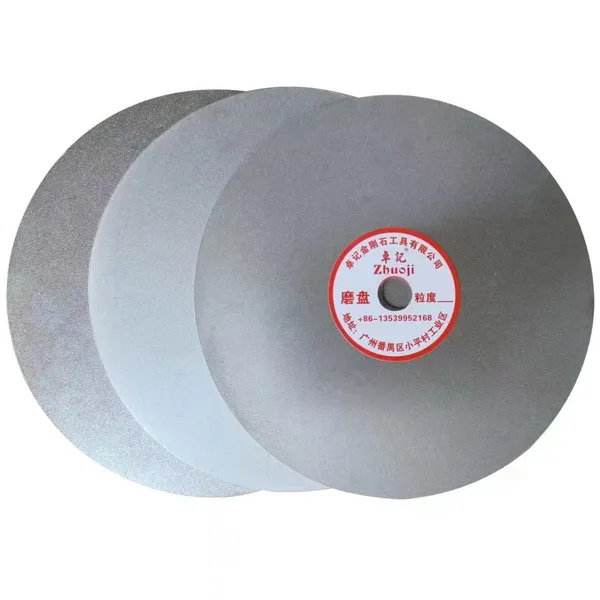

Xingxing Diamond Grinding Disc
Product Introduction: The Xingxing Diamond Electroplated Grinding Disc is a high-performance abrasive tool specifically designed for precision grinding applications.Utilizing high-quality diamond abrasive particles, the product is securely attached to a high-strength base through an advanced electroplating process. When mounted on a grinding machine, the disc rotates at high speed to achieve efficient surface flattening and fine finishing of workpieces.
Core Applications: This product is suitable for processing hard and brittle materials with high precision requirements and is widely used in the following industries:
· Ceramics, Glass, Crystal Products
· Measuring Tools, Cutting Tools, Molds
· Gemstones, Jade, and other non-metallic materials
Product Performance Advantages:
· High Sharpness & Efficiency: Sharp cutting edges provide significant grinding efficiency, greatly increasing processing speed.
· Stable Precision: Uniform particle size distribution and good flatness ensure long-lasting processing accuracy.
· Strong Bonding: High bond strength between the diamond and the base material ensures excellent durability.
· Smooth Operation: The grinding process is smooth, leaving no visible lines and ensuring a high-quality surface finish.
· Long Wear Life: Low abrasive particle shedding rate prevents grit loss, resulting in a long service life.
Market Performance: Our factory's diamond grinding discs are exported to regions including Europe,America, Africa, the Middle East, and Southeast Asia. Within domestic major crystal and glass production areas, as well as jade and gemstone processing hubs, our market share consistently ranks first in the industry, with products often in short supply year-round.
Technical Specifications:
· Product Code: 932307001
· Model: XX-6
· Disc Diameter: 6 inches (150mm). Also available in various sizes including 8, 10, 12, 14, and 16 inches.
· Center Bore Diameter: 12.7mm / 25mm / 32mm
· Available Grit Sizes: #60, #80, #100, #120, #800 #1500.
