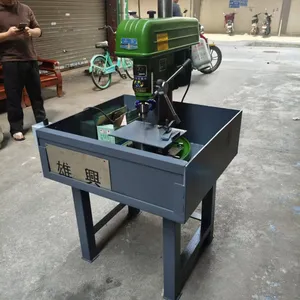

Xiongxing Jade Bracelet Forming Machine
Xiongxing Bracelet Forming Machine User Manual
Product Model: XX-886
Equipment Number: 811101225
I. Product Overview
The Xiongxing XX-886 Bracelet Forming Machine is specifically designed for the jewelry and gemstone processing industry. It is primarily used to efficiently and precisely extract ring-shaped bracelet, ring, and safety clasp blanks from gemstone and jade raw materials, serving as a critical processing step prior to subsequent fine polishing operations.
II. Key Features
1. Unique Clamping Mechanism: Features an “internal clamping, external pressure” mechanism that ensures even force distribution on the ring-shaped raw material during cutting. This keeps the material stable and prevents wobbling, effectively preventing material fractures and improving yield rates.

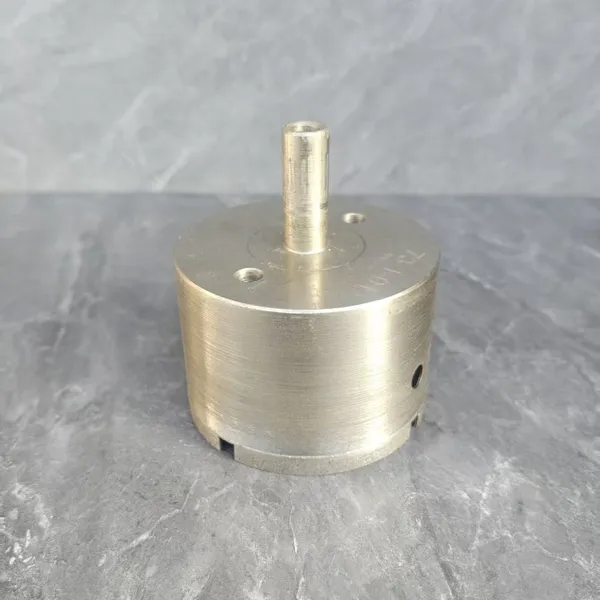

2. High-Efficiency Cutting Technology: Equipped with a diamond hollow sleeve drill bit, it can cut ring-shaped blanks in a single pass. The cutting path is precise, and the edges are smooth, minimizing material waste.
3. Inner-to-Outer Cooling System: An innovative coolant delivery method sprays coolant from the cutting center toward the periphery. Compared to traditional external cooling, this system more rapidly removes heat and dust generated deep within the cut, preventing cracks in gemstones caused by high temperatures while extending the drill bit’s service life.
4. Wide Applicability: Suitable for shaping and processing various types of natural and synthetic gemstone jewelry, including bracelets, rings, and safety knots.
III. Main Technical Specifications
Input Voltage: AC 220V / 380V (optional)
Output Power: 550W
Motor Speed: 1400 r/min
Spindle Speed: 280–3600 r/min (adjustable)
Dimensions: 145 * 80 * 75 cm
IV. Operation and Adjustment Instructions
1. Speed Adjustment: The spindle speed of this machine can be continuously adjusted between 280 and 3600 rpm. During processing, select an appropriate spindle speed based on the hardness and size of the gemstone being processed.
2. Mounting and Alignment: Mount the gemstone to be processed onto the internal clamping and external pressure mechanism, and adjust the position so that the center of the drill bit aligns with the center of the inner diameter of the desired bracelet.
3. Activating Cooling: Before starting the machine, be sure to activate the inward-to-outward cooling system to ensure a steady supply of coolant.
4. Cutting and Shaping: Start the spindle motor and feed the tool smoothly. Once cutting is complete, remove the separated ring-shaped bracelet blank for subsequent polishing.Scope of Business
