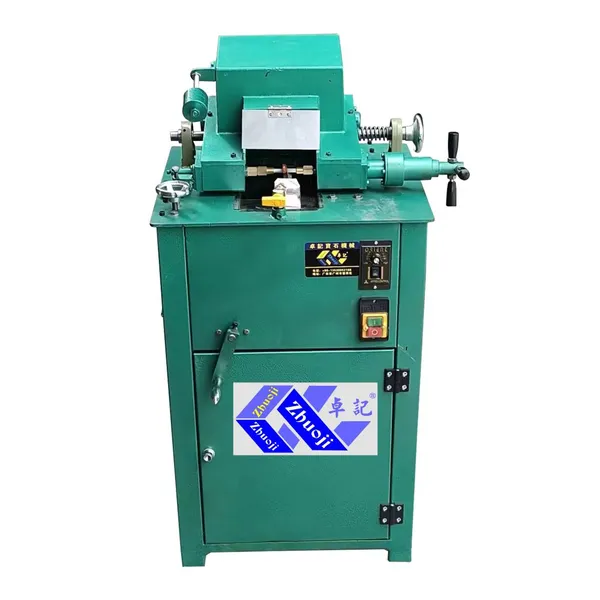

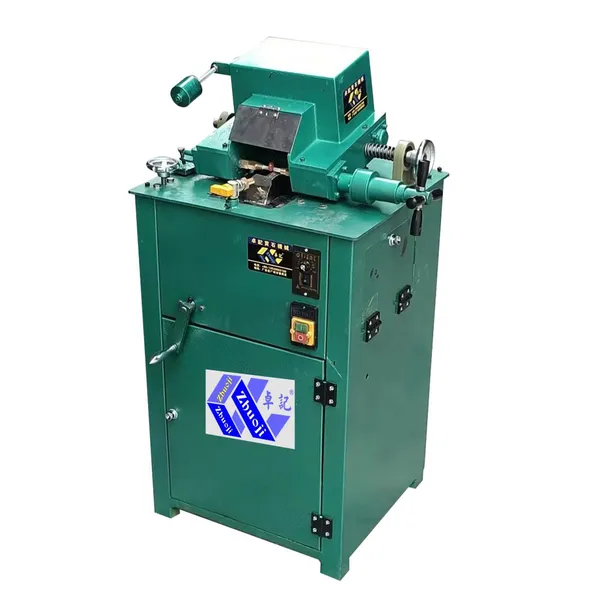

Help CenterFactory-Direct Jade Shaping Machine Crystal Agate Molding Machine Buddhist Bead Round Bead Processing Machine
Product Spotlights
Related Products
-
6 Inch Electroplated Diamond Grinding Disc for Gemstone Glass & CeramicUS$ 2.8MOQ: 10 Blades -
Electroplated Diamond Profile Wheels for Gemstone & Jade Grinding - Custom Shapes AvailableUS$ 20MOQ: 10 Blades
-
6 Inch to 20 Inch Sintered Diamond Blade / Abrasive Cutting Wheel for Precious Stones & JadeUS$ 8MOQ: 10 Blades
-
Xiongxing 10 Inch Drum-Shaped PU Lining Vibratory Polishing MachineUS$ 115MOQ: 2 Pieces
-
Xingxiong 24" Vibratory Tumbler | Multi-Purpose Polishing Machine for Agate, Jade & Semi-Precious Stones With PU LiningUS$ 380MOQ: 2 Pieces
Product Manual: Xiongxing Universal Shaping Machine (Model N6204D)
Number: 210101001
Name: Universal Shaping Machine
Core Selling Points
This equipment is a high-efficiency, high-precision multi-functional forming machine. It can not only perform basic circular grinding but, more importantly, through interchangeable shaped grinding wheels (profiled wheels), it can precisely process various complex shapes of gemstones and glass lenses. This ensures highly uniform product dimensions, standard shapes, and excellent precision, earning it the name "Shaping Machine" or "Universal Profiling Machine."
Technical Innovation
Our company has conducted a comprehensive technological upgrade and transformation of traditional shaping machines. In addition to retaining all the advantages of the original model, our company's pioneering and domestically leading dual-speed regulation system endows the equipment with broader processing adaptability:
1. Electronic Stepless Speed Regulation: Allows for smooth adjustment within the designed speed range, meeting the fine processing requirements of different materials.
2. Mechanical Speed Regulation: By changing different specifications of transmission sprockets, a wider range of ideal speeds can be easily achieved to suit the process requirements of various workpieces.
Working Principle
The equipment uses pre-formed shaped grinding wheels to perform rolling grinding and shaping on materials (such as beads). This process integrates multiple forming functions like faceting, cabochon cutting, and bead reforming, achieving efficient standardized production with high uniformity and precision. It can perfectly process various rotational symmetric shapes such as round, oval, barrel-shaped, and tapered forms.
Product Features
Flexible Speed Regulation: Speed can be adjusted at any time according to actual processing needs, greatly improving shaping efficiency and quality.
High-Precision Shaping: Utilizes precision-formed grinding wheels to ensure product standardization and the ability to machine workpieces in any rotational symmetric shape.
Powerful and Energy-Efficient: Features ample power for efficient processing while achieving energy savings and consumption reduction, with a pollution-free operation.
· High Production Capacity: Demonstrates significant processing efficiency, with a single unit capable of stably producing approximately 1000 workpieces in 8 hours.
· Wide Applicability: Suitable for processing jade, crystal, agate, glass, and various semi-precious stone materials.
Technical Parameters
· Power Supply Voltage: 220V / 380V
· Motor Power: 750W
· Shaping Wheel Speed: 2500—4000 r/min
· Dimensions: 450mm (Length) × 520mm (Width) × 1080mm (Height)
Business Scope
Automated processing equipment for gem cutting and slabbing, plus blades.
Automated CNC processing equipment and tools for colored gemstones.
Automated CNC processing equipment and tools for gem beads and balls.
Processing equipment and tools for jade and jadeite bracelets.
Processing equipment and tools for special-shaped and fancy gemstones.
Equipment and tools for gemstone optimization treatments like waxing/resin infusion.
Tumbler polishing equipment and materials.
Equipment and tools for gemstone drilling.
About Us
Since its establishment in 2003, Guangzhou Xiongxing Gem Machinery Co., Ltd. has consistently focused on the R&D, manufacturing, and sales in the field of gem and jade machinery. The company has introduced advanced production equipment and techniques from both domestic and international sources. After more than twenty years of continuous accumulation and innovation, we have now established a comprehensive R&D, production, sales, and after-sales service system.
We always adhere to product quality as the core, striving for continuous improvement, and have won wide recognition within the industry. Our products not only cover all parts of the country but are also exported to the Middle East, Europe, America, Southeast Asia, and many other countries and regions. We have become a core supplier in several important gem processing bases, deeply trusted and well-received by customers at home and abroad.
Friends from all walks of life are warmly welcomed to visit us for inspection and discuss cooperation.
