TS 10189 Battery holder assy (Battery holder assembly), a dedicated battery box base for UTI, Honeywell
Product Overview
TS 10189 is an original accessory produced by the Enraf TankSystem brand under Honeywell. It is mainly used for the HERMetic UTImeter series of oil-water interface meters (UTI) equipment.
Applicable Equipment
This battery holder assembly is suitable for the following Honeywell oil gauges/oil-water interface meter series:
HERMetic UTImeter Gtex series
HERMetic UTImeter Otex series
HERMetic UTImeter Rtex series
HERMetic UTImeter Gtex Chem series. Component Composition
According to the technical documentation, the TS 10189 battery holder kit usually includes the following components:
Part Number |
Description |
TS 11246 |
Battery holder part |
TS 11248 |
Battery holder part |
TS 11249 |
Battery holder part |
TS 37020 |
Fixing screw (to be purchased separately) |
TS 40300 |
Fixing screw (to be purchased separately) |
Note: According to the official instructions, the TS 40300 and TS 37020 screws need to be ordered separately and are not included in the TS 10189 kit.
Technical Specifications. Accessory Type: Battery Holder Assembly
Manufacturer: Honeywell
Brand: Enraf TankSystem
Accessory Category: Holder Assembly. Maintenance and Replacement
According to the operation manual:
Battery replacement steps: Use a 2.5mm hex Allen wrench to unscrew the 2 screws of the battery holder.
Gently pull out the battery holder
Replace the battery (note the one-way installation)
Push the battery holder back to its original position (one-way installation)
Tighten 2 screws (it is recommended to apply lubricating grease on the screws to prevent jamming). Recommended battery model: Duracell/Procell MN1604
Purchase information. Part number: TS 10189 / TS10189
Reference price: 511 RMB (tax included)
Ordering channel: Honeywell authorized distributor - Xiamen Jielian Instrument & Equipment Technology Co., Ltd.
In the same device, TS 10189 is usually used in conjunction with the following accessories: TS 10190: Electronic box assy
TS 10210: Display unit assy
TS 10205/TS 10206: Tape cleaner assy

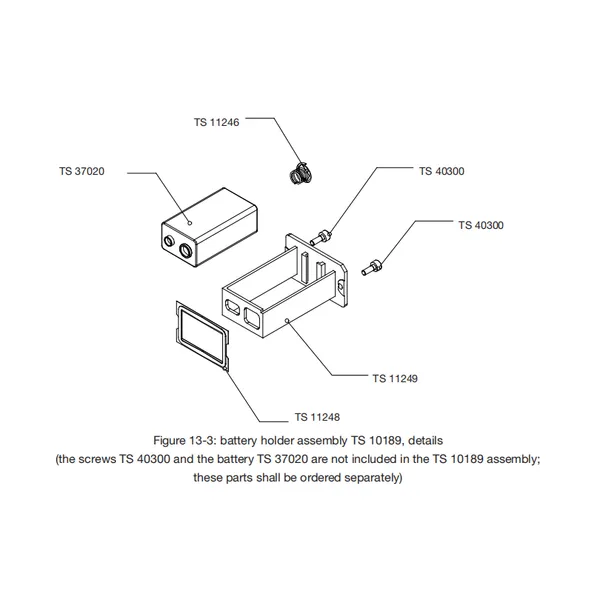

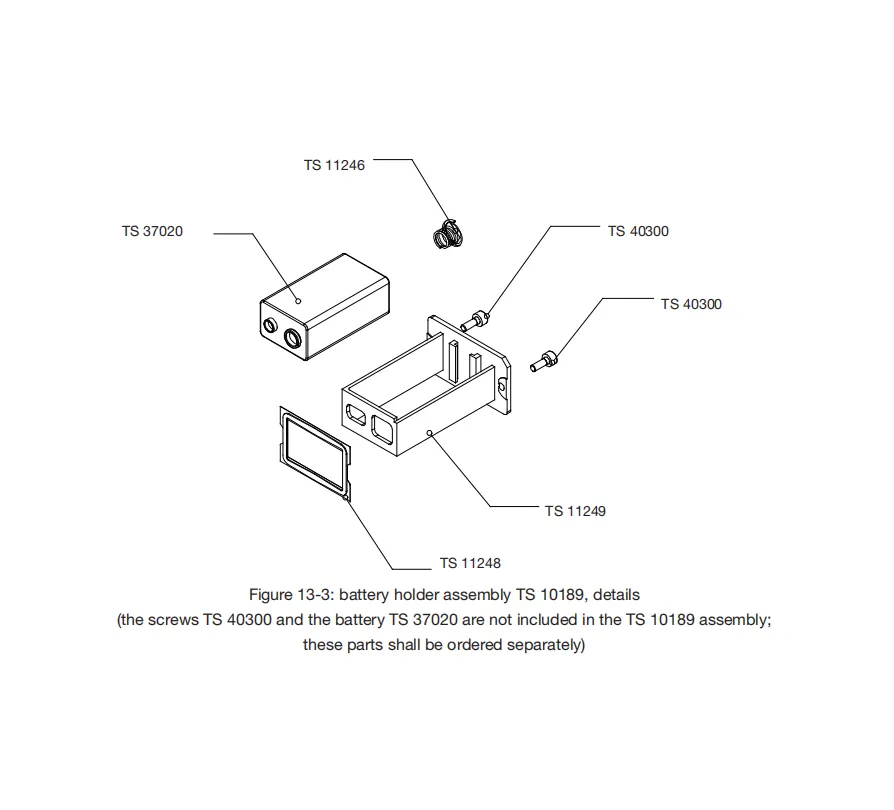

If you need more detailed technical drawings or a complete spare parts list, it is recommended to refer to Figure 13-3: battery holder assembly TS 10189, details in the Honeywell official operation manual.
