Introduction: Secure Storage for Critical Healthcare Environments
Hospital pharmacies are the nerve centers for medication management, handling not only pharmaceuticals but also the reagents, solvents, and cleaning agents essential for sterile compounding and facility operations. The safe storage of these often-hazardous materials is paramount to protect staff, patients, and valuable inventory. The Berlin Hospital Pharmacy Safety Cabinet, Model HN-EX110G, is engineered to meet the stringent demands of this setting. It combines substantial storage capacity with two pivotal safety features: a high-integrity three-point linkage lock for controlled access and a reliable leak-proof sump for spill containment. This cabinet serves as a dedicated safeguard, ensuring that hazardous chemicals are stored securely, responsibly, and in compliance with core safety principles.
Product Definition & Core Purpose
The HN-EX110G is a 110-gallon hazardous material storage cabinet, designed to provide a secure, organized, and fire-resistant enclosure for a variety of chemicals used within hospital pharmacy and auxiliary support areas. Its primary function is risk mitigation through segregation and containment. By isolating flammable, corrosive, or reactive chemicals from daily workflow areas, it reduces the risk of accidental exposure, prevents incompatible materials from interacting, and provides a crucial layer of passive fire protection, contributing to overall facility safety.
Material & Construction: Built for Durability and Performance
Constructed to withstand the long-term demands of a healthcare facility, the cabinet prioritizes robust materials and thoughtful design.
Sturdy Frame: The cabinet body is fabricated from high-quality cold-rolled steel (within the 1.2-2.0mm thickness range), providing a rigid and durable structure capable of supporting heavy loads of chemical containers.
Protective Finish: The exterior is treated with a high-temperature powder coating, offering resistance against corrosion from chemical fumes and facilitating easy cleaning. The interior is equipped with adjustable galvanized steel shelves, which provide excellent resistance to rust and allow for flexible configuration to accommodate bottles and cans of various sizes.
Fire-Resistant Design: The cabinet incorporates a double-wall construction with a 38mm air insulation gap between the steel layers. This design provides a fire resistance rating of ≥90 minutes, helping to protect the contents from external fire exposure.
Leak-Proof Sump (A Key Feature): The base of the storage compartment is designed as an integral 50mm (5cm) deep safety containment sump. This sump is engineered to capture and contain accidental leaks or spills from within the cabinet, with a holding capacity of at least 25% of the cabinet’s total 110-gallon volume. This is a critical feature for preventing hazardous liquids from escaping onto pharmacy floors.
Robust Hardware: Features heavy-duty, corrosion-resistant hinges designed for smooth operation and long-term durability.
Key Safety & Functional Features: Prioritizing Security and Containment
The HN-EX110G integrates specific features to address the unique security and safety needs of a hospital pharmacy.
Three-Point Linkage Locking System (A Core Highlight): This advanced locking mechanism significantly enhances security and seal integrity compared to standard locks.
Enhanced Security: The system engages bolts at three points (top, center, and bottom) when locked, making unauthorized access considerably more difficult. This is particularly important for pharmacies storing controlled substances or high-value materials.
Superior Seal: The multi-point engagement ensures the door seals uniformly around its entire perimeter, improving containment of vapors and maintaining the cabinet’s fire-resistant integrity.
Mechanical Stability: Adds to the overall rigidity of the closed cabinet door.
Effective Secondary Containment: The 5cm deep leak-proof sump acts as a passive, integral secondary container. It is a fundamental safety component designed to manage leaks, which is essential for compliance with standard hazardous material storage guidelines.
Thermal Insulation: The double-walled air-gap design provides a buffer against external heat sources, a vital safety feature in any environment storing temperature-sensitive or flammable materials.

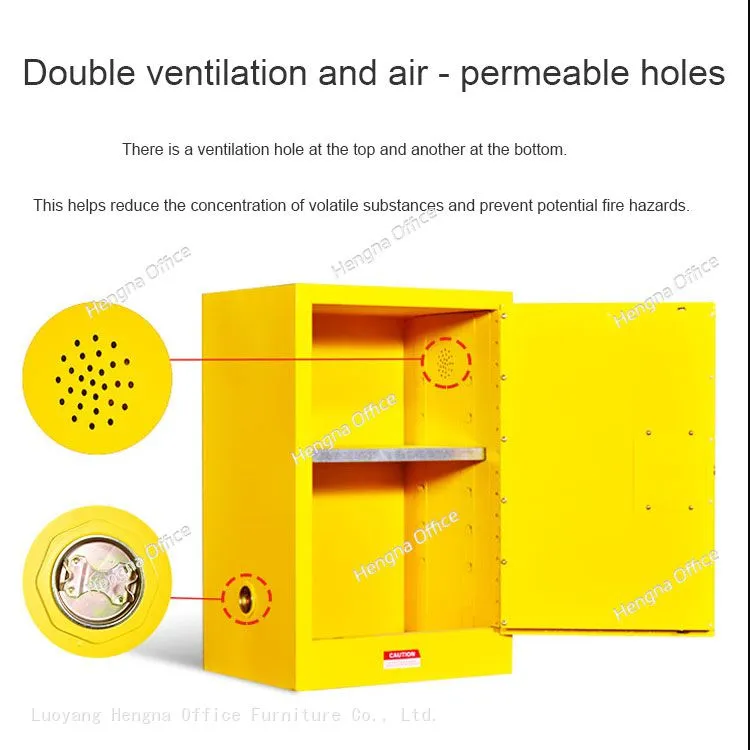

Ventilation Preparedness: The cabinet includes pre-drilled ventilation openings (fitted with bungs) at the top and bottom. These can be connected to the building’s exhaust system to safely vent harmful vapors away from the storage area, maintaining good indoor air quality.
Static Control Point: Includes a designated connection point for a bonding wire to ground the cabinet and safely dissipate static electricity, a necessary precaution when storing flammable liquids.
Product Classification & Specifications
This large-capacity cabinet is suitable for storing various chemical hazard classes present in a hospital setting.
| Color Category | Typical Storage Use in Hospital Pharmacy | Common Examples |
|---|---|---|
| Yellow | Flammable/Reactive Chemicals, Cleaning Agents | Alcohol-based sanitizers (bulk), certain solvents for equipment cleaning, disinfectants, aerosol products. |
| Blue | Weak Corrosives/General Chemicals | Diluted acids/bases for pH adjustment, cleaning solutions, hydrogen peroxide (3%). |
The HN-EX110G can be specified in appropriate colors, such as Yellow or Blue, based on the primary stored materials.
| Model | Capacity | Approx. External Dimensions (H×W×D) | Door Type | Key Features |
|---|---|---|---|---|
| HN-EX110G | 110 Gallons | 1650mm × 1500mm × 860mm | Double Door | Three-Point Linkage Lock, 5cm Leak-Proof Sump, Adjustable Shelves |
Ideal Applications & Compliance Context
The Berlin HN-EX110G is ideally suited for:
Hospital Central Pharmacies and Satellite Pharmacies
Pharmaceutical Compounding Labs
Hospital Laboratory Chemical Storage Rooms
Healthcare Facility Maintenance Departments
The cabinet is constructed to embody essential safety principles for chemical storage, including segregation, secondary containment, and fire resistance. It is designed to assist healthcare facilities in meeting their general obligations for workplace safety regarding hazardous materials. Final compliance with all applicable local fire codes, health regulations, and Joint Commission or similar standards must be verified by the facility’s safety officer.
A Foundation for Pharmaceutical Safety and Security
The Berlin HN-EX110G Hospital Pharmacy Safety Cabinet provides a robust and reliable solution for managing chemical risks in a critical healthcare environment. Its large capacity meets the needs of busy facilities, while its three-point linkage lock ensures strict access control and its integrated leak-proof sump offers vital spill containment. By investing in this cabinet, hospital pharmacies demonstrate a proactive commitment to safety, protecting their personnel, patients, and premises, and establishing a secure foundation for daily pharmaceutical operations.
