110 Gallon Flammable Cabinet | In Stock Fast Ship | Get Quote in 2 Hours | Flammable Liquid Storage
📋 Product Overview
Whether it's laboratories, warehouses, auto repair shops, or factories, any operation involving storage of flammable liquids (alcohol, gasoline, thinners, acetone, methanol, etc.) must comply with OSHA 29 CFR 1910.106 and NFPA 30 safety regulations. When storage quantity exceeds 10 gallons (37.8 liters), certified flammable liquid safety cabinets must be used for isolated storage, otherwise you face risks of hefty fines or even suspension of operations.

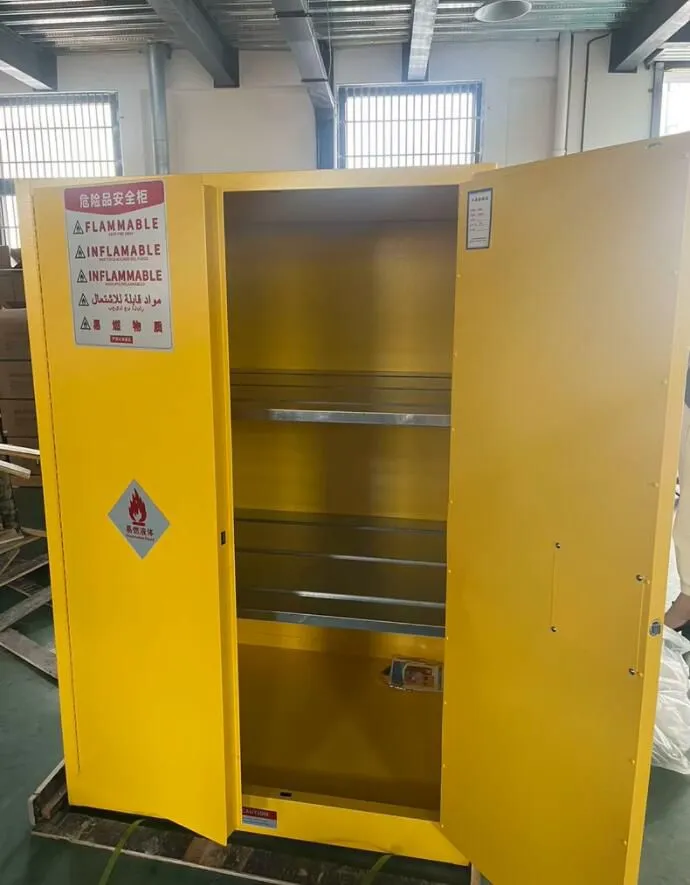

The 110 Gallon Flammable Cabinet is a universal safety storage solution suitable for multiple industries and scenarios. The cabinet body adopts a double-wall 18-gauge cold-rolled steel structure, equipped with a self-closing door system, spill containment sump, and adjustable shelves. The product complies with OSHA/NFPA/FM standards (certification info TBD). It is the ideal choice for various enterprises to safely manage flammable liquids. In stock, quote within 2 hours after inquiry, delivery within 15 days.
⭐ Key Features
1. 🚀 In Stock, Fast Ship (Marketing Selling Point)
We maintain regular stock of 110-gallon safety cabinets, with detailed quotation provided within 2 hours after order inquiry, and 15-day delivery for standard orders (20-25 days for custom orders). Compared to the industry average delivery cycle of 30-45 days, our delivery speed saves customers over 50% waiting time, especially suitable for time-sensitive scenarios such as urgent procurement, project rush, and safety compliance rectification.
2. 🔥 10-Minute Fire Rating
The cabinet body adopts a double-wall 18-gauge cold-rolled steel structure, with high-density fireproof insulation cotton filled in between, passing the 10-minute fire test (compliant with NFPA 251 standard). In the event of an external fire, the internal temperature will not exceed 177°C within 10 minutes, buying valuable time for personnel evacuation and fire rescue.
3. 🚪 Self-Closing Doors + Fire-Resistant Expanding Seal
Equipped with self-closing doors (Self-Closing Doors) that automatically close within 5 seconds after opening, preventing staff negligence. Fire-resistant expanding seals are installed at door gaps, expanding to 3-5 times their original thickness when exposed to heat, tightly sealing gaps and blocking smoke and flames from entering the cabinet.

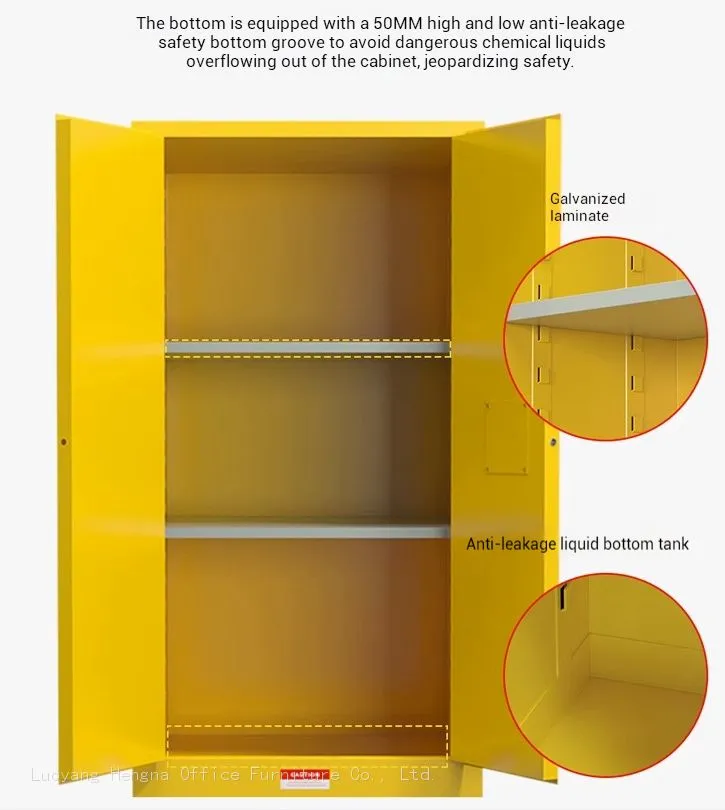

4. 💧 76mm Deep Spill Containment Sump
The bottom of the cabinet features a 76mm deep integrally stamped spill containment sump (Spill Containment Sump), capable of holding 10% of the cabinet's capacity (approx. 41.6 liters). If flammable liquid is accidentally spilled or fire sprinklers activate, liquids are effectively contained in the sump and will not overflow to contaminate the floor or flow into drains.
5. 🔧 Adjustable Shelves + Leak-Proof Flange
Standard with 2 adjustable perforated shelves, shelf height can be freely adjusted (adjustment hole spacing 32mm) to accommodate storage needs of different specifications of flammable liquid containers. Each shelf has a load capacity of 100kg. Shelf edges are equipped with 25mm leak-proof flanges to prevent liquid overflow. The perforated design allows spilled liquid to flow downward into the containment sump.

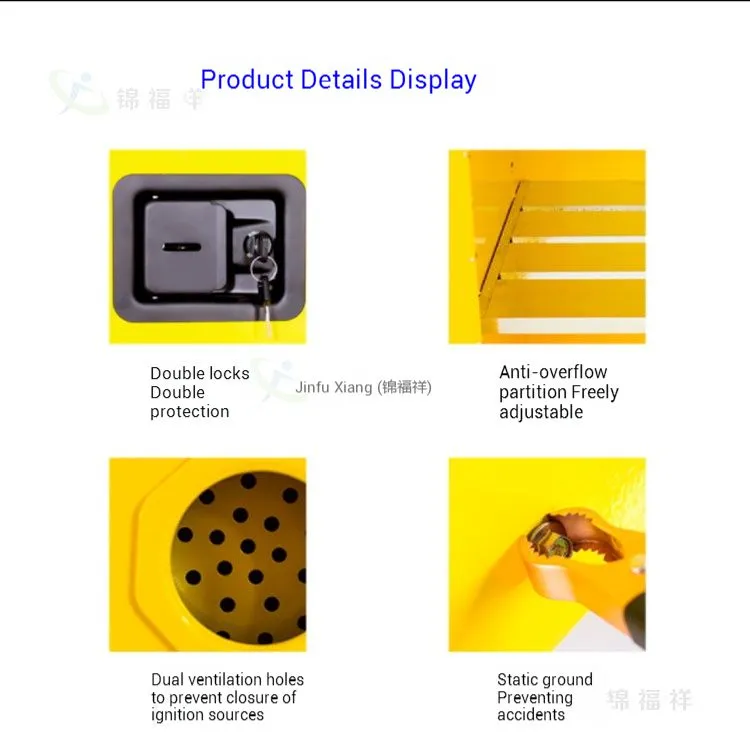

6. ⚡ Dual Grounding Terminals, Anti-Static Design
The cabinet body is equipped with dual grounding terminals (Dual Grounding Terminals), which can be connected to the factory grounding system to prevent static charge accumulation that could trigger sparks. This is a mandatory OSHA requirement and should not be ignored.

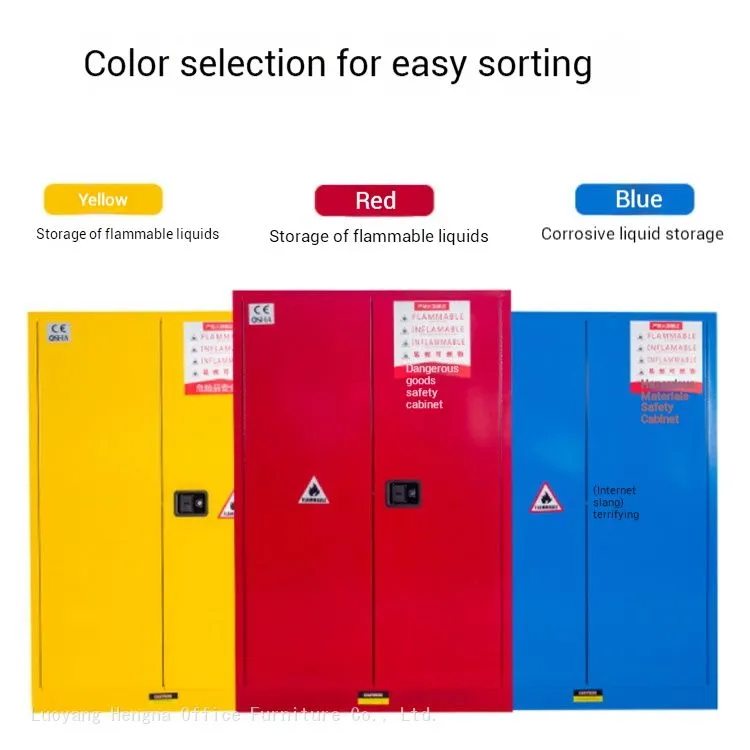

7. 🎨 Multi-Color Options, Compliant with NFPA 704
Available in yellow (flammable liquids general), red (paints/flammable liquids specific), and blue (corrosive liquids) color options. Select the corresponding color according to different stored items, complying with NFPA 704 standards for hazardous material color identification, facilitating on-site safety management and fire inspection recognition.

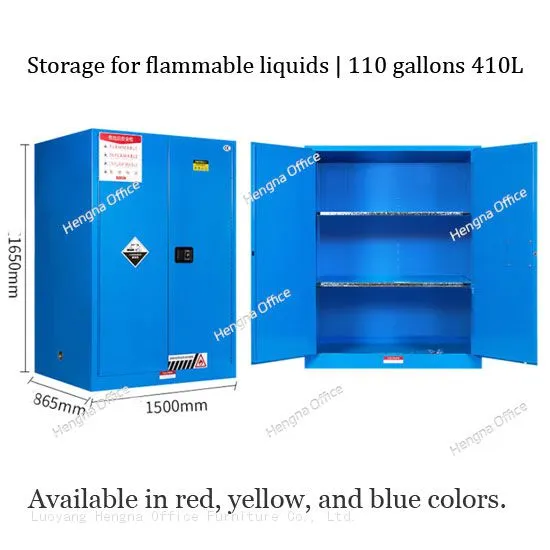

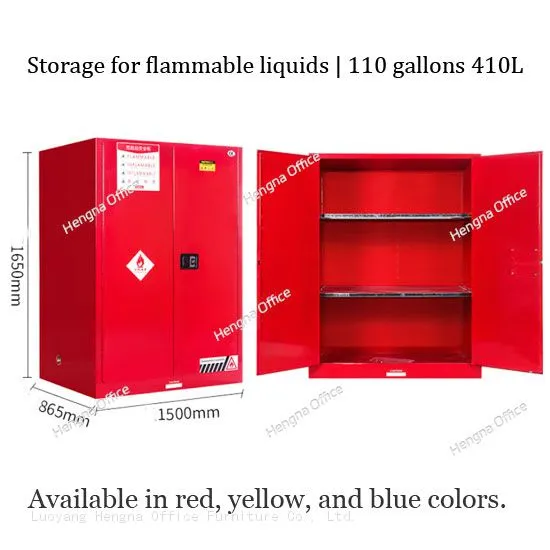

📐 Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 110 Gallons (416 Liters) |
| Applicable Standards | OSHA 29 CFR 1910.106, NFPA 30 |
| Dimensions (H×W×D) | 1650×860×860mm |
| Packaging Dimensions | 1750×940×940mm |
| Net Weight / Gross Weight | 285kg / 325kg |
| Number of Shelves | 2 Adjustable Perforated Shelves |
| Shelf Load Capacity | 100kg per Shelf |
| Cabinet Material | Double-Wall 18-Gauge Cold-Rolled Steel + Fireproof Cotton |
| Fire Rating | 10 Minutes (NFPA 251) |
| Spill Containment Capacity | 41.6 Liters (10% of Capacity) |
| Door Type | Double Door, Self-Closing, 3-Point Lock |
| Grounding Terminals | Dual Grounding Bolts |
| Color | Yellow / Red / Blue (Optional) |
| Delivery Lead Time | 15 Days Standard, 20-25 Days Custom |
| Warranty | 1-Year Limited Warranty |
🏭 Application Scenarios (Multi-Scenario Coverage)
✅ Third-Party Testing Laboratories — Safe storage of ethanol, methanol, acetone, and other flammable solvents
✅ Manufacturing Warehouses — Batch storage of flammable raw materials (gasoline, thinners, cleaning agents) beside production lines
✅ Auto 4S Dealerships/Repair Shops — Daily safety management of paints, thinners, gasoline
✅ Printing & Packaging Factories — Centralized storage of ink, thinner, cleaning agents
✅ Electronics Manufacturing Plants — Management of flammable chemicals such as isopropyl alcohol, alcohol, flux
✅ Research Institutes/Universities — Safe storage of flammable reagents in chemistry laboratories
✅ Food & Beverage Factories — Compliant storage of alcohol, carbon dioxide (compressed gas)
✅ Airports/Ports/Logistics Warehouses — Explosion-proof safety management of hazardous materials in temporary storage areas
❓ Frequently Asked Questions (FAQ)
Q1: Do you really have stock? How soon can you ship?
A: Yes, we maintain regular stock of 110-gallon safety cabinets. Stock quantity for standard colors (yellow/red/blue) is typically 10-30 units. After order confirmation and deposit receipt, shipment within 15 days (from Luoyang factory). If you need customization (color, size, lock, etc.), lead time is 20-25 days. We will clearly indicate delivery date in the quotation. Late delivery will bear contractual liability per agreement.
Q2: How many drums of flammable liquid can a 110-gallon cabinet hold?
A: Taking the common 5-gallon (18.9L) HDPE drum as an example, single drum diameter is approx. 290mm and height 360mm. The effective storage space of a 110-gallon cabinet is approx. 350 liters. Considering ventilation gaps and access space, it is recommended to store 12-15 drums of 5-gallon flammable liquid. If using 1-gallon (3.78L) bottles, then 60-80 bottles are recommended. The specific quantity needs to be calculated based on actual container dimensions to avoid overloading shelves (max 100kg per shelf).
Q3: Does the safety cabinet need to be grounded?
A: Yes, grounding is mandatory! The cabinet is equipped with dual grounding terminals. You should use 4mm² or larger copper core grounding wire to connect to the factory grounding system, with grounding resistance not exceeding 4Ω. Both OSHA and NFPA require flammable liquid storage cabinets to be grounded to prevent static charge accumulation on the cabinet from generating sparks. Each of our cabinets comes with a grounding installation manual with illustrated instructions, easy to understand and operate.
Q4: Can it be placed outdoors or in a shipping container?
A: Not recommended for long-term outdoor placement, but can be placed inside a container/mobile board house. This product is designed for indoor or under-roof sheltered environments. If placed inside a container, ensure the container has a ventilation system (recommended ≥0.5 air changes/hour) and lightning protection grounding measures. Container internal temperature may be high (can reach 50°C+ in summer), which will accelerate coating aging. Inspection of coating condition every 6 months is recommended.
Q5: What's the difference between red, yellow, and blue cabinets? Which should I choose?
A: According to NFPA 704 standards: 🔴 Red cabinets are specifically for flammable liquids (Flash Point
Q6: Can logo and packaging be customized?
A: Yes, OEM/ODM customization is supported. Standard customization options include: 🔹 Brand logo silk-screen printing (1-2 color silk-screen, provide AI vector file); 🔹 Packaging customization (color box, multi-language manual, pallet label marking); 🔹 Size adjustment (±20%); 🔹 Color customization (provide color card, RAL/PANTONE numbers accepted); 🔹 Accessory upgrades (locks, casters, shelf quantity, etc.). Custom orders require minimum 5 units, lead time 20-25 days.
