In automotive repair shops, paint, solvents, and thinners are essential—but they’re also ticking time bombs. A single spark, a spilled can, or a faulty cabinet can turn a routine job into a disaster. The Flammable Liquid Storage Cabinet is designed specifically for auto shops, combining fire resistance, leak control, and ease of use to keep your team safe and your business compliant.
The Unique Risks of Storing Paint and Solvents in Auto Shops
Auto repair shops handle flammable liquids daily: paint (lacquer, enamel), solvents (acetone, mineral spirits), and thinners. These chemicals are volatile—they evaporate quickly, creating explosive vapors. A standard cabinet won’t contain fires or leaks, and a spill can ruin equipment, stain floors, or even cause a fire. You need a cabinet that’s built for the specific hazards of auto work.
Key Features Tailored for Auto Shop Safety
1. Fire Resistance That Saves Lives
90 - Minute Fire Rating: The double - layer structure (1.2 - 2.0mm steel + 40mm fire - proof gap) gives you 90 minutes of protection against fire. In an auto shop, where a fire can spread in minutes, this buys you critical time to evacuate or use a fire extinguisher.
Explosion - proof Ventilation: Top and bottom vents with flame arrestors expel solvent fumes, preventing them from reaching explosive levels. The arrestors block external flames, so a fire outside the cabinet won’t ignite the contents inside.

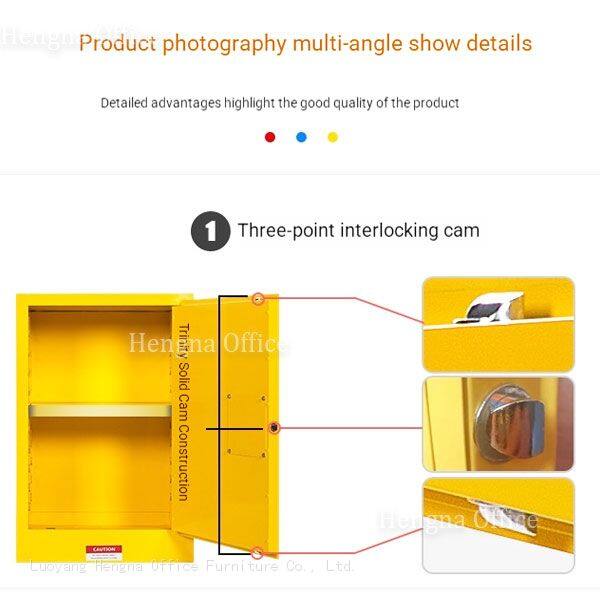

Three - point Lock: A secure lock system ensures the cabinet stays closed during pressure surges. For auto shops with multiple employees, this prevents unauthorized access and keeps chemicals safe.
2. Leak Control: Stop Spills Before They Damage Your Shop
50mm Leak - proof Sump: The 50mm sump at the base captures 100% of spilled paint or solvents. In an auto shop, a spill can ruin a new paint job, stain concrete, or create a slip hazard. The sump eliminates these risks.
Adjustable Shelves: Galvanized steel shelves let you organize paint cans, solvent bottles, and thinners. Shelves adjust in 25mm increments, so you can fit everything from small touch - up cans to 5 - gallon containers.

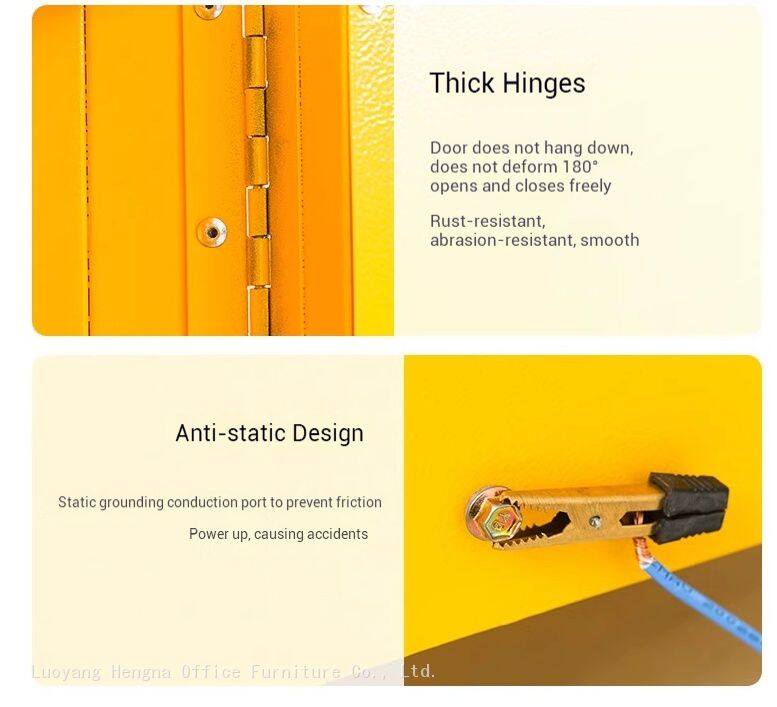

Anti - static Grounding: A grounding port eliminates static electricity, which is common in dry auto shops (especially when using air tools). This prevents sparks from igniting flammable vapors.
3. Designed for Auto Shop Convenience

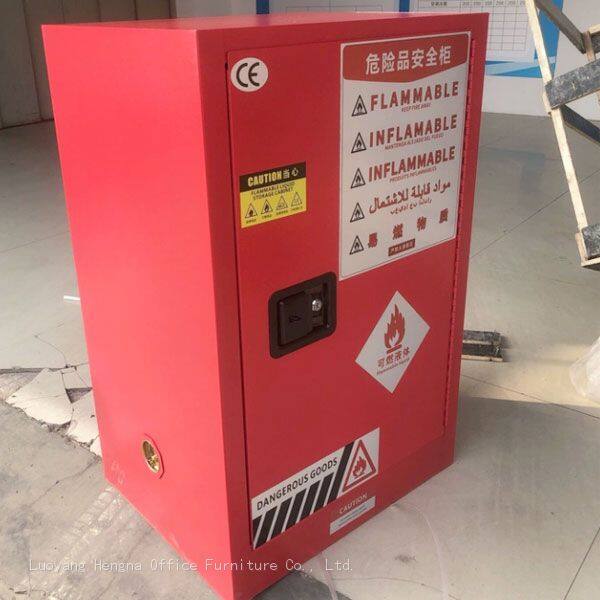

Color - Coded for Compliance: The red cabinet (for flammable liquids) matches industry standards, so your team knows exactly what to store inside. No more mixing up paint and solvents with other chemicals.
90 - Degree Door Hinges: Doors open to 90 degrees, making it easy to reach deep shelves. In a busy auto shop, you don’t want to struggle with a cabinet that won’t open wide enough.
Durable Powder Coating: The exterior resists scratches, oil, and solvent splatters. It’s easy to clean, so your cabinet stays looking professional even in a messy shop.
Technical Specifications for Auto Shop Compatibility
| Feature | Details |
|---|---|
| Capacity | 45 gallons (≈170 liters) |
| External Dimensions | 1650mm (H) × 1090mm (W) × 460mm (D) |
| Material | 1.2 - 2.0mm cold - rolled steel |
| Fire Resistance | ≥90 minutes |
| Lock Type | Three - point linkage lock (standard) |
| Ventilation | Top/bottom holes with flame arrestors |
| Sump Height | 50mm |
Benefits for Auto Shops
Reduced Cleanup Costs: The sump prevents spills from spreading, saving you time and money on floor repairs or equipment cleaning.
Employee Confidence: Your team will feel safe knowing the cabinet is designed for their specific risks.
Who Should Use This Cabinet?
Auto repair shops storing paint, solvents, and thinners.
Body shops handling lacquer and enamel.
Mechanic shops with flammable chemical storage needs.
For auto shops, safety and efficiency go hand in hand. The Flammable Liquid Storage Cabinet delivers the fire resistance, leak control, and convenience you need to protect your team and your business. Don’t let a cheap cabinet put your shop at risk—invest in a solution built for the hazards of auto work.
