The 22 Gallon Explosion Proof Safety Cabinet manufactured by Hengna represents the pinnacle of industrial safety storage solutions, specifically engineered for the secure containment of flammable liquids and hazardous materials. This CE-certified safety cabinet combines robust construction, advanced safety features, and versatile design to meet the demanding requirements of modern industrial environments, laboratories, and commercial facilities. With a substantial 83-liter capacity and thoughtfully engineered dimensions of H890mm x W590mm x D460mm, this cabinet provides optimal storage capacity while maintaining a compact footprint suitable for various workplace configurations. The availability of red, yellow, and blue color options not only serves aesthetic purposes but also facilitates visual organization and quick identification of stored materials according to safety protocols and industry standards.
The Hengna 22 Gallon Safety Cabinet is constructed from high-grade steel with reinforced walls and double-walled door construction, providing exceptional resistance to fire, impact, and chemical corrosion. The cabinet’s robust design ensures long-term reliability in harsh industrial environments while maintaining structural integrity under extreme conditions. The powder-coated finish enhances durability and provides additional protection against chemical spills and environmental factors, ensuring the cabinet maintains its appearance and functionality throughout its operational lifespan.

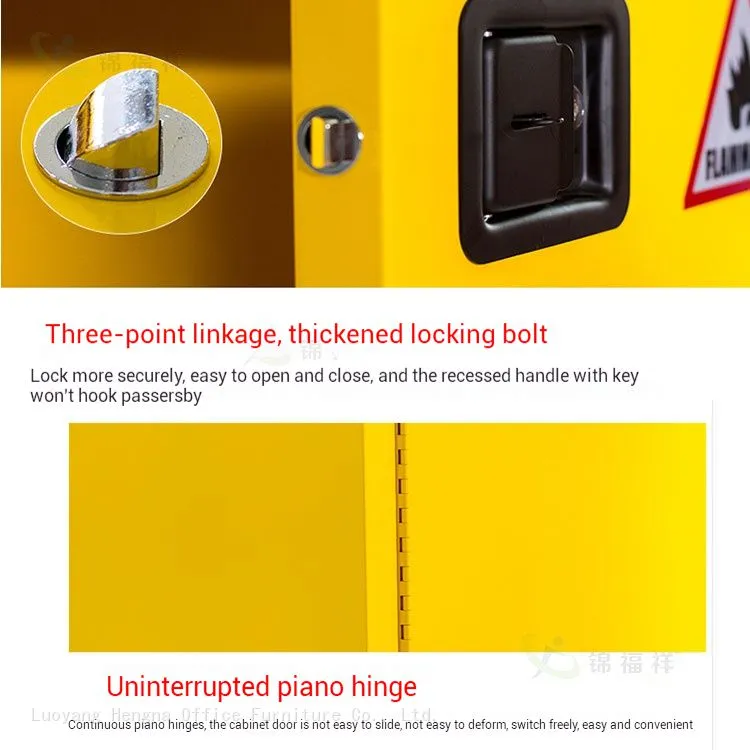

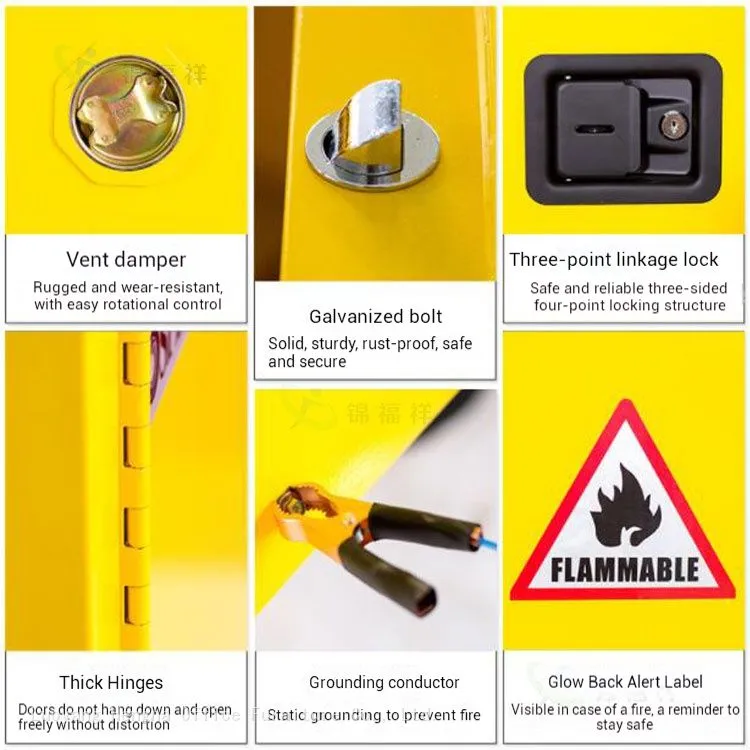

Advanced Safety MechanismsThis explosion proof safety cabinet incorporates multiple layers of protection to safeguard both personnel and facility assets. The three-point linkage locking system ensures secure door closure with four-point locking mechanisms that prevent accidental opening during fire incidents or internal pressure buildup. The integrated grounding conductor effectively dissipates static electricity, preventing spark generation that could ignite flammable vapors. Additionally, the vent damper system allows controlled pressure release while maintaining fire resistance, creating a balanced safety environment for stored materials.
Versatile Storage ConfigurationThe cabinet features adjustable laminate shelves that can be positioned at multiple heights to accommodate containers of various sizes and shapes. This flexibility maximizes storage efficiency and allows for customized organization based on specific operational requirements. The galvanized shelf construction provides excellent load-bearing capacity while resisting corrosion from chemical exposure. The single-door design ensures easy access while maintaining security and safety standards.
Technical Specifications| Specification | Details |
|---|---|
| Capacity | 22 Gallons (83 Liters) |
| External Dimensions | H890mm × W590mm × D460mm |
| Internal Dimensions | H780mm × W530mm × D430mm |
| Shelf Configuration | 1 Adjustable Galvanized Shelf |
| Door Configuration | Single Door with Double Lock |
| Weight | Approximately 85 kg |
| Material | 1.2mm Cold-Rolled Steel |
| Finish | Powder-Coated Surface |
| Color Options | Red, Yellow, Blue |
| Locking System | Three-Point Linkage Lock |
| Ventilation | Adjustable Vent Damper |
| Grounding | Static Grounding Conductor |
| Certification | CE Certified |
Safety Features and ComplianceFire Resistance and Explosion ProtectionThe cabinet’s fire-resistant construction provides critical protection during fire emergencies, maintaining internal temperatures below critical levels for specified periods. The explosion-proof design incorporates pressure-relief mechanisms that prevent catastrophic failure while containing potential explosions within the cabinet structure. This dual protection approach ensures maximum safety for both stored materials and surrounding personnel.
Hazard Identification and Warning SystemsEnhanced visibility features include glow-in-the-dark alert labels that remain visible during low-light conditions or power outages, ensuring critical safety information is always accessible. The cabinet’s color-coded system (red for flammable liquids, yellow for reactive materials, blue for general storage) facilitates quick visual identification and helps prevent improper storage practices. All warning labels and safety markings comply with international standards and regulatory requirements.
Static Electricity PreventionThe integrated grounding system provides a reliable path for static electricity dissipation, preventing spark generation that could ignite flammable vapors. This feature is particularly crucial in environments where static buildup is common due to material movement, environmental conditions, or equipment operation. The grounding conductor is easily accessible and clearly marked for routine safety inspections.
Applications and Use CasesIndustrial Manufacturing FacilitiesManufacturing plants utilizing flammable solvents, cleaning agents, or chemical processes benefit significantly from this safety cabinet’s robust protection. The cabinet’s compact design allows for strategic placement near workstations while maintaining compliance with safety regulations. Industries such as automotive manufacturing, metal fabrication, and chemical processing find this solution ideal for their daily operational needs.
Research and Development LaboratoriesResearch facilities handling various chemicals and solvents require secure storage solutions that meet stringent safety standards. The 22-gallon capacity accommodates typical laboratory chemical inventories while the adjustable shelving system allows for organized storage of different container sizes. The cabinet’s professional appearance and color options complement laboratory environments while maintaining necessary safety protocols.
Commercial and Educational InstitutionsSchools, universities, and commercial facilities utilizing chemicals for maintenance, cleaning, or educational purposes benefit from the cabinet’s user-friendly design and comprehensive safety features. The clear labeling system and intuitive operation make it suitable for environments with multiple users and varying levels of chemical handling experience.
Installation and Maintenance GuidelinesSite Preparation RequirementsProper installation begins with selecting an appropriate location that meets safety clearance requirements and accessibility standards. The cabinet should be positioned on level ground away from direct heat sources, ignition hazards, and high-traffic areas. Ensure adequate ventilation in the installation location and verify that the grounding system can be properly connected to facility grounding points.
Assembly and Setup ProcessThe cabinet arrives fully assembled with minimal setup requirements. Position the cabinet in its designated location and adjust the leveling feet to ensure stability. Connect the grounding conductor to the facility grounding system using appropriate connectors. Test the locking mechanism and verify smooth operation of door hinges and latches. Install the adjustable shelf at the desired height and ensure it is securely locked in position.
Regular maintenance ensures optimal performance and extends the cabinet’s service life. Perform weekly visual inspections of door seals, locking mechanisms, and grounding connections. Clean the cabinet exterior using mild detergent and avoid abrasive cleaners that could damage the protective finish. Quarterly inspections should include verification of vent damper operation and replacement of damaged warning labels. Document all maintenance activities for compliance and safety audit purposes.
Regulatory Compliance and CertificationsInternational Standards ComplianceThe Hengna 22 Gallon Safety Cabinet meets CE certification requirements, demonstrating compliance with European Union safety standards for hazardous material storage. The cabinet design adheres to OSHA guidelines for flammable liquid storage and NFPA standards for fire protection. These certifications ensure the cabinet meets or exceeds international safety requirements for hazardous material containment.
Quality Assurance and WarrantyHengna Office Furniture Co., Ltd. maintains comprehensive quality control systems throughout the manufacturing process, ensuring each cabinet meets stringent performance and safety standards. The cabinet includes manufacturer warranty coverage that protects against defects in materials and workmanship. Technical support and replacement parts are available to ensure long-term reliability and customer satisfaction.
The 22 Gallon Explosion Proof Safety Cabinet from Hengna represents an essential investment in workplace safety and regulatory compliance for organizations handling flammable liquids and hazardous materials. Its combination of robust construction, advanced safety features, and versatile design makes it suitable for various applications across industrial, educational, and commercial environments. The cabinet’s CE certification, comprehensive safety mechanisms, and user-friendly design provide peace of mind while ensuring compliance with international safety standards. By investing in this quality storage solution, organizations demonstrate their commitment to workplace safety while protecting valuable assets and personnel from the risks associated with hazardous material storage.
