The storage of fuel—such as gasoline and diesel—on construction sites is a high-stakes operation. A single leak can contaminate the soil and incur heavy fines, while a fire can destroy valuable assets and endanger lives. This Heavy Duty Construction Site Fuel Storage Cabinet is designed to be the ultimate barrier against these risks. With its double-layer steel structure and superior leak-proof sump, it offers a level of protection that standard metal cabinets cannot match.
The Double-Layer Steel Advantage
Fuel storage demands the highest level of fire protection. The cabinet’s core design revolves around its double-layer steel structure.

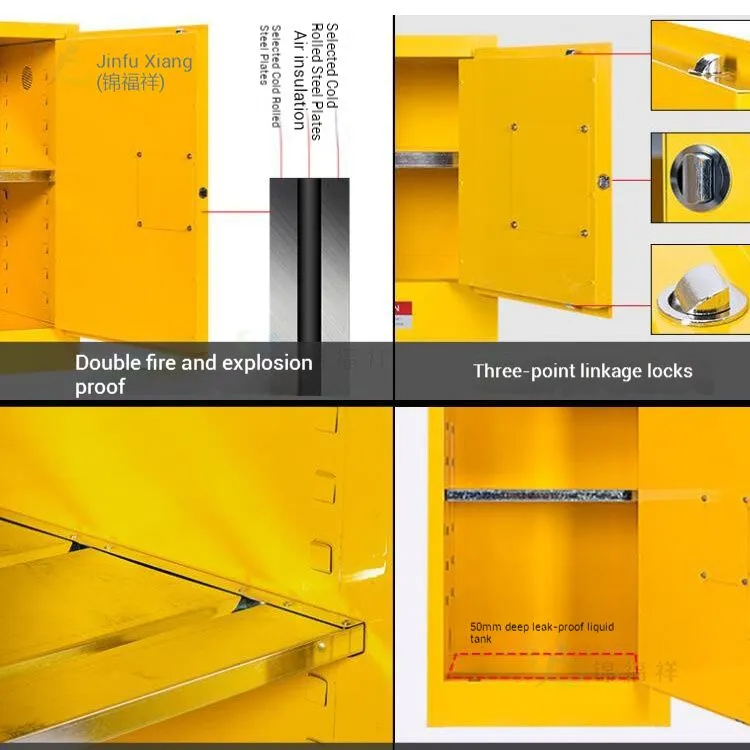

1. Double-Layer Insulation
Thermal Barrier: The cabinet features an inner and outer wall made of 1.2-2.0mm thick cold-rolled steel. Between these layers is a 38mm air insulation space. This design is critical for fire safety. In the event of a fire outside the cabinet, the air gap acts as a thermal break, slowing the heat transfer to the interior.
Time for Reaction: This insulation effectively provides a window of safety (tested to meet NFPA 30 time-temperature requirements), allowing firefighters time to control the blaze before the fuel inside ignites.
2. Superior Environmental Protection
Environmental compliance is non-negotiable in modern construction.
Deep Leak-proof Sump: The cabinet is constructed with a seamless, 50mm deep sump at the bottom. This design is capable of holding the entire contents of a leaking fuel container. It prevents gasoline or diesel from seeping into the ground, protecting the site from environmental contamination and costly cleanup operations.
Galvanized Interior: The interior shelves and bottom are treated to resist the corrosive nature of some fuel additives and moisture, ensuring the cabinet remains rust-free and functional over its long service life.
Heavy-Duty Features for Construction Demands
1. Structural Strength
Impact and Vibration: Construction sites are noisy and vibratory places. The cabinet’s fully welded body ensures it can withstand the vibrations from heavy machinery nearby without loosening or failing.

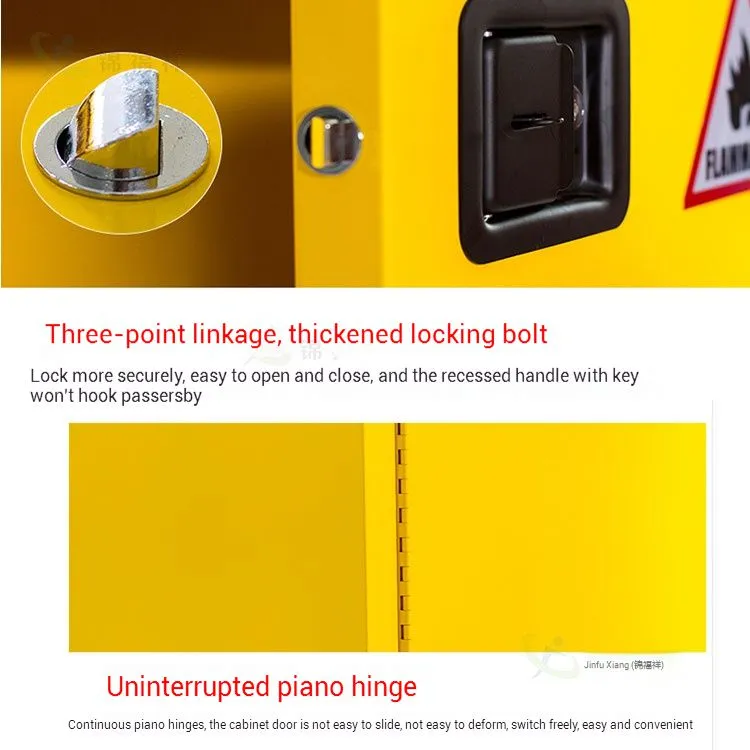

Security: Fuel is a frequent target for theft. The cabinet is fitted with a three-point linkage lock that securely fastens the door. This heavy-duty locking mechanism resists prying and tampering, ensuring fuel reserves are available when needed.
2. Safe Ventilation and Static Control
Flame Arrestors: The ventilation holes are equipped with wire mesh flame arrestors. These are designed to stop external flames from traveling into the cabinet, a vital feature for preventing fuel explosions.
Static Grounding: To prevent static sparks during dispensing, the cabinet includes a factory-installed grounding kit. This connects the cabinet to an earth ground, dissipating static charges safely.
Technical Specifications
| Feature | Design Benefit |
|---|---|
| Structure | Double-Layer Steel with 38mm Air Gap |
| Environmental Safety | 50mm Leak-proof Sump (Spill Containment) |
| Fire Resistance | Thermal Insulation for Fire Safety |
| Security | Heavy Duty 3-Point Locking System |
| Durability | Rust-Resistant Epoxy Coating |
| Safety Features | Flame Arrestors & Static Grounding Port |
This Heavy Duty Construction Site Fuel Storage Cabinet is an essential asset for any project handling flammable fuels. Its double-layer steel structure provides critical fire protection, while the integrated leak-proof sump ensures environmental compliance. Built to be tough and secure, it represents the professional standard for fuel management on the modern construction site.
