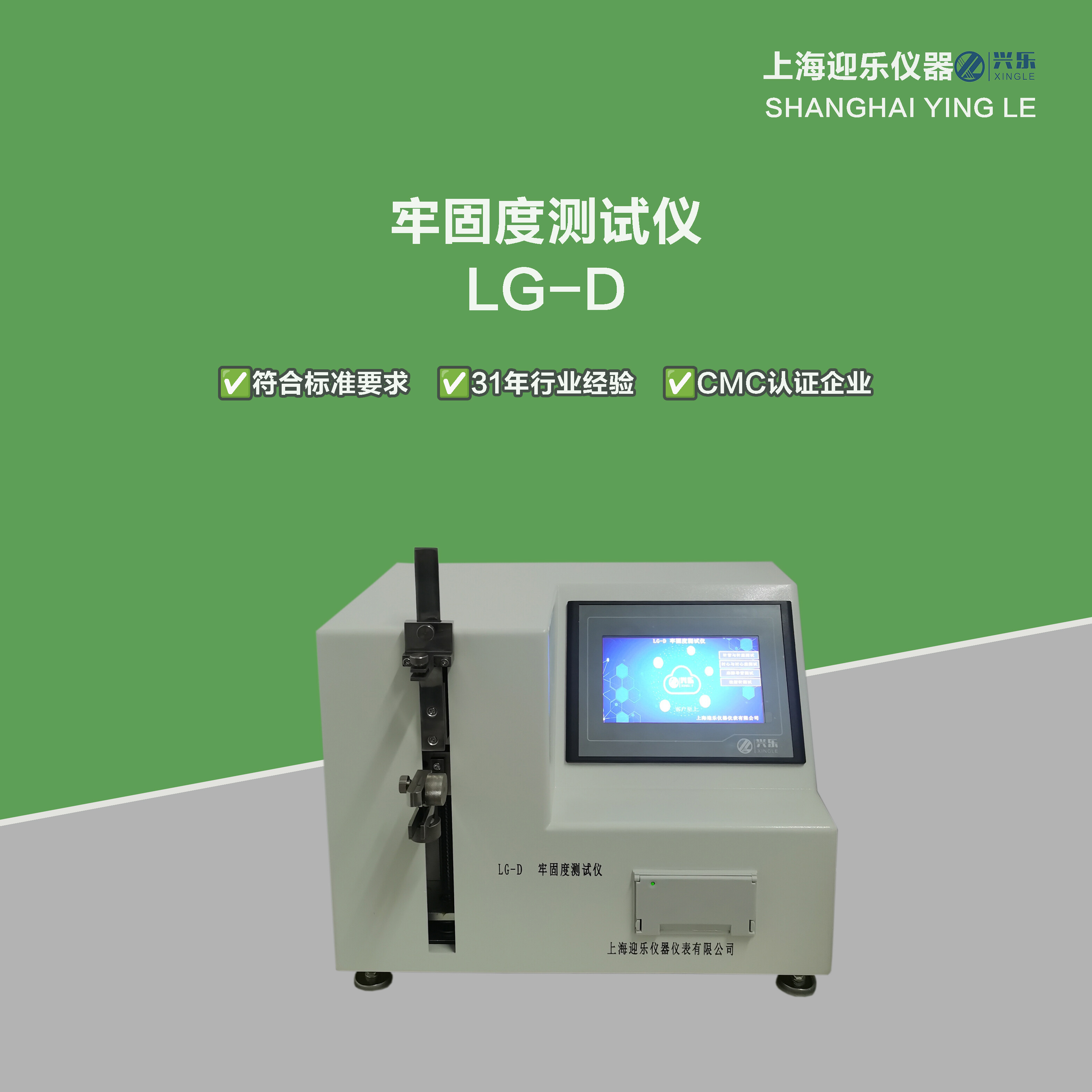

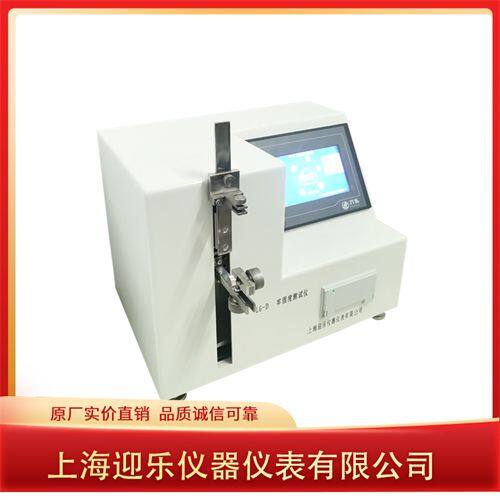

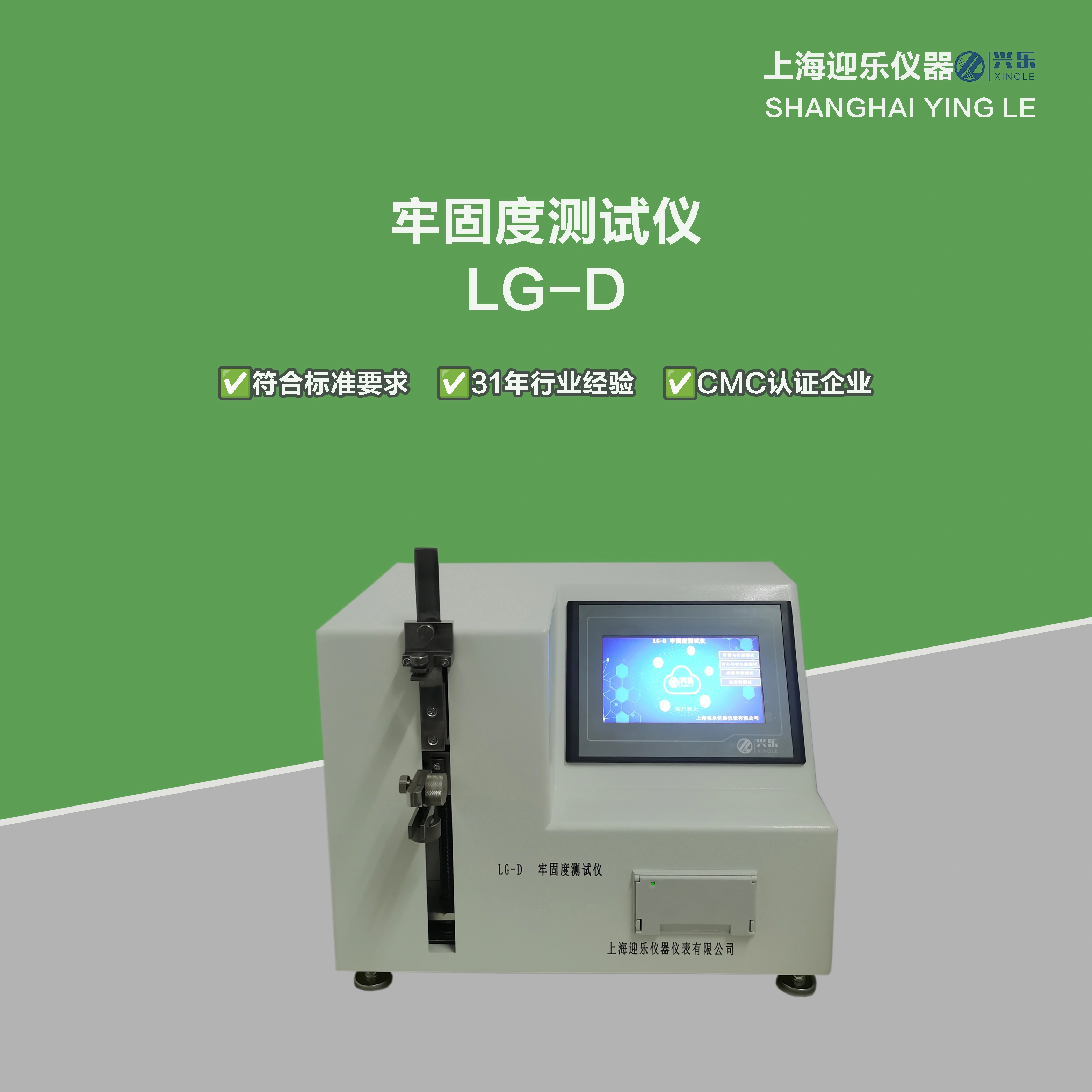

Medical Instrument Needles and Catheters Fracture Force and Connection Strength Test Machine
Technical indicators:
Operating interface: Simplified Chinese/English
Testing standard:
GB15811-216 "Disposable Sterile Injection Needle"
YY0321 Breaking force test
Display: 7-inch K600 core/ 65-color 800*480 resolution touch screen display, PLC control system dynamically displays load value; digital closed-loop control, AD acquisition speed 500KHz, internal code 500,000; high-precision clock chip, power-off storage; overload alarm shutdown protection; touch operation nominal specifications, tests, up, down, time, calibration. Real-time display of traction force.
Testing items: Used to test the breaking force of medical catheters the firmness of the connection between catheters and catheter connectors, the firmness of the connection between needle seats and needle tubes, and the firmness of the connection between cores and liner core seats, etc. for tensile tests.
Programmable controller: PLC ARM,
Tensile force test range: Custom 0-80N, error within ±1%, resolution 0.01N.
Time setting: Custom 1-999S, error within ±0.5S.Speed setting: Custom 50mm/min~500mm/min, error within ±5%.;
Sensor: High-precision force value sensor (software hardware protection function)
Printing method: Built-in miniature dot matrix printer
Testing data: Built-in automatic collection of firmness test data, maximum value and average value deviation value of firmness, etc.
Overall power: 200W
Power supply: AC90V-240V/50Hz
Net: 20kg
Dimensions: 400×240×240 (mm)
Manufacturer introduction: Shanghai Yingle Instrument Co., Ltd. (formerly Shanghai Xingle) is located in Shanghai, the manufacturing capital. The company was founded in 1993. It is a manufacturer of physical performance testing equipment for medical consumables integrating design, research and development, and sales. The company's products mainly serve third-party testing institutions, medical consumables production unit quality laboratories and R&D centers, etc.; the company has more than 30 years of industry experience, and is the first domestic disposable medical device physical performance testing instrument manufacturer. It is also the first company to obtain CMC certification. The company mainly produces medical stainless steel needle tube testing equipment, medical syringe testing equipment, medical infusion set testing equipment, medical suture needles, thread testing equipment, 6% Luer connector testing equipment, etc. Technical indicators are updated at any time with the industry standards for medical pharmaceutical packaging materials to ensure that the company's products serve customers with the latest standards.
