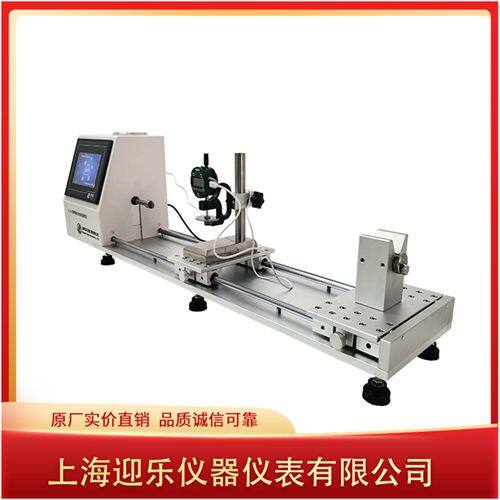

Suture thread diameter measuring instrument
Technical Indicators:
Operation Interface: Simplified Chinese/English
Testing Standards: YY1116-2020 "Absorbable Surgical Sutures"
YY0167-2020 "Non-Absorbable Surgical Sutures"
Display: 7-inch K600+ core/matrix 65-color 800*480 resolution touch screen display, PLC control system dynamically displays the load force value; operation interface options: Chinese/English/bilingual switching; digital closed-loop control, AD acquisition speed of 500KHz, internal code of 500,000; high-precision clock chip, power-off storage; overload alarm and shutdown protection; touch operation: nominal specifications, test load, print, test, left, right, time, calibration. Load weights to measure tension, automatically record wire diameter data, automatically output data reports, and print test results with the onboard printer.
Test Data: The onboard automatic collection of 3 points of 0 degrees, 90 degrees (at 1/4, 1/2, 3/4 positions of the wire) for measurement test data and calculation of the average value, capable of calculating the average value and its total average value and deviation value, automatically output data reports.
Programmable Logic Controller: PLC+ARM
Sensors: High-precision force sensors with hardware and software protection functions
Nominal Specifications: 12-0……10 for all types of medical sutures.
Diameter Measurement Range: 0~5mm, error not exceeding ±1‰; Resolution: 0.001mm
Foot diameter: 12.7±0.02 mm; Base plane diameter: 50 mm.
Flatness of foot and base plane: not more than ±0.005mm.
Parallelism of foot and base plane: not more than 1‰
Load weights: 0~2Kg, accuracy: ±0.1g
Foot load: ≤60g, 210g±3g.
Printing Method: Onboard miniature dot matrix printer
Power Supply: AC90V-240V/50Hz
Net Weight: 38kg; Dimensions: 320×1200×280 (mm)
Shanghai Yingle manufacturer introduction：Shanghai Yingle Instrument Co., Ltd., located in Shanghai, is a professional instrument supplier integrating R&D, production, sales and service. With more than 30 years of technical experience, it is the first company to obtain CMC and is committed to providing high-precision, reliable testing instruments and R&D customized solutions to global customers. Our products include medical injection needle testers, syringe testers, infusion needle testers, infusion set testers, suture needle testers, suture line testers, 6% Luer conical connector comprehensive testers, indwelling needle testers, blood collection needle testers, acupuncture needle testers, needle tube rigid Testers, toughness testers, firmness testers, tightness positive and negative pressure testers, seal leakage testers, and other instruments. With a strong R&D team and advanced production technology, Yingle Instruments continues to launch new products that meet market demand and meet the diverse needs of customers. At the same time, we attach great importance to after-sales service and provide customers with timely and professional technical and after-sales support to ensure that customers have a worry-free experience during use.
