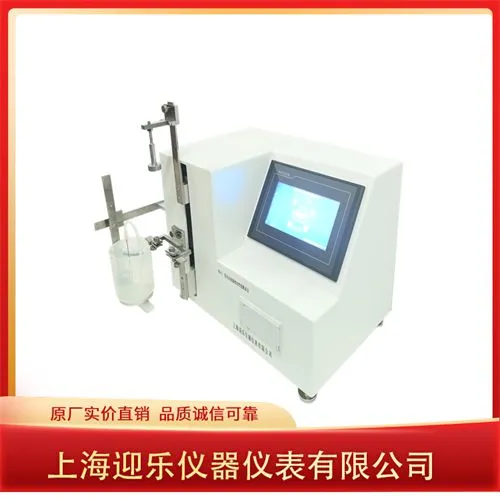

Medical syringe needle piston sliding test machine
Technical Specifications:
Operation Interface: Simplified Chinese/English
Test Standard: GB15810-2019 "Disposable Sterile Syringes"
ISO7886-1-2017 "Disposable Sterile Syringes"
Display: 7-inch K600+ core/matrix color display with 65 colors, 800*480 resolution touch screen display. The PLC control system dynamically displays the loading force value; Operation interface options: Chinese/English/Bilingual switch; Digital closed-loop control, AD acquisition speed of 500KHz, internal code of 500,000; High-precision clock chip, power-off storage; Overload alarm shutdown protection; Touch screen display menu to select the nominal capacity of the syringe, real-time display of the Fs starting force, F average thrust, Fmax maximum thrust record chart, etc.
Programmable Logic Controller: PLC+ARM
Force Range: Customizable 0～40N, force value error not greater than ±1%; Resolution of 0.01N
Test Time: Customizable up to 999s; Error not greater than ±0.5s
Test Rate: Customizable up to 100mm/min, error not greater than ±5mm/min
Nominal Capacity: Customizable from 1ml to 60ml, any selection.
Sensor: High-precision force sensor with hardware and software protection functions
Printing Method: On-board miniature dot matrix printer
Overall Power Consumption: 200W
Power Supply: AC90V-240V/50Hz
Net Weight: 10.5kg
Dimensions: 400×290×275 (mm)
Yingle Instrument & Instrument (Shanghai) Co., Ltd. was established in 1993, originally known Shanghai Xingle, and is the first domestic manufacturer of physical performance testing instruments for disposable medical devices, with more than 30 years of technical research and development and production experience The company specializes in the research, development, and sales of instrument and instrument products. It is the first company to obtain CMC certification. The company's headquarters is located Shanghai, China, and it has a modern production base and research and development center. As a technology-based enterprise, Shanghai Yingle Instrument & Instrument Co.,. is committed to providing customers with high-quality, reliable, and stable instrument and instrument products. The company has a professional R&D team that continuously innovates and improves products meet the changing needs of customers. The company adheres to the business philosophy of "innovating through technology and creating value for customers", and continuously improves product quality and technical. We will continue to work hard to become a leading enterprise in the domestic and foreign instrument and instrument industry, providing customers with better products and services.
