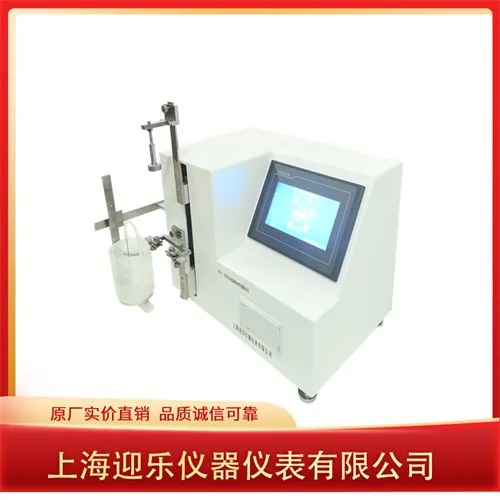

WD-DPrecision Medical Syringe Sliding Performance Tester Professional Testing Machine
Technical indicators:
Operation interface: Simplified Chinese/English
Testing standard: GB15810-201 "Disposable Sterile Syringe"
ISO7886-1-2017 "Disposable Sterile Syringe"
Display: 7-inch600 core/matrix 65-color 800*480 resolution touch screen display, PLC control system dynamically displays load value; Operation interface: Chinese/English/Chinese and English switch; Digital closed-loop control, AD acquisition speed of 500KHz, internal code 500,00; High-precision clock chip, power-off storage; Overload alarm shutdown protection; Touch screen display menu to select the nominal capacity of the syringe, real-time display starting force, average force, retraction force, minimum retraction force, and record chart of plunger movement and force, etc.
Programmable controller: PLC ARMThrust range: Customized 0～40N, load value error within ±1%; Resolution 0.01N
Test time: Customized 99s; Error within ±0.5s
Test rate: Customized 100mm/min Error within ±5mm/min
Nominal capacity Customized 1ml～60 ml Arbitrarily select.
Sensor: High-precision load sensor with software and hardware protection functions
Printing method: Built- micro-needle printer
Overall power: 200W
Power supply: AC90V-240V/50Hz
Net weight: 0.5kg
Dimensions: 400×290×275 (mm)
Yingle Instrument & Instrument (Shanghai) Co., Ltd. was established in 1993, originally known Shanghai Xingle, and is the first domestic manufacturer of physical performance testing instruments for disposable medical devices, with more than 30 years of technical research and development and production experience The company specializes in the research, development, and sales of instrument and instrument products. It is the first company to obtain CMC certification. The company's headquarters is located Shanghai, China, and it has a modern production base and research and development center. As a technology-based enterprise, Shanghai Yingle Instrument & Instrument Co.,. is committed to providing customers with high-quality, reliable, and stable instrument and instrument products. The company has a professional R&D team that continuously innovates and improves products meet the changing needs of customers. The company adheres to the business philosophy of "innovating through technology and creating value for customers", and continuously improves product quality and technical. We will continue to work hard to become a leading enterprise in the domestic and foreign instrument and instrument industry, providing customers with better products and services.
