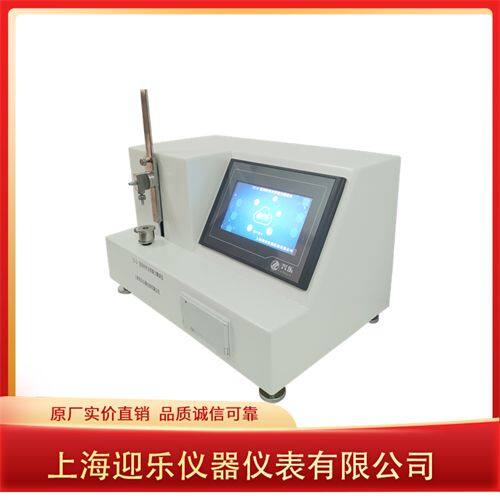

Disposable sterile injection needle tip penetration force tester
Technical indicators:
Operation interface: Simplified Chinese/English
Testing standard: GB15811-206 "Disposable Sterile Injection Needle"
Display: 7-inch K600 core/matrix 65-color 800*40 resolution touch screen display, PLC control system dynamically displays load value; Operation interface options: Chinese/English/Chinese and English switch; Digital closed-loop control, AD speed of 500KHz, internal code 500,000; High-precision clock chip, power-off storage; Overload alarm shutdown protection; operation: Nominal specifications, wall thickness, number of tests, pressure, up, down, time, calibration. Real-time display of puncture force and peak force data, display the maximum puncture force and five kinds of peaks, puncture force curve, etc.
Programmable controller: PLC ARM,
Nominal specifications: Custom0.18～3.4mm;
Test range: Custom 0～5.00N, error within ±0.5%; Resolution: ±0.01N
Travel speed: 100mm/min; Error within ±5%;
Sensor: High-precision force value sensor (software and hardware protection function)Puncturing force material: Polyurethane film material (artificial skin), in accordance with GB15811 standard;
Printing method: Built-in pin
Test data: Built-in automatic collection of puncture force data, maximum puncture force and automatic calculation of average puncture force and deviation value
Overall power: 20W
Power supply: AC90V-240V/50Hz
Net weight: 10kg
Dimensions: 300×20×240 (mm)
Shanghai Yingle Instrument & Instrument Co., Ltd. (Formerly Shanghai Xingle) is located in the manufacturing - Shanghai. The company was established in 1993 and is a manufacturer of physical performance testing equipment for medical consumables that integrates design, research and development, and sales The company's products mainly serve third-party testing institutions, quality laboratories and research and development centers of medical consumables production units, etc. The company has more than thirty years industry experience and is the first domestic (shou) manufacturer of physical performance testing instruments for disposable medical devices. It is also the first (shou) company to obtain CMC. The company mainly produces medical stainless steel needle tube testing equipment, medical syringe testing equipment, medical infusion tube testing equipment, medical suture needle and thread testing equipment,6% luer connector fitting testing equipment, etc. Technical indicators are updated with the latest medical packaging industry standards to ensure that the company's products serve customers with the latest standards
