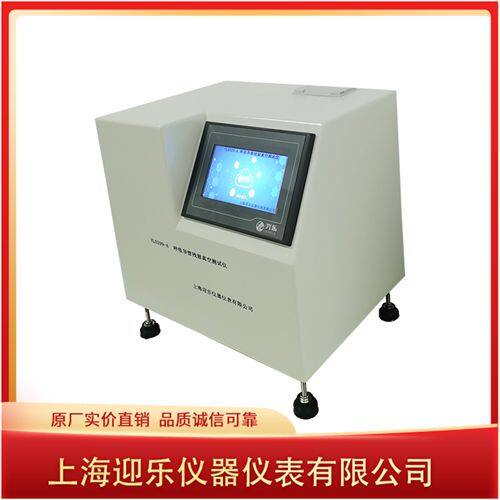

Breath Tube Residue Vacuum TesterUS$ 30000 - 48000MOQ: 1 Set
-
Heparin Cap Puncture Debris and Puncture Seal Integrity TesterNegotiableMOQ: 1 Combo
-
Blade Sharpness TesterUS$ 30000 - 48000MOQ: 1 Set

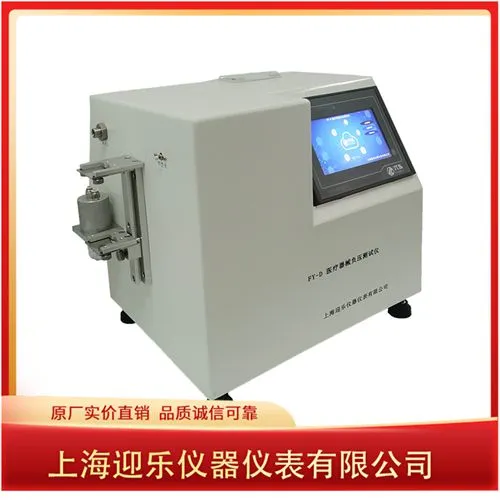

Syringe leakage negative pressure tester for research institute testing institute
Technical specifications:
Operating interface: Simplified Chinese/English
Test standards: GB15810-2019 "Single-use sterile syringes"
ISO7886-1-2017 "Single-use sterile syringes"
GB8368-2018 "Single-use infusion sets, gravity infusion type"
Display: 7-inch K600+ core/matrix 65-color 800*480 resolution touch screen display; PLC control system dynamically displays the load value; optional operating interface: Chinese/English/Chinese-English switch; digital closed-loop control, AD acquisition speed of 500KHz, internal code of 500,000; high-precision clock chip, power-off storage; overload alarm and shutdown protection;
Programmable logic controller: PLC + ARM
Sensor: High-precision force sensor with both hardware and software protection functions
Negative pressure detection: Customized -93Kpa error less than ±1%
Negative pressure output: Customized -93Kpa ±1%;
Test time: Customized 1S~10min, can be set arbitrarily (measurement system negative pressure maintenance within 1 minute does not drift ±0.5kpa)
Printing method: On-board micro-needle printer
Overall power consumption: 800W
Power supply: AC90V-240V/50Hz
Net weight: 10kg
Dimensions: 400×290×240 (mm)
Shanghai Yingle Instrument & Instrument Co., Ltd. (Formerly Shanghai Xingle) is located in the manufacturing - Shanghai. The company was established in 1993 and is a manufacturer of physical performance testing equipment for medical consumables that integrates design, research and development, and sales The company's products mainly serve third-party testing institutions, quality laboratories and research and development centers of medical consumables production units, etc. The company has more than thirty years industry experience and is the first domestic (shou) manufacturer of physical performance testing instruments for disposable medical devices. It is also the first (shou) company to obtain CMC. The company mainly produces medical stainless steel needle tube testing equipment, medical syringe testing equipment, medical infusion tube testing equipment, medical suture needle and thread testing equipment,6% luer connector fitting testing equipment, etc. Technical indicators are updated with the medical packaging industry standards at any time to ensure that the company's products serve customers with new.
