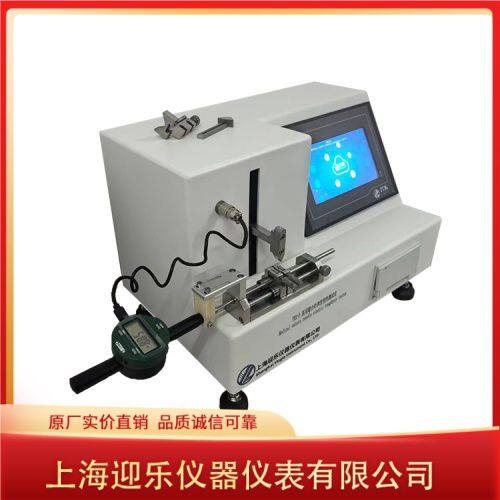

Medical suture needle elasticity and toughness tester manufacturer
Display: 7-inch K600+ core/65-color dot matrix 800*480 resolution touch screen display, PLC control system dynamic display of loading force value; operational interface options: Chinese/English/Bilingual switching; digital closed-loop control, AD acquisition speed of 500KHz, internal code of 500,000; high-precision clock chip, power-off storage; overload alarm and shutdown protection; touch control operations: nominal specifications, test deformation amount, test items, print, test, up, down, time, calibration. Automatically control deformation amount, elastic and toughness test fixtures are easy to replace, and elastic test is automatically completed.
Technical specifications:
Operation interface: Simplified Chinese/English
Testing standards: YY0166-2002 "Suture needles with wire"
YY0043-2016 "Medical suture needles"
Programmable controller: PLC+ARM
Sensor: High-precision force sensor with hardware and software protection functions
Needle types: 1/2 arc, 3/8 arc, 5/8 arc, straight needle
Nominal range: 0.2～1.3mm; 12mm ≤ L
Displacement range: 0～25mm with error not exceeding ±1%, resolution: 0.01mm.
Control deformation rate: 5 mm/min to 8 mm/min
Printing method: Aircraft-mounted micro needle printer
Power supply: AC90V-240V/50Hz
Net weight: 12kg
Dimensions: 400×240×240 (mm)
Manufacturer introduction：Shanghai Yingle Instrument Co., Ltd. is based in Shanghai and sells nationwide. It was established in 1993 (formerly Shanghai Xingle Telecommunication Equipment Co., Ltd.) and is the first domestic medical testing equipment manufacturer. Partners are spread all over the country, and famous corporate customers include Jiangsu Yuyue, Shanghai Kindly, Henan Piao'an; Shanghai Medical Device Inspection Institute, Jiangsu Medical Device Inspection Institute, Chengdu Food and Drug Inspection Institute, Heilongjiang Drug Inspection and Research Center, Zhejiang Medical Device Inspection Institute, etc. The company mainly produces medical stainless steel needle tube testing equipment, medical syringe testing equipment, medical infusion set testing equipment, medical suture needles, thread testing equipment, 6% Luer connector testing equipment, etc. Technical indicators are updated at any time with the industry standards for medical pharmaceutical packaging materials to ensure that the company's products serve customers with new standards.
