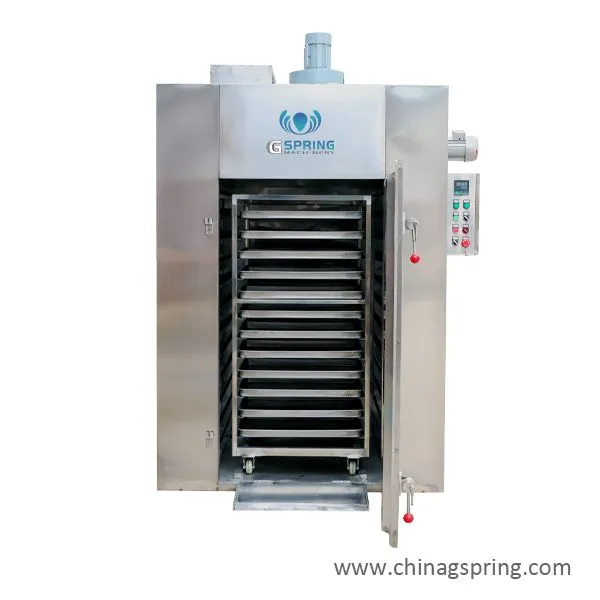

High Quality Pharmaceutical Drying Equipment Stainless Steel Hot Air Circulation Oven
Industrial Drying Oven For Food Pharmaceutical Powder Material
The hot air circulation oven adopts low-noise axial flow fan and automatic control system,and the whole circulation system is completely closed,with high thermal
eficiency and energy saving.Under the action of forced hot air circulation,the drying of materials is consistent with.The heating source is heated by heating elements.
The whole machine has low noise,stable operation,automatic temperature control,convenient installation and maintenance,wide application range,and can dry various
materials.
Features

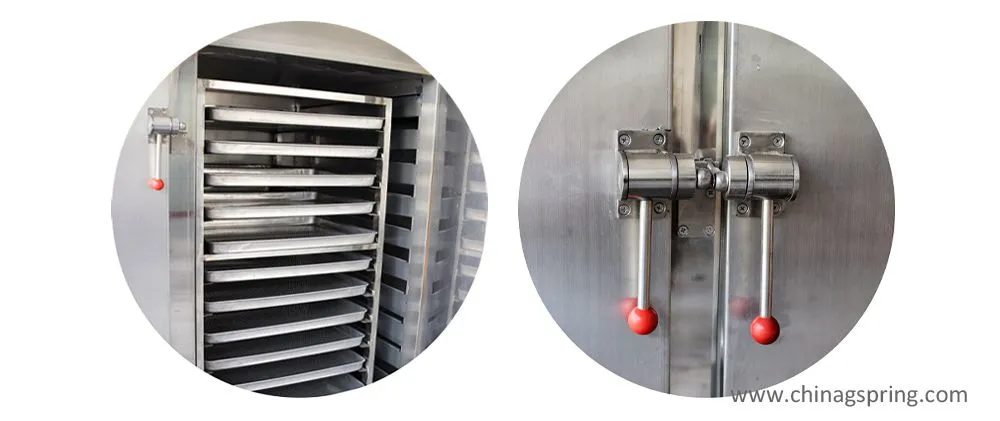

1、The steel structure of the box adopts the frame structure formed by welding the section steel and steel plate to ensure the overall rigidity and air tightness of the box.
2、The insulation layer inside the boxis flled with high-quality aluminum siicate fiber cotton with a filing thickness of 60mm.
3、The adjustable convection wall in the box can make the temperature in the box uniform by adjusting the ventilation gap of the convection wall.

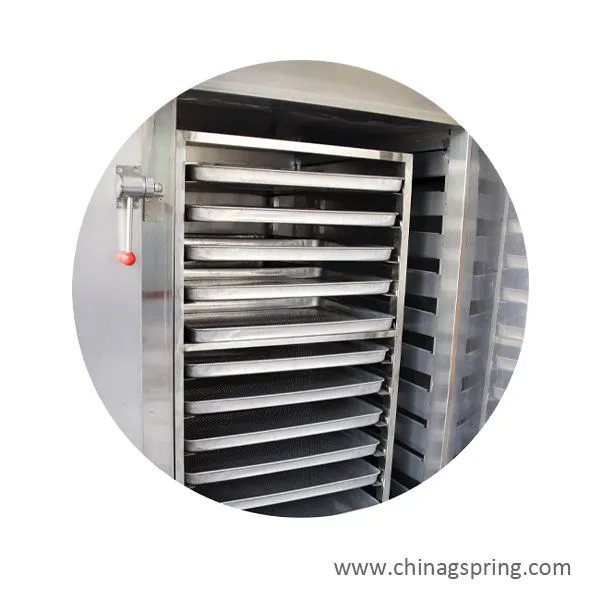

4、Equipped with a wheeled drying truck to facilitate pushing materials.
5、The temperature control of the oven adopts Huibang high-precision inteligent instrument and PID regulation inteligent temperature control.
Technical parameter
Model |
HX-240 |
HX-480 |
HX-960 |
HX-1440 |
Volt/Power |
380V/9.45kw |
380V/18.45KW |
380V/28KW |
380V/45KW |
Working area size mm |
760x1000x1460 |
(760x2)x1000x1460 |
(760x2)x2000x1460 |
(760x3)x2000x1460 |
Dimensions(mm) |
1500x1200x2200
|
2400x1200x2200
|
2400x2200x2200
|
3200x2200x2200 |
Baking pan size mm |
460x640x45 |
460x640x45 | 460x640x45 | 460x640x45 |
Temperature(℃) |
room temperature+5℃-130℃ |
room temperature+5℃-130℃ | room temperature+5℃-130℃ | room temperature+5℃-130℃ |
Remarks |
Single door/1 car/24 discs |
Two doors / 2 cars / 48 steering wheels |
Two doors / 4 cars / 96 steering wheels |
Three doors / 6 cars / 144 steering wheels |
Gspring Machine have more than 10 years experience on export, export to all over the world,like USA, Canada, Russia, India,
Sri Lanka, Turkey, Vietnam, Indonesia, Pakistan, Philippines, Brazil, Egypt, Czech, Singapore, Armenia,Iraq, Iran, Malaysia,Bangladesh,
Mexico, Peru, Algeria, Poland, Thailand, Nepal, Azerbaijan etc.
We can customized machinery specially based on your specific request. Welcome to contact grace@chinagspring.com to learn more.
