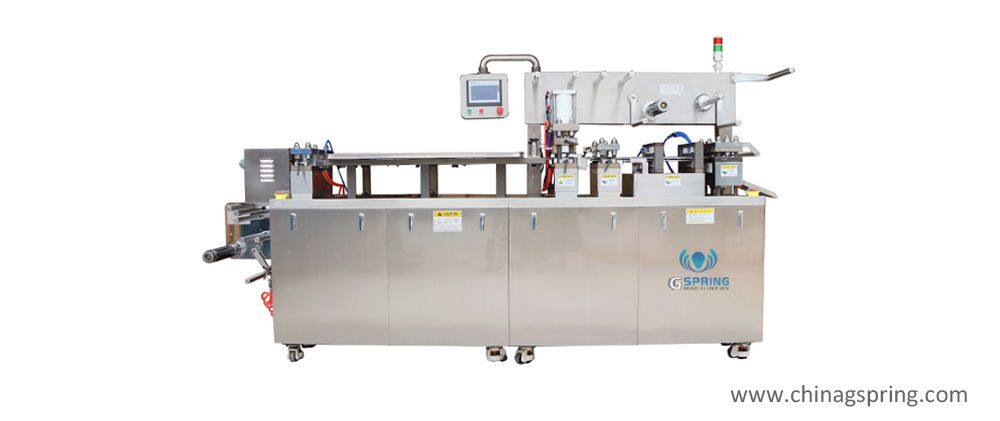

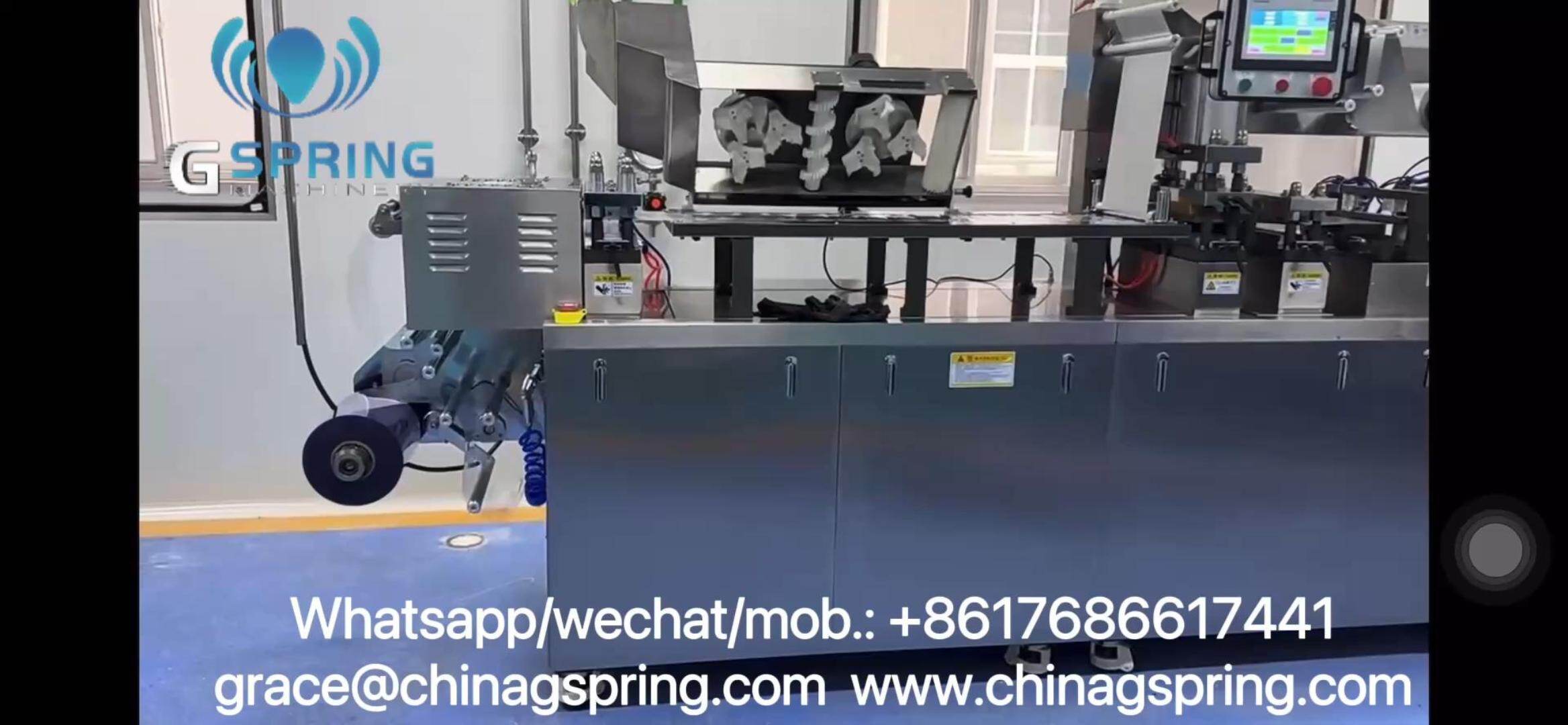

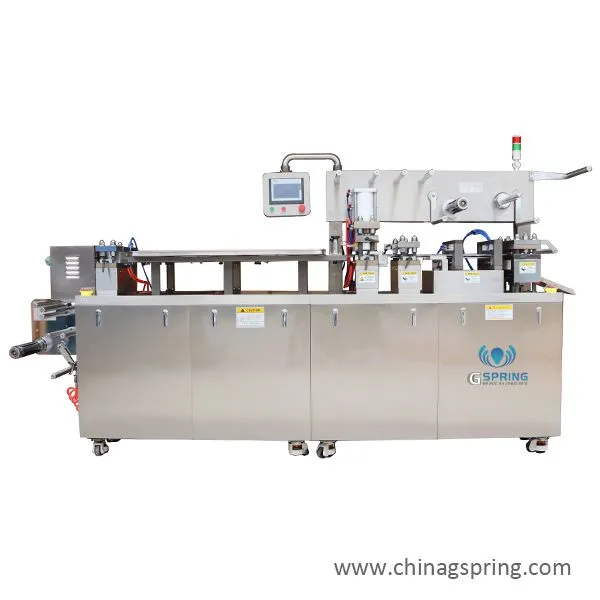

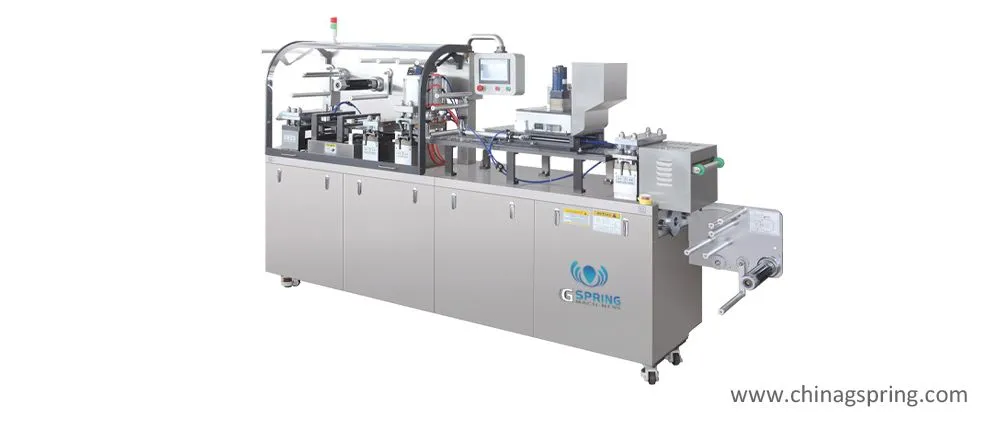

High Speed DPP-260 Automatic Alu PVC Alu Alu Blister Packaging Machine for Pharmaceutical Tablet Capsule Blister Packing
Main feature:
1、The forming,heat sealing,batch marking,indentation,blanking and other devices are all positioned by a rack-made mandrel. When the handle is shaken,
all devices can move easily and freely on the mandrel.The machine is equipped with a ruler, which is convenient for calibration and rapid and accurate positioning.
2、The servo motor is used to pull the film,which effectively improves the stability of the product and increases the adjustable range of the traction stroke
3、The packaging thickness of special materials is ≥14mm.It adopts positive pressure air molding and is equipped with a mechanical punch to ensure that the
blister molding is uniform and straight.It is applicable to the packaging of large dense plls, nedical devices and other large size or special shapes.
4、The main transmission part adopts the parallel shaft helical gear reducer,and the molding,heat sealing,indentation and other molds adopt the pin positioning,
the pressing plate is fixed,the positioning is accurate,the mold change is convenient,and the packaging materials are saved
5、The electrical control system adopts imported brands:the PCL touch screen temperature control module adopts Siemens brand,the servo motor adopts Panasonic
brand,and the encoder adopts Omron.
Note:
1、Optional Equipped with Photocell detecting device
2、Optional Equipped with Acylic glass cover
3、Optional Equipped with ink jet coding device
4、Optional special feeder
Technical parameter：
Model |
DPP-260 |
DPP-320 |
Cutting frequency (times/minute) |
10-40 |
10-40 |
Production capacity(Version/Time) |
2400-9600 (Standard size 80x57, four versions per print) |
2400-12000 (Standard size 80x57, five versions per print) |
Standard travelrange (mm) |
40-140 (standard) |
40-180 (standard) |
|
Max fomming area and depth(mm)
|
240x140 (Standard depth ≤ 14mm) Maximum depth 26mm |
360x160 (Standard depth ≤ 14mm) Maximum depth 35mm |
Power and total power |
Three-phase four-wire 380V/220V 50HZ 8.5KW |
Three-phase four-wire 380V/220V 50HZ 9.5KW |
Motor Power(kw) |
2.2 |
2.2 |
Air pressure(MPa) |
0.6-0.8 |
0.6-0.8 |
PVC sheet(mm )PVC |
0.25(0.15-0.5)x260
|
(0.15-0.5)x320 |
PTP aluminum foil PTP(mm) |
0.02-0.035x260 |
0.02-0.035x320 |
Dialysis paper (mm) |
50-100gx260 |
50-100gx320 |
Overall dimensions(mm) |
3310x710x1700 (Separate parts, dimensions: left length 1950; right length 1360) |
4350x770x1750 |
Total Weight (kg) |
1400 |
1800 |
Gspring Machine have more than 10 years experience on export, export to all over the world,like USA, Canada, Russia, India,
Sri Lanka, Turkey, Vietnam, Indonesia, Pakistan, Philippines, Brazil, Egypt, Czech, Singapore, Armenia,Iraq, Iran, Malaysia,Bangladesh,
Mexico, Peru, Algeria, Poland, Thailand, Nepal, Azerbaijan etc.
We can customized machinery specially based on your specific request. Welcome to contact grace@chinagspring.com to learn more.
