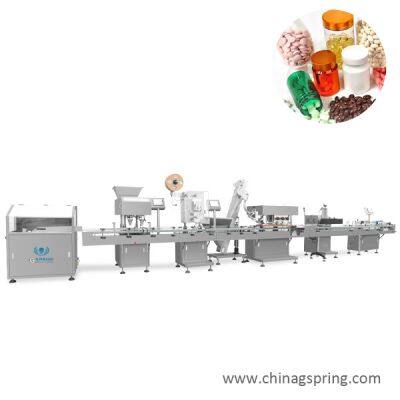

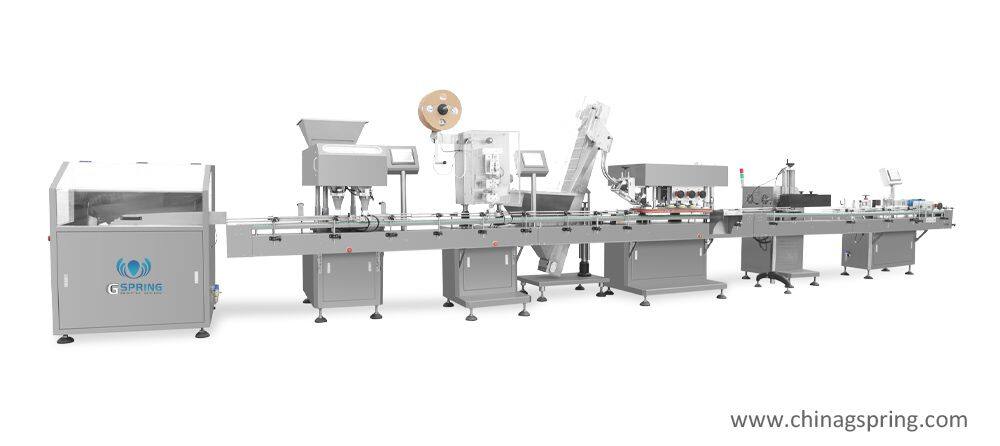

Medium Speed Bottling Production Line

Medium Speed Bottling Production Line photo-1
Medium Speed Bottling Production Line photo-2

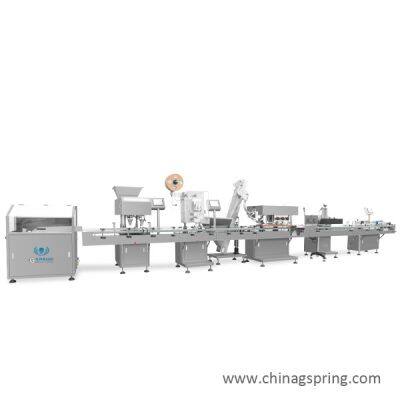

Medium Speed Bottling Production Line photo-3
Medium Speed Bottling Production Line photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Year Established:
2014
Factory Size:
1,000-3,000 square meters
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao, China
Delivery Detail:
60 days


Technical parameter:

Name

Model

Technical parameters

Bottle unscrambler

FC-LP150Y



Applicable bottle type: round plastic bottles; Production capacity: 30~100 bottles/minute; Power: 0.15kw; Gas supply: 0.6Mpa; Dimensions: 1150x1050x1250mm; Weight: 300kg

Electronic counting machine

FC-DSL-16D



Applicable bottle types: round and square plastic bottles; Filling targets: 0-5# capsules, soft capsules, Ф5.5-12 unsalted tablets, irregularly shaped tablets, sugar-coated tablets, Ф3~12 pills; Production capacity: approximately 50-80 bottles/minute (depending on bottle size, filling volume, and drug specifications); Bottle volume setting range: 1-9999; Efficiency: 1.2kw; Accuracy: >99.5% (better than industry standards); Air source: 0.6Mpa; Dimensions: 1800x1600x1710mm; Weight: 350kg

Desiccant inserter

FC-SR150B



Applicable bottle types: round, oval, square, and rectangular bottles; Desiccant bags: disc-shaped desiccant bags, specific dimensions determined according to bottle size; Production capacity: 60-120 bottles/minute; Power: 0.5 kW; Air supply: 0.6 MPa; Dimensions: 1560 x 800 x 1850 mm; Weight: 130 kg

Linear capping machine

FC-XG150



Applicable bottle types: 20~500ml round, oval, square, and rectangular bottles; Production capacity: 60-120 bottles/minute; Power: 1.8kw; Gas source: 0.6Mpa; Dimensions: 2370x1100x2100mm; Weight: 600kg

Electromagnetic induction aluminum foil sealing machine

FC-FK150



Applicable bottle types: 15 ~ 500ml round, oval, square, and rectangular bottles, bottle mouth diameter 15-45mm; Production capacity: 60-120 bottles/minute; Power: 3kw; Gas source: 0.6Mpa; Dimensions: 1560x1100x1450mm; Weight: 130kg

Self-adhesive labeling machine

FC-TB150Y

Applicable bottle types: 15~500ml round and square bottles; Production capacity: 60~150 bottles/minute; Power: 0.15kw; Gas supply: 0.6Mpa; Dimensions: 1860x1000x1350mm; Weight: 150kg



Product Tags: Medium speed bottling production line , Packaging Equipment , Pharmaceutical Machinery
