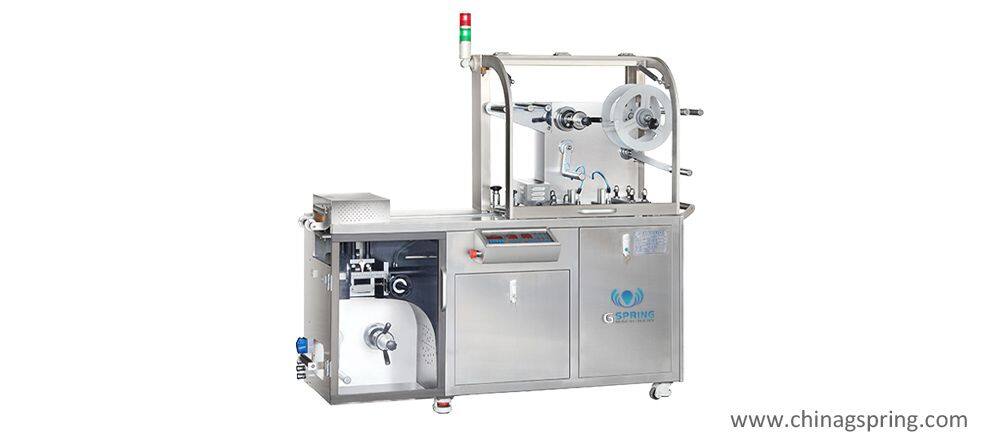

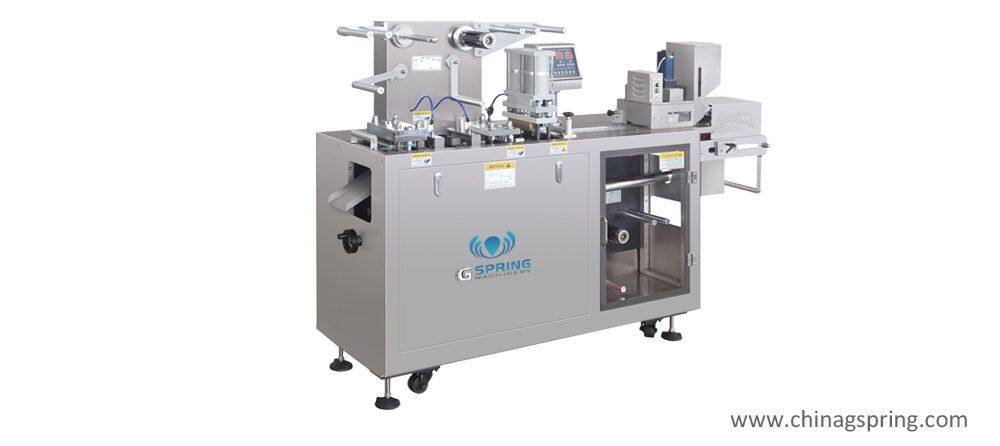

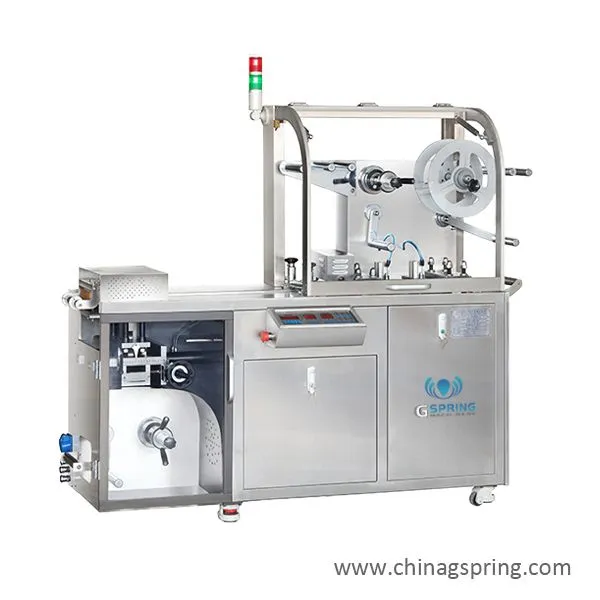

Automatic Blister Packaging Machine Pharmaceutical Blister Packing Equipment for Tablet Capsule Packaging
Pharmaceutical Packaging Equipment
Main feature:
1、The transmission mechanism is adopted,and the main transmission shaft is driven by the chain,which avoids the error and noise of other gear transmission.
2、The whole machine adopts sectional combination:PVC forming,feeding and heat sealing are in one section,and tropical aluminum cold forming,heat sealing and blanking are in one section for split packaging.
3、Photoelectric control system,PVC,PTP and duralumin packaging automatic feeding and waste edge automatic punching device are adopted to ensure synchronous stability of ultra-long distance and multi-position.
Note:
1、Optional photoelectric detection and correction device;
2、Optional servo motor traction
3、Optional plexiglass cover
Technical parameter：
Model |
DPP-110 |
DPP-160 |
Voltage（V) |
220 |
380/220 |
Cutting frequency (times/minute) |
10-35 |
15-35 |
Production capacity (Version/Time) |
1000-2400 |
4200(One version, two editions) |
Max fomming area and depth(mm) |
70x110x (standard depth ≤14mm) Maximum depth 26mm |
150x110 (standard depth ≤15mm), maximum depth 26mm |
Standard travelrange (mm) |
20-80 |
40-120(Can be designed according to user requirements) |
Standard section (mm) |
80×57 |
80×57 |
Air pressur(MPa) |
0.6-0.8 |
0.6-0.8 |
Total power (kw) |
3.0 |
3.8 |
Main motor powe(kw) |
0.75 |
1.5 |
PVC sheet(mm )PVC |
0.15-0.5*110or125 |
0.15-0.5*160 |
PTP aluminum foil PTP (mm) |
0.02-0.035*110or125
|
0.02-0.035*160 |
Dialysis paper (mm) |
50-100g*110or125
|
50-100g*160 |
Mold cooling |
Tap water or recycled water |
Tap water or recycled water |
Dimensions (mm) |
1900*600*1100 |
2320*650*1500 |
Weight (kg) |
400 |
900 |
Noise indicators (DBA) |
＜75 |
＜75 |
Gspring Machine have more than 10 years experience on export, export to all over the world,like USA, Canada, Russia, India,
Sri Lanka, Turkey, Vietnam, Indonesia, Pakistan, Philippines, Brazil, Egypt, Czech, Singapore, Armenia,Iraq, Iran, Malaysia,Bangladesh,
Mexico, Peru, Algeria, Poland, Thailand, Nepal, Azerbaijan etc.
We can customized machinery specially based on your specific request. Welcome to contact grace@chinagspring.com to learn more.
