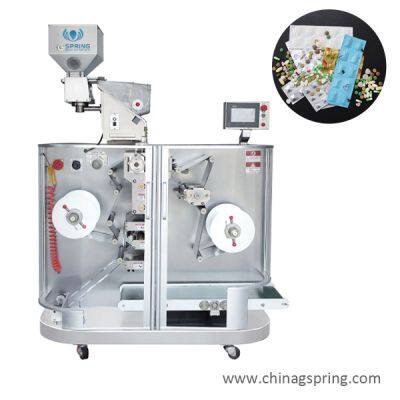

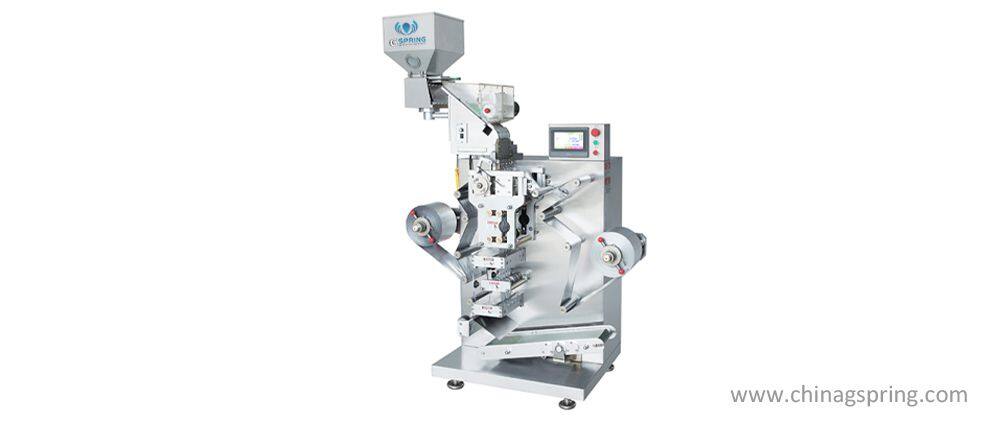

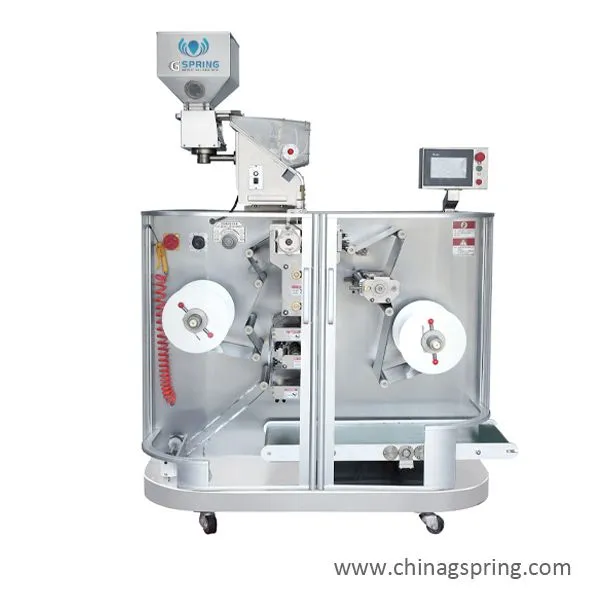

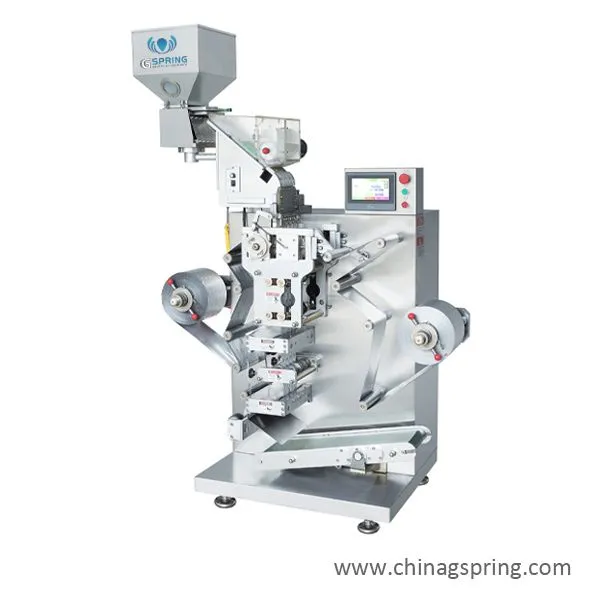

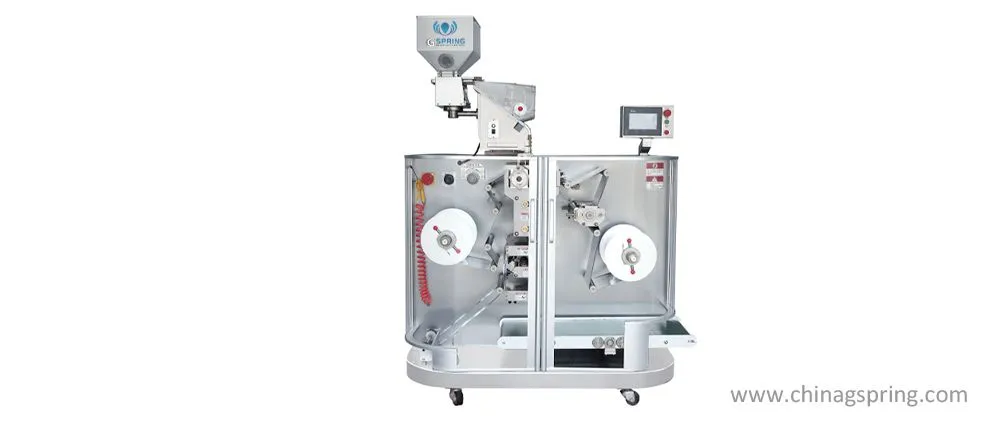

Soft double aluminum packaging machine
Main performance characteristics:
1、The whole machine adopts PLC touch screen control system,and the number of punching and cutting plates can be freely set and adjusted on the touch screen,
so there is no need to worry about the trouble of frequently changing various gears and cams due to changing the packaging specifications and varieties.
2、The temperature control of the roller mold adopts the imported temperature controller with PID control,and the temperature measurement adopts the advanced
PT100 roller surface thermometer assembled with imported parts,which ensures the stability and reliability of the surface temperature of the roller mold and improves
the sealing performance of the heat-sealed drug plate.
3、The host adopts stepless speed regulation of frequency converter,the equipment operates stably and reliably,the transmission structure is simple,and the
maintenance is convenient.
4、Optional functions:solid mold wheel coding,image and text matching,optical fiber detection,grain missing and waste removal,etc.
Technical parameter：
Model | RSL-160B | RSL-260B | RSL-350B |
Production capacity(tablets,grains/min) | ≤800 | ≤1100 | ≤1500 |
Punchingfrequency(times/min) | 40-80 | 10-30 | |
Compressed air | 0.45 Mpa≥0.2m3/min | 0.45 Mpa≥0.2m3/min | 0.45 Mpa≥0.2m3/min |
Maximum packaging material width(mm) | 160 | 250 | 350 |
Coil diameter(mm) | 300 | ||
Toal Power(W) | 2.75 | 3.75 | 4 |
Dimensions(mm) | 191x183x249 | 130x147x211cm | |
Weight ( kg ) | 1300x750x1900 | 1600x850x1900 | 1600x950x1900 |
