1. Main uses:
HG-D1 1.5The asphalt concrete mixer can mix new asphalt mixtures; it can also recycle old asphalt mixtures; and it can heat and mix the stacked and stored asphalt mixtures for reuse. The electric-start diesel generator solves the problem of the lack of a common power source for field operations. The asphalt concrete mixer can repair the potholes on the road surface on-site at any time and place, and the road can be opened to traffic after the operation is completed, ensuring the road is in good condition and unobstructed. Its function is particularly prominent in the cold winter.
2. Main structure:

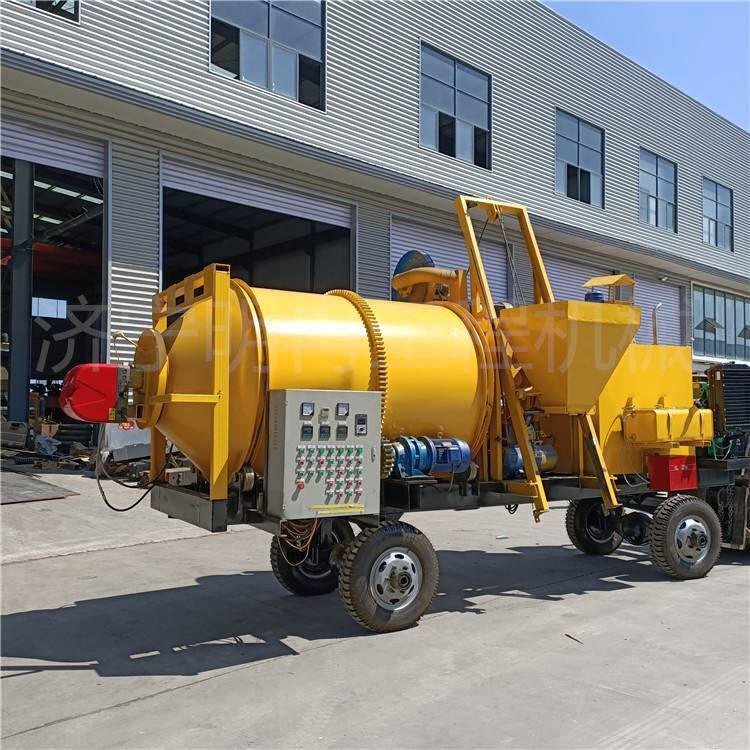

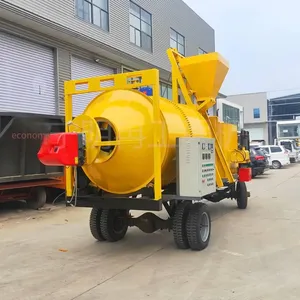

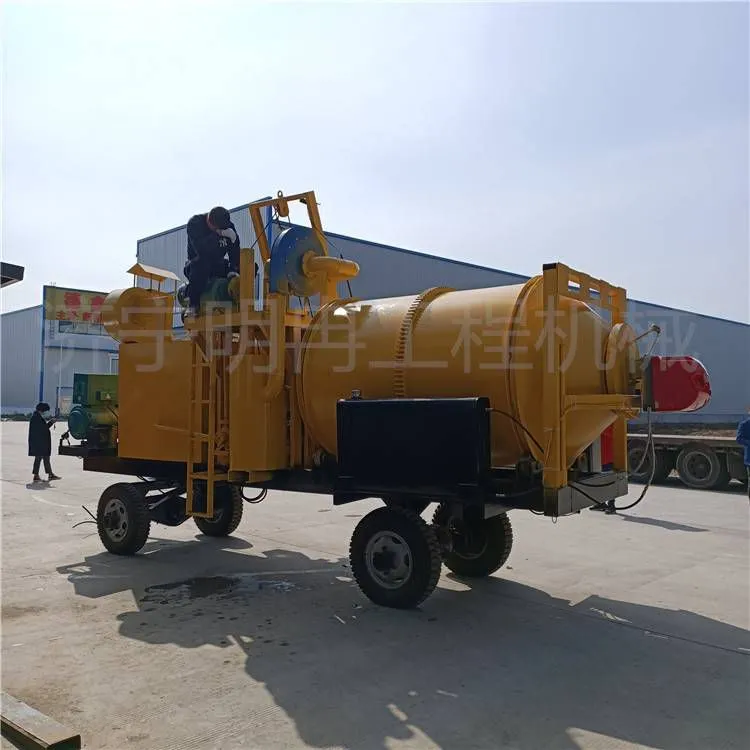

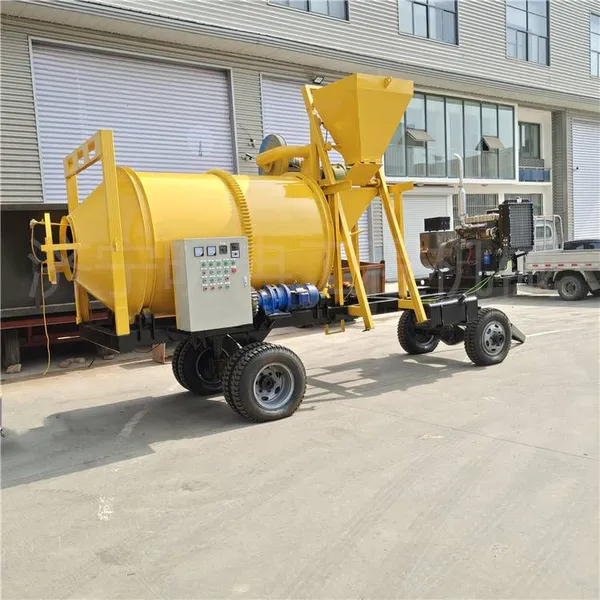

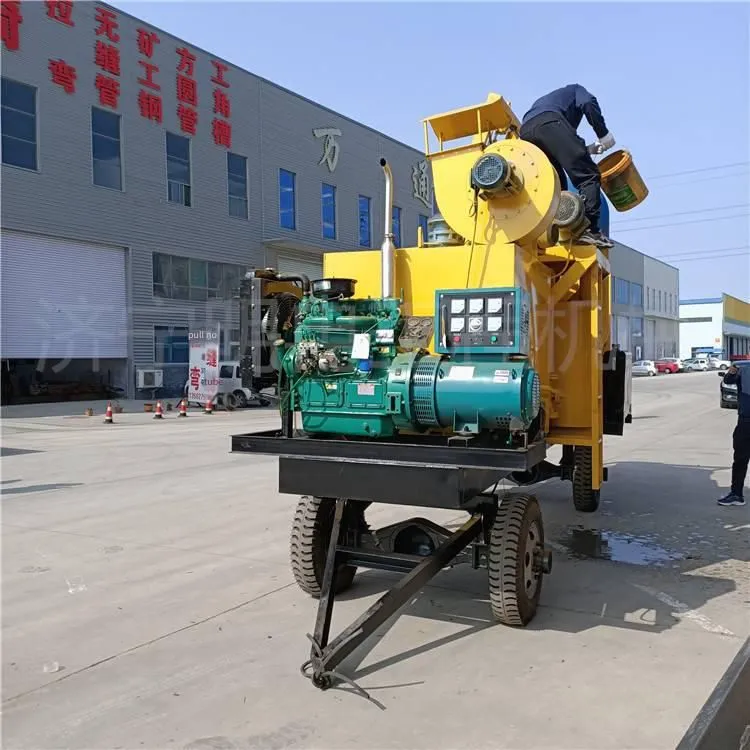

HG-D1 1.5The asphalt concrete mixer consists of an electric-start diesel generator, and its structural forms are as follows;

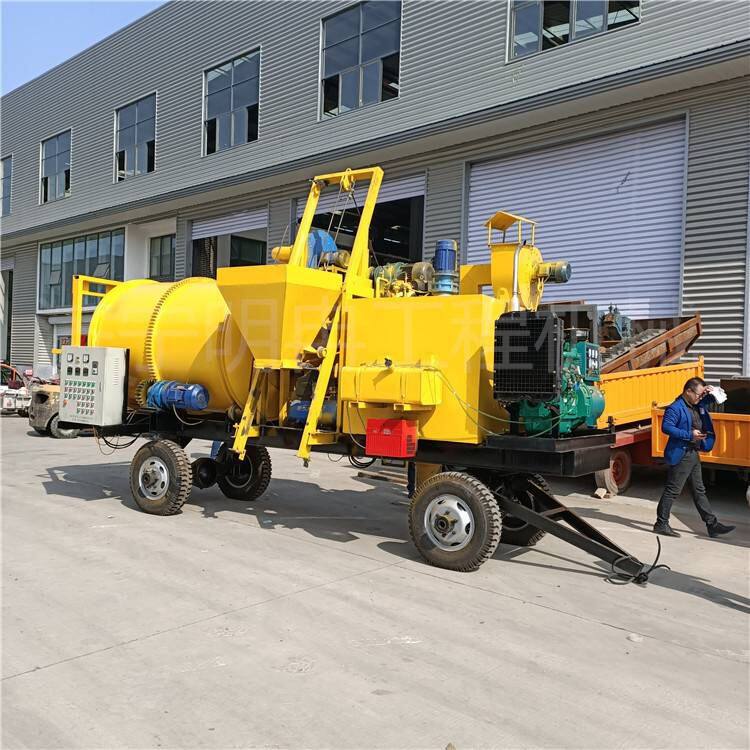

1. It is a towed type equipped with rear axle brakes and a tripod for traction;
2. It can be hoisted on a transport vehicle for construction operations, including on-vehicle type and fixed type in three ways;
3. Performance characteristics:
(1). Mixing method: HG-D1 1.5The asphalt concrete mixer uses the blades inside the rotating drum with an insulation layer for mixing; The rotation of the drum is driven by a cycloidal pin gear reducer to drive the gear, and the mixing volume each time is not less than1500 kg.
(2) Heating method: A diesel burner is used to heat the gas inside the drum; The temperature of the gas is transferred to the asphalt mixture, and its temperature is controlled by the temperature sensing system. The burner stops burning when the required temperature is reached.

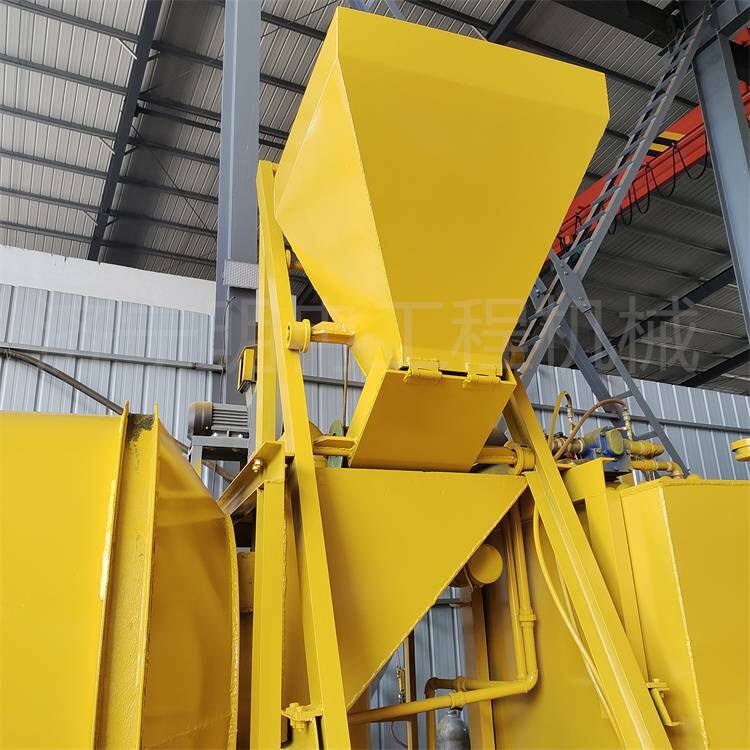

(3) Feeding method: The feeding track can be folded, and the feeding hopper is of the bottom-discharge type, with a capacity of300 kg/ time; The lifting is carried out by a multi-functional electric hoist, limited by a travel switch.
(4) Dust removal method: A cyclone dust removal system is used, and the dust and water vapor inside the drum are discharged by a centrifugal fan.

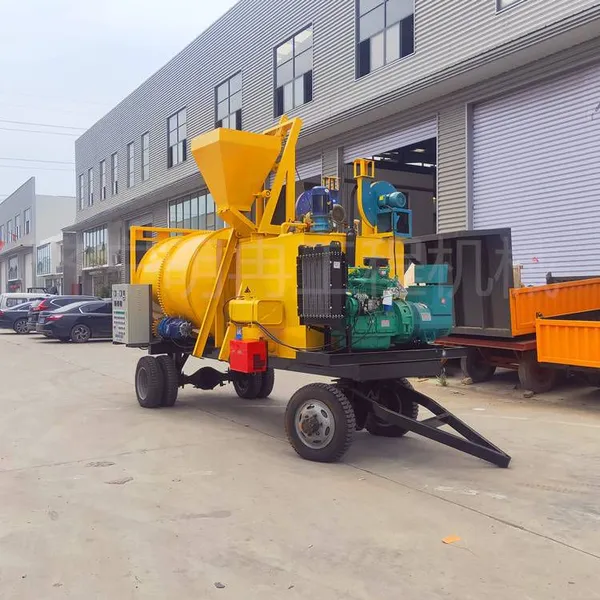

(5) Power supply method: If the external power supply cannot be connected, an electric-start diesel generator set is provided, with a power of30 KW; There are four sets of secondary rubber shock absorption mechanisms under the frame of the generator set, and it runs very smoothly to prevent damage to vibrating parts and electrical appliances.

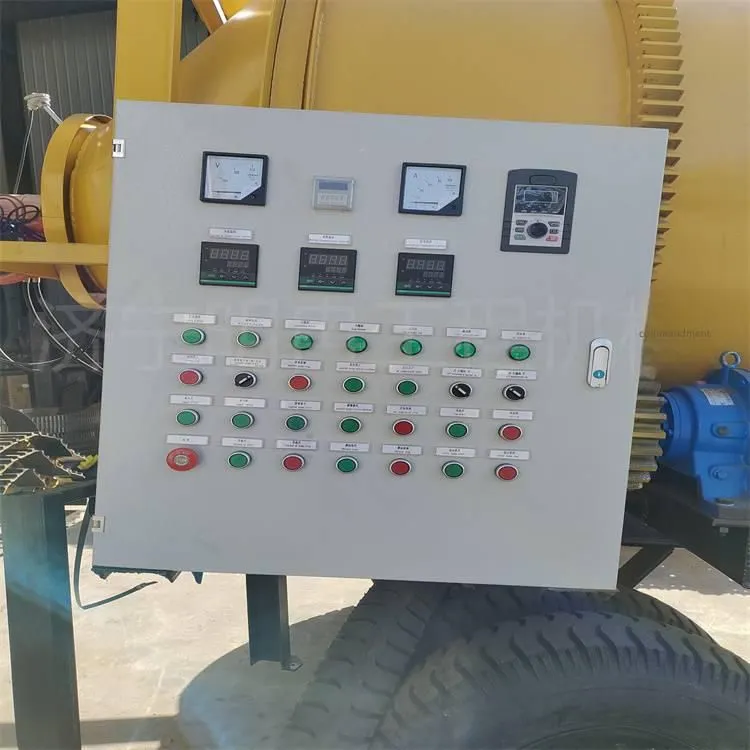

(6) The whole machine adopts a multi-functional electrical control system, which is clear at a glance and easy to operate.
4. Product parameters:
HG-1 1.5cubicAsphalt Mixer | ||
Mixing capacity | Single time20minutes1700kg | |
Discharging temperature | 120-180°(Adjustable) | |
Heating method | Diesel burner | |
Fuel consumption | 20L/h | |
Vacuum motor | 2Pole1.5KW | |
Mixer power | 5KW | |
Fan power | 1.5KW | |
Lifting motor power | 3KW | |
Diesel generator set | Engine | 4102 |
Engine power | Diesel engine power:80kw | |
Generator power | 30KW | |
Current | 27.1A,Number of poles4 | |
Overall weight | 6000㎏ | |
Overall dimensions | Length, width and height (excluding trailer) | 6200×2000×3000mm |
