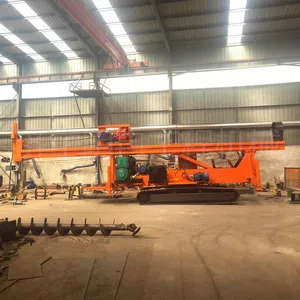

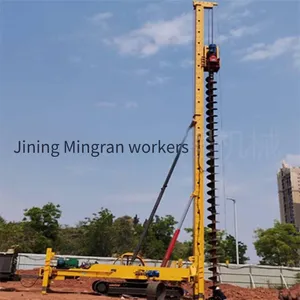

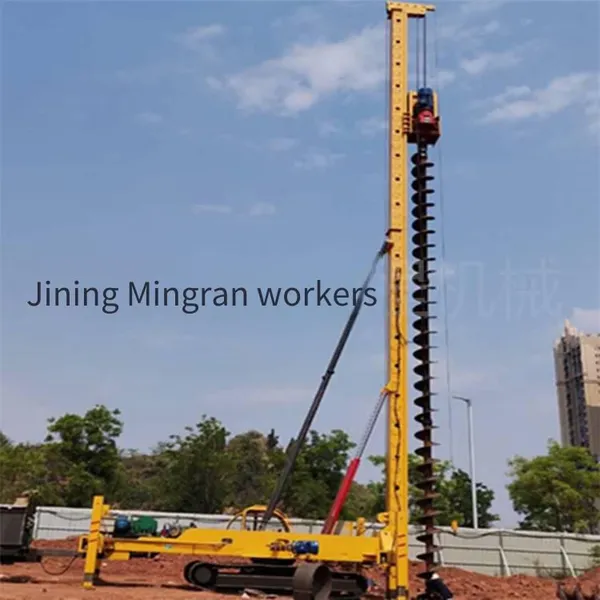

Help CenterCrawler Walking Long Screw Pile Driver, Foundation Reinforcement Grouting Drill, Cfg Long Screw Hole Leading Machine
Related Products
-
Tracked Excavator Mounted on Truck for River Channel Dredging, Gecko Tracked Excavator, Self-dumping Excavator Mounted on TruckUS$ 8153.85 - 9076.92MOQ: 1 Unit -
Fully Automatic Asphalt Mixture Recycling Mixer, Asphalt Mixer for Road Surface Repair and Paving, Equipment for Frying Old and New AsphaltUS$ 12000 - 13538.46MOQ: 1 Unit
-
Supply of Vehicle-mounted Foundation Pile Drivers, Auger Bit Pile Foundations, and Fast Piling Pile Drivers for Residential Building FoundationsUS$ 10000 - 10615.38MOQ: 1 Unit
-
Four - Unlike Truck - Mounted Excavator, Four - Wheel Drive Wheeled Truck - Mounted Excavator, Self - Dumping Rotating ExcavatorUS$ 8861.54 - 9169.23MOQ: 1 Unit
-
In-stock Creeper Tracked Vehicles, Mud Tracked Transporters, Self-dumping Tracked LoadersUS$ 3476.92 - 3784.62MOQ: 1 Unit
CFGIntroduction to the pile drivers of the CFG series:

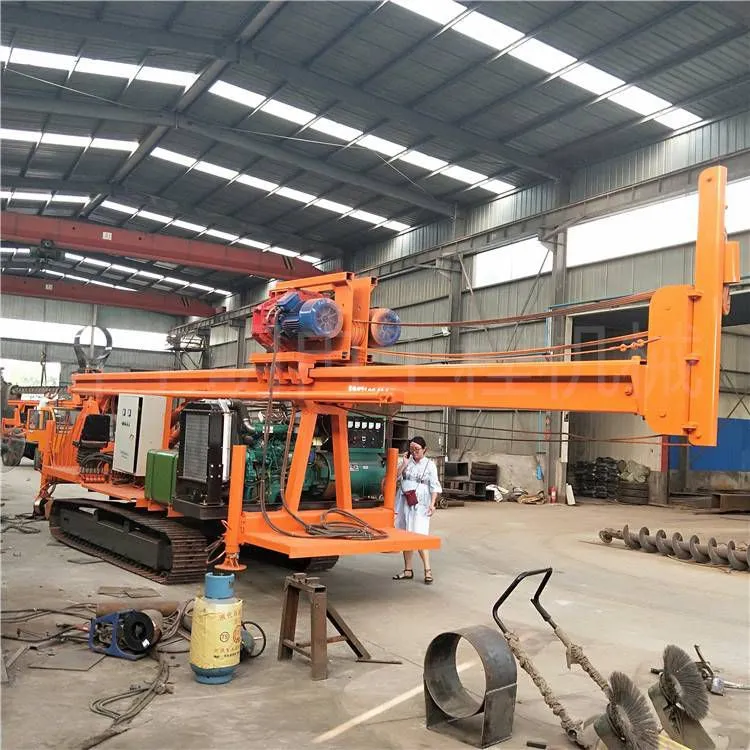

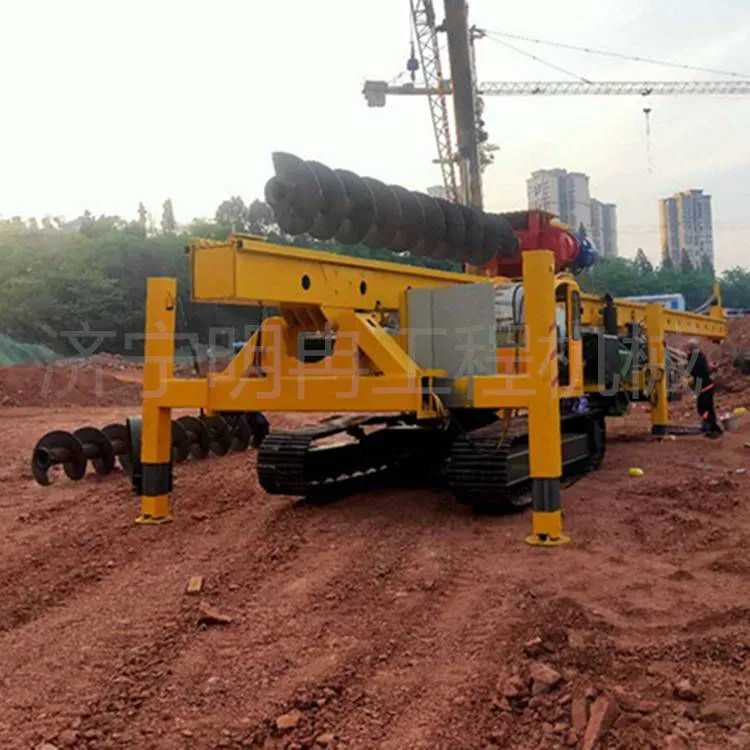

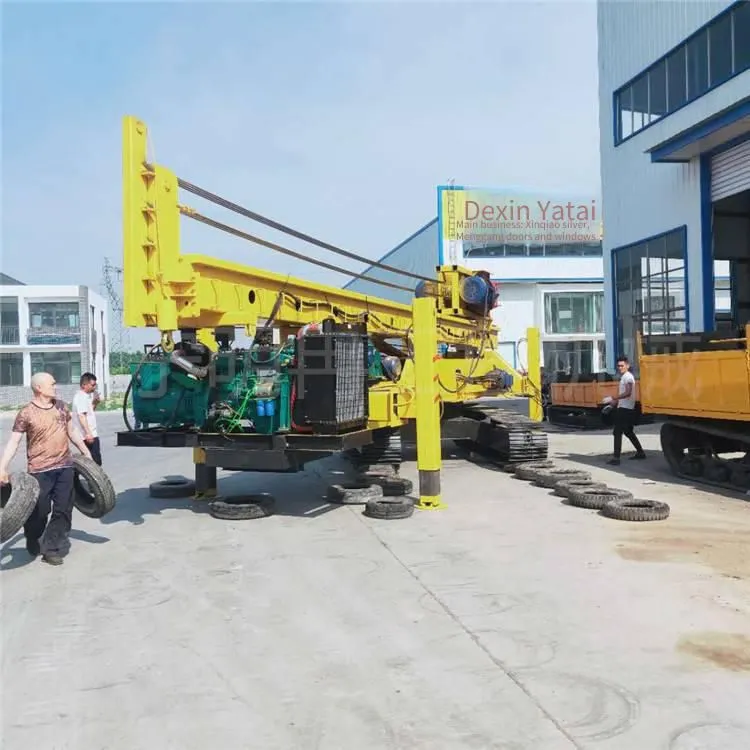

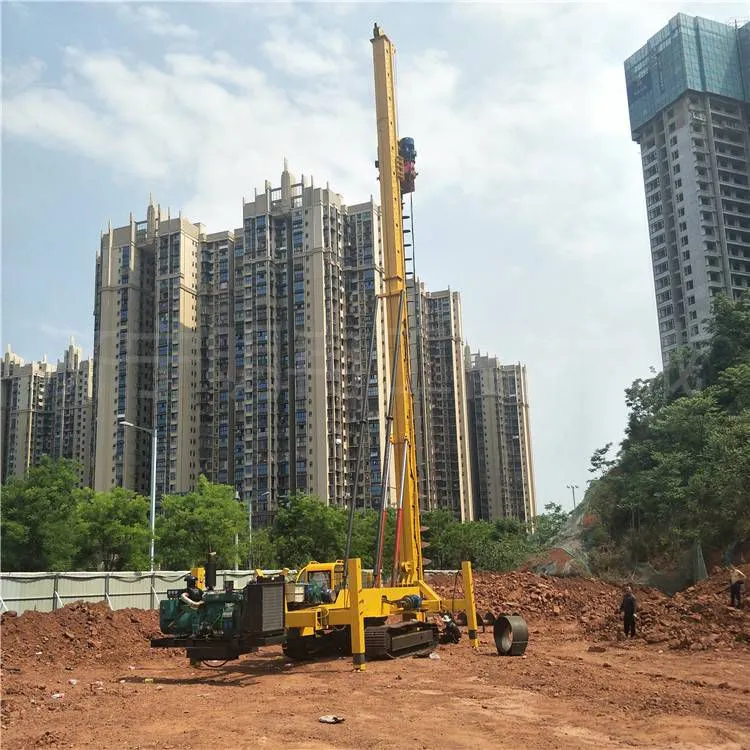

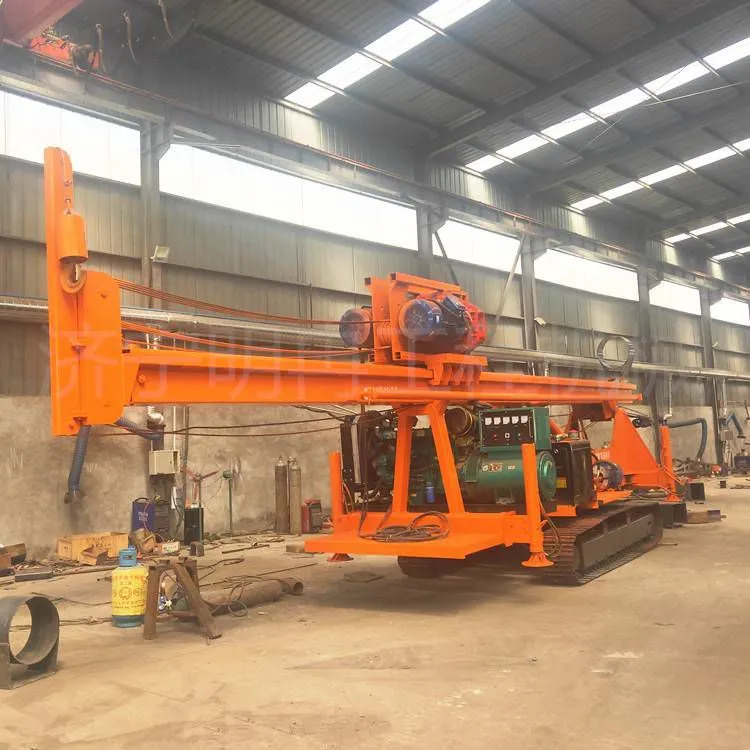

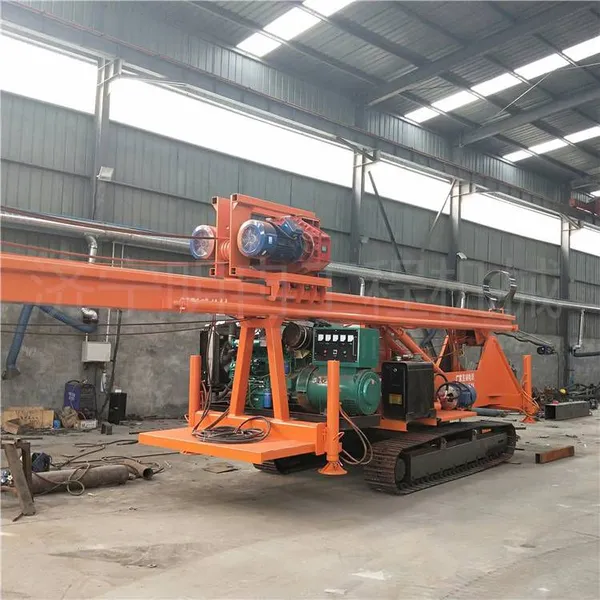

CFGThe pile drivers of the CFG series consist of two parts: the hydraulic crawler pile frame and the drilling tool system. The hydraulic walking pile frame is mainly composed of the top pulley block, the column, the diagonal brace, the chassis, the walking mechanism, the slewing mechanism, the hoisting mechanism, the hydraulic system, the electrical system and the towing mechanism. The pile frame uses a hydraulic walking chassis, which can walk and slew by itself. It is equipped with hydraulic outriggers to assist walking and slewing and increase the overall stability during construction. The pile frame is designed with a towing device, which allows the whole machine to be towed. The drilling tool system includes the power head, the drill pipe and the drill bit. The power head uses a three - ring reducer. The three - ring reducer is a reducer with a large central hole, featuring a compact structure, low noise, high overload capacity and long service life. It is currently the power device for domestic drilling rigs.
Characteristics of the pile drivers of the CFG series:
CFGCharacteristics of the pile drivers of the CFG series:
1、CFGThe pile frame of the CFG series pile drivers is of a hydraulic walking structure, which can raise and lower the column by itself. It is convenient, accurate, stable and reliable for walking and positioning, with high construction efficiency and low labor intensity. It is energy - saving, environmentally friendly and highly automated.
2、CFGThe CFG series pile drivers can complete drilling and pile - forming in one go, with fast pile - forming speed and high construction efficiency.

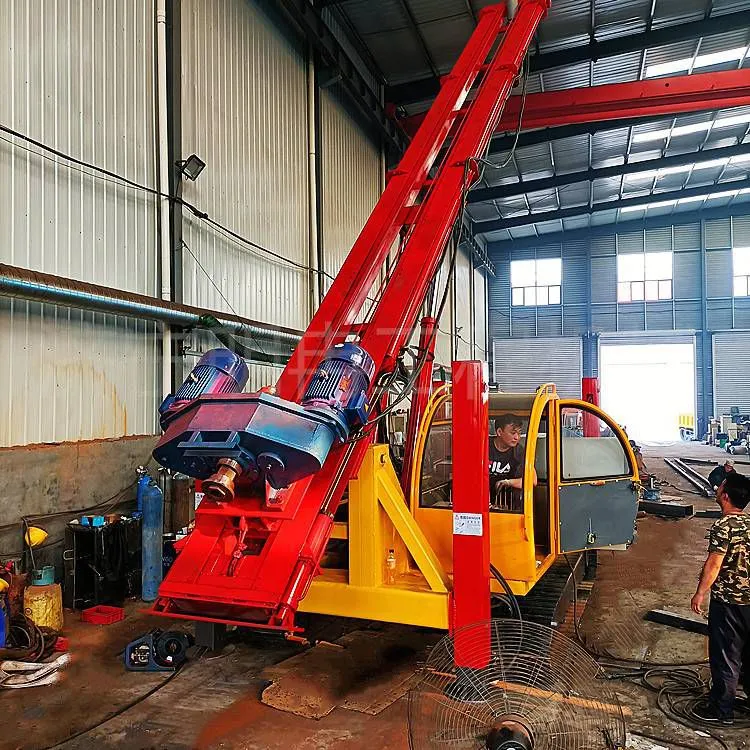

3、The power head uses a double - drive three - ring reducer with a large central through - hole, which has high bearing capacity, strong overload capacity, a compact structure, low noise and long service life. It is currently the power device for domestic pile drivers.
4、It adopts a combination of towing and shipping methods, featuring strong integrity, convenient site transfer, and low costs.
5、The drilling rig is jointly controlled by electricity, machinery, and hydraulics. All the required electrical buttons and handles are placed in front of the cab, and all use high - quality products, making the operation convenient, fast, and comfortable.
CFGSeries Pile Drivers - Main Technical Parameters:
|
Model Item |
SCFG |
Hole - forming diameter/mm |
300～600 |
Pile-forming depth/m |
20 |
Power head power/Kw |
45×2 |
Lifting force/Kn |
360 |
Main engine speedr/min |
21 |
Output torque/kN.m |
20 |
Walking step distance /mm |
1200 |
Slewing angle° |
180 |
Generator set |
150kw |
Overall dimensions of the vehicle |
12*2.2*3.5m(Vary according to size) |
Pile driver quality/T |
10 |
Note: The product parameters are for reference only. Please consult the customer service for specific parameters.
