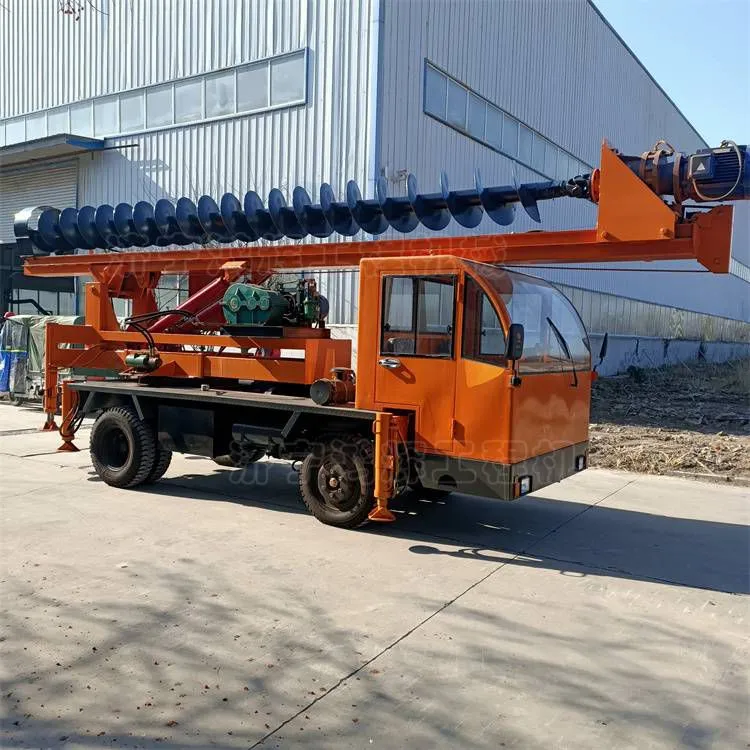

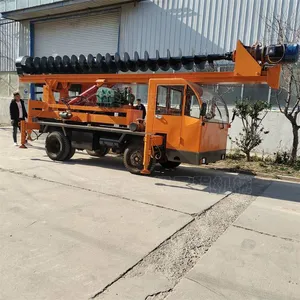

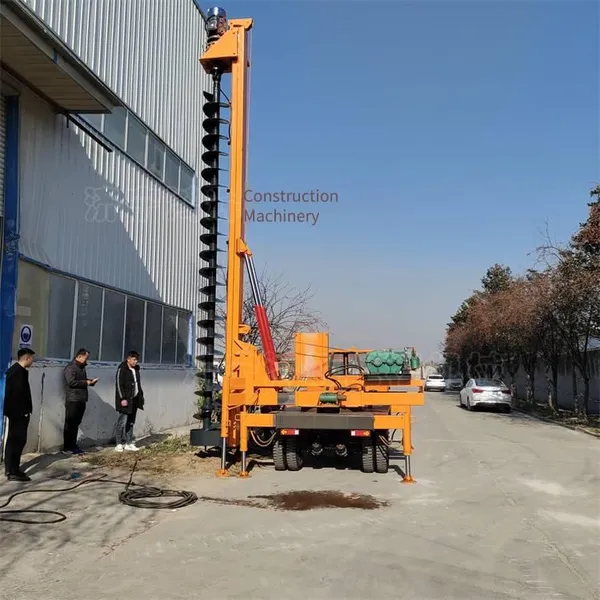

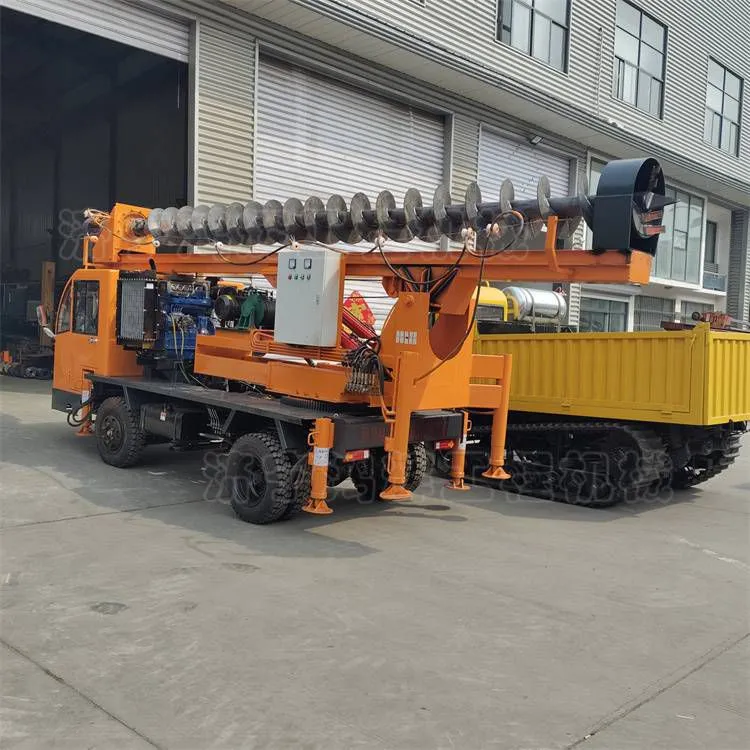

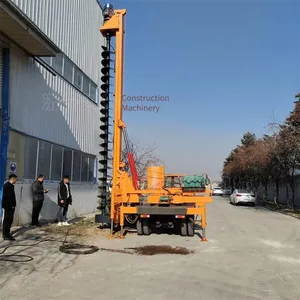

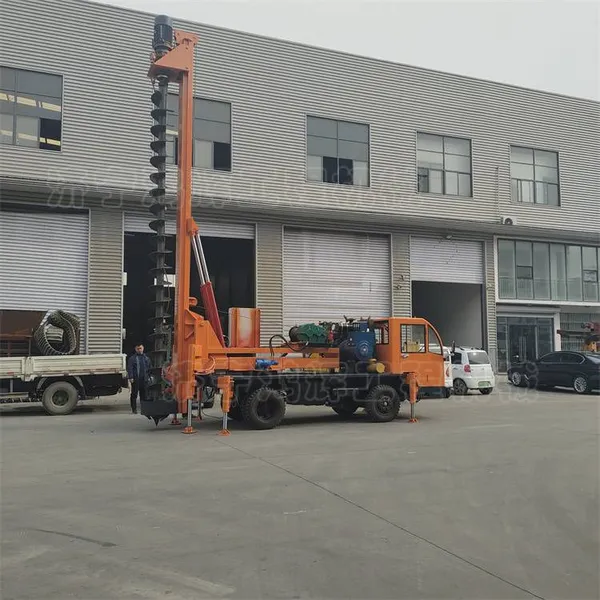

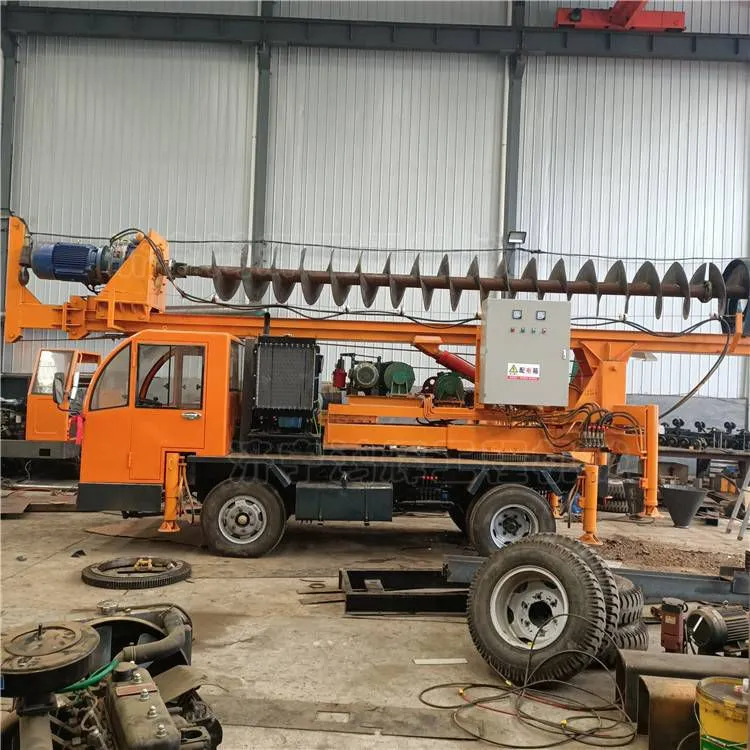

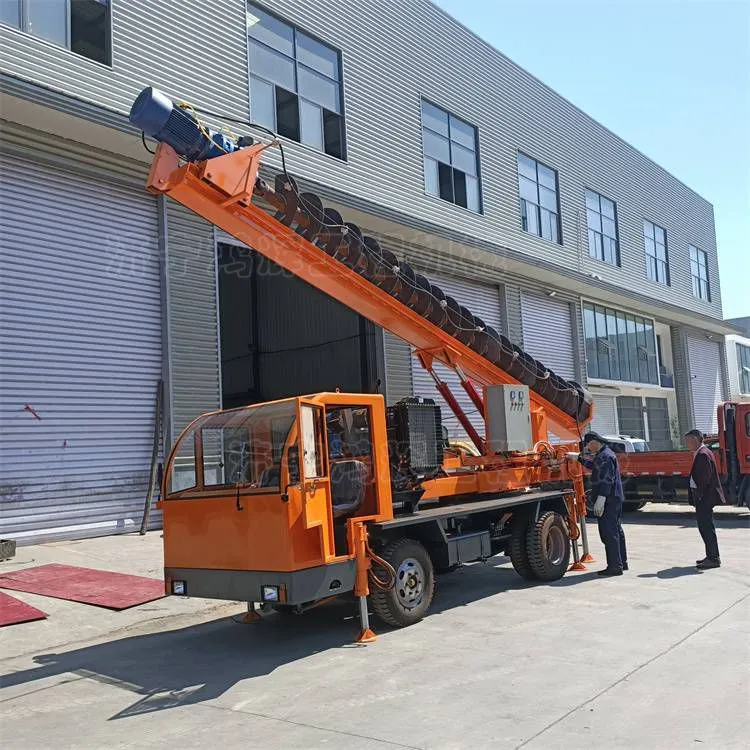

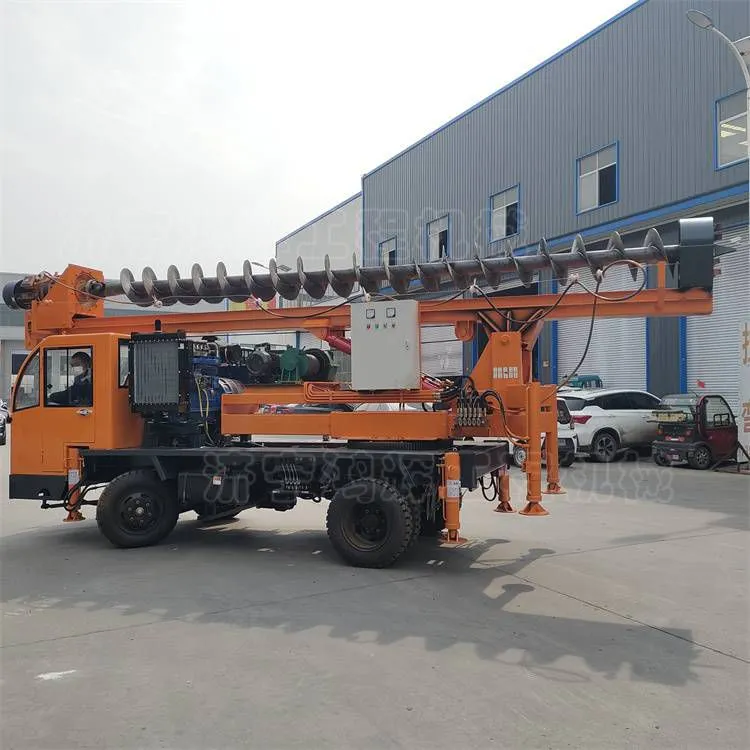

Help CenterWheeled Civil House Foundation Pile Driver, 6-meter Long Spiral Drilling Machine With 360-degree Rotating Drilling
Related Products
-
Henan Asphalt Mixer for Manhole Covers, New and Used Asphalt Frying Machines, Fixed Asphalt MixersUS$ 11815.38MOQ: 1 Unit -
Factory Direct Sales of Photovoltaic Foundation Pile Drivers, Crawler Walking Screw Drilling Rigs, 360-degree Rotating Dual-power Pile DriversUS$ 12000 - 13230.77MOQ: 1 Unit
-
Small Forklift Pile Driver, Pole Installation Pilot Hole Machine, 3-meter Residential Foundation Drilling MachineUS$ 5923.08 - 7000MOQ: 1 Unit
-
Paddy Field Crawler Transporter, 3-ton Rubber Crawler Transport Vehicle, Gecko Crawler LoaderUS$ 3938.46MOQ: 1 Unit
-
Crawler Walking Long Screw Pile Driver, Foundation Reinforcement Grouting Drill, Cfg Long Screw Hole Leading MachineUS$ 14707.69 - 15169.23MOQ: 1 Unit
1. Scope of application:
This vehicle can generate electricity by itself and use an external power supply. It is suitable for piling projects such as building foundation construction, highway foundation reinforcement, railway power facilities, wind power plants, solar photovoltaic power plants, and soft foundation soil treatment and reinforcement.It is easy to learn. During operation, it can move forward and backward at a fixed position, rotate270°, and has hydraulic walking.
2. Performance characteristics:
1.It is reasonably designed, beautiful in appearance, and simple to operate. There are two product options: rotating 270 degrees and 360 degrees left and right. It features fast positioning, fast piling, fast pile pulling, and high efficiency, and can also be customized according to customer requirements.
2.Use a mud pump to carry out the drilled soil to form a pile hole, then lower the steel reinforcement cage and pour concrete.
3.The pile driver consists of a pile hammer, a pile frame, and auxiliary equipment. The pile frame is a steel structure tower, and there is a winch at its rear for lifting the pile and the pile hammer.
3. Product parameters:
Model |
S270Foundation Pile Driver |
||
Overall Dimensions |
760*200*300cm |
||
Borehole Diameter |
600mmor less |
||
Upper Frame |
Telescopic |
||
Lower outriggers |
Manual |
In and out80cm(Standard configuration) |
|
Hydraulic |
In and out80cm |
||
Distribution box (Chint) |
Handheld |
36vSafe voltage (Standard configuration) |
|
Wireless remote control type |
|||
Not connected to the distribution box |
With forward and reverse switch |
||
Winch lifting capacity(T)/Power (KW) |
2/7.5 |
||
Reducer |
5 No. machine (standard. Optional 3 - 6 No.) |
||
Piling depth |
8 meters |
||
Power head power(kw)/Rotational speed rpm |
15 (Standard configuration. Optional: 18.5/22/30)/40 |
||
Lifting form |
Hydraulic lifting |
||
Rotary motor power(kw) |
1.5 |
||
Time for standard pole pit |
10 - 60Second(s) |
||
Oil pump motor power(kw) |
7.5 |
||
Engine model |
Weifang4102Turbocharged |
||
Generator power(Optional) |
Generator(kw) |
30 |
|
40 | |||
Generator(kw) |
40 |
||
50 | |||
Tire specification |
650-16 |
||
750-16 | |||
Gearbox |
130-140High and low speed |
||
Steering |
Hydraulic power assist |
||
Slewing angle |
270° |
||
Travel speed(km/h) |
40 |
||
Applicable geological layers |
Can be used for laterite.Frozen soil.Highly weathered rocks, etc. after being equipped with a carbide drill bit |
||
Climbing ability(°) |
50 |
||
Gross vehicle weight(T) |
4.8 |
||
Note: Product parameters are for reference only. Please consult the customer service for specific parameters.
