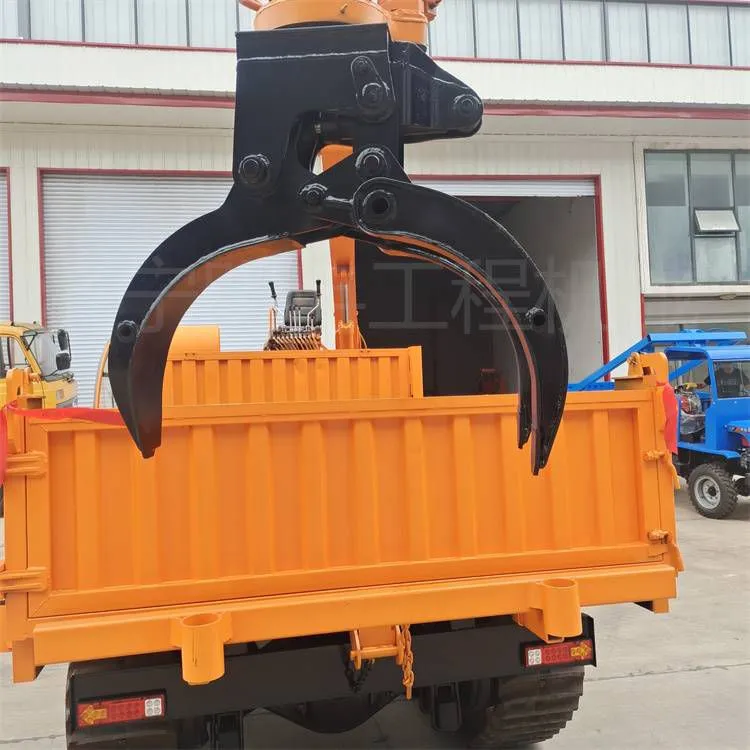

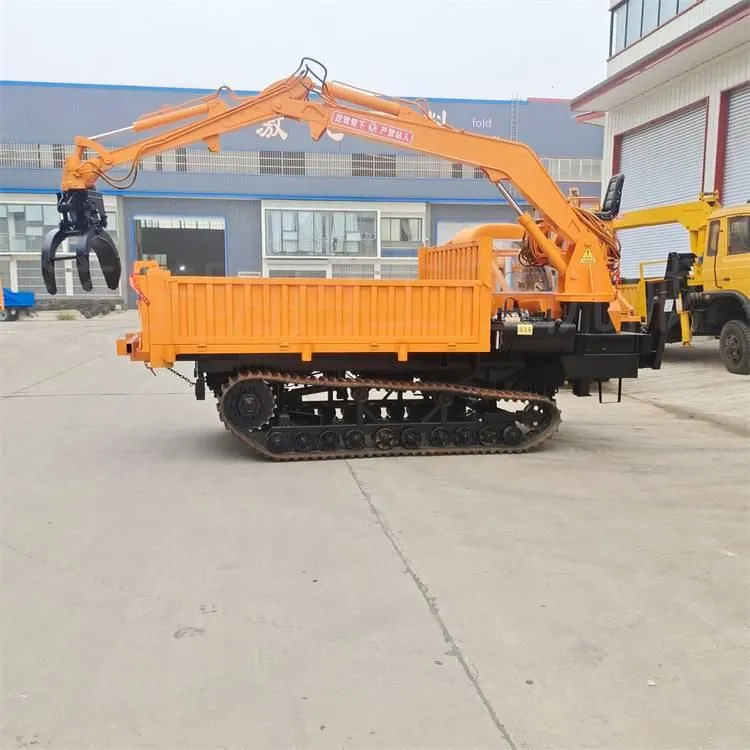

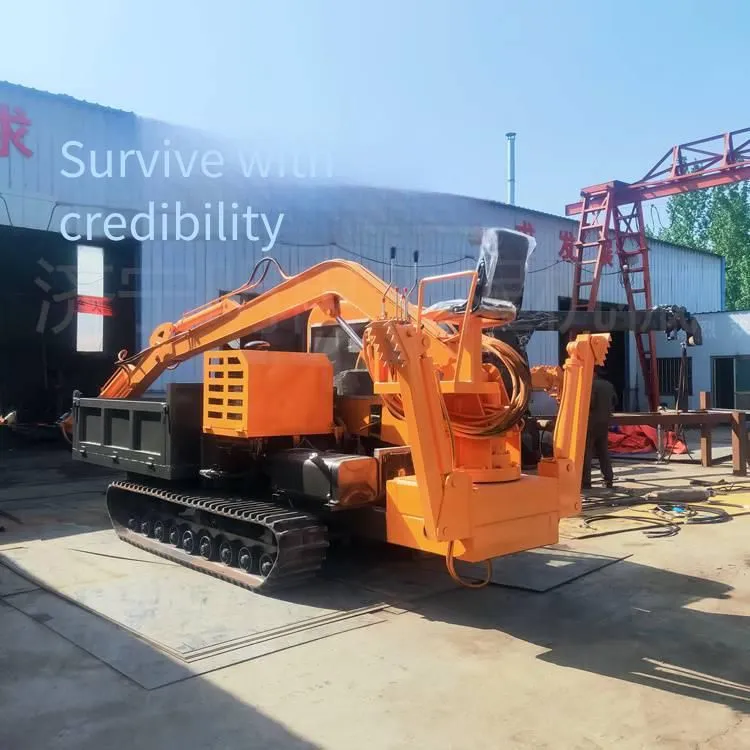

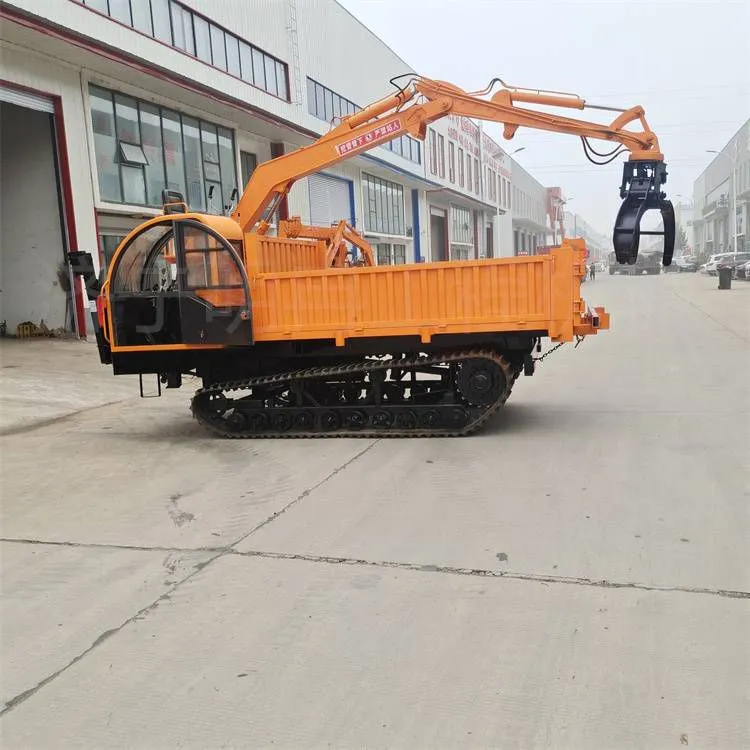

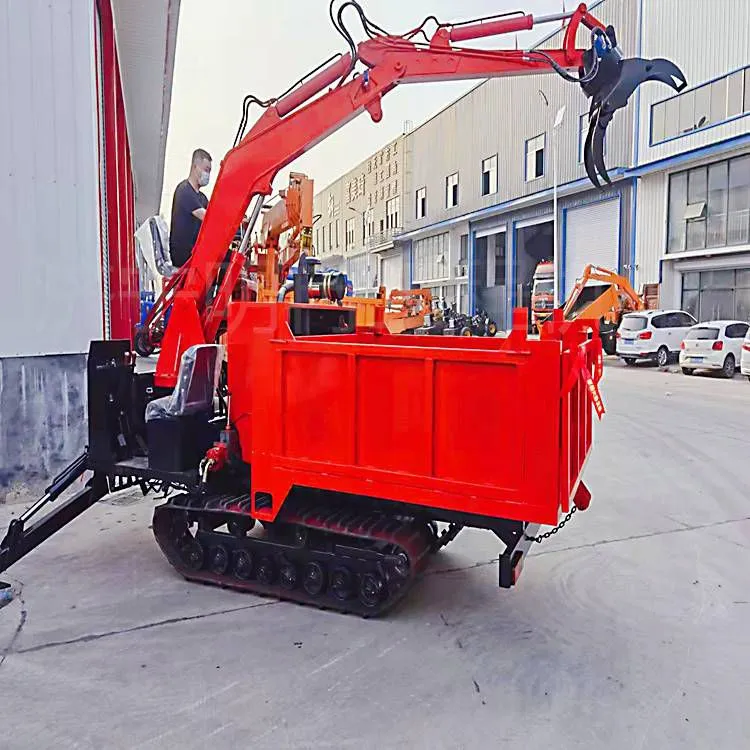

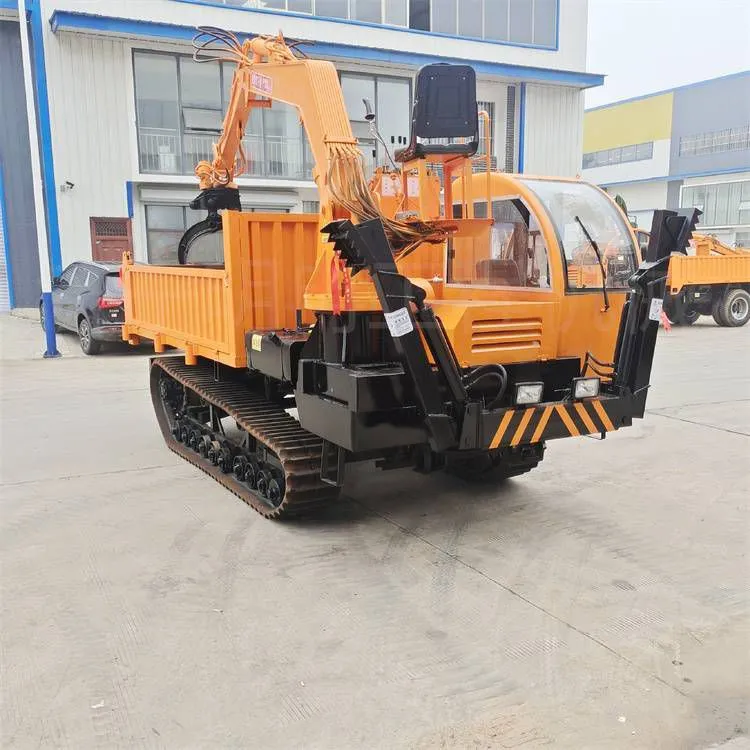

Help CenterTracked Loader With Grab for Landscaping, an All-in-one Tracked Vehicle Capable of Both Grabbing and Transporting, With an Extended Rotating Grabbing Arm
Related Products
-
Wheeled Civil House Foundation Pile Driver, 6-meter Long Spiral Drilling Machine With 360-degree Rotating DrillingUS$ 7507.69 - 8584.62MOQ: 1 Unit -
Henan Asphalt Mixer for Manhole Covers, New and Used Asphalt Frying Machines, Fixed Asphalt MixersUS$ 11815.38MOQ: 1 Unit
-
Factory Direct Sales of Photovoltaic Foundation Pile Drivers, Crawler Walking Screw Drilling Rigs, 360-degree Rotating Dual-power Pile DriversUS$ 12000 - 13230.77MOQ: 1 Unit
-
Small Forklift Pile Driver, Pole Installation Pilot Hole Machine, 3-meter Residential Foundation Drilling MachineUS$ 5923.08 - 7000MOQ: 1 Unit
-
Paddy Field Crawler Transporter, 3-ton Rubber Crawler Transport Vehicle, Gecko Crawler LoaderUS$ 3938.46MOQ: 1 Unit
1. Product Introduction
The front small arm of the mechanical arm can be fixed, single - section telescopic, or two - section telescopic. The outriggers of the mechanical arm come in different types, such as the 'A'-shaped telescopic type, the side - kick type, and the double - side translational vertical telescopic type. Each type of outrigger is designed through strict load - bearing and force - bearing calculations to ensure the force transfer during the operation of the equipment. This small folding - arm wood grabber is widely used in developed regions such as Europe and the Americas. Due to its simple operation and high mobility, this equipment can be operated by one person. The control system of the boom can be installed above the vertical arm of the mechanical arm, providing a wide field of vision and convenient operation. The mechanical arm and the grabber can rotate 360 degrees, and the front small arm of the mechanical arm can extend and retract, making it convenient and fast to grab wood and other items.
2. Application Scope
Applicable places: Logging areas, wood processing plants, paper - making industries, panel factories, logistics distribution centers, product turnover and loading/unloading within factories, auxiliary equipment for machinery such as crushers and balers. It can also be integrated with civilian vehicles to perform loading and unloading functions, enabling mobile operations and working while moving.
Applicable goods: (By changing different grabbers) Logs, square timbers, wood chips, branches, sugarcane, straw, sand and gravel, steel, forage, domestic waste, industrial waste and other bulk goods.
3. Product Features
1. Boom - type design, including the base, outriggers, rotating column, large and small arms, telescopic arms, rotary motor, and grabber.
2. The mechanical arm can rotate 360°, providing a dead - angle - free working area and making actual operations more convenient.
3. From manual loading and unloading to mechanization, it greatly saves human resources. One piece of equipment can replace 3 - 6 workers, and the cost of the equipment itself can be saved within one year.
IV. Technical Parameters SJ-M
Engine |
4102Turbocharged Weichai Changsong Engine |
Gearbox |
145Gearbox 5+1Gears Pneumatic Push High and Low Speeds |
Crawler Chassis Dimensions |
Length2.8mWidth2.1m |
Rear axle model |
1080Bridge |
Driving mode |
Rear-wheel drive |
Compartment size |
3*2.1*0.5m(Can be customized according to customer requirements) |

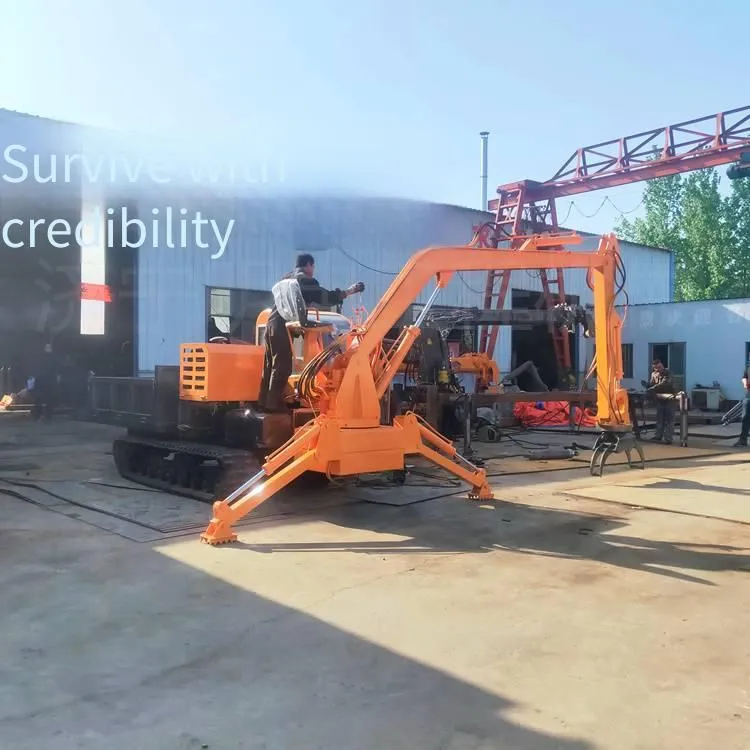

Outriggers |
2Lying legs |
Unloading method |
Automatic rear unloading |
Steering mode |
Power steering |
Braking mode |
Air brake |
Excavator arm |
5m-6m |
Gripper opening |
1m-1.2m |
Cab |
Fully enclosed cab |
Thickness of carriage plate |
Bottom5mmSide3mm |
Body color |
Military green, engineering yellow, gray, blue (customizable) |
Note: The product parameters are for reference only. Please consult the customer service for specific parameters.
