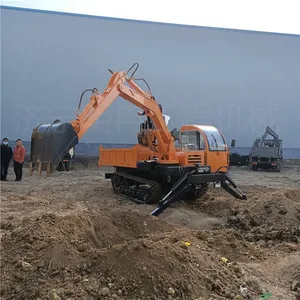

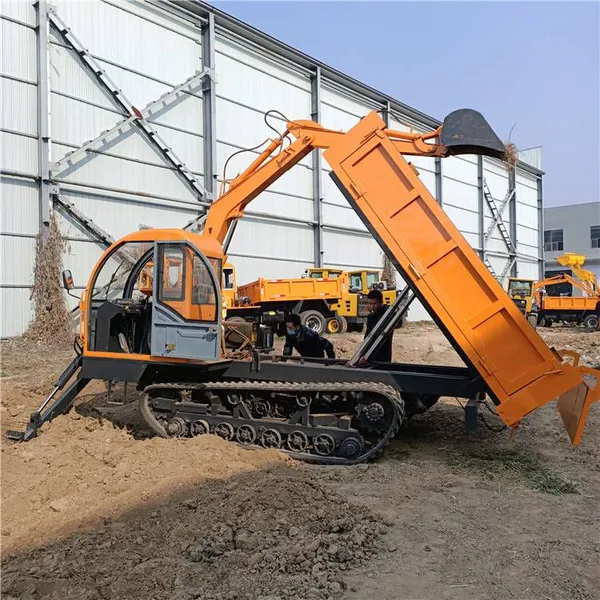

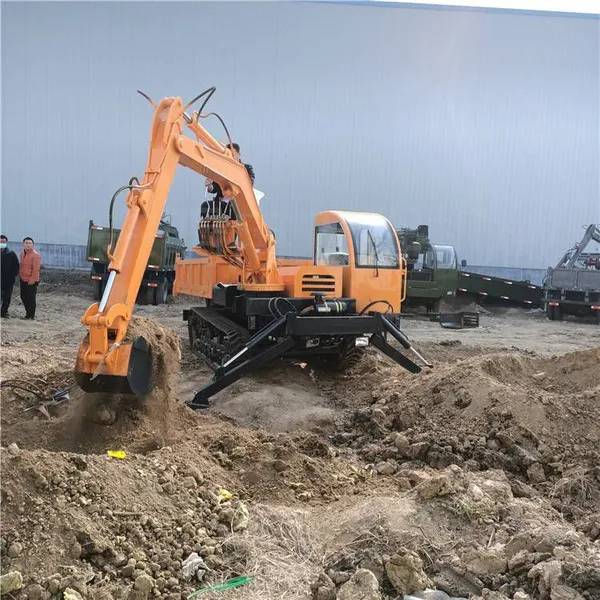

Help CenterTracked Excavator Mounted on Truck for River Channel Dredging, Gecko Tracked Excavator, Self-dumping Excavator Mounted on Truck
Related Products
-
Fully Automatic Asphalt Mixture Recycling Mixer, Asphalt Mixer for Road Surface Repair and Paving, Equipment for Frying Old and New AsphaltUS$ 12000 - 13538.46MOQ: 1 Unit -
Supply of Vehicle-mounted Foundation Pile Drivers, Auger Bit Pile Foundations, and Fast Piling Pile Drivers for Residential Building FoundationsUS$ 10000 - 10615.38MOQ: 1 Unit
-
Four - Unlike Truck - Mounted Excavator, Four - Wheel Drive Wheeled Truck - Mounted Excavator, Self - Dumping Rotating ExcavatorUS$ 8861.54 - 9169.23MOQ: 1 Unit
-
In-stock Creeper Tracked Vehicles, Mud Tracked Transporters, Self-dumping Tracked LoadersUS$ 3476.92 - 3784.62MOQ: 1 Unit
-
Steel Crawler Photovoltaic Foundation Pile Driver, 360-degree Rotating Dual-power Hole Guiding Machine, Long Screw Drilling MachineUS$ 10707.69 - 11630.77MOQ: 1 Unit

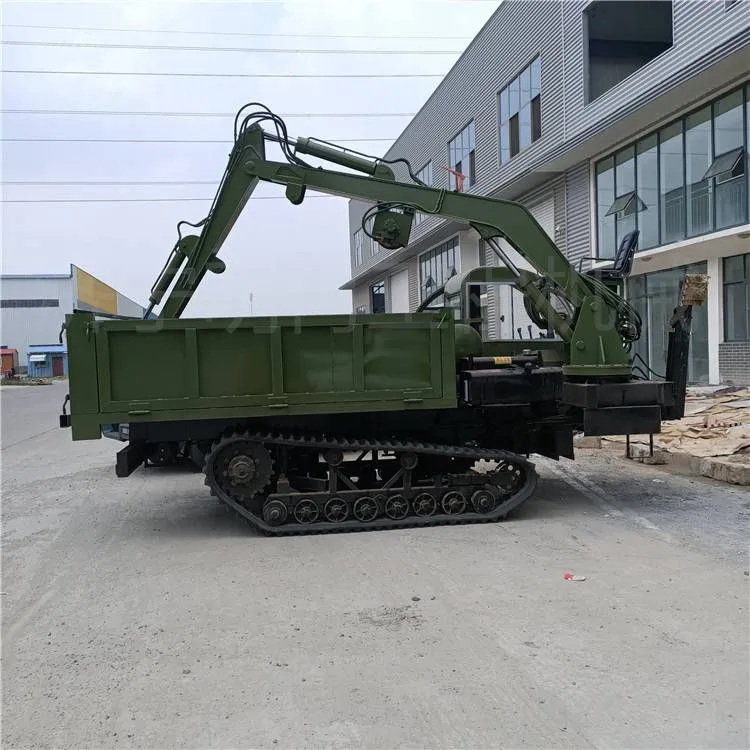

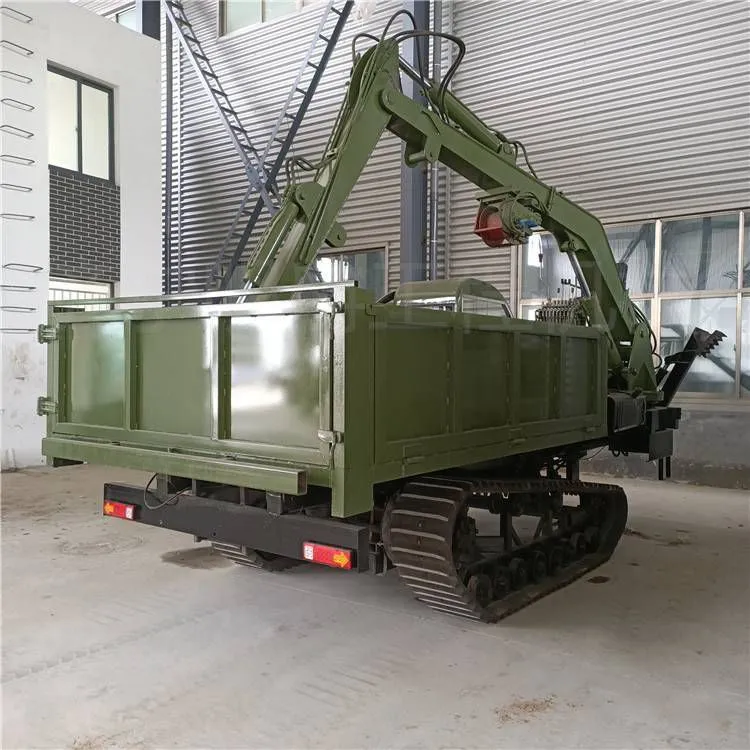

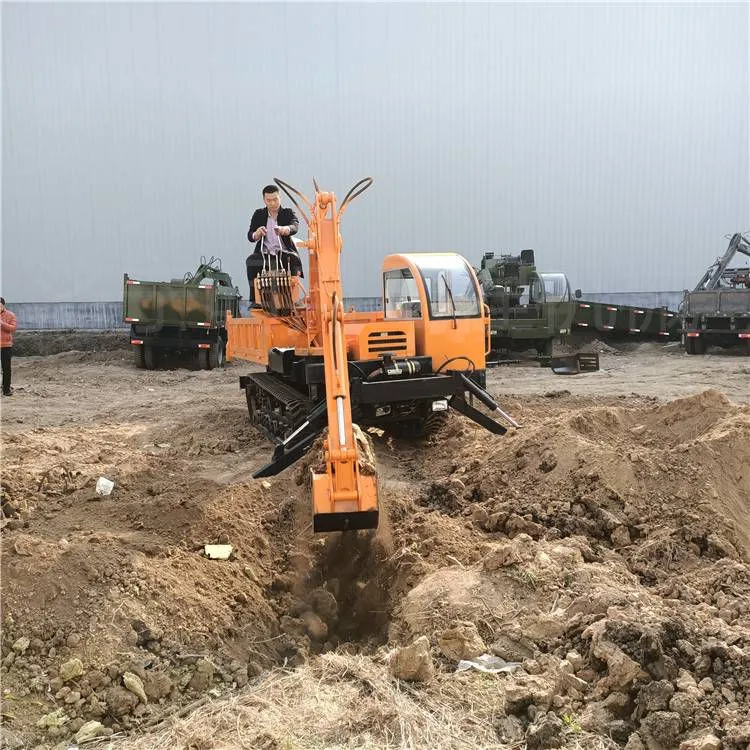

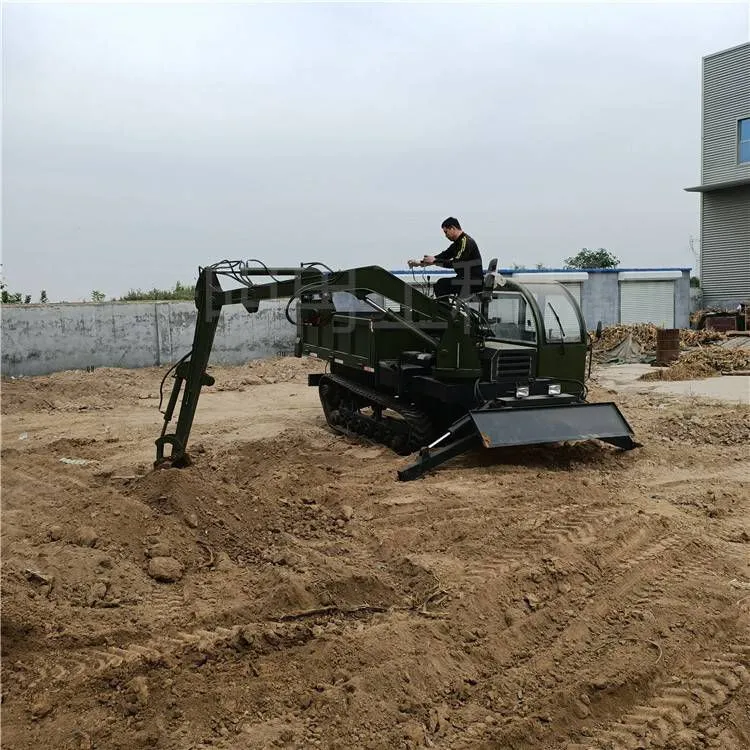

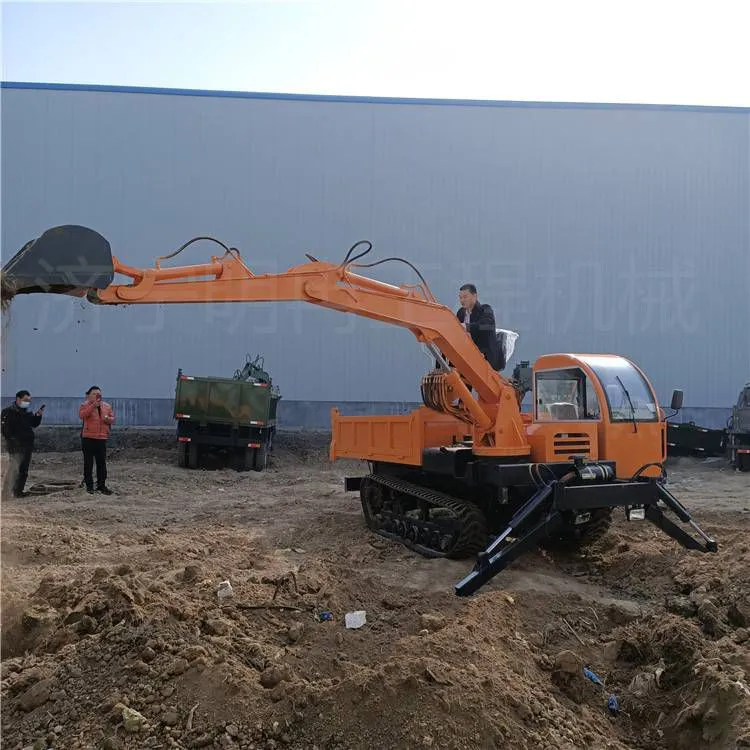

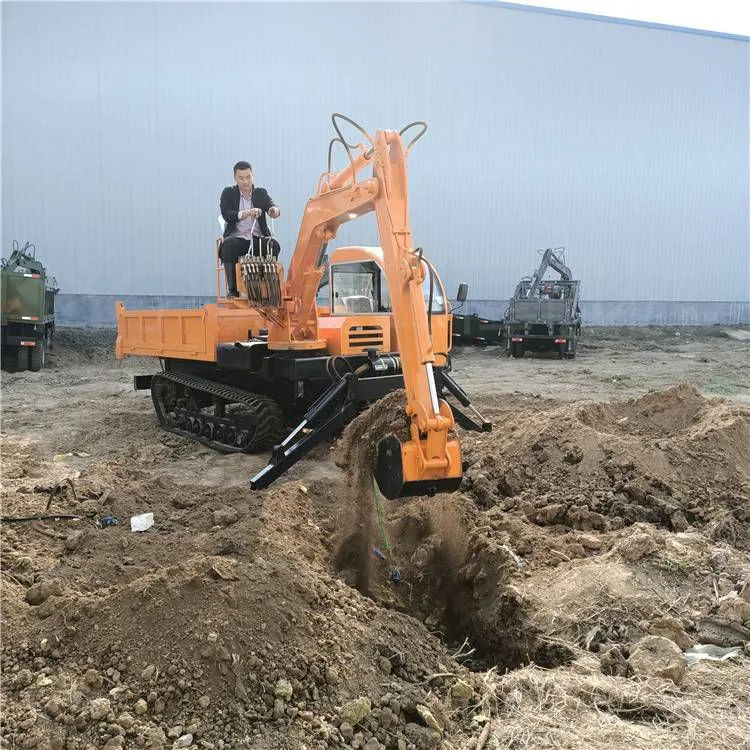

Functional features of crawler truck-mounted excavator
1、It is equipped with domestic engines, gearboxes, and rear axles, featuring low speed and high torque, with greatly enhanced climbing ability.
2、It is equipped with an enlarged desert-style air filter, which can effectively handle a large amount of dust. It is suitable for harsh operating environments and can extend the service life of the engine and hydraulic system.
3、It has good waterproof performance. The entire vehicle's wiring and electrical components are treated with high-grade waterproof sealing, effectively preventing the phenomenon of electric leakage caused by rainwater.
4、It has a large steering angle and a smaller turning radius, making it more suitable for complex road conditions with narrow and winding tunnels.
5、It uses a regular automotive rigid frame. The price of the mining crawler truck-mounted excavator. It is more flexible than the ordinary riveted and welded frame and remains unchanged after heavy pressure.
6、All parts have strong universality, reaching the domestic advanced level. It is easier to purchase replacement parts locally in time.
7、The crawler truck-mounted excavator has reliable performance, high excavation efficiency, and can perform self-loading and self-unloading. It is now widely used in earthwork construction operations in sand fields.
Parameters: SJ - A 10 tons
Engine |
4102Turbocharged Weichai Changsong Engine |
Gearbox |
145Gearbox 5+1Gears Pneumatic Push High and Low Speeds |
Crawler Chassis Dimensions |
Length2.8mWidth2.1m |
Rear Axle Model |
1080Axle |
Drive Mode |
Rear-wheel drive |
Carriage size |
3*2.1*0.5m(Can be customized according to customer requirements) |
Outriggers |
2Lying outriggers |
Unloading method |
Automatic rear unloading |
Steering method |
Power steering |
Braking method |
Air brake |
Excavator arm |
5m-6m |
Bucket size |
0.4m,0.6m,0.8m |
Cab |
Fully enclosed cab |
Thickness of carriage plate |
Bottom5mmSide3mm |
Body color |
Military green, engineering yellow, gray, blue (customizable) |
Note: The product parameters are for reference only. Please consult the customer service for specific parameters.
