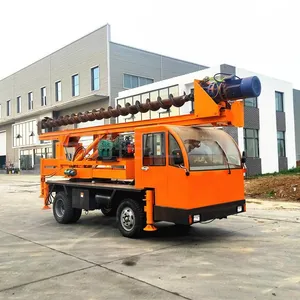

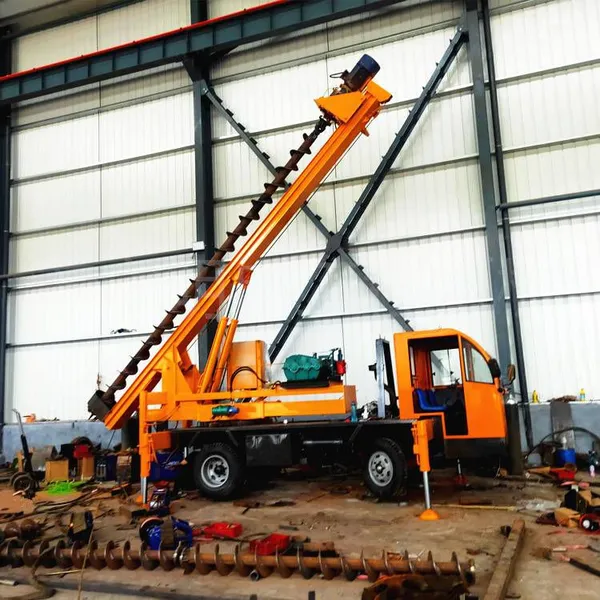

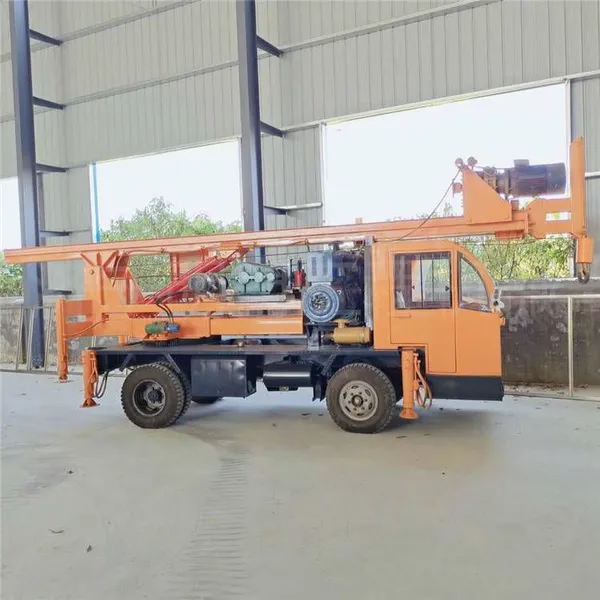

Help CenterSupply of Vehicle-mounted Foundation Pile Drivers, Auger Bit Pile Foundations, and Fast Piling Pile Drivers for Residential Building Foundations
Related Products
-
Four - Unlike Truck - Mounted Excavator, Four - Wheel Drive Wheeled Truck - Mounted Excavator, Self - Dumping Rotating ExcavatorUS$ 8861.54 - 9169.23MOQ: 1 Unit -
In-stock Creeper Tracked Vehicles, Mud Tracked Transporters, Self-dumping Tracked LoadersUS$ 3476.92 - 3784.62MOQ: 1 Unit
-
Steel Crawler Photovoltaic Foundation Pile Driver, 360-degree Rotating Dual-power Hole Guiding Machine, Long Screw Drilling MachineUS$ 10707.69 - 11630.77MOQ: 1 Unit
-
Crawler Walking Log Grapple Loader, 360-degree Rotating Truck-mounted Log Grapple, All-terrain Crawler Truck-mounted Log Grapple LoaderUS$ 9076.92 - 10153.85MOQ: 1 Unit
-
Xinjiang Photovoltaic Construction Pile Driver, Crawler-type Full Hydraulic Auger Drill, Dth Drill for Mountainous RocksUS$ 6000 - 6923.08MOQ: 1 Unit
One.Scope of application:
This vehicle can generate electricity by itself and use an external power supply. It is suitable for piling projects such as house foundation construction, highway foundation reinforcement, railway power facilities, wind power plants, solar photovoltaic power plants, and soft foundation soil treatment and reinforcement.It is easy to learn. During operation, it can move forward and backward at a fixed position and rotate270°. It has hydraulic walking.
Two. Performance characteristics:
1.It is reasonably designed, aesthetically pleasing in appearance, and easy to operate. It can move forward and backward and rotate 270 degrees left and right or 360 degrees. There are two product options. It features fast positioning, fast piling, fast pile pulling, and high efficiency. It can also be customized according to customer requirements.
2.Use a mud pump to bring out the drilled soil to form a pile hole, then lower the steel cage and pour concrete.
3.The pile driver consists of a pile hammer, a pile frame, and auxiliary equipment. The pile frame is a steel structure tower, and there is a winch at its rear for lifting the pile and the pile hammer.
Three. Product parameters:
Model |
S270Foundation Pile Driver |
||
Overall Dimensions |
760*200*300cm |
||
Drilling Diameter |
600mmor less |
||
Upper Frame |
Telescopic1.2m—1.5m |
||
Lower Outriggers |
Manual |
In and Out80cm(Standard Configuration) |
|
Hydraulic |
In and out80cm |
||
Distribution box (Chint) |
Handheld |
36vSafe voltage (standard configuration) |
|
Wireless remote control type |
|||
Do not connect to the distribution box |
With forward and reverse switch |
||
Hoist lifting(T)/Power (KW) |
2/7.5 |
||
Reducer |
5No. machine (standard configuration. Optional3-6No.) |
||
Piling depth |
8m |
||
Power head power(kw)/Speed rpm |
15(Standard. Optional18.5/22/30)/40 |
||
Lifting form |
Hydraulic lifting |
||
Rotary motor power(kw) |
1.5 |
||
Time for standard pole pit |
10-60Second |
||
Oil pump motor power(kw) |
7.5 |
||
Engine model |
Weifang4102Turbocharged |
||
Generator power((Optional) |
Generator(kw) |
30 |
|
40 | |||
Generator(kw) |
40 |
||
50 | |||
Tire specification |
650-16 |
||
750-16 | |||
Gearbox |
130-140High and low speed |
||
Steering |
Hydraulic power steering |
||
Slewing angle |
270° |
||
Travel speed(km/h) |
40 |
||
Suitable geological layer |
Can be used for laterite after installing alloy steel drill bit.Frozen soil.Highly weathered rock, etc. |
||
Climbing ability(°) |
50 |
||
Gross vehicle weight(T) |
4.8 |
||
Note: The product parameters are for reference only. Please consult the customer service for specific parameters.
