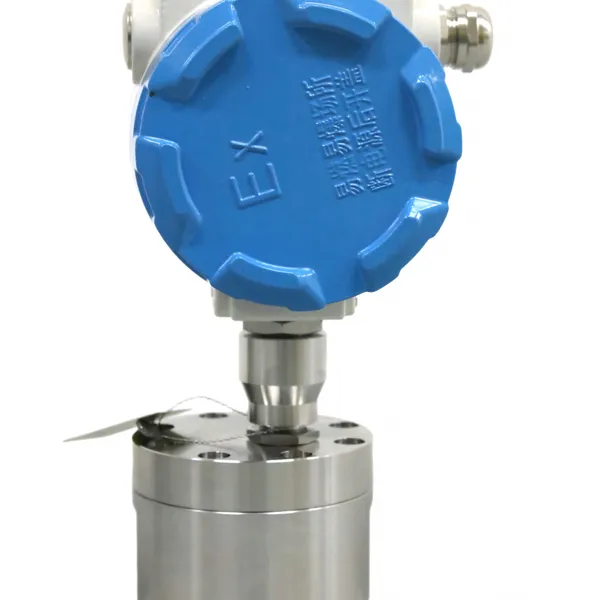

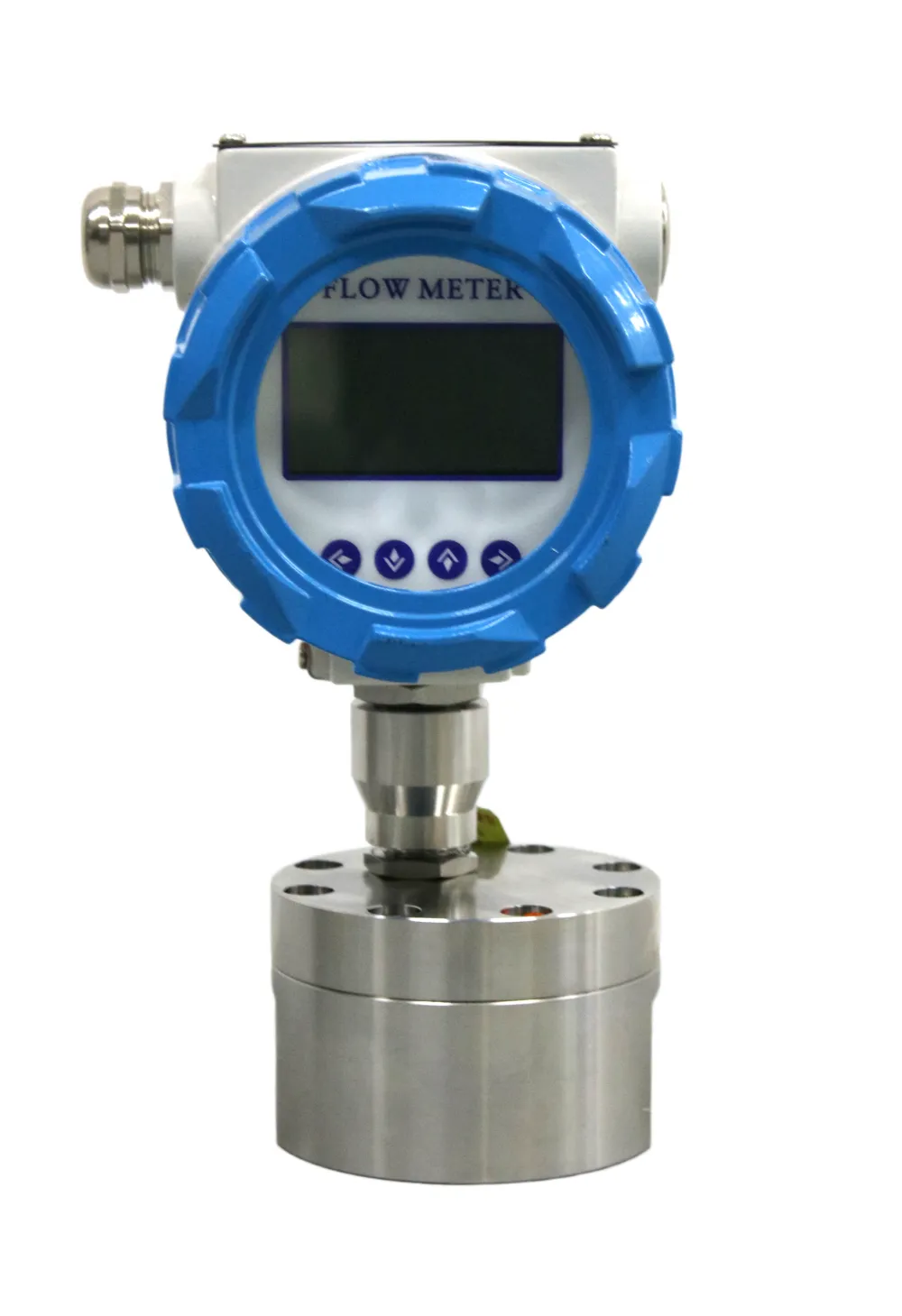

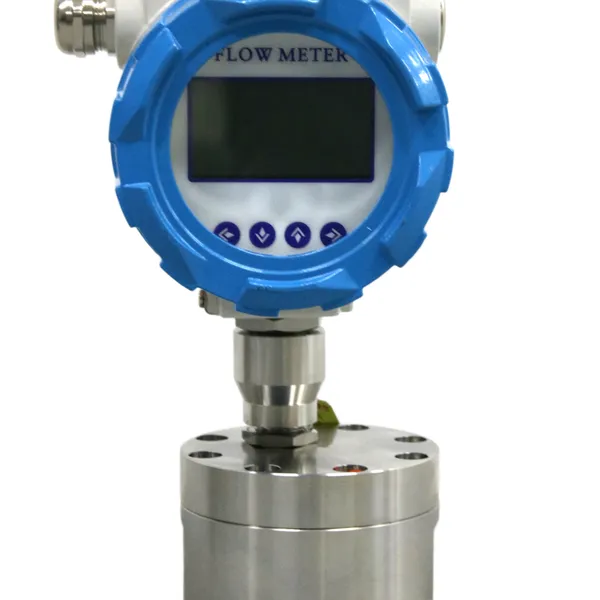

Help CenterKYF Digital Oval Gear Flowmeter Positive Displacement Flowmeter for Lubricants ,chemicals ,ink
Product Spotlights
· 0.5% F.S high accuracy
· Stable pulse output
· Robust structure & good performance
· Turndown ratio: 1:100 min / 1:800 max
· Max frequency: 0.03 ml/p
· Supports instantaneous/totalizing & batch control
· Customizable for high-temp, high-pressure,
Related Products
-
KYF Stainless Steel Oval Gear Flow Meter for Bitumen Pipeline 0-200℃ DN65NegotiableMOQ: 1 Piece -
CE Kyue Digital Water Wastewater Flow Meter 4-20ma Rs485 Hart Electromagnetic Flowmeter DN50 DN300NegotiableMOQ: 1 Piece
-
OEM Kyue Metal Tube Variable Area Flow Meter Metal Rotor Flow Meter Factory SupplyNegotiableMOQ: 1 Piece
-
Kyue High Quality Coriolis Mass Flow Meter Liquid Gas Coriolis Flowmeter Oil Density Flow Meter Mass Flow Meter Feed SlurryNegotiableMOQ: 1 Piece
-
Micro Gear Flow Meter Micro Flow Meter for Water Oil Grease Digital Oval Gear Flowmeter Positive Displacement FlowmeterNegotiableMOQ: 1 Piece
1.Product Overview
The precision oval gear flowmeter operates based on the positive displacement principle, achieving accurate fluid volume measurement through the rotation of high-precision meshing gears. Constructed with a combination of 316 stainless steel and die-cast aluminum, the product offers exceptional corrosion resistance and mechanical strength. It is widely applicable for flow measurement and control in scenarios involving high-viscosity, corrosive, and high-purity liquids.
2.Product Features
High-Precision Measurement: Maintains stable accuracy across a wide viscosity range, with special media accuracy up to ±0.2% F.S
Wide Turndown Ratio: Supports broad adjustment from 1:100 to 1:800, adapting to variable operating conditions
Strong Media Compatibility: Suitable for high-viscosity or corrosive media such as water, oils, chemicals, coatings, adhesives, and electrolytes
Reliable Structure: Features all-stainless-steel gears and die-cast aluminum housing with excellent pressure and temperature resistance
Stable Signal Output: Utilizes Hall/reed switch pulse output with strong anti-interference capability
Flexible Configuration: Supports customized designs for high-temperature, high-pressure, and fuel injection test bench applications
Easy Installation: Offers multiple process and electrical interface options to meet diverse on-site requirements
3.Application Areas
Petrochemical: High-precision measurement of crude oil, fuel oil, asphalt, and lubricants
Food & Beverage: Filling and dosing of edible oils, syrups, chocolate, and dairy products
Pharmaceuticals & Cosmetics: Quantitative control of medicinal liquids, glycerol, cosmetic bases, and fragrances
Automotive Manufacturing: Coating and dispensing of adhesives, sealants, coatings, and electrolytes
Chemical & Additives: Batch measurement of various corrosive liquids, polyurethanes, resins, and additives
Energy & Environmental Protection: Flow monitoring of biodiesel, wastewater treatment chemicals, and lubricants
4.Contact us
