Home > Electrical & Electronics > Transmitter > Liquid Level Transmitter > KYU800 Non-Contact Ultrasonic Level Gauge With 20m Range LCD Display Hart 5.0 RS 485 ABS ETFE for Acid Alkaline Liquid

KYU800 Non-Contact Ultrasonic Level Gauge With 20m Range LCD Display Hart 5.0 RS 485 ABS ETFE for Acid Alkaline Liquid

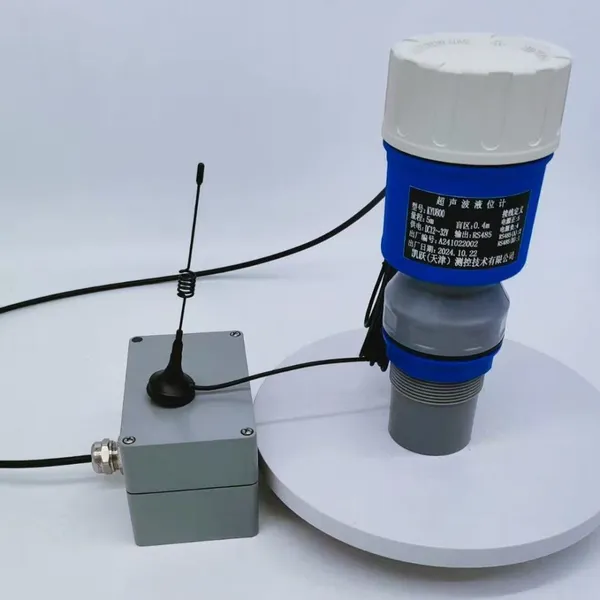

KYU800 Non-Contact Ultrasonic Level Gauge With 20m Range LCD Display Hart 5.0 RS 485 ABS ETFE for Acid Alkaline Liquid photo-1

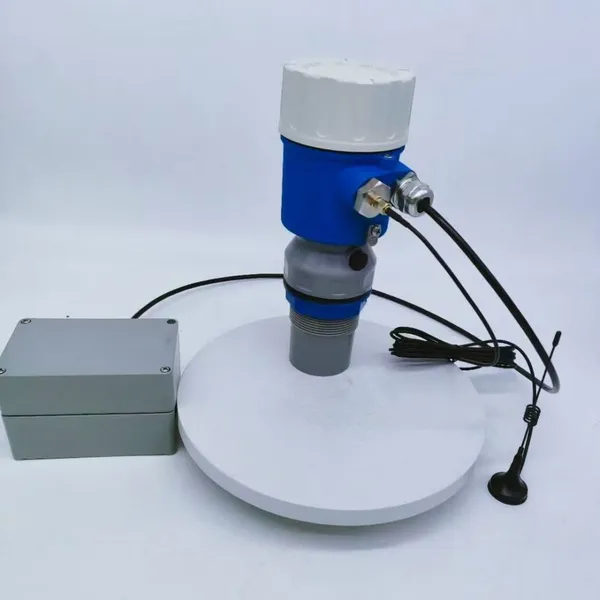

KYU800 Non-Contact Ultrasonic Level Gauge With 20m Range LCD Display Hart 5.0 RS 485 ABS ETFE for Acid Alkaline Liquid photo-2

US$ 500 1 - 99 Piece

US$ 200 ≥100 Piece

Key Specifications

Get Latest Price

Certification:

ISO

Display Type:

LCD

Accuracy Grade:

Other, 0.3% F.S (standard condition)

Contact Supplier Request Quote Chat Now

Kyue (Tianjin) Measurement & Control Technology Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

20 days

Product Details
Company Profile
Contact Us

Certification ISO

Display Type LCD

Accuracy Grade Other, 0.3% F.S (standard condition)

Structure Design Flange Type

Customized Customized

Type Silicon Piezoresistive Type

IP Rating IP65

Pressure Range Atmospheric pressure

Transport Package Carton

Trademark Kyue or customizable

Origin China

1.Product overview

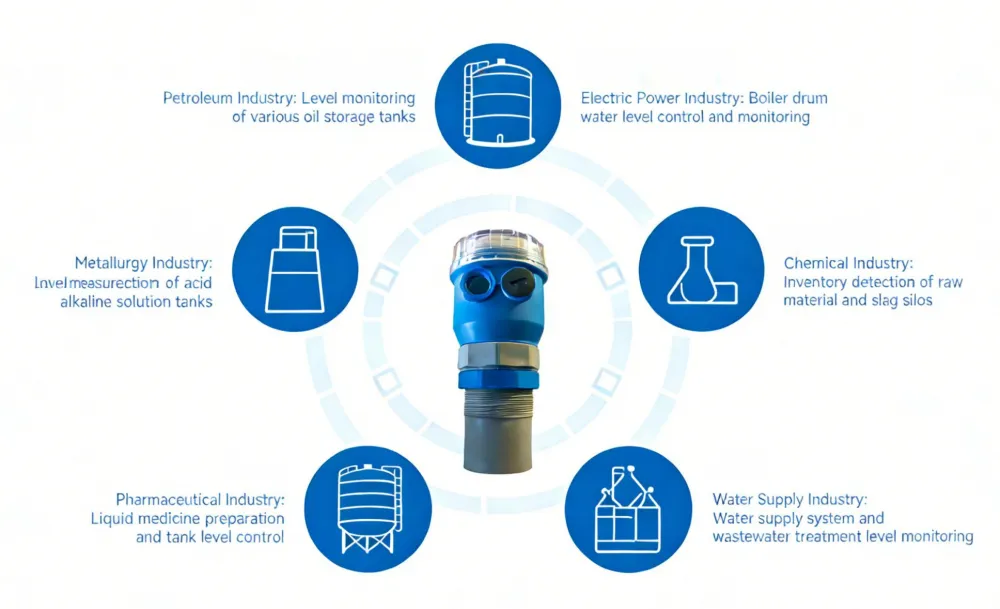

KYU800 is a high intelligent non-contact ultrasonic level transmitter with strong anti-interference ability ,high accuracy and excellent reliability .Utilizing ultrasonic measurement technology and featuring automatic power adjustment ,gain control ,temperature compensation functions,it widely applied in petroleum, power, chemical, metallurgy, pharmaceutical, and water supply industries.Suitable for level measurement and monitoring of various liquids (water ,waste water ,acid and alkaline solutions,alcoholic and beverages ,drinks etc.)and bulk solids,providing accurate date support for process control and operational safety .

2.Technical specifications

Item	Specifications
Configuration	Integrated Type (2-wire / 4-wire); Separate Type (4-wire)
Measuring Range	0–20000 mm
Accuracy	0.3% F.S. (under standard conditions)
Power Supply	24 VDC / 220 VAC
Output Signal	4–20 mA
Process Pressure	0–0.3 MPa (Altitude below 2000 m)
Process Temperature	–20 ℃ to 60 ℃
Resolution	1 mm
Display	Level, Distance, Current, Echo Curve, Historical Curve (Chinese/English interface)
Process Connection	M65×2.5 External Thread / G2" External Thread / Flange Connection
Communication	HART 5.0 (Optional) / RS485 Modbus RTU Protocol
Sensor Material	ABS Plastic / ETFE Plastic (Corrosion-Resistant)
Cable Connection	PG11 / M20×1.5
