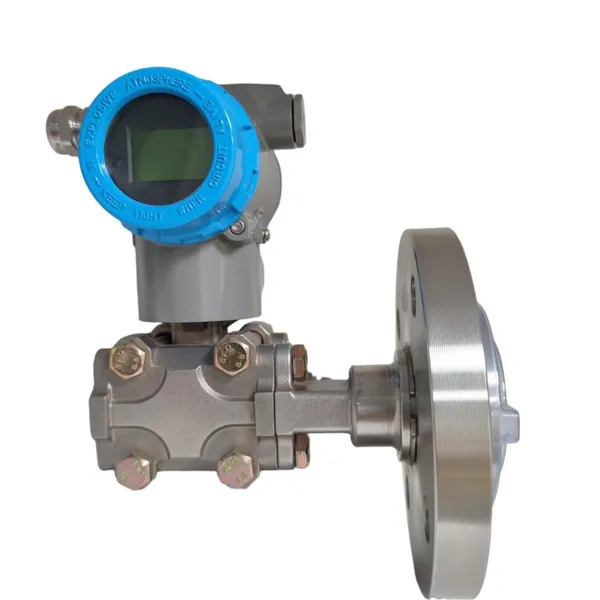

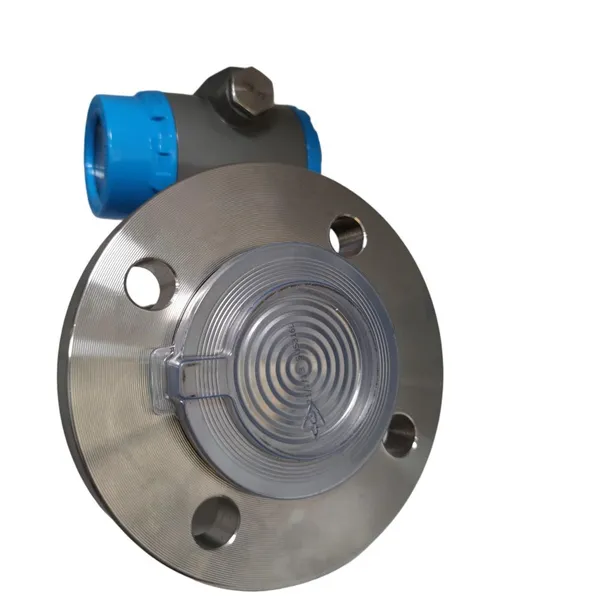

KY3003L Tantalum Single Flange Differential Pressure Level Transmitter ±0.2% Accuracy HART Corrosion Resistant IP66
US$ 480
≥1 Piece
Key Specifications
Get Latest Price
Certification:
CE
Display Type:
LCD
Accuracy Grade:
0.2G
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
20 days
Related Products
-
Magnetic Level Gauge 4-20ma Tank Liquid Water Sensor Transmitter Magnetic Flap Level GaugeNegotiableMOQ: 1 Piece -
KYU800 Non-Contact Ultrasonic Level Gauge With 20m Range LCD Display Hart 5.0 RS 485 ABS ETFE for Acid Alkaline LiquidUS$ 200 - 500MOQ: 1 Piece
-
KYF800 Customizable Float Level Sensor Liquid Float Transmitter Water Level Controller Without FlangeUS$ 170 - 180MOQ: 1 Piece
-
Kyue Tank Remote Seal Diaphragm Flange DP Level Transmitter Differential Pressure Gauge 3051 Pressure Single Flange Hastelloy C276US$ 480MOQ: 1 Piece
-
KY3003SP Probe Type Submersible Level Transmitter Hydrostatic Level Sensor Level Measurement Stainless SteelUS$ 105 - 135MOQ: 1 Piece
Certification
CE
Display Type
LCD
Accuracy Grade
0.2G
Structure Design
Flange Type
Customized
Non-Customized
Type
Silicon Piezoresistive Type
IP Rating
IP65
Pressure Range
Atmospheric pressure
Transport Package
Carton
Specification
Trademark
Kyue
Origin
China
Product overview
Integration of Single-Flange Hydrostatic Level Gauge with Differential Pressure Transmitter
This solution combines a single-flange hydrostatic level gauge with a high-performance differential pressure transmitter to form a direct-installation liquid level measurement system designed for complex working conditions. The system utilizes the single-flange hydrostatic level gauge as the primary sensing unit in direct contact with the medium, where its flange diaphragm directly senses the hydrostatic pressure inside the container. The differential pressure transmitter serves as the secondary signal processing and transmission unit, converting the hydrostatic pressure signal into a standard industrial output.
This integrated design combines the advantages of both components:
Component Function Remarks 1. Single-Flange Hydrostatic Level Gauge (Primary Instrument) - Directly mounted on the container sidewall or bottom via the flange
- Diaphragm senses the medium's hydrostatic pressure (P = ρ·g·H)- Diaphragm material customizable based on medium corrosiveness and sanitary requirements (e.g., 316L, Hastelloy, PTFE-coated)
- Flange standards optional (DN50/80/100, PN16/40, ANSI, etc.)2. High-Performance Differential Pressure Transmitter (Secondary Instrument) - Receives pressure signals transmitted from the diaphragm
- Performs signal amplification, temperature compensation, and linearization
- Outputs 4–20mA (with HART/Profibus communication protocols)- Typically configured as absolute or gauge pressure reference, selected based on working conditions
- Accuracy up to 0.075% F.S. with high long-term stability3. Connection Method - Pressure transmission to the transmitter sensing unit via capillary tubes or rigid connecting rods inside the flange - No external impulse piping required, avoiding clogging/leakage
- Can integrate remote seal structure for high-temperature media
2.Techincal specifications
| Parameter | Specification |
|---|---|
| Measurement Range | 0–0.5m to 0–100m (higher ranges customizable) |
| Accuracy | 0.1% F.S. / 0.25% F.S. / 0.5% F.S. (optional) |
| Output Signal | 4–20mA (2-wire), supports HART/RS485 |
| Power Supply | 24VDC (12–36VDC wide voltage input) |
| Process Connection | Single flange (standard DN50 PN16, material 316L) |
| Diaphragm Material | 316L, Hastelloy C276, Tantalum, PTFE coating, etc. |
| Medium Temperature | -40°C to +200°C (high temperature on request) |
| Ambient Temperature | -40°C to +80°C |
| Ingress Protection | IP66 |
| Filling fluid | standard silicone oil ,high temperature silicone oil ,sanitary grade filling fluid |
| Explosion-Proof Certification | Ex d IIC T6 / Ex ia IIC T6 (optional) |
3.Application
| Industry | Typical scenarios |
| Chemical/Petrochemical | Liquid level measurement in reactors, distillation columns, and highly corrosive storage tanks (e.g., hydrochloric acid, caustic soda). |
| Food/Pharmaceutical | Fermentation tanks, mixing tanks, and clean storage tanks meeting sanitary requirements. |
| Environmental/Water Treatment | Sludge thickeners, sedimentation tanks, and slurry storage tanks containing solid particles. |
| Energy/Metallurgy | High-temperature thermal oil tanks, molten salt storage tanks, and furnace level monitoring. |
| Special Media | Polymer melts, high-viscosity greases, crystallization-prone saline solutions, etc. |
Contact us to discuss your automation process solutions .
