Home > Electrical & Electronics > Sensor > Pressure Sensor > KY3003SP Probe Type Submersible Level Transmitter Hydrostatic Level Sensor Level Measurement Stainless Steel

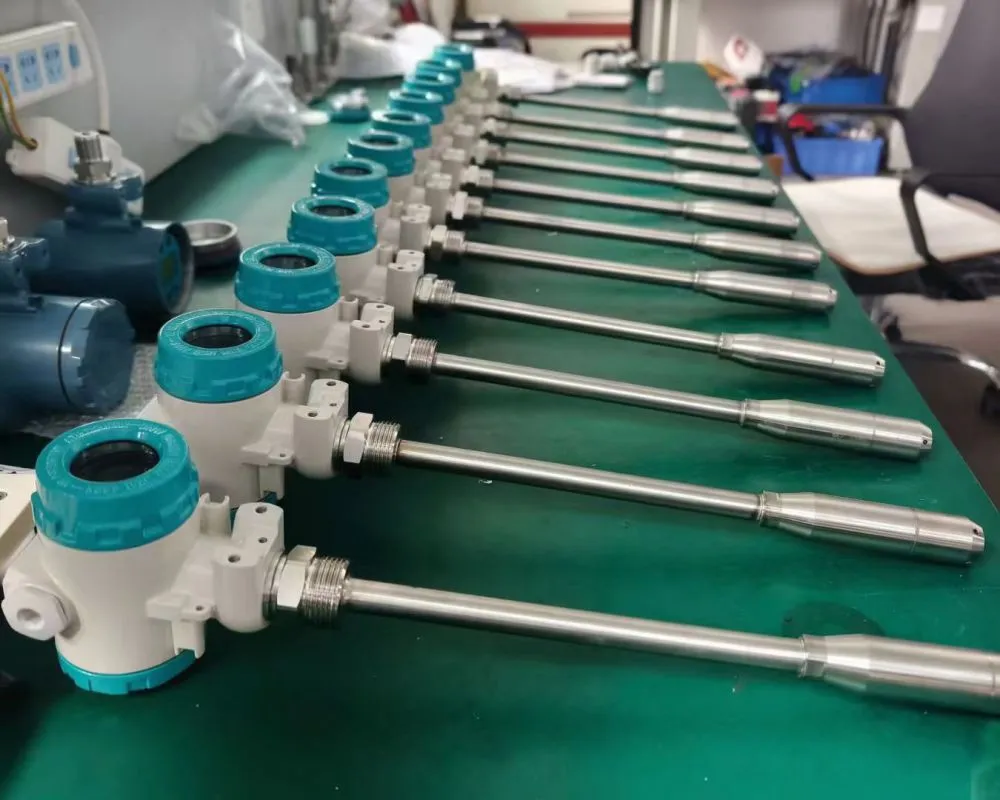

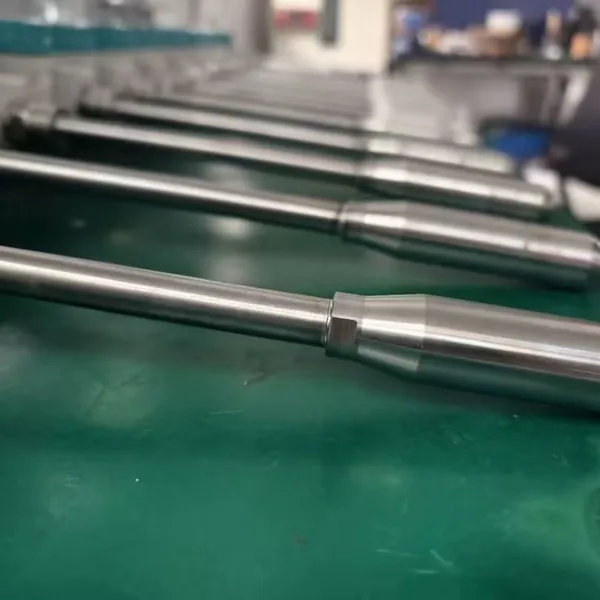

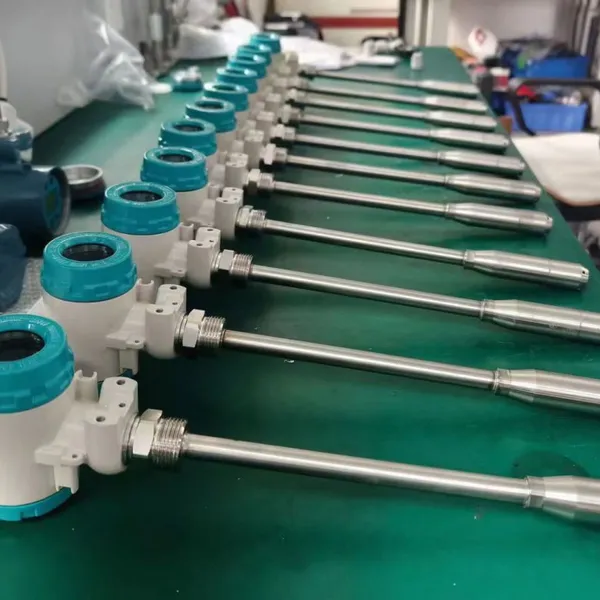

KY3003SP Probe Type Submersible Level Transmitter Hydrostatic Level Sensor Level Measurement Stainless Steel
US$ 135
1 - 19 Piece
US$ 105
≥20 Piece
Key Specifications
Get Latest Price
Material:
Stainless Steel
Certification:
CE
Measuring Medium:
Liquid
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
15 days
Related Products
-
Kyue Magnetostrictive Liquid Level Gauge High Accuracy Magnetic Level Transmitter Oil Depot Use Explosion ProofNegotiableMOQ: 1 Piece -
Level Measurement Radar Level Meter Guided Wave Radar Level Transmitter With Bluetooth5.0NegotiableMOQ: 1 Piece
-
Kyue Ultrasonic Level Sensor Non Contact Ultrasonic Water Tank Level Transmitter Liquid Level TransducerUS$ 350 - 455MOQ: 1 Piece
-
KYM800 Magnetic Level Gauge (Magnetic Float Type) Factory SupplyNegotiableMOQ: 1 Piece
-
KY3003SP Submersible Level Transmitter Hydrostatic Level Sensor Level MeasurementUS$ 105 - 135MOQ: 1 Piece
Material
Stainless Steel
Certification
CE
Measuring Medium
Liquid
Output Signal Type
Digital Type
Production Process
Ceramics
For
Diffused Silicon Pressure Transmitter
Thread Type
Other, level gauge
Wiring Type
Two-Wire
Customized
Customized
Type
Piezoresistive Pressure Sensor
IP Rating
IP67
Component
Other
Transport Package
carton
Trademark
Kyue
Origin
Tianjin
1. Product Overview
The KY3003SP submersible level transmitter is a high‑precision liquid level measuring instrument based on the hydrostatic pressure measurement principle. Its core operation relies on the proportional relationship between liquid static pressure and liquid height. The device utilizes advanced isolated diffused silicon or ceramic capacitive sensors to capture the hydrostatic pressure signal, which is then processed through precise temperature compensation and linearization to deliver a standard industrial output signal, enabling accurate and stable level measurement.
Featuring a robust construction, easy installation, and high reliability, this product is widely used for level monitoring in various industrial processes and storage tanks.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Measured Medium | Non‑conductive, non‑corrosive liquids (e.g., water, oils) |
| Measuring Range | Continuously selectable from 0 ~ 0.5 m to 0 ~ 100 m |
| Accuracy | 0.2 % F.S or 0.5 % F.S (optional) |
| Power Supply | 12 ~ 36 VDC wide‑range supply |
| Output Signal | – Two‑wire: 4 ~ 20 mA with HART® protocol (standard) – Three‑wire: 0 ~ 10 V or 0 ~ 5 V (optional) |
| Overpressure Limit | 1.5× full‑scale pressure or 150 m water column (whichever is lower) |
| Long‑Term Stability | ±0.1 % F.S / year (typical) |
| Operating Temperature | Medium/Ambient: ‑20 ℃ ~ +80 ℃ |
| Temperature Effect | – Range ≥ 3.5 m: ±0.5 % F.S (TEB) – Range |
| Sensor Material | Housing: 304 stainless steel / 316 stainless steel Diaphragm: 316 stainless steel / Hastelloy (optional, superior corrosion resistance) |
| Cable Material | Polyurethane (abrasion‑resistant) or PTFE (corrosion‑/high‑temperature‑resistant) |
| Process Connection | Standard: M20×1.5 external thread (with water‑stop seal) Optional: Other custom threads or flanges |
| Electrical Connection | Standard: 30‑m 1830 universal cable (direct exit) Optional: 1840 universal cable or connector version |
| Display | Blind cover (no display) or LCD digital display (optional) |
| Ingress Protection | IP66 / IP68 (submersion‑proof up to 150 m water depth) |
| Explosion Protection | Intrinsic safety type optional (Ex ia IIC T6 Ga) |
3. Application
| Industrial Processes |
Level measurement in circulating water, condensate, raw material & product storage tanks for petroleum, chemical, pharmaceutical, metallurgical, and power industries. |
| Environmental & Water Conservancy |
Water‑level monitoring in sewage treatment plants, reservoirs, wells, rivers, lakes, and reservoirs |
| Public Utilities |
Fire‑fighting water tanks, domestic water tanks, water supply and drainage systems. |
| Special Equipment |
High‑speed train cleaning systems, hydraulic oil tanks in construction machinery, central air‑conditioning systems. |
4.Contact us
Send Inquiry to This Supplier
1Yr
Business Type
Manufacturer
Year Established
2018
Product Certifications
ISO9001, Others
Port of Shipment
Tianjin
