Home > Electrical & Electronics > Transmitter > Liquid Level Transmitter > KYU800 Non-Contact Ultrasonic Level Transmitter With 20m Range and LCD Display Hart 5.0 RS 485

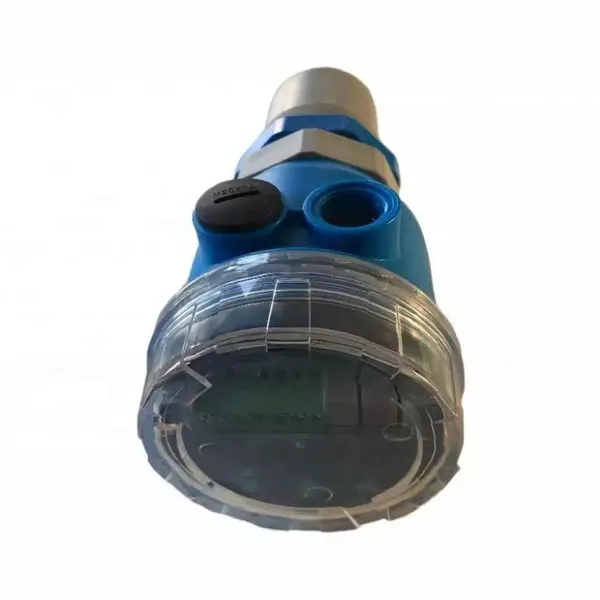

KYU800 Non-Contact Ultrasonic Level Transmitter With 20m Range and LCD Display Hart 5.0 RS 485
US$ 500
1 - 99 Piece
US$ 200
≥100 Piece
Key Specifications
Get Latest Price
Certification:
ISO
Display Type:
LCD
Accuracy Grade:
Other, 0.3% F.S
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
20 days
Related Products
-
KVF800 Magnetic Float Level Transmitter Water Level Controller Fuel Liquid Vertical 4-20mA Level SensorUS$ 170 - 180MOQ: 1 Piece -
KYUE Monocrystalline Silicon Piped Open Container 100m Single Flange Liquid Level Transmitter Level GaugeNegotiableMOQ: 1 Piece
-
KY3003L Tantalum Single Flange Differential Pressure Level Transmitter ±0.2% Accuracy HART Corrosion Resistant IP66US$ 480MOQ: 1 Piece
-
Magnetic Level Gauge 4-20ma Tank Liquid Water Sensor Transmitter Magnetic Flap Level GaugeNegotiableMOQ: 1 Piece
-
KYU800 Non-Contact Ultrasonic Level Gauge With 20m Range LCD Display Hart 5.0 RS 485 ABS ETFE for Acid Alkaline LiquidUS$ 200 - 500MOQ: 1 Piece
Certification
ISO
Display Type
LCD
Accuracy Grade
Other, 0.3% F.S
Structure Design
Flange Type
Customized
Customized
Type
Silicon Piezoresistive Type
IP Rating
IP65
Pressure Range
Atmospheric pressure
Transport Package
Carton
Trademark
Kyue or customizable
Origin
China
1.Product overview
KYU800 is a high intelligent non-contact ultrasonic level transmitter with strong anti-interference ability ,high accuracy and excellent reliability .Utilizing ultrasonic measurement technology and featuring automatic power adjustment ,gain control ,temperature compensation functions,it widely applied in petroleum, power, chemical, metallurgy, pharmaceutical, and water supply industries.Suitable for level measurement and monitoring of various liquids (water ,waste water ,acid and alkaline solutions,alcoholic and beverages ,drinks etc.)and bulk solids,providing accurate date support for process control and operational safety .
2.Technical specifications
| Item | Specifications |
|---|---|
| Configuration | Integrated Type (2-wire / 4-wire); Separate Type (4-wire) |
| Measuring Range | 0–20000 mm |
| Accuracy | 0.3% F.S. (under standard conditions) |
| Power Supply | 24 VDC / 220 VAC |
| Output Signal | 4–20 mA |
| Process Pressure | 0–0.3 MPa (Altitude below 2000 m) |
| Process Temperature | –20 ℃ to 60 ℃ |
| Resolution | 1 mm |
| Display | Level, Distance, Current, Echo Curve, Historical Curve (Chinese/English interface) |
| Process Connection | M65×2.5 External Thread / G2" External Thread / Flange Connection |
| Communication | HART 5.0 (Optional) / RS485 Modbus RTU Protocol |
| Sensor Material | ABS Plastic / ETFE Plastic (Corrosion-Resistant) |
| Cable Connection | PG11 / M20×1.5 |
3.Applications
