Product Overview

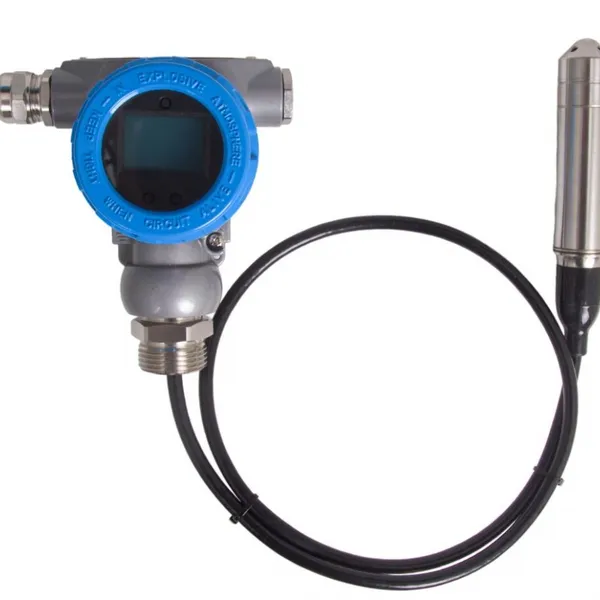

The KY3003SP is a submersible level transmitter designed based on the hydrostatic principle, which states that static pressure is directly proportional to liquid height. It utilizes isolated diffused silicon or ceramic capacitive pressure sensors to accurately detect liquid pressure, converting it into an electrical signal. Through integrated temperature compensation and linear calibration, the device outputs standardized industrial signals, ensuring reliable and precise level measurement. Commonly referred to as a hydrostatic level transmitter, it is widely used in industrial processes and liquid storage applications.
Product Features
- Adjustable zero and span settings
- Short-circuit and reverse polarity protection
- Measures gauge, absolute, and sealed reference pressure
- Compact and robust all-stainless-steel construction
- Standard threaded pressure connection
- Constant current source power supply
- Laser-trimmed resistance for zero and temperature compensation
- Solid-state piezoresistive sensor for high reliability and stability
- Flexible cabling with cable or connector options
Application Industries
The transmitter is suitable for level monitoring in industrial processes such as petroleum, chemical, metallurgy, and power generation. It is also used in environmental systems including circulating water and wastewater treatment, hydrological monitoring of lakes and reservoirs, as well as applications in high-speed train cleaning systems, fire protection water systems, wells, and various storage tanks.
