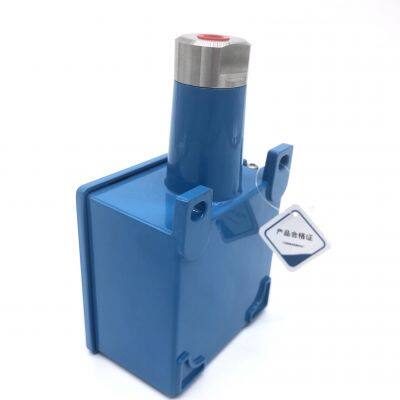

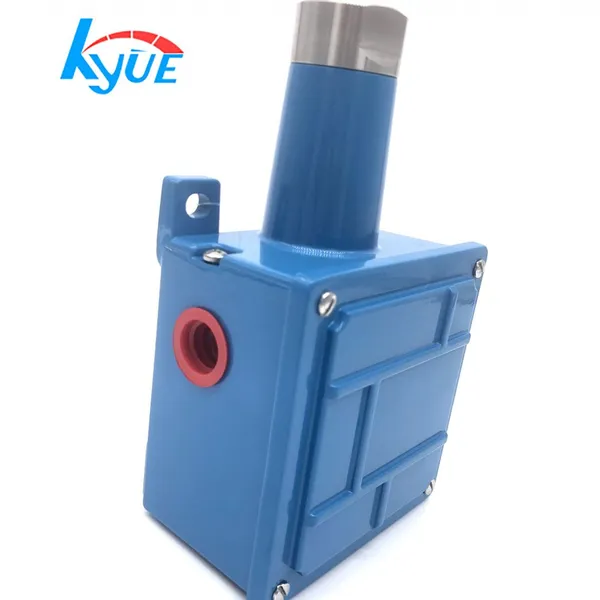

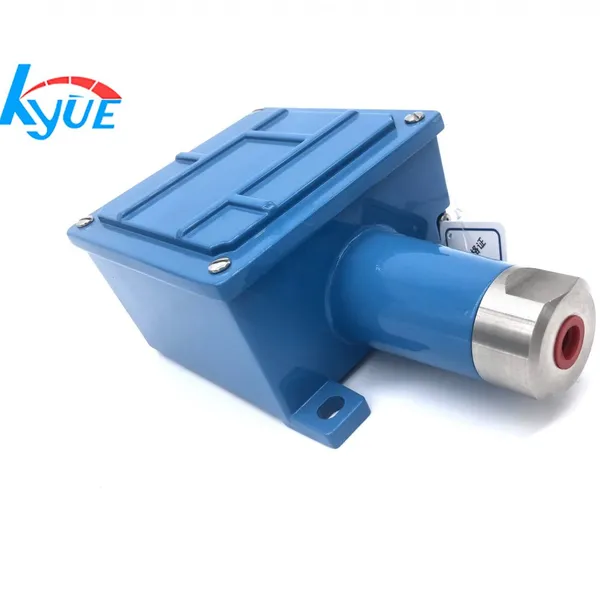

Help CenterKyue H100series -100kPa-15kPa Differential Micro Pressure Switch SPDT DPDT Pressure Switch for HAVC Vacuum Furnace CE Certified
Related Products
-
KYUE Flat Diaphragm Pressure Sensor Flat Memberane Pressure Sensor 0.1MPa-200MPa Gauge Pressure Absolute PressureUS$ 82 - 85MOQ: 1 Piece -
KYUE 5m Cable Type Pressure Transmitter for Flammable and Explosive Substances 0-100MPa 1/2NPT ThreadNegotiableMOQ: 1 Piece
-
High Accuracy 0.1% F.S Flat Membrane Pressure Sensor for Food Pharmaceutical Hygienic Industries RC1/2 G1/2US$ 82 - 85MOQ: 1 Piece
-
Kyue Hermetically Sealed Pressure Switches Pressure Switch Adjustable Dead Band With DiaphragmUS$ 150 - 155MOQ: 1 Piece
-
KYUE Smart Wireless Pressure Transmitter Industrial Explosion Proof Wireless Pressure Sensor Gauge Pressure Absolute PressureUS$ 250MOQ: 1 Unit
Product Overview
The H100 Series Pressure Switch is widely used in industries such asliquid metallurgy, construction machinery, hydraulic systems, chemical processes, filter differential pressure, furnace negative pressure, heating water systems, sewage treatment equipment, constant pressure systems,with its primary function being pressure protection in automatic control systems. This series includes various structural types, including fully welded stainless steel diaphragm type, metal bellows type, and rubber diaphragm type, catering to working conditions ranging from vacuum to 40 MPa.
Product Types and Features
Fully Welded Stainless Steel Diaphragm Type
Fully welded structure effectively prevents leakage and malfunction
Excellent corrosion resistance
Compact structure, high reliability, suitable for a variety of industrial media
Metal Bellows Type
Suitable for various corrosive gases and liquid media
Operating pressure range is higher than that of the stainless steel diaphragm type
Strong fatigue resistance and long service life
Rubber Diaphragm Type
Suitable for non-corrosive gases and liquid media
Mainly used for micro-pressure and micro-differential pressure measurement
High sensitivity and fast response
Technical specifications (Differential micro pressure switch)
| Measuring medium | liquid ,gases |
| Range | -100kPa-0-15kPa (optional) |
| Dead zone | less than 1kPa |
| Diaphragm material | 316SS /NBR(nitrile rubber buna) |
| Ambinent Temp | -20-120℃ |
| Protection rating | IP66 |
| Output | SPDT or DPDT |
| Process connection | G1/4F(customizable) |
Other switches for choosing :
Diaphragm pressure switch (0.1MPa-10MPa)
Differential micropressure switch( -100kPa-0-15kPa)
Micropressure switch( -100kPa-0-100kPa)
Differential pressure switch(20kPa-2500kPa)
Temperature switch(0-260℃）
Contact us for more details
