KYF800 Customizable Float Level Sensor Liquid Float Transmitter Water Level Controller Without Flange
US$ 180
1 - 99 Piece
US$ 170
≥100 Piece
Key Specifications
Get Latest Price
Certification:
ISO
Display Type:
LCD
Accuracy Grade:
Other, 0.5% F.S
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
20 days
Related Products
-
Kyue Tank Remote Seal Diaphragm Flange DP Level Transmitter Differential Pressure Gauge 3051 Pressure Single Flange Hastelloy C276US$ 480MOQ: 1 Piece -
KY3003SP Probe Type Submersible Level Transmitter Hydrostatic Level Sensor Level Measurement Stainless SteelUS$ 105 - 135MOQ: 1 Piece
-
Kyue Magnetostrictive Liquid Level Gauge High Accuracy Magnetic Level Transmitter Oil Depot Use Explosion ProofNegotiableMOQ: 1 Piece
-
Level Measurement Radar Level Meter Guided Wave Radar Level Transmitter With Bluetooth5.0NegotiableMOQ: 1 Piece
-
Kyue Ultrasonic Level Sensor Non Contact Ultrasonic Water Tank Level Transmitter Liquid Level TransducerUS$ 350 - 455MOQ: 1 Piece
Certification
ISO
Display Type
LCD
Accuracy Grade
Other, 0.5% F.S
Structure Design
Float Type
Customized
Customized
Type
Silicon Piezoresistive Type
IP Rating
IP65
Pressure Range
Other, ≤4.0MPa
Transport Package
Carton
Trademark
Kyue or customizable
Origin
China
1.Product overview

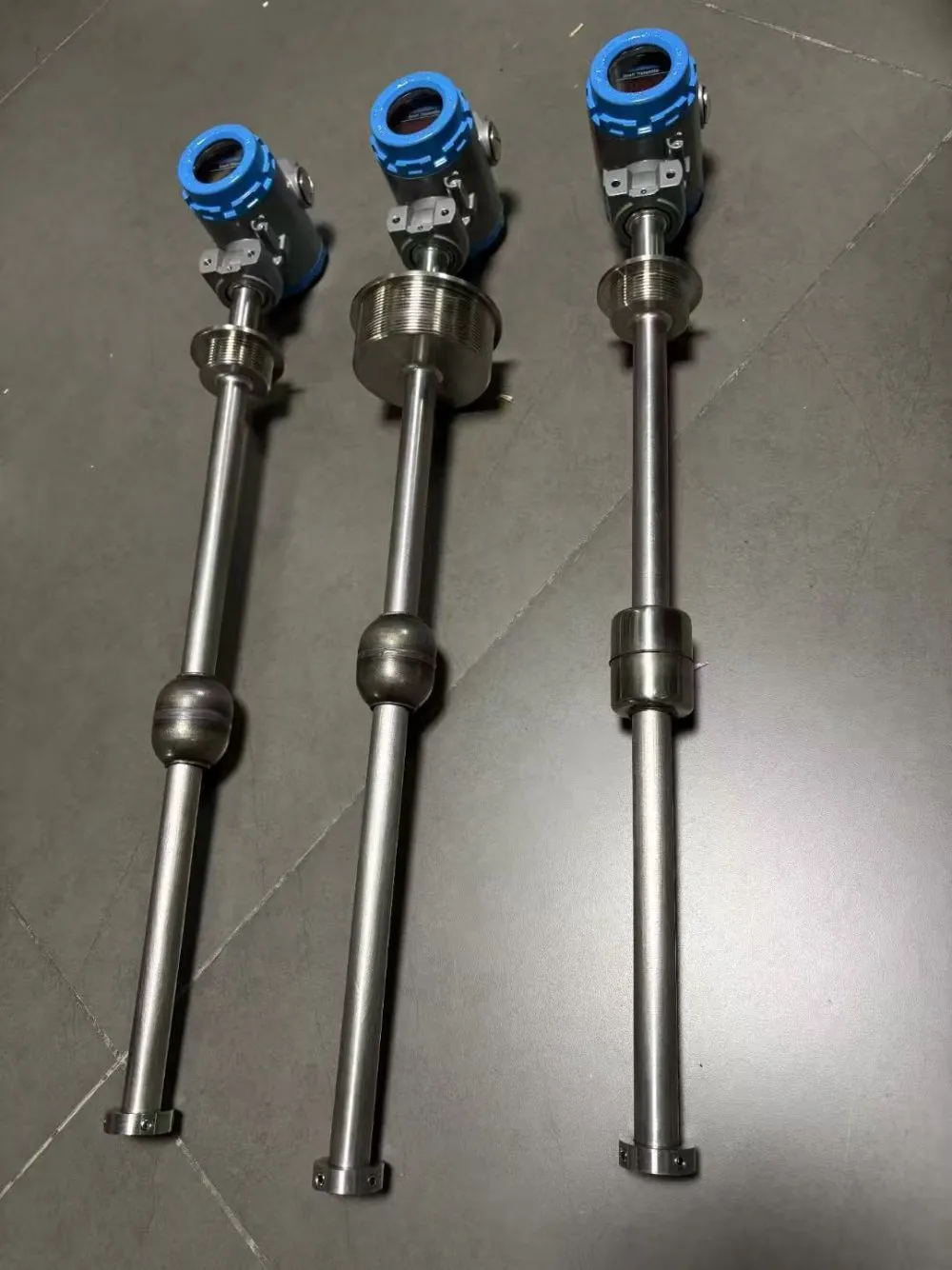

KYF800 is a point-level or continuous liquid level measurement and control instrument based on the lever-type magnetic float principle. Its core design philosophy is robust construction, reliable operation, and flexible installation, specifically designed for level alarm, control, or continuous monitoring in various liquid storage tanks, water tanks, and vessels.
2.Technical specifications
| Parameter | Technical Specification |
|---|---|
| Product Type | Point-level Switch (1–2 control points) / Continuous Analog (Transmitter) |
| Measuring Range | Custom stem/cable length, typical range: 1.6m – 5 m |
| Output Signal | Switch Type: SPDT relay output (adjustable NO/NC) Continuous Type: 4–20 mA DC, two-wire, with optional HART protocol |
| Control Accuracy | Switch type: ±5 mm – ±10 mm (depending on set point) |
| Measuring Accuracy | Continuous type: ±0.5% F.S. / ±1.0% F.S. |
| Media Temperature | -40°C – +200°C (high/low temperature options) |
| Working Pressure | ≤ 4.0 MPa (standard for atmospheric vessels) |
| Media Density | 0.47-1.2g/cm³ |
| Float Material | 304 stainless steel, 316/316L stainless steel, PP, PTFE, etc. |
| Process Connection | Threaded (G1", NPT 1-1/2", etc.), flanged (DN50 PN16, etc.) |
| Protection Rating | IP65 |
| Explosion Protection | with safety grid |
| Power Supply | Switch type: 24 V DC / 220 V AC (depending on relay) Continuous type: 12–36 V DC (standard two-wire) |
3.Applications
| Industry | Typical Application Scenarios |
|---|---|
| Water Treatment | High/low level alarm and automatic pump control for clean water tanks, sewage sumps, and collection pits. |
| Oil & Chemical | Level alarm and pump control for storage tanks, intermediate tanks, and chemical dosing tanks. |
| Food & Beverage | Level control for syrup tanks, milk storage silos, and beverage mixing tanks. |
| HVAC & Boilers | Make-up water control and level protection for expansion tanks, condensate recovery tanks, and boiler feedwater tanks. |
| Marine & Offshore | Level monitoring for ballast tanks, fuel oil tanks, and daily service tanks. |
| Machinery Equipment | Level protection for machine tool coolant tanks, hydraulic reservoir tanks, and central lubrication systems. |
