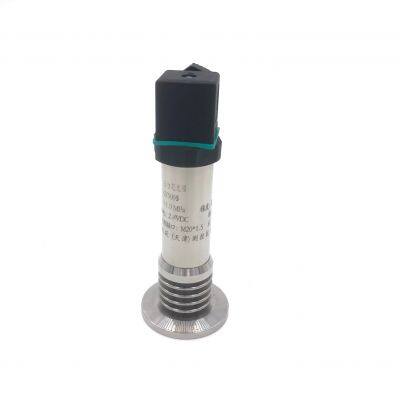

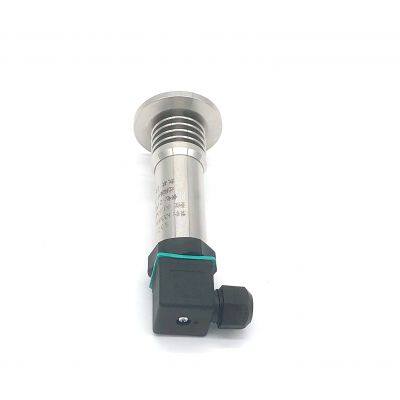

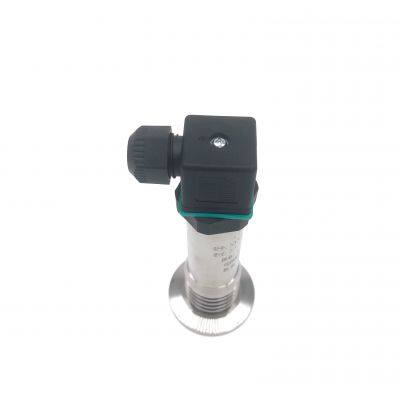

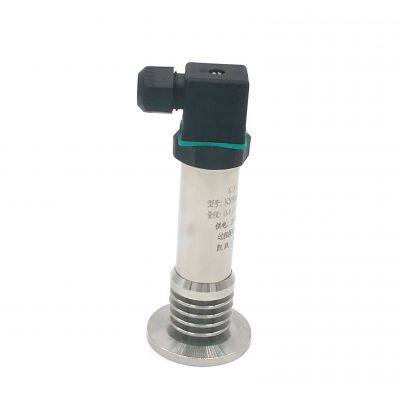

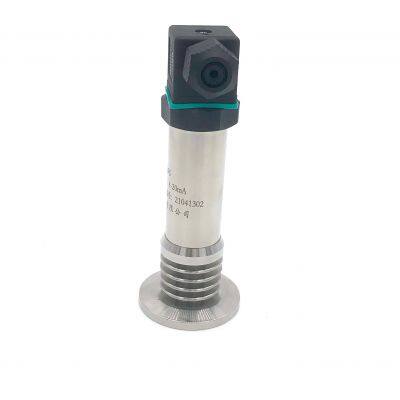

KY5005 Sanitary Pressure Transducer for Food Beverage Industry Hygienic Pressure Sensor 0.1-200MPa IP65 Waterproof
US$ 40
1 - 9 Piece
US$ 38
≥10 Piece
Key Specifications
Get Latest Price
Certification:
CE
Measuring Medium:
Other, liquid ,gas
Accuracy Grade:
Other, 0.5% F.S ,0.2%F.S
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
20 days
Related Products
-
KYUE High Temperature Pressure Transmitter 4-20mA RS485 Output Pressure Sensor for Heating SystemUS$ 72 - 75MOQ: 1 Piece -
Kyue Digital Vacuum Pressure Gauge -100kPa 200MPa 0.05% Accuracy Bar PSI Water Liquid Hydraulic Gas Air Digital Pressure GaugeNegotiableMOQ: 1 Piece
-
KY5006 4-20mA RS485 0-10V LCD Digital Display Pressure Sensor for Gas Hydraulic System on Site Reading Diffused Silicon PiezoresistiveNegotiableMOQ: 1 Piece
-
Kyue IP66 4-20mA High Accuracy Industrial Grade Pressure Transmitter Factory Supply Digital Pressure SensorUS$ 28 - 30MOQ: 1 Piece
-
Kyue IP66 4-20mA RS485 Oil Gas Liquid Pressure Transmitter Factory Supply Digital Pressure TransducerUS$ 28 - 30MOQ: 1 Piece
Certification
CE
Measuring Medium
Other, liquid ,gas
Accuracy Grade
Other, 0.5% F.S ,0.2%F.S
Structure Type
Diffused Silicon Pressure Transmitter
Customized
Customized
Type
Explosion-proof Pressure Transmitter
IP Rating
IP65
Pressure range
Other, -0.1-0-200MPa
Transport Package
carton
Trademark
Kyue
Origin
Tianjin
1. Product Overview
The KY5005 is a professional pressure measurement instrument designed for high sanitary standards and challenging conditions involving scale-prone or complex media. It adopts an integrated 316L stainless steel flat membrane structure, fundamentally addressing industry pain points such as sanitary dead corners, media residue, and clogging commonly found in traditional pressure transmitters.
2.Technical specifications
| Item | Specifications |
|---|---|
| Measuring Range | -0.1 ~ 0 ~ 200 MPa (full range coverage, customizable) |
| Pressure Type | Gauge, Absolute, Sealed Gauge (optional) |
| Accuracy Class | ±0.5% F.S. (standard) / ±0.2% F.S. (high-accuracy option) |
| Output Signal | 4~20mA Two-wire (default), customizable |
| Power Supply | 12~36 VDC |
| Process Connection | 50.5mm Sanitary Clamp (e.g., DIN 11851, customizable) |
| Diaphragm Material | 316L Stainless Steel |
| Seal Material | Fluorocarbon Rubber (FKM) |
| Electrical Connection | Hirschmann Connector |
| Response Time | ≤ 1 ms (to 90% FS) |
| Overload Capacity | 200% of range |
| Operating Temperature | -40℃ ~ +125℃ |
| Protection Rating | IP65 |
| Media Compatibility | Various liquids, gases compatible with 316L stainless steel (non-highly corrosive) |
3. Typical Applications
The KY5005 is precisely focused on industries with stringent requirements for equipment cleanliness, reliability, and media compatibility:
| Industry | Typical Application Scenarios |
|---|---|
| Biopharmaceuticals | Fermentation tank / bioreactor pressure monitoring, filtration systems (UF/MF), CIP/SIP cleaning systems, purified water & WFI systems. |
| Food & Beverage | Filling machines, homogenizers, mixing tanks, pipeline pressure monitoring, CIP stations, beer/beverage brewing and storage tanks. |
| Brewing Industry | Fermentation tanks, storage tanks, pressure monitoring at filter (diatomaceous earth/membrane filter) inlets/outlets. |
| Other Industries | Water treatment (slurries, dosing), pressure measurement in pipelines and vessels for viscous or crystallizing media in light chemical industries. |
4.Please contact us for specific product selection or more detailed documentation.
