Factory Direct Sales of Aoxiang Alloy Saw Blade Tooth Grinding Machine, Fully Automatic Tooth Grinding Machine, Front and Rear Angle Tooth Grinding Machine
US$ 10461.54
1 Unit
US$ 10276.92
2 Unit
US$ 10000
≥3 Unit
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Foshan, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aoxiang Ax900-b2 Fully Automatic Alloy Circular Saw Blade Grinding EquipmentUS$ 8153.85 - 8923.08MOQ: 1 Unit -
Fully Automatic Tooth Grinding Machine for Pcd Diamond Saw Blades, High Efficiency and High Precision, Non - Edm Corrosion, Water - Cooled and SafeUS$ -MOQ: 0 Unit
-
Fully Automatic Finger Joint Knife Sharpening Machine With Automatic Indexing for Finger Joint Blade SharpeningUS$ 5846.15MOQ: 1 Set
-
Aoxiang Ax800-c2 High-end Alloy Saw Blade Rake Angle Grinding MachineUS$ 18153.85MOQ: 1 Set
-
Aoxiang Large Cnc Alloy Saw Blade Tooth Grinding MachineUS$ 30461.54 - 33538.46MOQ: 1 Unit

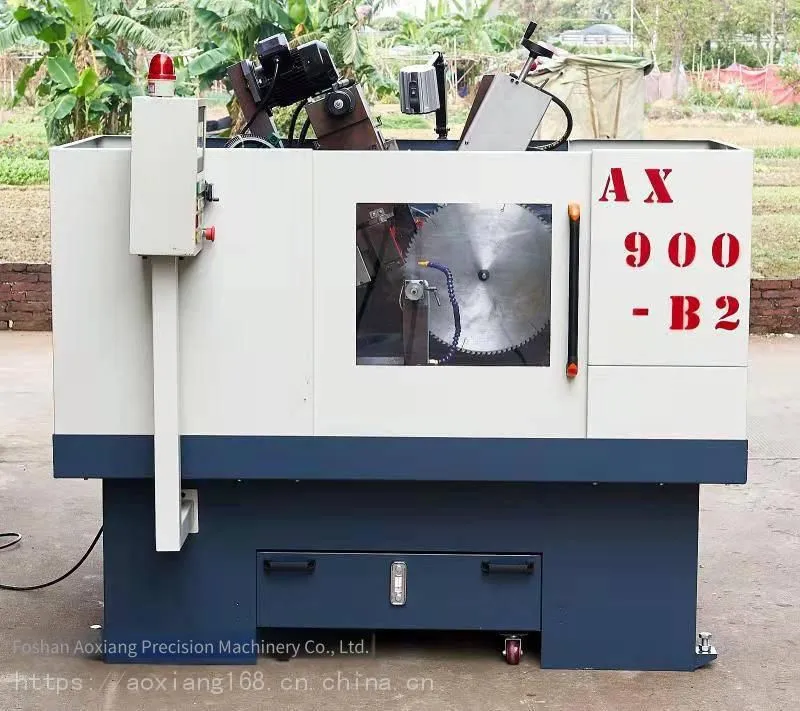

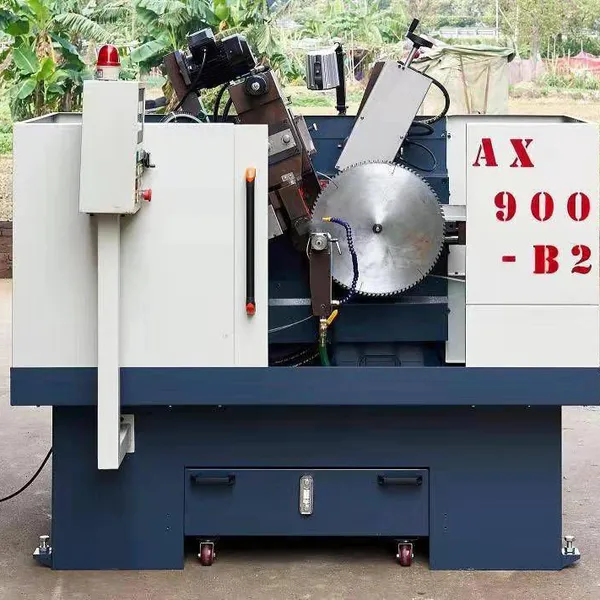

The fully automatic alloy saw blade tooth grinding machine is a mechanical equipment for grinding alloy circular saw blades. It can grind and shape various tooth shapes such as flat teeth, triangular teeth, high-low teeth, trapezoidal teeth,, combined teeth, left and right teeth, left flat and right teeth, etc. included in the rake angle and clearance angle of the alloy saw blade. It is one of the most advanced saw blade grinding equipment in the current market. It is ideal for customers engaged in saw blade grinding. One machine can complete all aspects of saw blade grinding, and work can start without other equipment!
Technical parameters
| Grinding outer diameter: φ80 - φ800mm Saw blade inner diameter: φ10 - φ80mm Number of grinding teeth: 1 - 999 teeth Tooth pitch: 7 - 100mm Saw blade thickness: 8mm Rake angle grinding: -10° to +40° Tooth surface swing angle: -15° to +15° Clearance angle grinding: 6 - 45° Tooth tip swing angle: -45° to +45° Grinding stroke: 1 - 28mm (stepless speed change) Working speed: 18 - 30 teeth/min Grinding wheel outer diameter: φ125mm Grinding wheel inner diameter: φ32mm Grinding wheel rotation speed: 5800/min Cooling device: 50kl/min Total electric power: 1.64kw Machine net weight: 980kg Packing gross weight: 1180kg Machine body size: 1700×1280×1780mm
|
